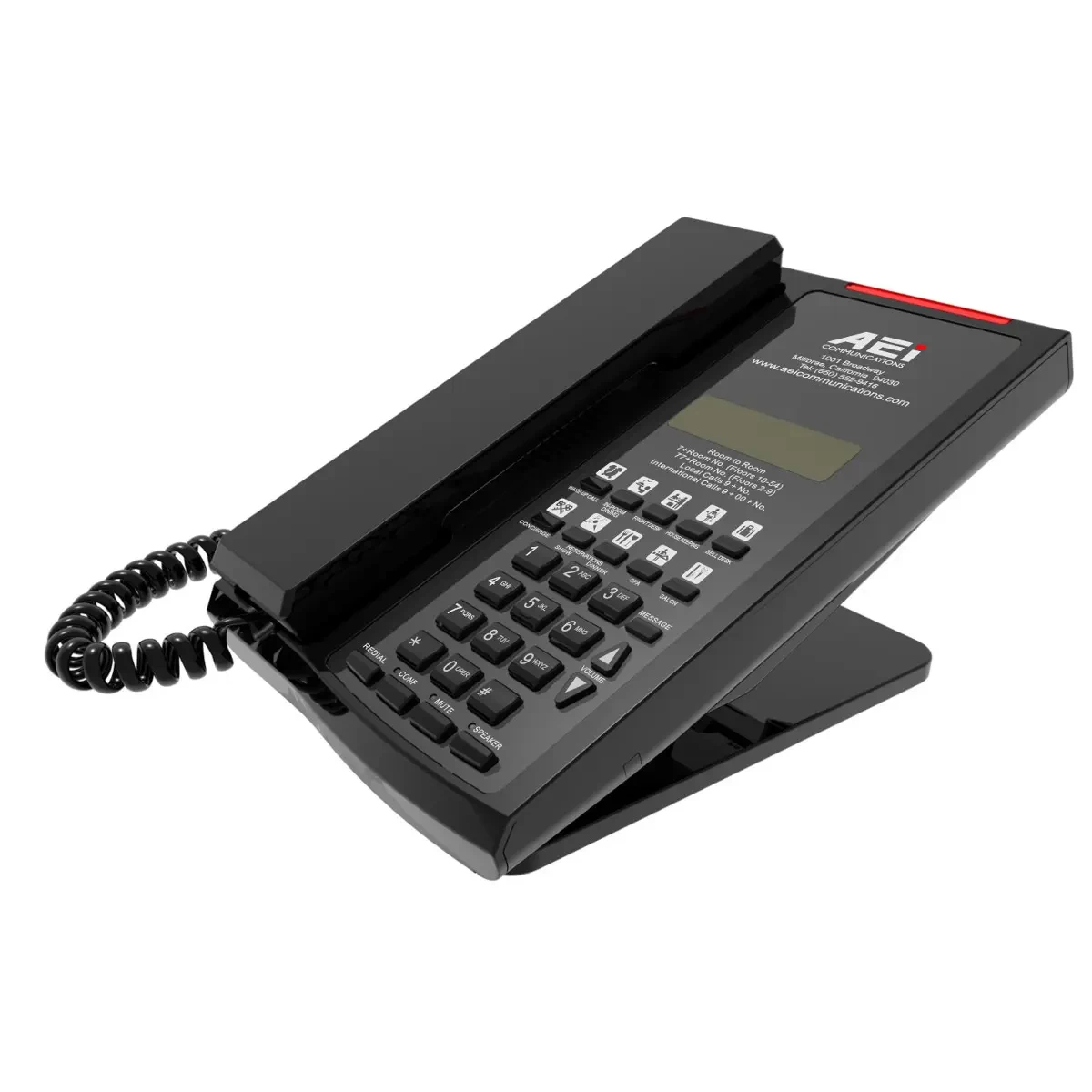

AEI SSP/SMT-9110-S Single-Line IP Corded Speakerphone

Product code: SSP/SMT-9110-S

One-line corded IP speakerphone with DECT
Can be ordered as a Corded/Cordless Base, supporting DECT remote handsets.

Our SSP series of VoIP phones deliver state-of-the-art IP technologies that enable you to unlock the true value of your IP investment. Deploy the SSP series as a feature-rich corded IP phone with a display. Or enable the cordless base functionality to operate DECT handsets off the same base. Perfect for saving money on VoIP port licensing fees!

Easier management, greater guest service, and better cost control are at the heart of every one of AEi’s advanced VoIP solutions.

SEND AN ENQUIRY

Description

• Fully interoperable with all popular hospitality IP PBXs
• 1-line speakerphone with LCD
• Up to ten (10) programmable guest service keys
• ADA-compliant volume control
• Full duplex speakerphone
• Easy management with Web-based GUI & auto-provisioning

Additional information

Codec
G.711, G.729Protocol
HTTP/DHCP server
Static / DHCP IP assignment
ToS / VLAN IEEE 802.1 p/q
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Security
Web authentication for setup
MD5 for SIP authentication
(RFC 2069/ RFC2617)

DTMF
In-Band / Out-of-Band DTMF
(RFC2833) / SIP Info (RFC2976)

Voice Quality
Comfort Noise Generator
Echo canceller: LEC / AEC
Jitter buffer/PLC

Keys
Std. DTMF Dial Pad; Line keys
with red/green LEDs; Hold, Redial,
Message, Volume +/-, Conference,
Mute, Speaker, Speed Dials

Administration
Web GUI configurable
Firmware upgrade via TFTP/HTTP
Auto-provisioning

Power
Standard: PoE module: class 0
Optional: Wall Power

Indicators & Features
Line Status; Hold; Conference; Mute;
Speaker; Message Waiting; Ringing

Jacks
10/100 RJ45 WAN port x 1
DC jack 6V x 1 (w/wall power option)

DECT Master Standard
DECT / GAP compatible
Radio Frequency Range: 1880 – 1930 MHz
US: 1921.536 (ch0) – 1928.448 MHz (ch4)
EU 1881.792 (ch0) – 1897.344 MHz (ch9)
Channel Spacing: 1728 KHz
Bit rate: 1150 Kbit/s
Modulation: GFSK
Voice coding: 16 Kbit/s
Transmit power: 100 mW
Range (outdoors): 300 m (984 ft.)
Range (indoors): 50 m (164 ft.)Faceplate
Durable full length custom plastic

Cords
Line cord (10’ std.)

EMI
USA: Part 15B, 15D
Europe: EN 550221

Safety
Europe: EN 60950-1

EMC
Europe: EN 55024; EN61000-3-2
EN61000-3-3; EN61000-4-2
EN61000-4-3; EN61000-4-4
EN61000-4-5; EN61000-4-6

RoHS
Complies with directive 2002/95/EC
RoHS (2005/613/EC)

Temperature
Storage: -10º C to +60º C
Operating: +5º C to +35º C

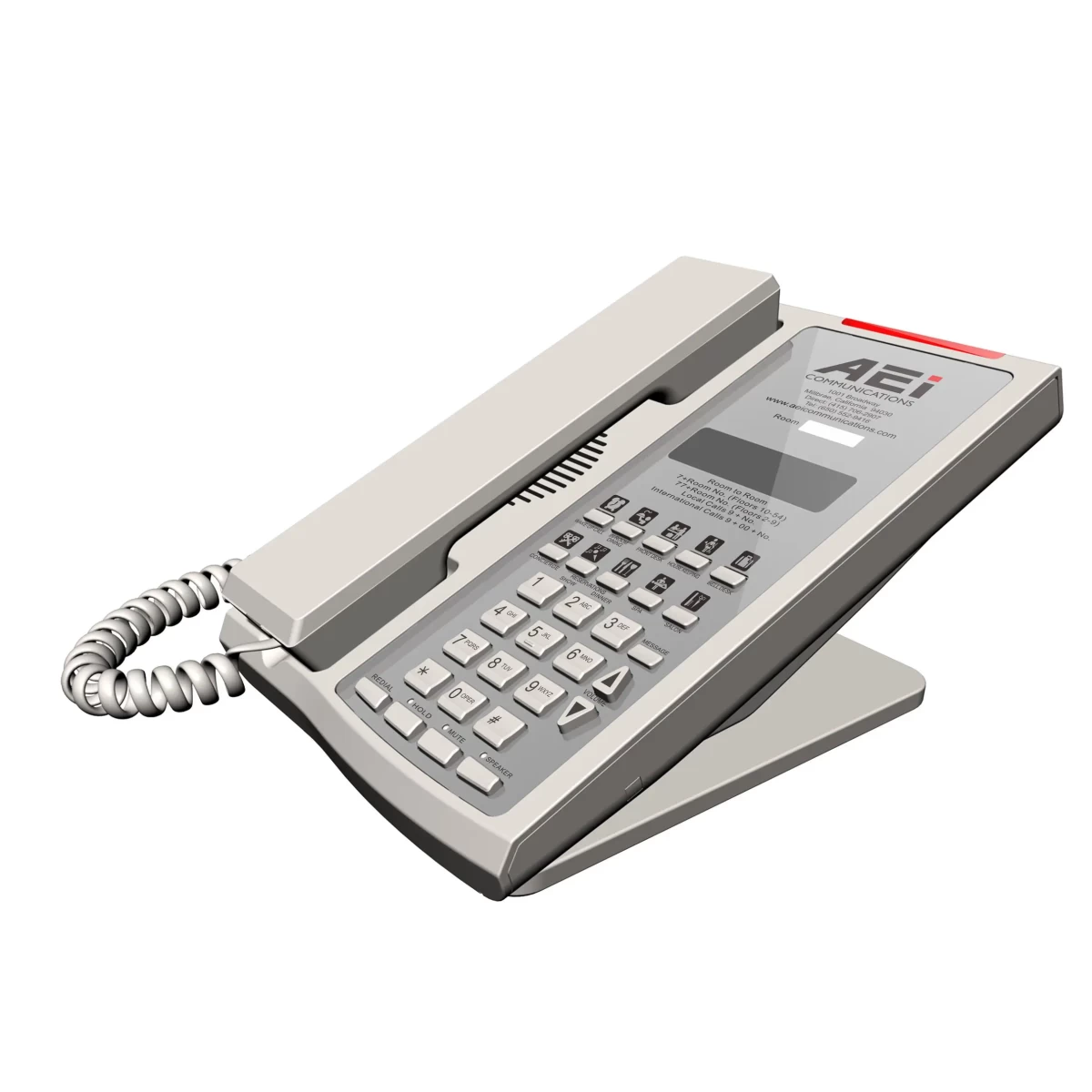

Colors
Black, Ash (Custom colors on request)

Dimensions
230mm(L)x160mm(W)x45mm(H) (9.06″x6.30″x1.75″)

Weight
880g
