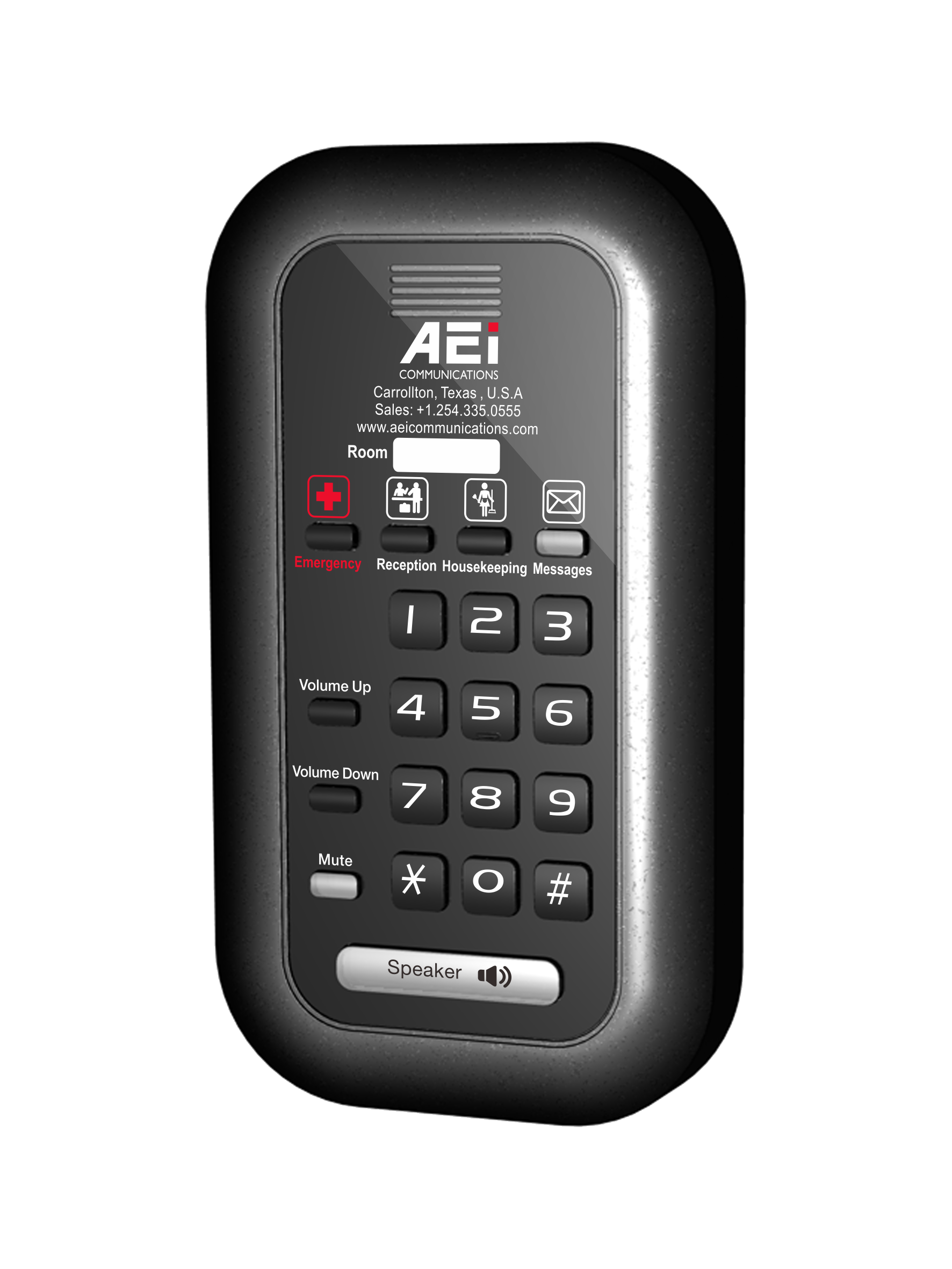

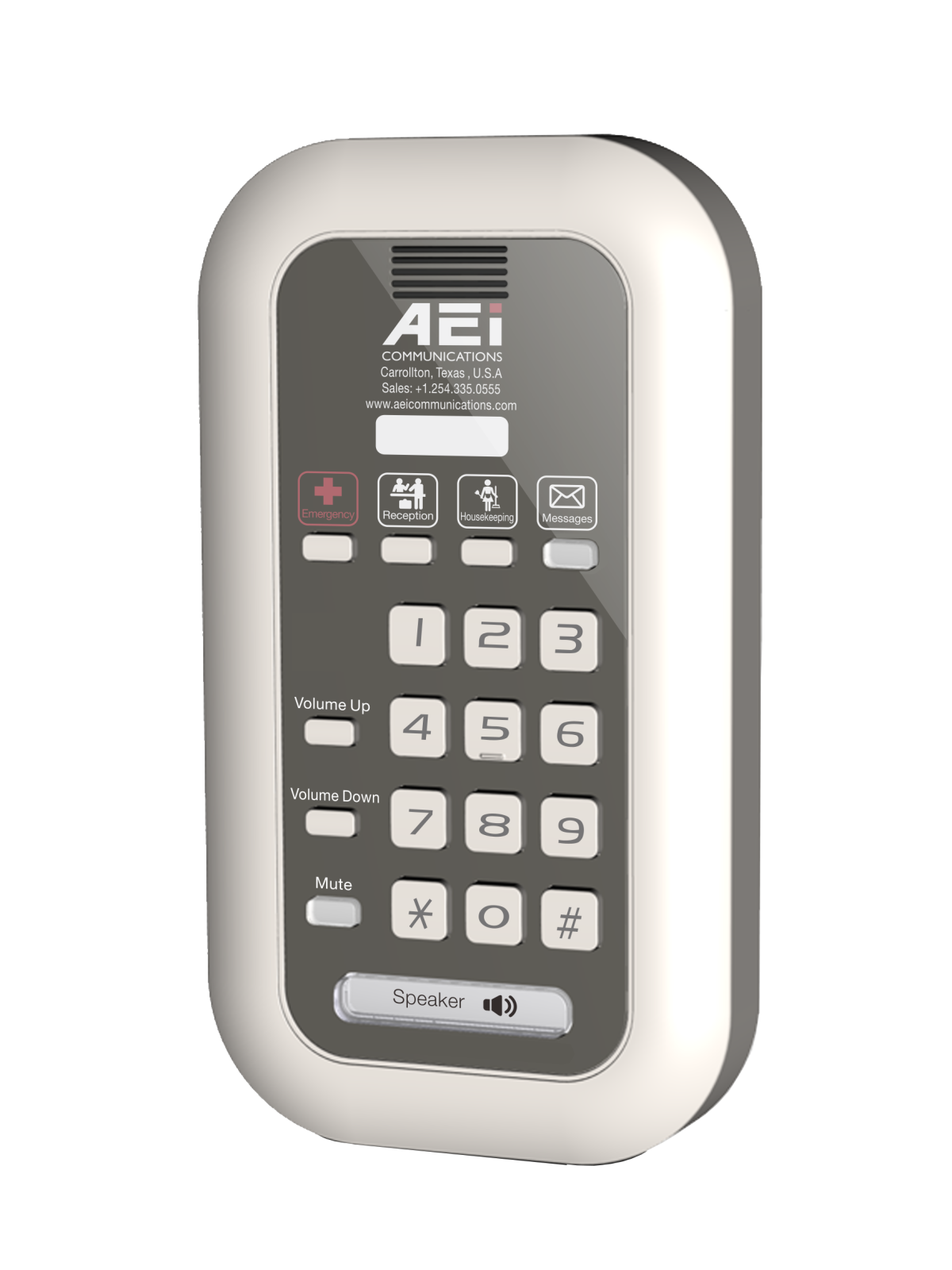

AEI VS-9104-S(S)/VS-9104-S(S)-EW Wall Mount Single-Line IP Speaker Phone

Product code: VS-9104-S(S)/VS-9104-S(S)-EW

Wall Mount Single Line IP Speaker Phone

This Wall Mount Single Line phone is perfect when space is tight, or you don’t need too many services or functions. The elegant design and compact footprint of the VS series make it perfect for elevator lobbies and other public spaces, as well as guest rooms in limited-service properties, or as additional phones in suites.

It’s wall mountable for great flexibility. The VS series is a perfect way to round out your offering!

Brand: AEI Communications SEND AN ENQUIRY DOWNLOAD FILES pdf file


• Single Line IP Phone
• Full Duplex Speakerphone
• Four (4) Guest Service Keys
• Mute , Volume Up , Volume Down
• Wall Mountable Speaker Phone
• Emergency cord with button (Optional)
• Room Number Displayed on Faceplate
• Message Waiting & Ring Indicator on Base
• Customizable Hotel Logo and Dialing Instructions on Faceplate

Additional information

AC Adaptor : Input 100~240VAC ,Output :5V/1.5A POE : IEEE802.3af

10/100 RJ45 LAN Port

180mm(L)x100mm(W)x28.5mm(H) (7.08″x3.93″x1.12″

228 g

Easy Administration
Web Based speed-dial key setting for m1-m4
Firmware Upgrade via Web
Auto Provisioning

G.711 (a-law,u-law)

Network Protocol
Telnet / http Server / DNS Client
PPPoE / Static / DHCP Client IP assignment.
ToS field / VLAN IEEE 802.1 p/q
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP V2 (RFC3261)

Web Login authentication for web setup
MD5 for SIP authentication (RFC2069/ RFC2617)

Voice Quality
Jitter Buffer/PLC

USA: FCC Part 15B,D ICES-003 EU: EN 55022

EU: EN 55024, EN 61000-4-4, EN 61000-3-2, IEC 61000-4-5
EN 61000-3-3, IEC 61000-4-6, EN 61000-4-2, IEC 61000-4-11

Comply with directive 2002/95/EC RoHS (2005/613/EC)

Storage: -10ºC to +60ºC
Operating: +5ºC to +35ºC
