Edbak SV01 Desktop Mount For 10″-29″ Screens
Product code:SV01 is a universal desk mount for 10″-29″ screens, designed for desk work ergonomics in both office and home spaces. Easy tilting of the screen by -50° to +50° and the option of 360° screen rotation allow the user to obtain optimum adjustment of the screen and the maximum comfort. Two types of fastenings and the option of screen height adjustment ensure comfort and optimise the workplace. Cable management is integrated in the SV01 mount, which ensures smart installation on the desk.
SEND AN ENQUIRYDescription
- 2 types of fastenings included
- Screen height adjustment
- Option of screen tilting by -50° to +50°
- 360° screen rotation
- Tilting and rotation adjustment

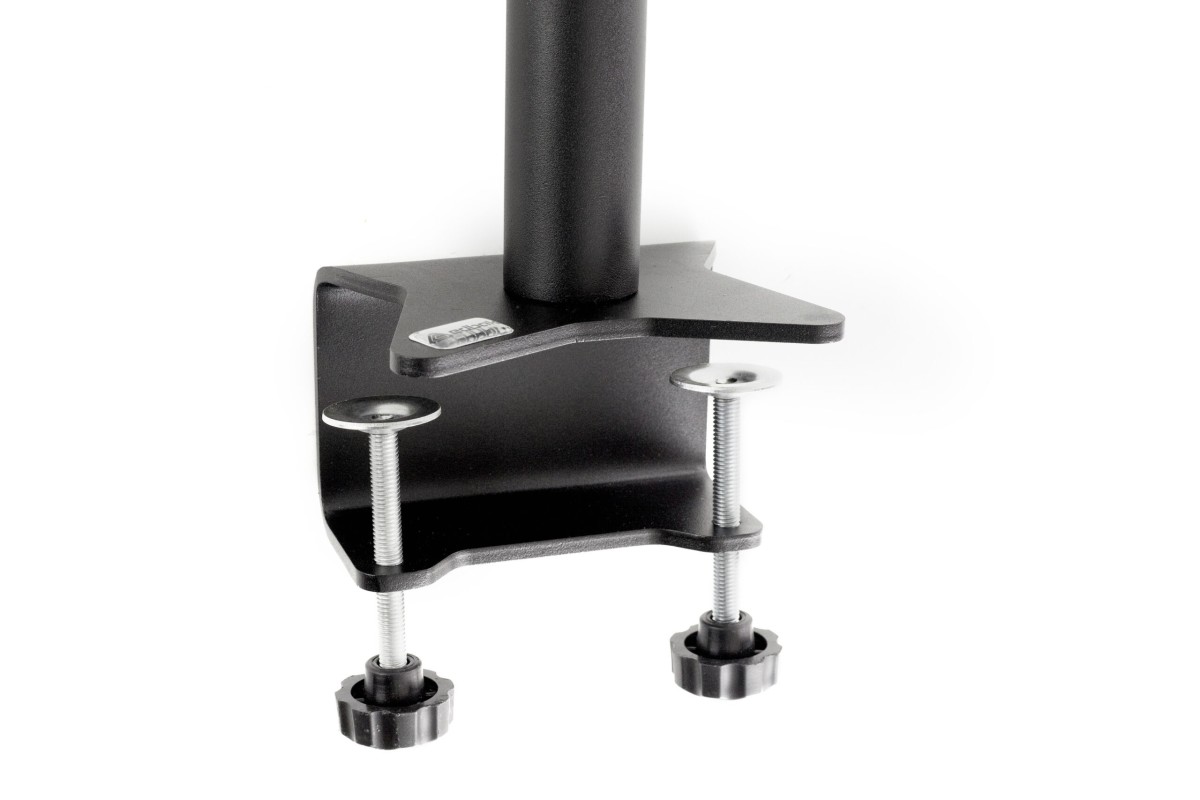

- 2 types of desk fastenings
- Universal VESA system

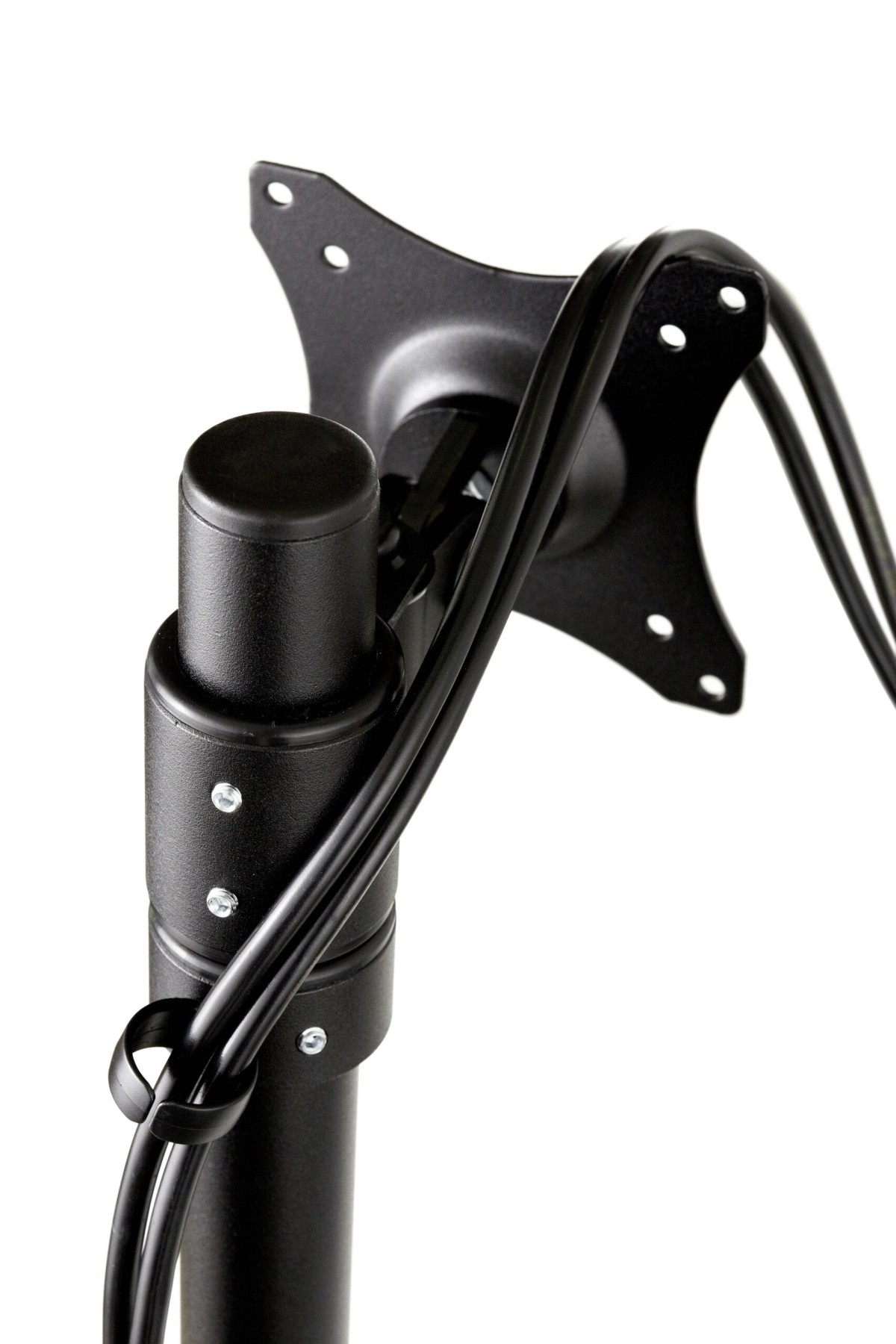

- Cable management
Additional information
Product Specifications
| Index: | SV01 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 10″ |
| Maximum screen size: | 29″ |
| Forward tilting: | -50° |
| Forward tilting: | +50° |
| Arm rotation: | 360° |
| Left-right rotation: | 360° |
| Maximum load: | 10 kg |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 170 mm D: 120 mm H: 500 mm
(W: 4,72″ D: 6,69″ H: 19,69″) |
| Product weight: | 2,8 kg (6 lb) |
| Max. distance from mounting surface: | 376 mm (14,80″) |
| Min. distance from mounting surface: | 100 mm (3,94″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| SAP Index: | WUBI-SV01c-B |
| EAN Code: | 5902841103122 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
