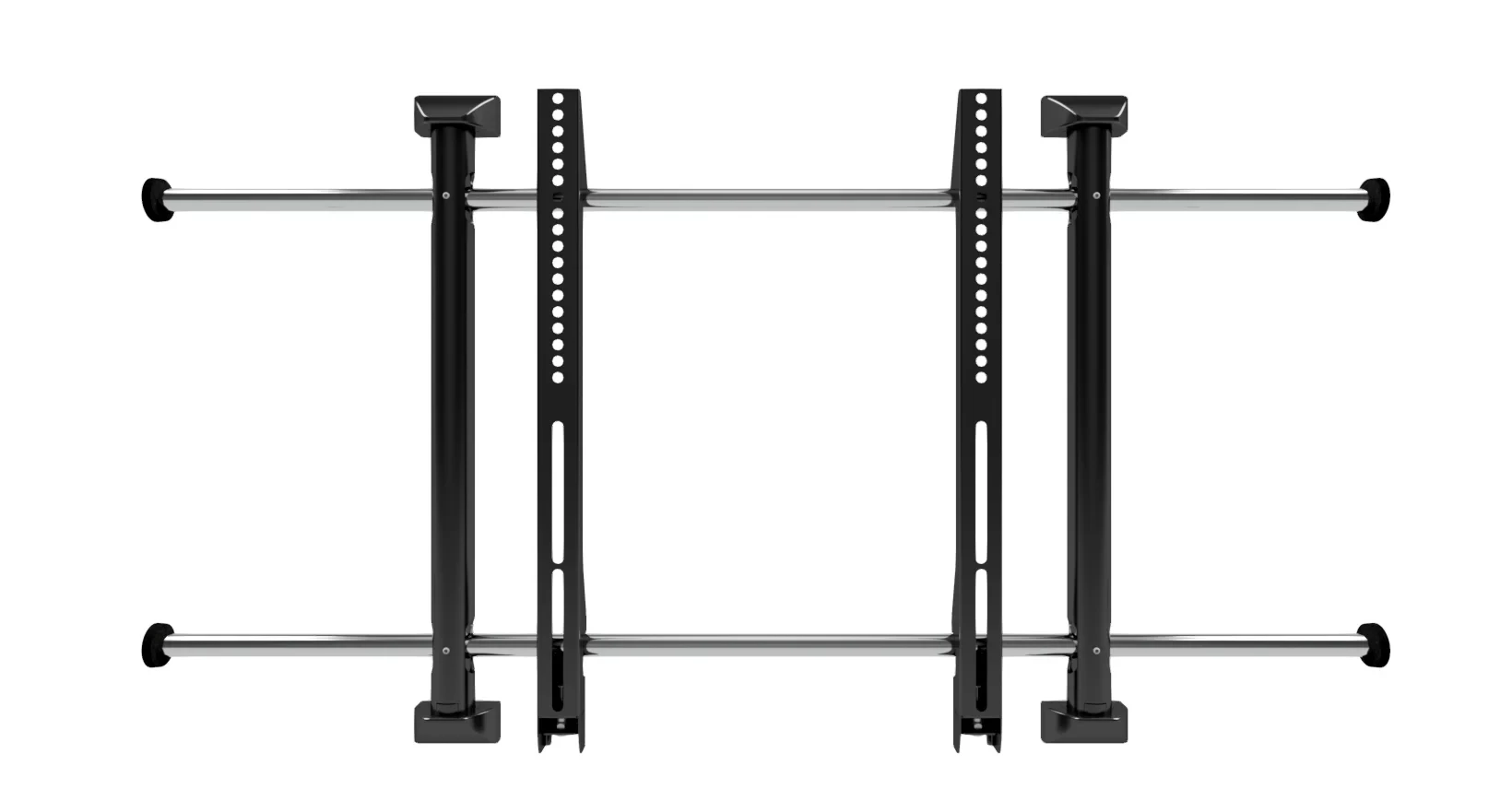

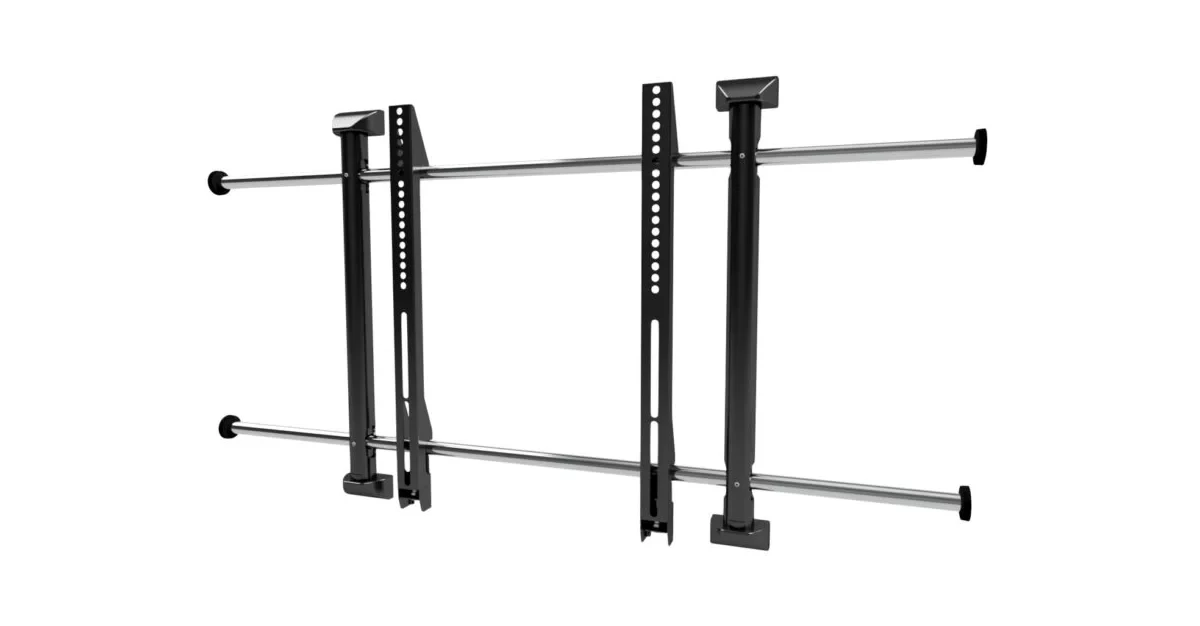

Edbak PWM500 Universal Fixed Wall Mount with height adjustment for 43"-85"

Product code: PWM500

The PWM500 mount is designed for mounting large-size screens.
Thanks to its minimalist design, the product has a
extraordinary functionality. The ease of installation makes it very
Easy to use on all types of wall surfaces. Security
The screen from falling, solid finish and at the same time
modern design allow the PWM500 to be used in halls
Conference rooms, waiting rooms or public places.



  • Sturdy construction for a load capacity of up to 80 kg
  • Screen protection against drops
  • Screen fixing screws included
  • Simple and quick installation
  • Suitable for installation on brick, concrete, plaster and wood walls
  • Minimalist design and functionality
  • Modern design

Additional information

Product Specifications

Warranty:Limited 5-years
Number of screens:1
Minimum screen size:43″
Maximum screen size:85″
Maximum load:80 kg
VESA Mounting Compatibility:50×50 to 800×400

Technical Specifications

Product dimensions:W: 950 mm D: 46 mm H: 519 mm (W: 37.2″ D: 1.81″ H: 20.43″)
Product weight:5.6 kg (12.34 lb)
Max. distance from mounting surface:46 mm (1.81″)
Min. distance from mounting surface:46 mm (1.81″)
spacing of fixing screws of the device:
910 mm x 460 mm
spacing of the device fixing screws:
50 mm x 50 mm

Logistics Data

EAN Code:5902841106420
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
