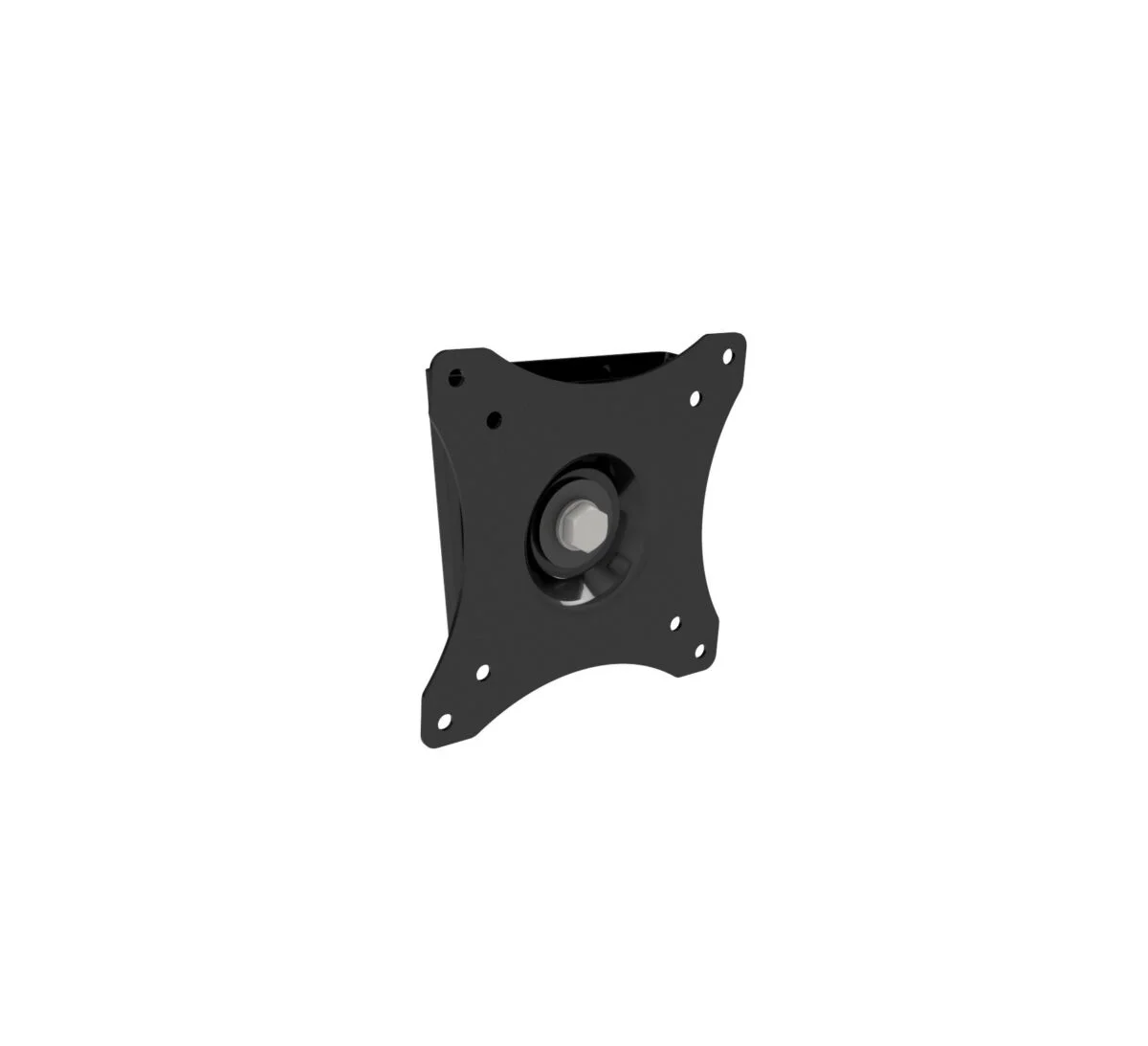

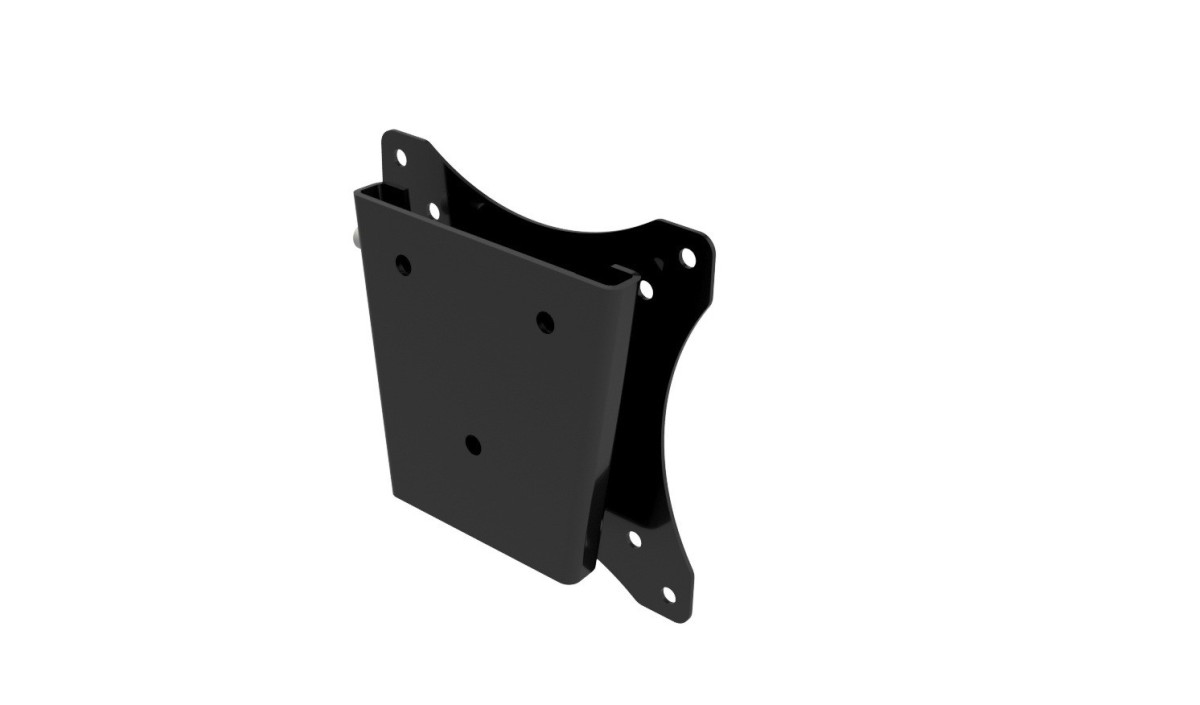

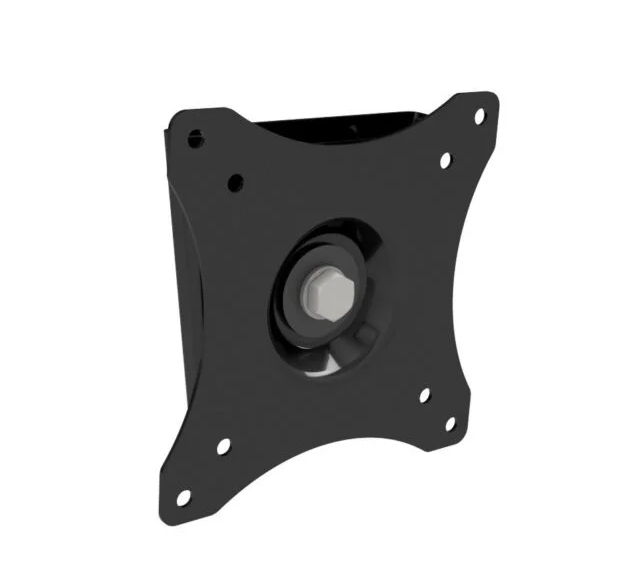

Edbak GD03 Pivoting Wall Mount for 10″-29″ Screens

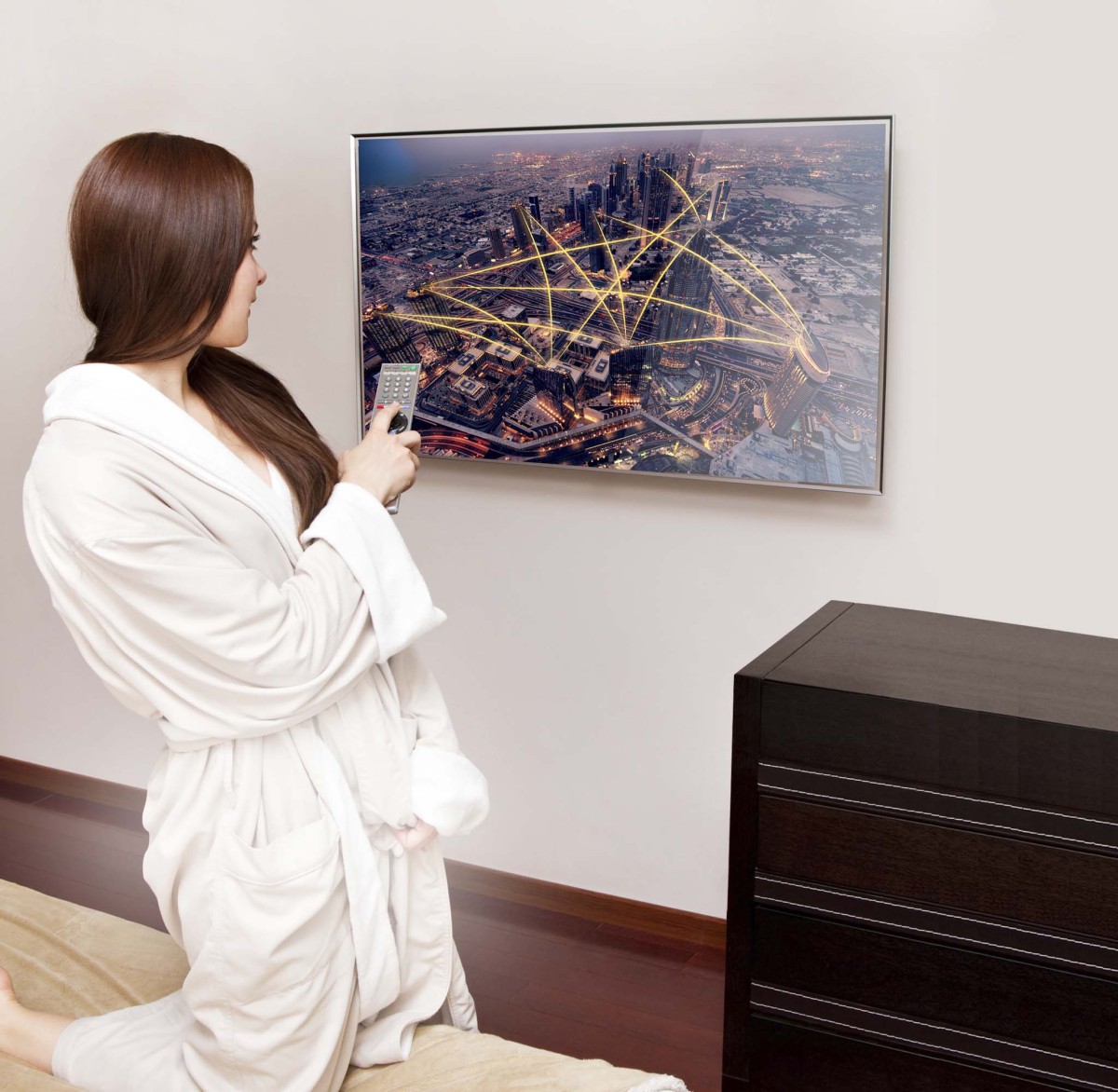

Product code:Typical universal wall mount for small screens. It’s simple design makes it quick and easy to install on walls of various structures. 360 ° rotation and a minimum distance of 25 mm from the wall make it extremely functional. GD03 occupies a small area and has the option of positioning the screen vertically or horizontally. Modern design and high-end finish will meet the most demanding customers’ expectations. GD03 is a mount perfect to screen installation in a hotel room or in a small waiting room.
SEND AN ENQUIRYDescription
- 360° screen rotation
- Minimum distance: 25 mm
- Safety feature
- Modern design with high-end finish
- Easy and quick installation by one person
- Lock screw to prevent unauthorised screen removal
Additional information
Product Specifications
| Index: | GD03 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 10″ |
| Maximum screen size: | 29″ |
| Maximum load: | 10 kg |
| VESA Mounting Compatibility: | 75×75 up to 100×100 |
Technical Specifications
| Product dimensions: | W: 115 mm D: 25 mm H: 115 mm (W: 4,53″ D: 0,98″ H: 4,53″) |
| Product weight: | 0,5 kg (1 lb) |
| Max. distance from mounting surface: | 25 mm (0,98″) |
| Min. distance from mounting surface: | 25 mm (0,98″) |
| Max. mounting pattern: | 100 mm x 100 mm |
| Min. mounting pattern: | 75 mm x 75 mm |
Logistics Data
| Index: | WUSC-GD03c-B |
| EAN Code: | 5902841103467 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
