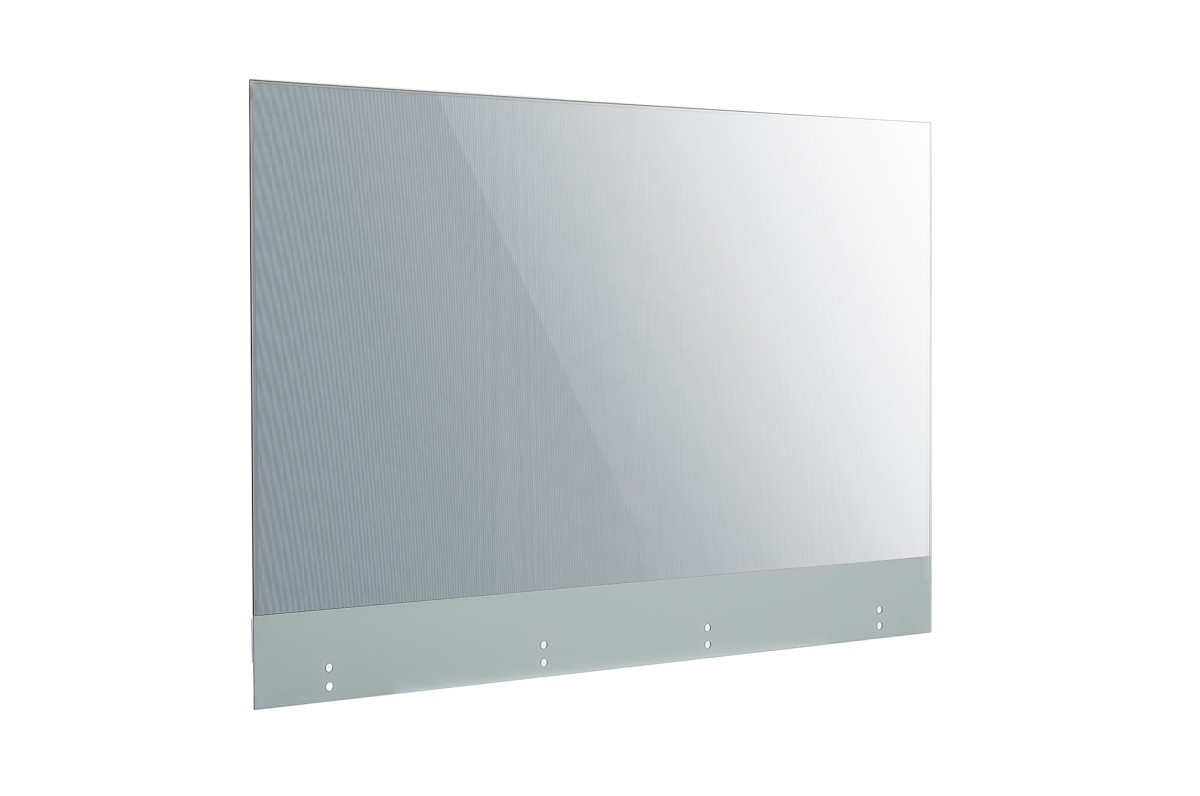

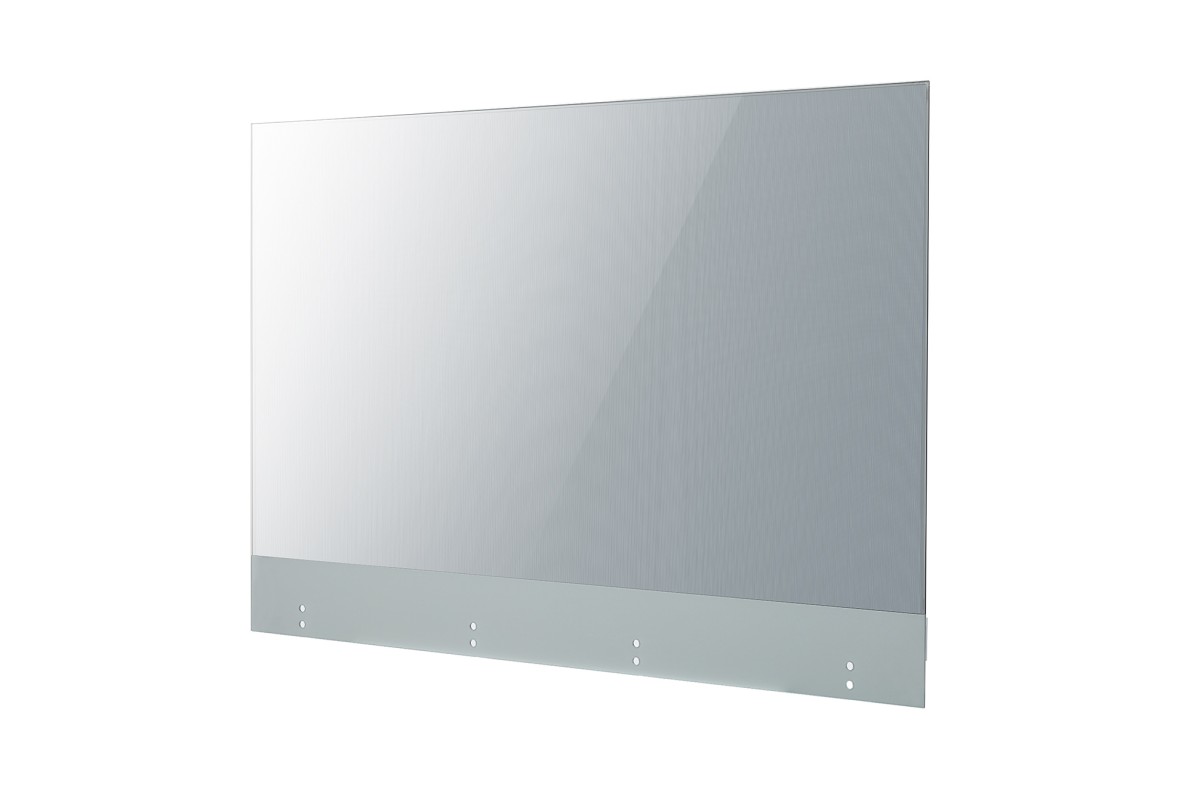

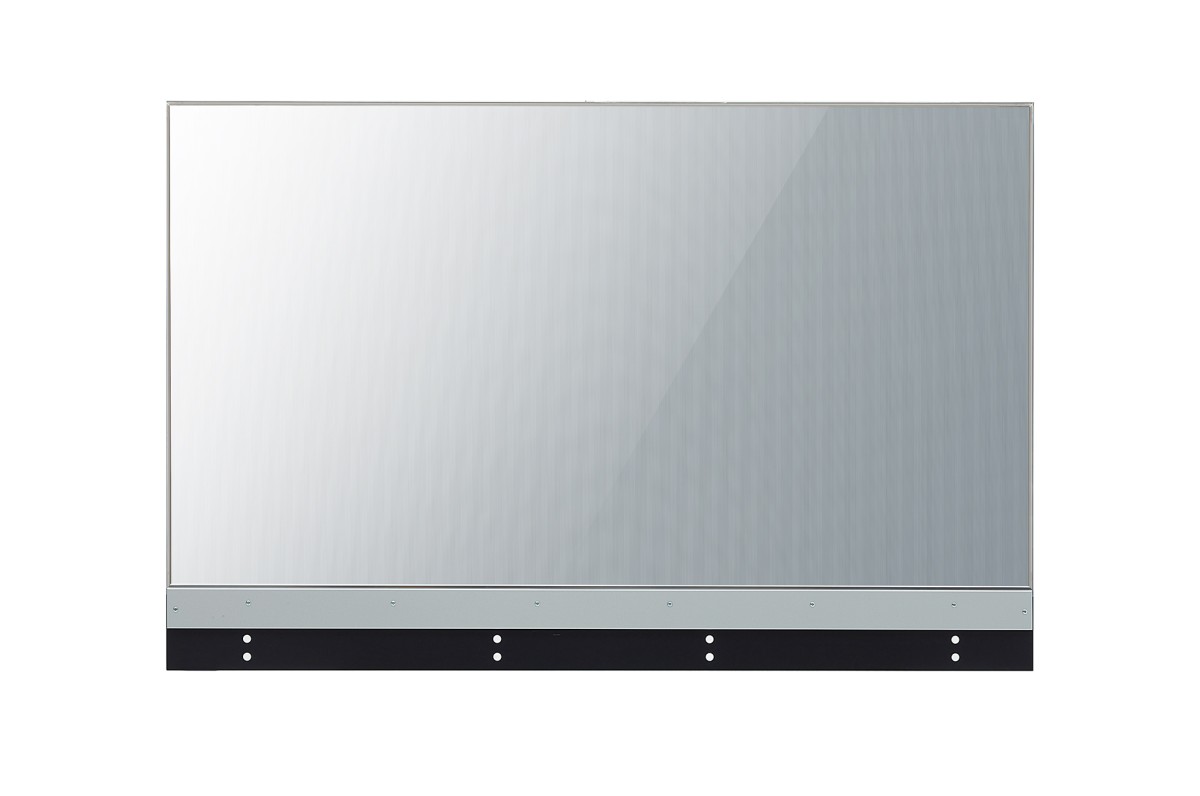

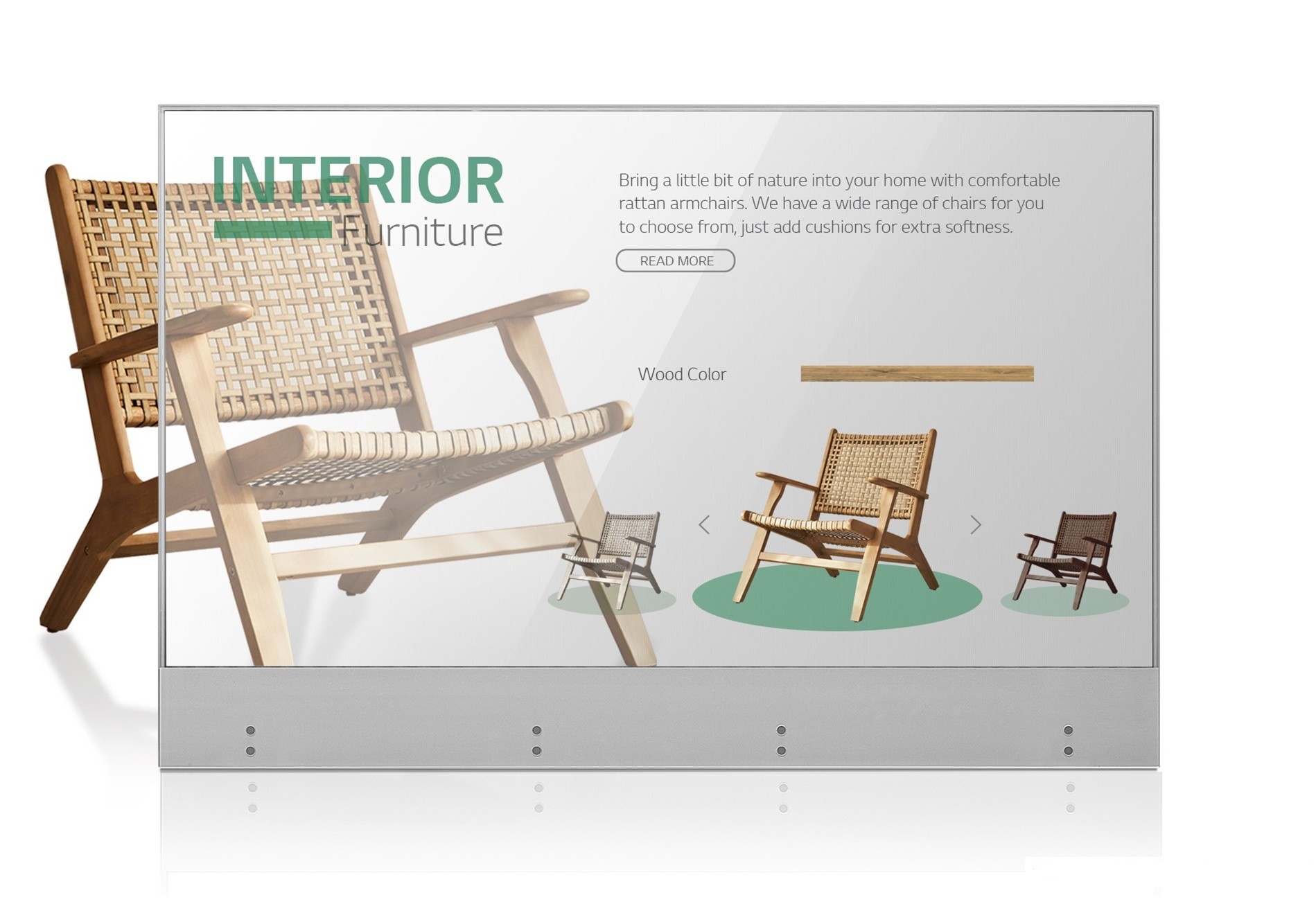

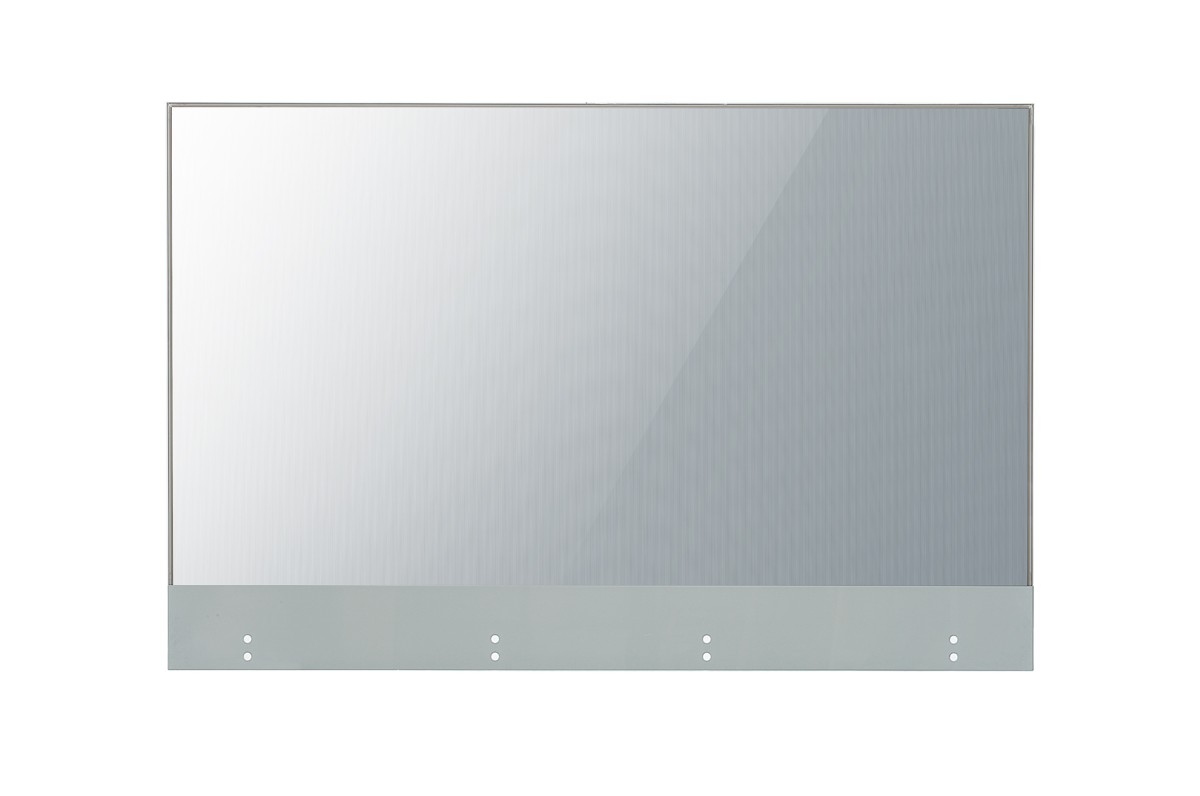

LG 55EW5G-V Transparent OLED Digital Signage
Product code:LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.
Description
Panel
| Screen Size | 55" |
|---|---|
| Panel Technology | OLED |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Refresh Rate | 120 Hz |
| Brightness | 150/400nit (APL 100%/25%, Without Glass) |
| Contrast Ratio | 150,000 : 1 |
| Viewing Angle (H x V) | 178 × 178 |
| Response Time | 1ms (G to G), 8ms (MPRT) |
| Life Time (Typ.) | 30,000 Hrs |
| Operation Hours (Hours / Days) | 18 / 7 (Moving Content Only) |
| Portrait / Landscape | Yes / Yes |
| Transparency (Typ.) | 38% (SET) |
Additional information
Mechanical Specification
| Bezel Color | Transparent |
|---|---|
| Bezel Width | 7.9 / 7.9 / 7.9 / 121.7mm (T / R / L / B) |
| Weight (Head) | 11.6Kg (Head) 3.4Kg (Signage Box) |
| Packed Weight | 23.1Kg |
| Monitor Dimensions (W × H × D) | 1,225.5 x 810.1 x 7.0mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box) |
| Carton Dimensions (W × H × D) | 1,345 x 920 x 207mm (Box outer size) |
| Protection Glass (Depth) | 3.0 mm |
| Protection Glass (Tempered / Chemical Strengthening) | Chemical Strengthening |
| Protection Glass (Anti-Reflective) | Film |
| Protection Glass (Shatter-Proof) | Yes |
Connectivity
| Input | HDMI, DP, USB 2.0 Type A |
|---|---|
| Output | DP, Audio |
| External Control | RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver) |
Features
| HW | Temperature Sensor |
| SW | Fail over, Screen Rotation, External Input Rotation, Tile Mode Setting, |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 250 W / 280 W |
|---|---|
| BTU (British Thermal Unit) | 853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max.) |
Standard (Certification)
| Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes |
Software Compatibility
| SuperSign CMS | Yes |
|---|---|
| SuperSign Control / Control+ | Yes |
| SuperSign WB | Yes |
| SuperSign Media Editor | Yes |
| LG ConnectedCare | Yes |
Accessory
| Basic | Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5, 20EA), Shield Cover Assy', Rubber Damper 4EA, MCX cable Holder 4ea |
|---|---|
| Optional | Stand (ACC-S-EW5F, 2 Pole) |
