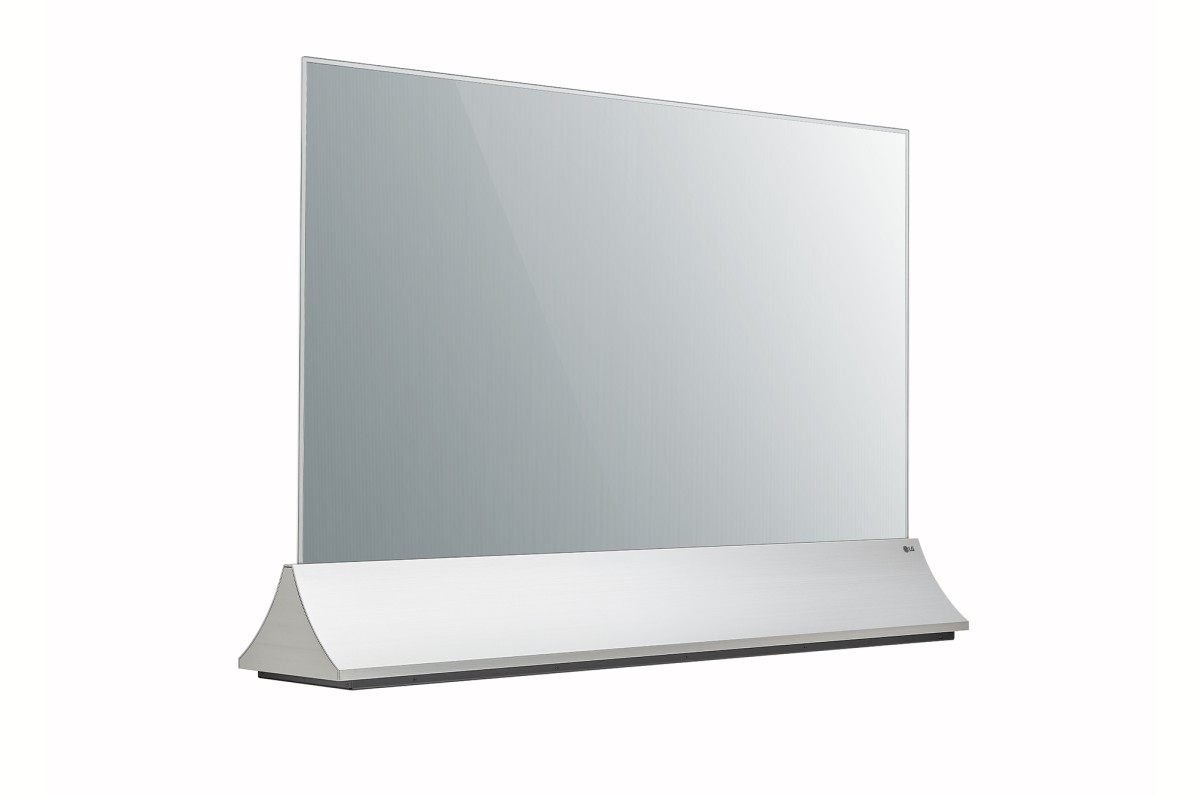

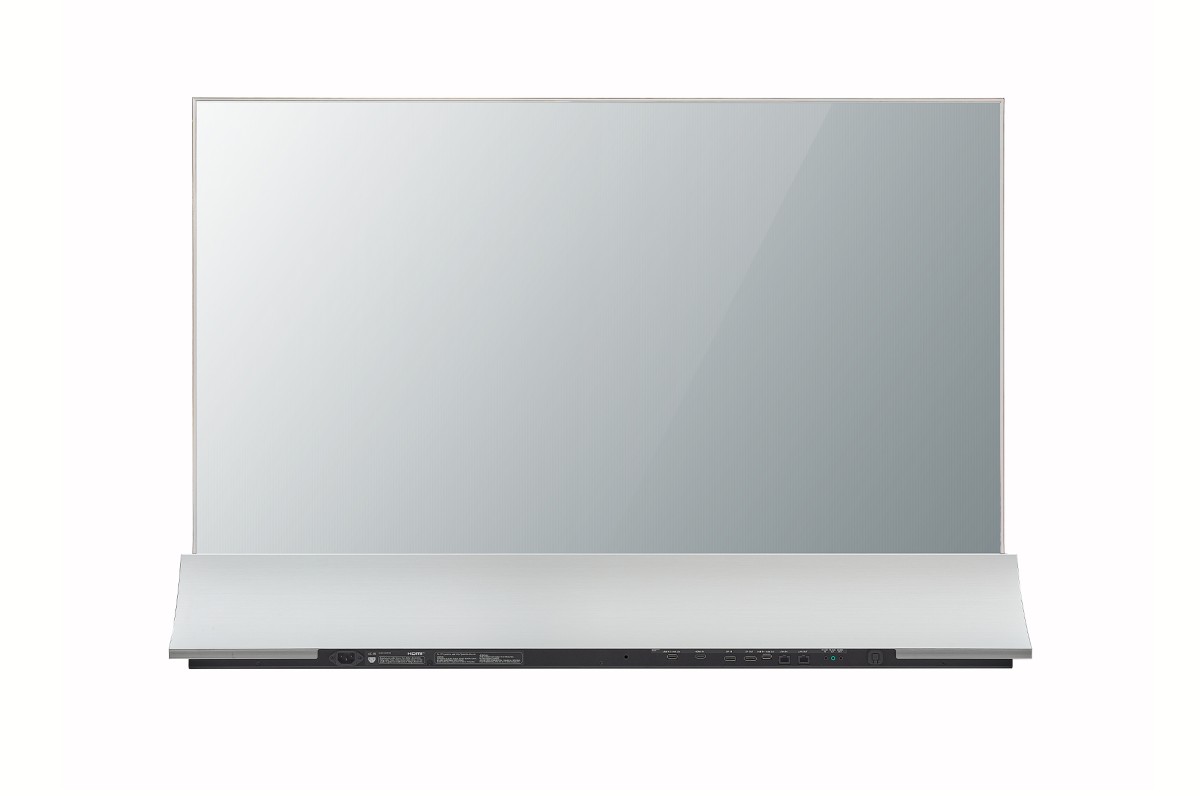

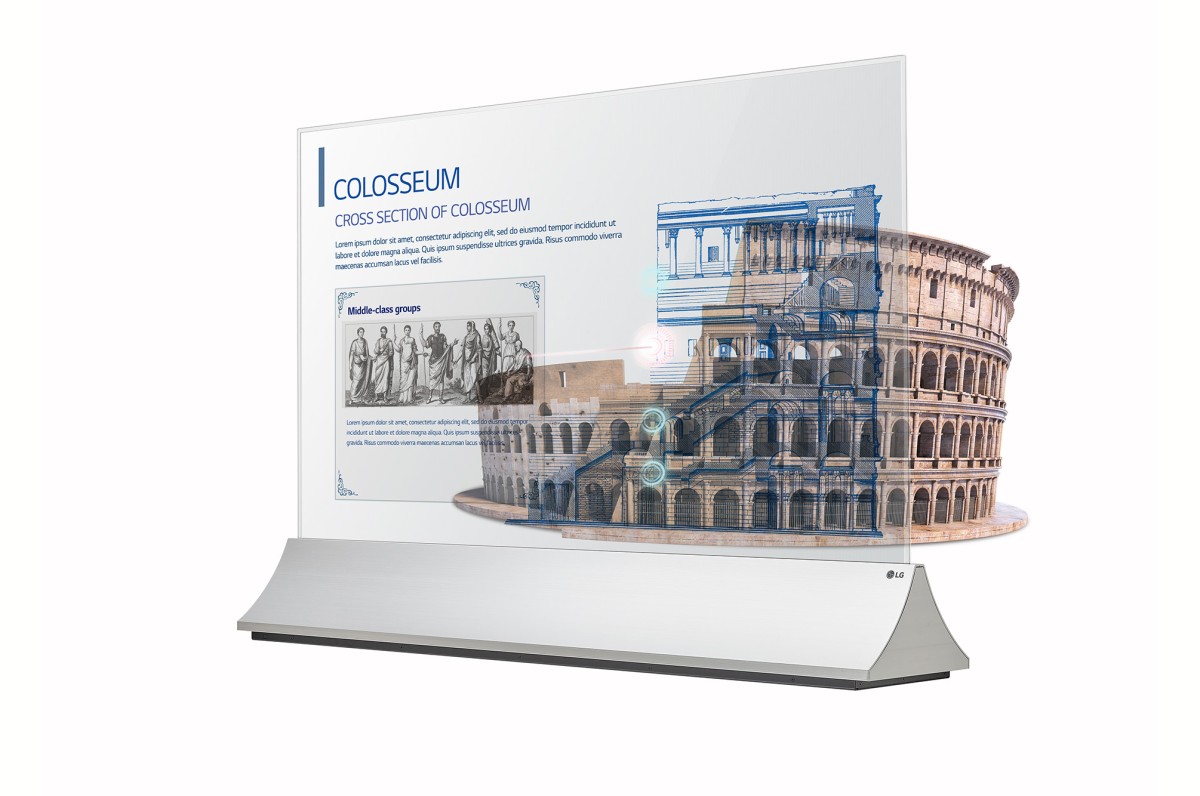

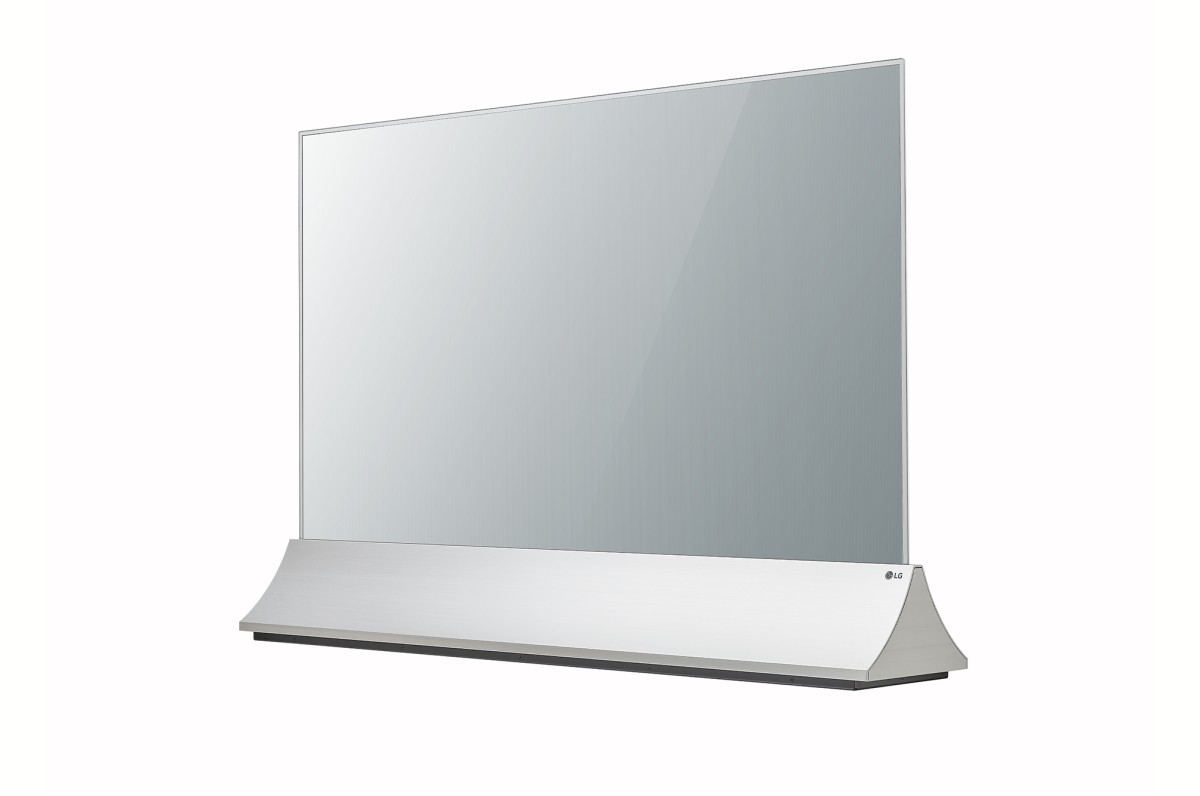

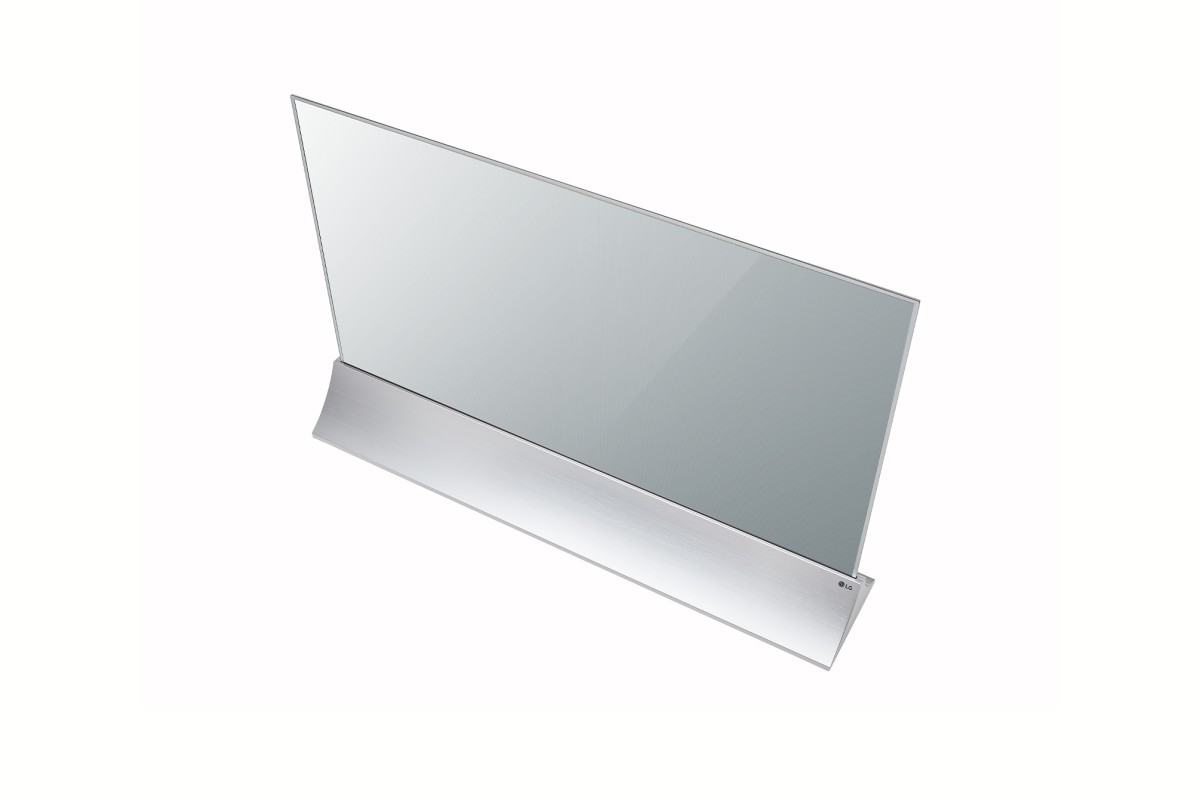

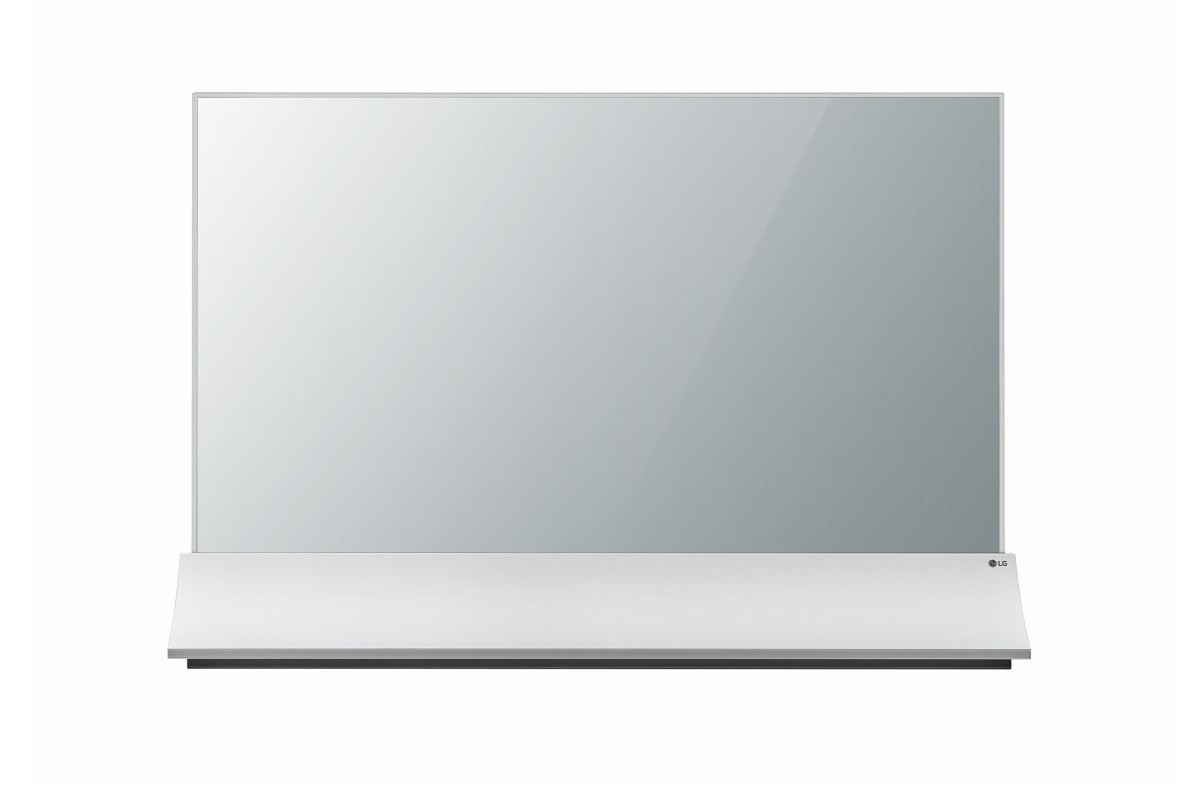

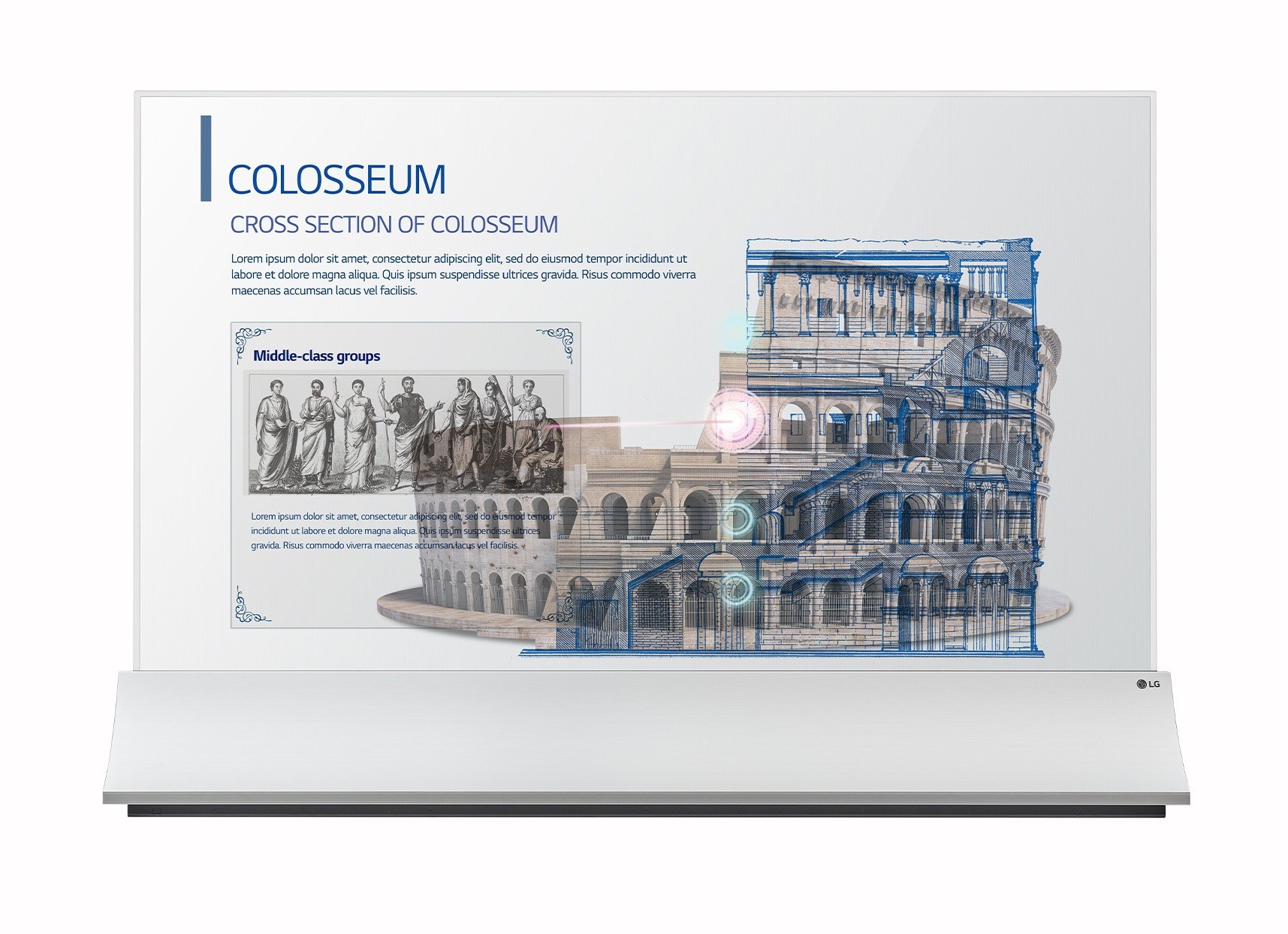

LG 55EW5PG-S Transparent OLED Digital Signage
Product code:LG's alluring display concept takes a step forward. The transparent OLED with an alluring stand maintains the tone and manner of the design in harmony with its surroundings rather than dominating your space.
Description
Panel
| Screen Size | 55" |
|---|---|
| Panel Technology | OLED |
| Native Resolution | 1,920 X 1,080 (FHD) |
| Brightness | 150/400 nit (APL 100% / 25%, Without Glass) |
| Contrast Ratio | 150,000 : 1 |
| Dynamic CR | No |
| Color gamut | BT709 120% |
| Viewing Angle (H x V) | 178 × 178 |
| Color Depth | 10bit(R), 1.07Bilion colors |
| Response Time | 1ms (G to G), 8ms (MPRT) |
| Surface Treatment (Haze) | Hard Coating (2 H) |
| OS | Web OS |
| Operation Hours (Hours / Days) | 18 / 7 (Moving Content Only) |
| Portrait / Landscape | Yes |
| Transparency (Typ.) | 38% (SET) |
Additional information
Mechanical Specification
| Bezel Color | Transparent |
|---|---|
| Bezel Width | 7.9 / 7.9 / 7.9/ 168.6 mm (T/R/L/B) |
| Weight (Head) | 28.3Kg |
| Monitor Dimensions (W × H × D) | 1,256.2 x 856.9 x 242 mm |
| Monitor Dimensions with Stand (W × H × D) | No |
| VESA™ Standard Mount Interface | No |
| Protection Glass (Depth) | 3.0 mm |
| Protection Glass (Tempered / Chemical Strengthening) | Yes (Chemical strengthening) |
| Protection Glass (Anti-Reflective) | Yes (Film) |
| Protection Glass (Shatter-Proof) | Yes |
Connectivity
| Input | HDMI (HDCP1.4), DP (HDCP1.3), USB 2.0 Type A (2) |
|---|---|
| Output | DP, Audio |
| External Control | RS232C In / Out (w/ IR Out), RJ45 (LAN) In / Out, IR In No( Internal IR Receiver) |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10% to 80% |
Power
| Power Supply | AC 100-240 V ~, 50/60 Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 250 W / 280 W |
|---|---|
| BTU (British Thermal Unit) | 853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max) |
Certification
| Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes |
Media Player Compatibility
| OPS type compatible | No |
|---|---|
| OPS Power Built In | No |
Software Compatibility
| SuperSign CMS | Yes (v3.0) |
|---|---|
| SuperSign Control / Control+ | Yes (v1.7 / v1.9) |
| SuperSign WB | Yes (v3.7.15) |
| SuperSign Media Editor | Yes (v3.7) |
| LG ConnectedCare | Yes (v2.9) |
Accessory
| Basic | Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, HDMI Cable(3M), Cable Holder 2EA |
|---|
