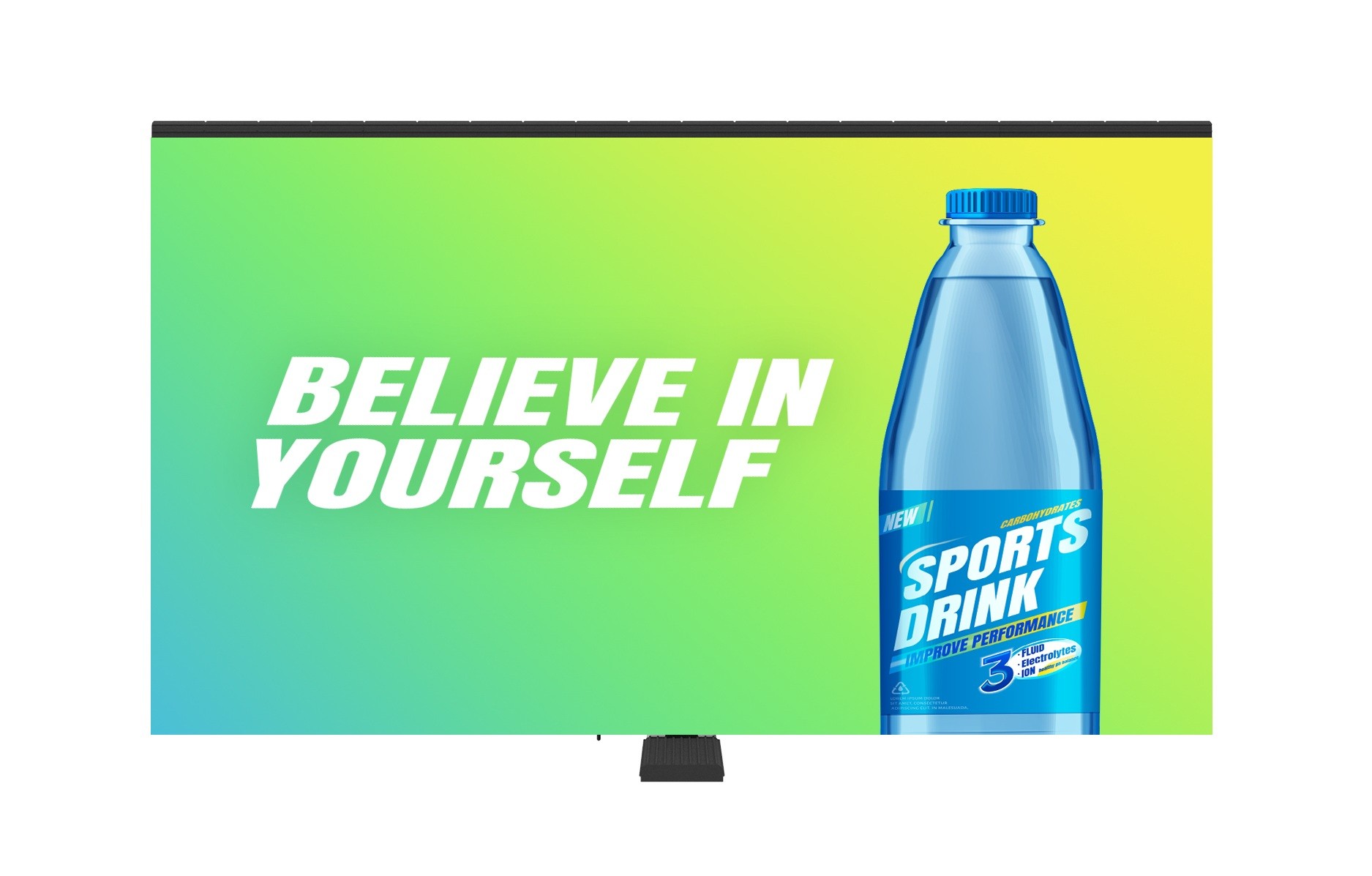

LG LBB100DD3 LED 10.00 Pixel Pitch Stadium Series (Perimeter)
Product code:- Pixel Pitch: 10.00 mm
- Brightness: 6,000 cd/m²
- Qualified for UEFA Criteria
- Quick Maintenance
- IP65 Weatherproof Design
Description
Physical Parameter
| Pixel Configuration | 3 in 1 SMD |
|---|---|
| Pixel Pitch (mm) | 10.00 |
| Module Resolution (W x H) | 40 × 15 |
| Module Dimensions (W x H, mm) | 400 × 150 |
| Weight per Module (kg) | 1.00 |
| No. of Modules per Cabinet (W × H) | 4 × 6 |
| Cabinet Resolution (W × H) | 160 × 90 |
| Cabinet Dimensions (W × H × D, mm) | 1,600 × 900 × 124 |
| Cabinet Surface Area (m²) | 1.440 |
| Weight per Square Meter (kg/m²) | 45.1 |
| Weight per Cabinet (kg/cabinet) | 65.0 |
| Physical Pixel Density (pixels/m²) | 10,000 |
| Flatness of Cabinet | ±0.5 mm |
| Cabinet Material | Aluminum Profile |

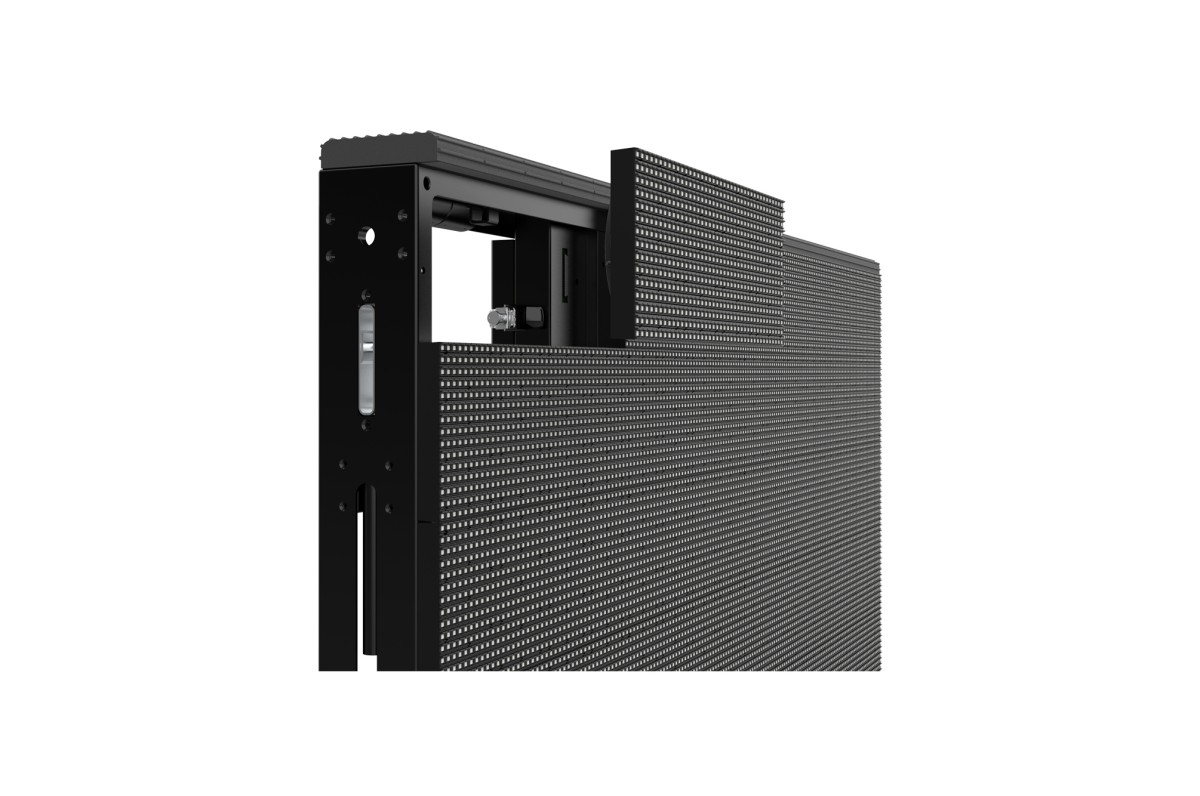

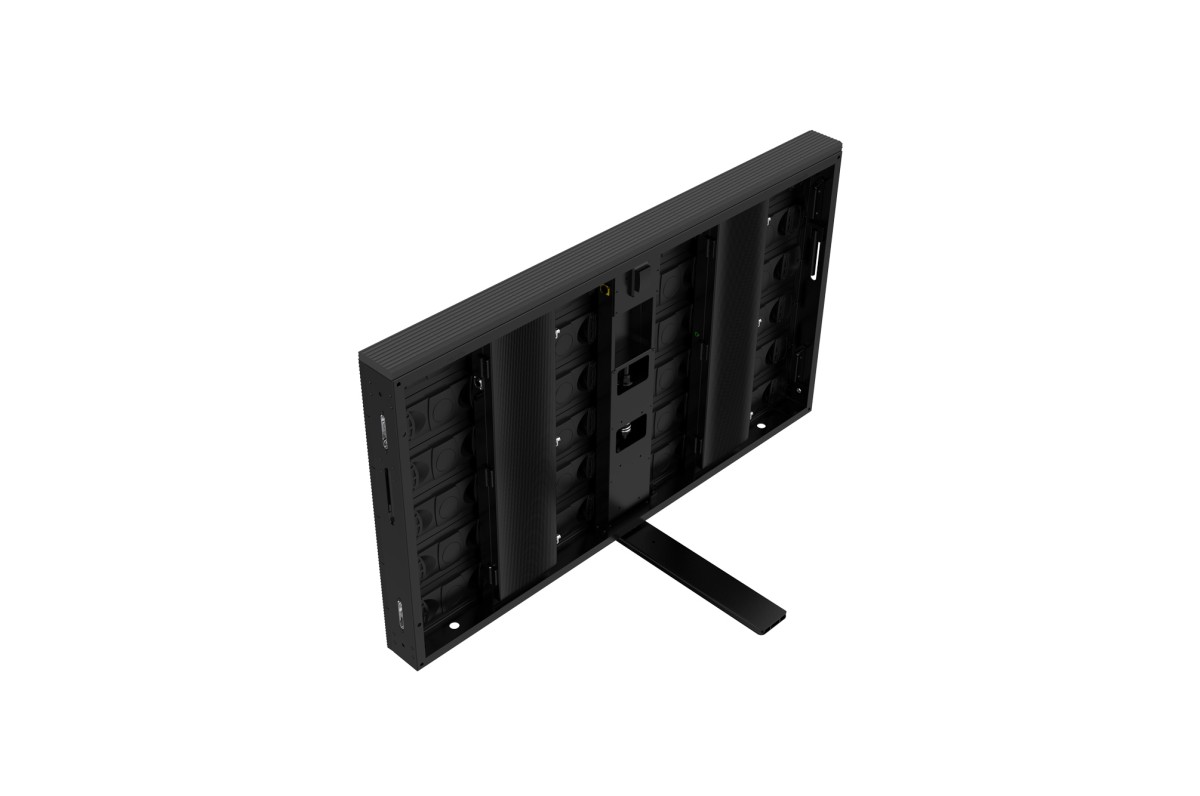

| Service Access | Module Front and Back, PDU Rear |
Additional information
Optical Parameter
| Min. Brightness (After Calibration) | 6,000 |
|---|---|
| Color Temperature | 3,500 ~ 9,000 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 × 120 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003 CxCy |
| Contrast Ratio | 12,000 |
| Processing Depth (bit) | 14 |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 1,200 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 400 |
| Power Consumption (W/m², Max.) | 840 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 4,094 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 1,365 |
| Heat Dissipation (BTU/h/㎡, Max.) | 2,866 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -20°C to +45°C |
| Operating Humidity | 10-99% RH |
| IP rating Front / Rear | IP65 / IP65 |
Certification
| Certification | CE,FCC,ETL |
|---|
Environment
| Environment | RoHS |
|---|
Controller
| Controller | LCIN006 |
|---|
