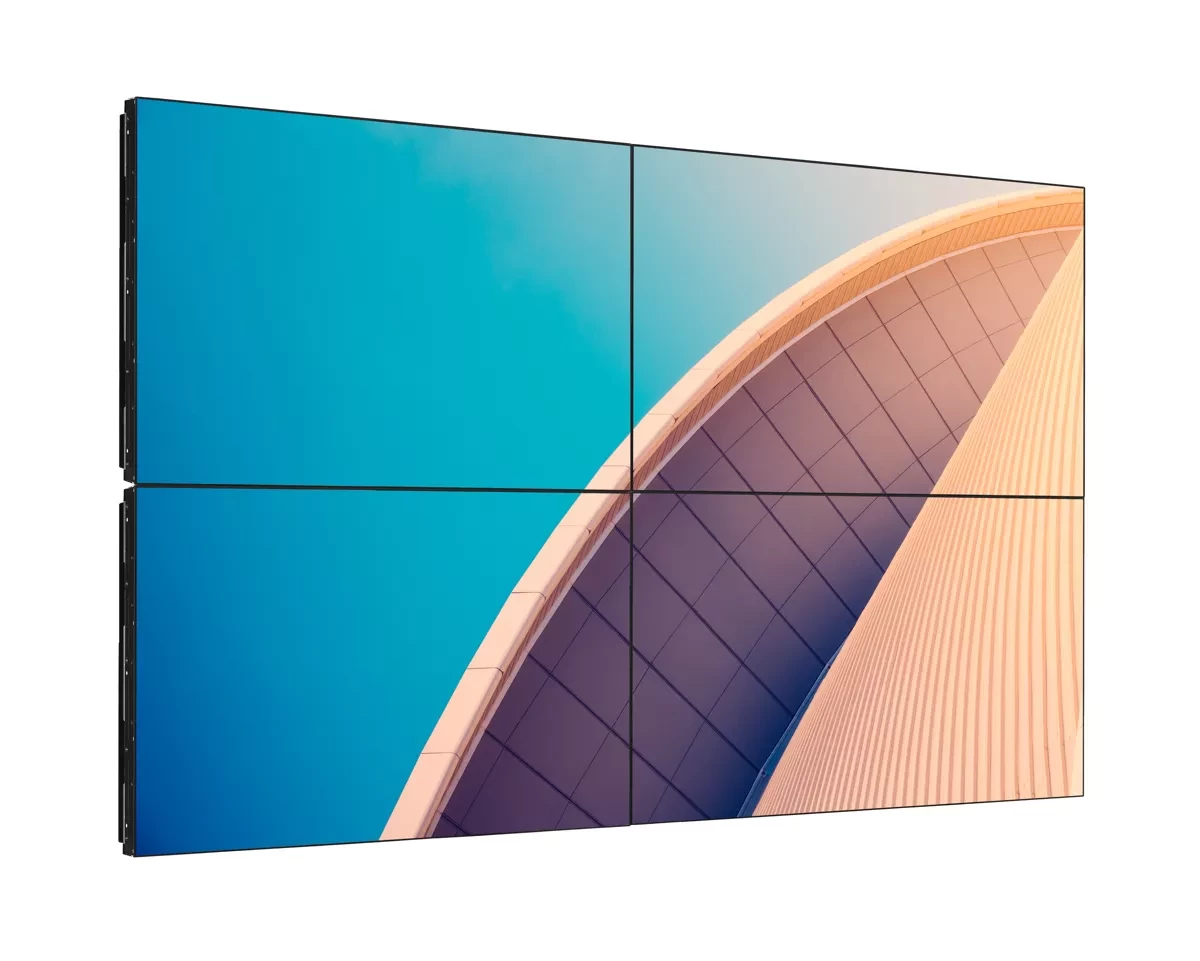

Philips X-Line 49BDL2005X/00 Videowall
Product code:Command attention with a Philips X-Line Professional Videowall Display. Crisp contrast and narrow bezels enable clear, distraction-free imaging. Whether you're running an airport or hosting a conference.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 123.2 |
|---|---|
| Diagonal screen size (inch) | 48.5 |
| Panel resolution | 1920 x 1080p |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Brightness | 500 |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.559 x 0.559 mm |
| Display colours | 1.07 B |
| Picture enhancement | 3/2 - 2/2 motion pull down, Motion compens. deinterlacing, Progressive scan, Dynamic contrast enhancement |
| Haze | 3% |
Additional information
Supported Display Resolution
| Computer formats | 1024 x 768, 60, 75 Hz / 1280 x 1024, 60 Hz / 1280 x 768, 60 Hz / 1280 x 800, 60 Hz / 1280 x 960, 60 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1600 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 640 x 480, 60, 72, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 60, 75 Hz / 3840 X 2160, 30 Hz (Tiling) |
|---|---|
| Video formats | 1080i, 25, 30 Hz / 1080p, 50, 60 Hz / 720p, 50, 60 Hz |
Connectivity
| Video input | DVI-D, VGA (Analogue D-Sub), Component (BNC x 3), Display Port1.2 (x 1), HDMI 1.4 (x 2), Composite (Share component Y), USB 2.0 (x 1) |
|---|---|
| Video output | DisplayPort 1.2 (x 1), DVI-I (x 1) |
| Audio input | 3.5 mm jack, Audio Left/Right (RCA) |
| Audio output | 3.5 mm jack, External speaker connection |
| External control | IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
| Other connections | OPS |
Convenience
| Signal loop through | RS232, DisplayPort, DVI Loop through, IR Loop through |
|---|---|
| Ease of installation | Carrying Handles, Smart Insert |
| Energy-saving functions | Smart Power |
| Network controllable | RS232/RJ45 |
| Placement | Portrait, Landscape |
| Screen-saving functions | Pixel Shift, Low Bright |
| Tiled Matrix | Up to 10 x 10 |
| Control software | SICP / CMND & Control |
Dimensions
| Bezel width | Top/Left: 2.3 mm, Bottom/Right: 1.2 mm |
|---|---|
| Set Width | 1077.6 |
| Set Height | 607.8 |
| Set Depth | 93.5 mm |
| Set Width (inch) | 42.4 |
| Set Height (inch) | 23.9 |
| Set Depth (inch) | 3.68 |
| Wall Mount | 400 x 400 mm, M6 |
| Product weight | 21.0 |
| Product weight (lb) | 47.30 |
| Smart Insert mount | 100 x 100 mm, 6 x M4 L6 |
| Bezel thickness | 3.5 mm (B-B) |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
Power
| Standby power consumption | <0.5 W |
|---|---|
| Consumption (Max) | 220 W |
| Consumption (Typical) | 100 |
Sound
| Built-in speakers | 2 x 10 W (RMS) |
|---|
Accessories
| Included Accessories | IR cable, IR sensor cable (1.8 m) (x 1), RS232 daisy chain cable, Kit-1 (x1), Kit-2 (x2), Thumb Screw (x 8) |
|---|---|
| Included accessories | Remote Control, Batteries for remote control, AC Power Cord, Quick start guide, DVI-D cable, RS232 cable, Edge alignment pins |
| Optional accessories | Colour calibration kit, CRD41, Edge finishing kit |
Miscellaneous
| On-Screen Display Languages | Arabic, Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish |
|---|---|
| Regulatory approvals | CE, CB, BSMI, CU, ETL, FCC Class A, PSB, RoHS |
| Warranty | 3 year warranty |
Multimedia Applications
| USB Playback Audio | AAC/AIF/AIFF/ASF/M3U/M4A/MP3/MP4/PLS/WAV/WMA |
|---|---|
| USB Playback Picture | BMP/GIF/JPEG/JPG/PNG |
| USB Playback Video | ISM/M4V/MK3D/MKV/MPD/MPEG/MPG/MT2/MTS/TS/VOB/MP4/TTS |
