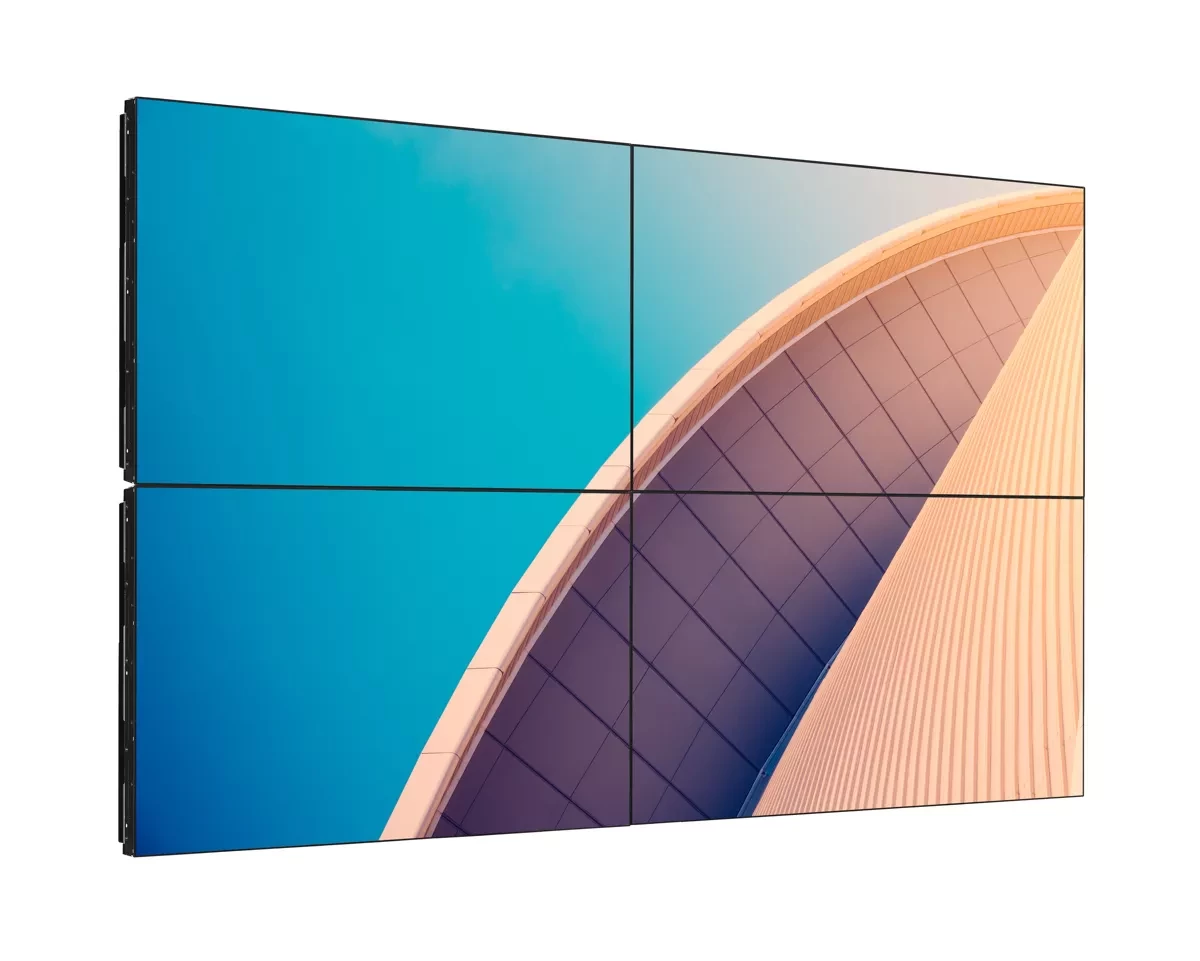

Philips X-Line 55BDL3107X/00 Videowall

Product code: 55BDL3107X/00

Command attention with a Philips X-Line Videowall display. An ultra-narrow bezel allows for near seamless linking for a display of any size, whilst Advanced Colour Calibration ensures a clear image in any lighting condition.

SEND AN ENQUIRY

Description

Picture/Display

Diagonal screen size (metric)	138.7
Diagonal screen size (inch)	54.6
Panel resolution	1920 x 1080p
Optimum resolution	1920 x 1080 @ 60 Hz
Brightness	700
Contrast ratio (typical)	1200:1
Dynamic contrast ratio	500,000:1
Response time (typical)	8
Aspect ratio	16:9
Viewing angle (horizontal)	178
Viewing angle (vertical)	178
Pixel pitch	0.63 x 0.63 mm
Display colours	1.07 M
Picture enhancement	3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

Additional information

Supported Display Resolution

Computer formats	1920 x 1080, 60 Hz / 1600 x 1200, 60 Hz / 1366 x 768, 60 Hz / 1360 x 768, 60 Hz / 1280 x 1024, 60 Hz / 1280 x 800, 60 Hz / 1280 x 768, 60 Hz / 1024 x 768, 60, 75 Hz / 1280 x 960, 60 Hz / 640 x 480, 60, 72, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 60, 75 Hz
Video formats	1080p, 50, 60 Hz / 720p, 50, 60 Hz / 1080i, 25, 30 Hz

Connectivity

Video input	Component BNC (x 3), Composite (Share component Y), DisplayPort, DVI-D (x 1), VGA (Analogue D-Sub) (x 1)
Video output	DisplayPort, DVI-I (x 1)
Audio input	3.5 mm jack, Audio Left/Right (RCA)
Audio output	Audio Left/Right (RCA)
External control	IR (in/out) 3.5 mm jack, RS232C (in/out) 2.5 mm jack, RJ45
Other connections	OPS

Convenience

Signal loop through	RS232, DisplayPort, DVI Loop through, IR Loop through
Ease of installation	Carrying Handles, Smart Insert
Energy-saving functions	Smart Power
Network controllable	RS232/RJ45
Placement	Landscape (24/7), Portrait (24/7)
Screen-saving functions	Pixel Shift, Low Bright
Tiled Matrix	Up to 15 x 15
Control software	SICP / CMND & Control

Dimensions

Bezel thickness	3.5 mm (A-A)
Bezel width	Top/Left: 2.3 mm, Bottom/Right: 1.2 mm
Set Width	1213.4
Set Height	684.2
Set Depth	98 mm (D@Wall Mount)/99.2 (D@Handle)
Set Width (inch)	47.77
Set Height (inch)	26.94
Set Depth (inch)	3.86 (D@Wall Mount)/3.91 (D@Handle)
Product weight	26.2
VESA Mount	400 x 400 mm

Operating conditions

Temperature range (operation)	0 ~ 40
Temperature range (storage)	-20 ~ 60
Altitude	0 ~ 3000 m
MTBF	50,000
Humidity range (operation)[RH]	20~80% RH (No condensation)
Humidity range (storage) [RH]	5~95% RH (No condensation)

Power

Standby power consumption	<0.5 W
Consumption (Max)	400 W
Consumption (Typical)	270

Sound

Built-in speakers	2 x 10 W (RMS)

Accessories

Included accessories	Remote Control, Batteries for remote control, AC Power Cord, Quick start guide, Edge alignment pins, DVI-D cable, RS232 cable
Optional accessories	Edge finishing kit, Colour calibration kit, CRD41
Included Accessories	Edge Alignment Kit (1) - 1 pcs, Edge Alignment Kit (2) - 2 pcs, HDMI cable (1.8 m) (x 1), IR cable, IR sensor cable (1.8 m) (x 1), RS232 daisy chain cable, Thumb Screw (x 8)

Miscellaneous

On-Screen Display Languages	Arabic, Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish
Regulatory approvals	CE, UL/cUL, CB, GOST, EPEAT, FCC, Class B
Warranty	3 year warranty

Multimedia Applications

USB Playback Audio	AAC/AIF/AIFF/ASF/LPCM/M3U/M4A/MP3/MP4/PLS/WMA
USB Playback Picture	BMP/GIF/JPEG/JPG/PNG
USB Playback Video	ISM/M4V/Manifest/MK3D/MKV/MP4/MPD/MPEG/MPG/MT2/MTS/TS/TTS/VOB
