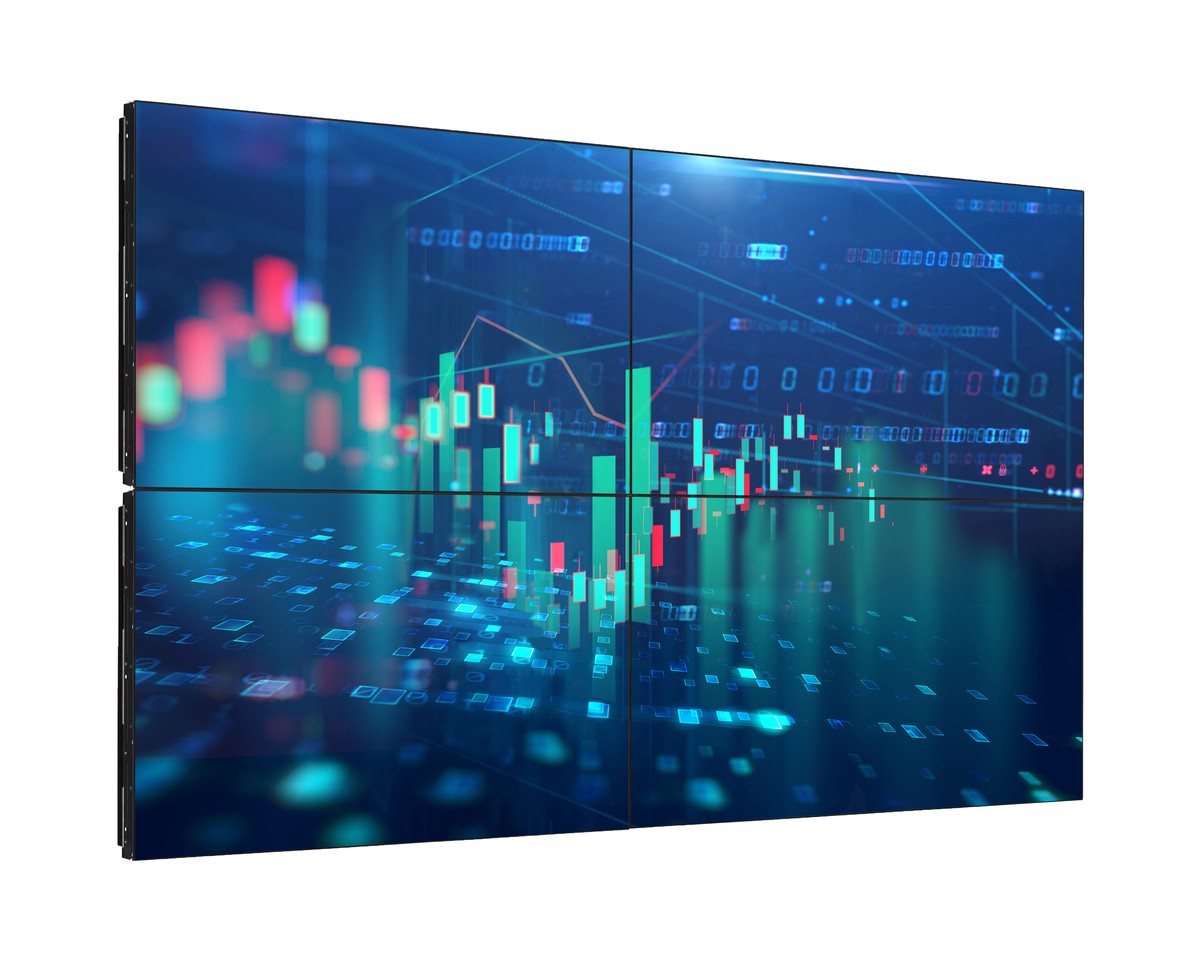

Philips X-Line 65BDL6005X/00 Videowall
Product code:Ensure that every detail is under control. The Philips X-Line Videowall display is designed for 24/7 operation and can be customised to fit all of your content needs. View content from multiple sources in real-time with enhanced picture quality.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 164 |
|---|---|
| Diagonal screen size (inch) | 64.5 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 500 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.372 x 0.372 mm |
| Display colours | 1.07 B |
| Contrast ratio (typical) | 1300:1 |
| Haze | 25% |
Additional information
Supported Display Resolution
| Computer formats | 720 x 400, 70 Hz / 800 x 600, 60, 75 Hz /1024 x 768, 60, 75 Hz / 1280 x 768, 60 Hz / 1280 x 800, 60 Hz / 1280 x 960, 60 Hz / 1280 x 1024, 60 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1600 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 3840 x 2160, 60 Hz |
|---|---|
| Video formats | 720p, 50, 60 Hz / 1080i, 25, 30 Hz / 1080p, 50, 60 Hz / 3840 x 2160, 60 Hz |
Connectivity
| Video input | Display Port1.2 (x 1), DVI-D (x 1), HDMI 2.0 (x 2), VGA (Analogue D-Sub) (x 1) |
|---|---|
| Audio input | 3.5 mm mini jack (x 1) |
| Video output | DisplayPort 1.2 (x 1) |
| Audio output | 3.5 mm Mini Jack (x 1) |
| External control | IR (in) 3.5 mm jack, IR (in/out) RJ45, LAN RJ45 (x2), RS232 (in/out) RJ45 |
| Other connections | OPS, USB 2.0 (x 1) |
Convenience
| Placement | Landscape (24/7), Portrait (24/7) |
|---|---|
| Tiled Matrix | Up to 10 x 10 |
| Signal loop through | DisplayPort, IR and RS232 via RJ45, LAN |
| Ease of installation | Carrying Handles, Smart Insert |
| Energy-saving functions | Smart Power |
| Network controllable | LAN (RJ45) |
| Screen-saving functions | Pixel Shift, Low Bright |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20 - 80% (without condensation) |
| Humidity range (storage) [RH] | 5 - 95% (without condensation) |
Power
| Consumption (Typical) | 210 |
|---|---|
| Consumption (Max) | 400 W |
| Standby power consumption | 0.5 W |
| Consumption (On mode) | 150 W |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10 W (RMS) |
|---|
Accessories
| Included Accessories | AC Switch Cover, Edge Alignment Kit, Gap pad x 3, IR sensor cable (1.8 m) (x 1), Quick start guide (x 1), Remote control and AAA batteries, RJ45/RS232 converter, Wire Clamper (x 3), Power cord, DP cable (x1), RJ45 cable (x1) |
|---|
Miscellaneous
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | CE, FCC Class A, RoHS, CB, ETL |
| Warranty | 3 year warranty |
Dimensions
| Set Width | 1432.6 |
|---|---|
| Set Height | 807.6 |
| Set Depth | 88.8 mm(D@WallMount)/91.7 mm(D@Handle) |
| Set Width (inch) | 56.40 |
| Set Height (inch) | 31.80 |
| Set Depth (inch) | 3.50 (D@WallMount)/3.61 (D@Handle) |
| Bezel width | 2.3 mm + 1.2 mm |
| Wall Mount | 400 mm x 400 mm, M6 |
| Product weight | TBD |
