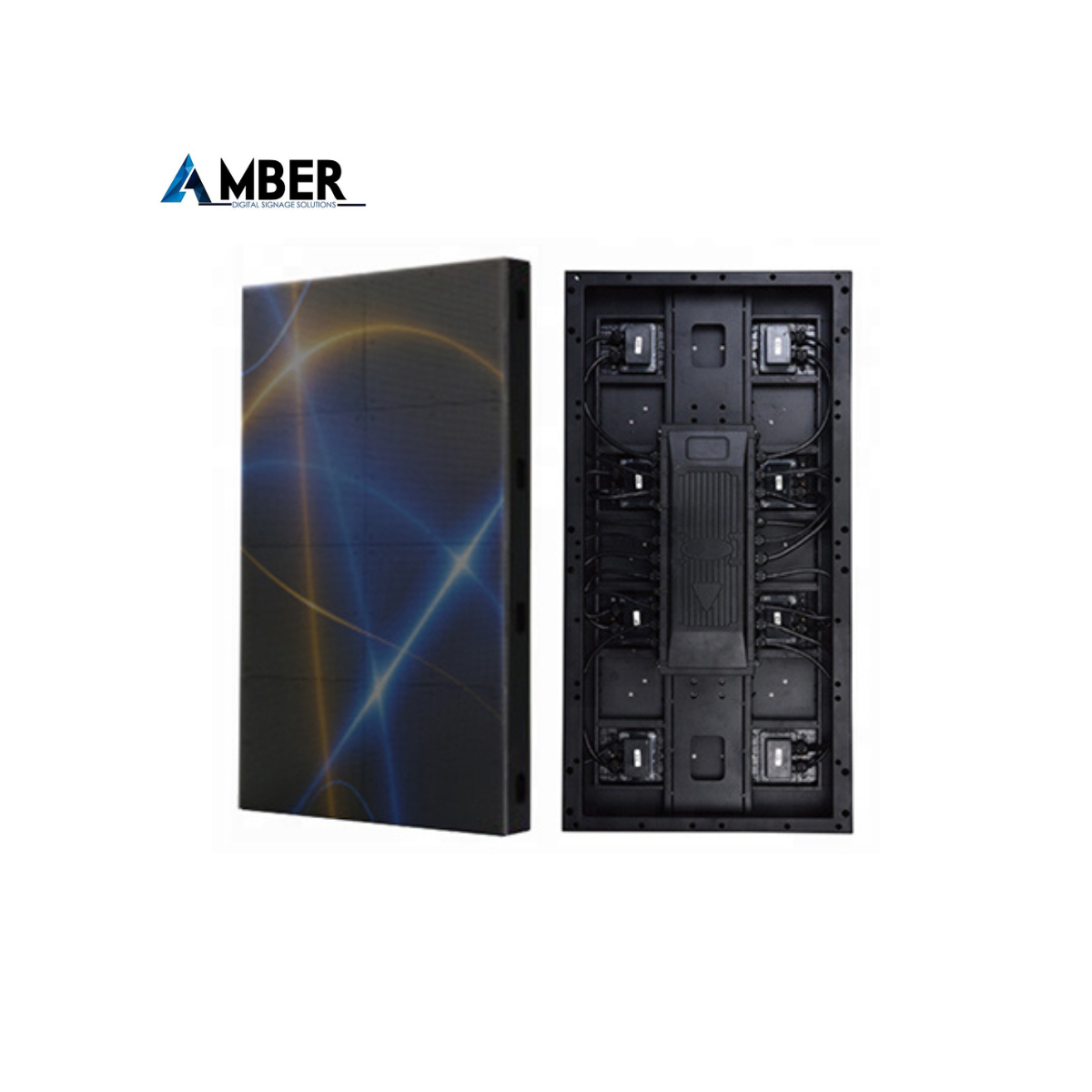

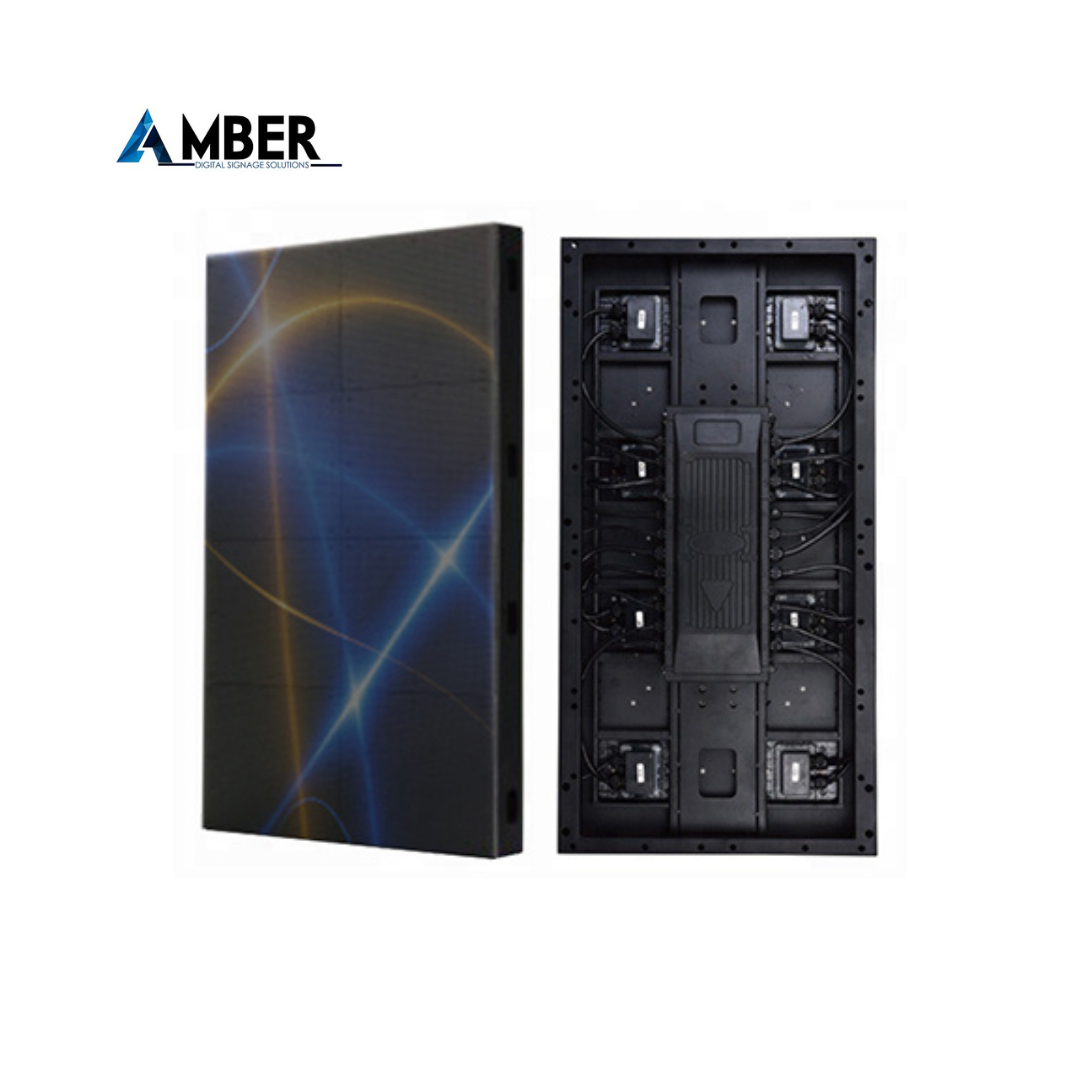

Amber BV-D Indoor LED Dance Floor Fixed Install Series

Product code: BV-D

LED Dance Floor,

Height Adjustable

● Quick and Easy Installation

● Ultra Wide Viewing Angle

● Adapt to Multifarious Ground

● IP65 Waterproof

SEND AN ENQUIRY

Description

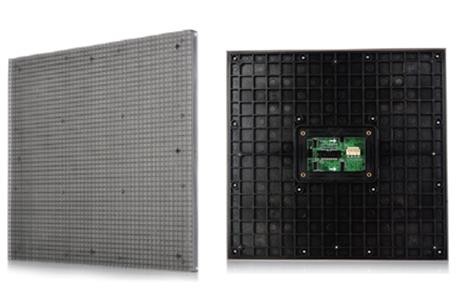

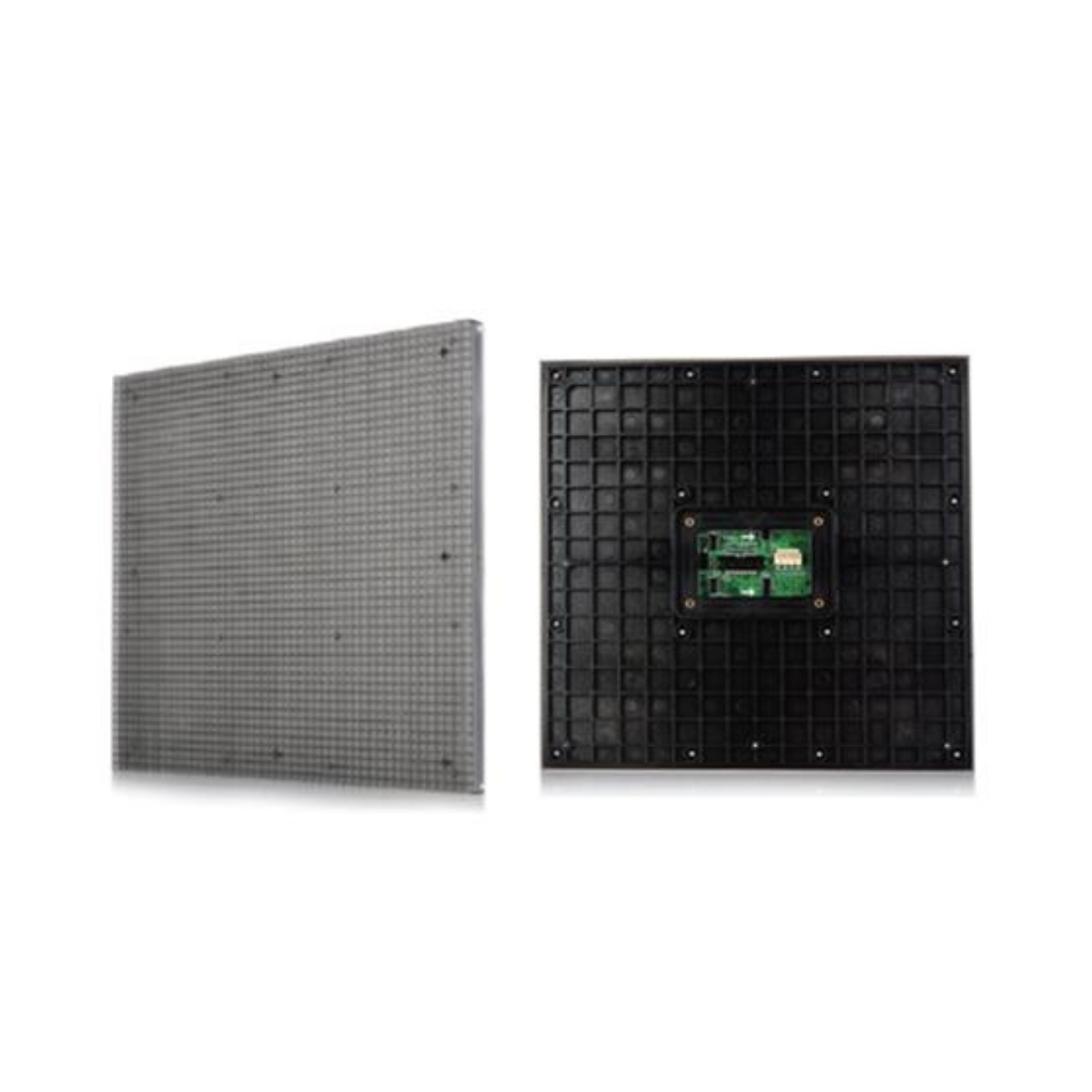

Standard Modular Design

● Standard module design: 250mmx250mm

● Seamless connection

● PC material mask with highly scrach-resistant


Easy and Fast Installation

● Cable-less between modules

● Tools free installation

● Easy maintenance after cabinets assembled

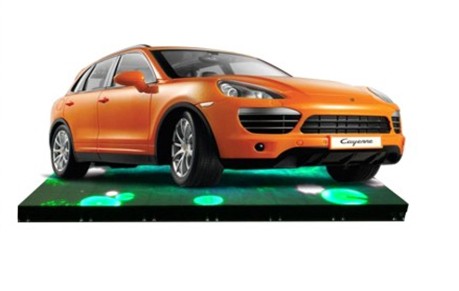

High Bearing Capability
● Bearing Capability up to 1.8 tons per square meter

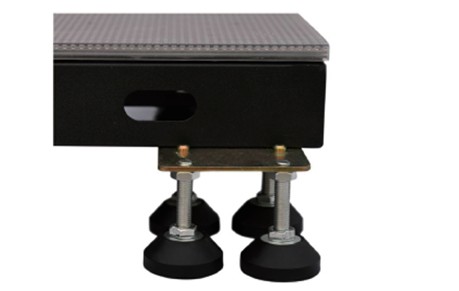

● Height adjustable,adapt to multifarious ground
Interactive Effect

● AvailableInteractive system with inductor built in

● Quick response within 0.02s


Additional information

BV-D-3

BV-D-5

BV-D-6

BV-D-8

Physical Pitch

3.91 mm

5.2 mm

6.25 mm

8.928 mm

Pixel Configuration

SMD 1921

SMD 1921

SMD 2727

SMD 3528

Pixel Density

65,536 pixels/m²

36,864 pixels/m²

25,600 pixels/m²

25,600 pixels/m²

Module Dimensions (W × H) (mm)

250 × 250

250 × 250

250 × 250

250 × 250

Panel Dimensions (mm)

500 × 1000

500 × 1000

500 × 1000

500 × 1000

NO.of Modules Per Panel (W × H)

2 × 4

2 × 4

2 × 4

2 × 4

Physical Resolution of Module (W × H)

64 x 64

48 x 48

40 x 40

28 x 28

Physical Resolution of Panel (W × H)

128 x 256

96 x 192

80 x 160

56 x 112

Panel Material

Aluminum

Aluminum

Aluminum

Aluminum

Single Cabinet Weight

20 kg/panel

25 kg/panel

24 kg/panel

25 kg/panel

Gray Scale

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

4,000 : 1

4,000 : 1

4,000 : 1

4,000 : 1

Average Power Consumption

300 W / m²

300 W / m²

300 W / m²

300 W / m²

Max Power Consumption

880 W / m²

880 W / m²

880 W / m²

880 W / m²

Operating Temp/Humidity

-10℃-60℃

10%-60%

-10℃-60℃

10%-60%

-10℃-60℃

10%-60%

-10℃-60℃

10%-60%

Storage Temp/Humidity

-30℃-60℃

10%-60%

-30℃-60℃

10%-60%

-30℃-60℃

10%-60%

-30℃-60℃

10%-60%

Refresh Rate

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

Brightness

2,500 nits

2,000 nits

4,500 nits

4,500 nits

Horizontal Viewing Angle

160°

160°

160°

160°

Vertical Viewing Angle

140°

140°

140°

140°

Expected Lifetime

100,000 Hrs

100,000 Hrs

100,000 Hrs

100,000 Hrs

Best Viewing Distance

4m-60m

6m-60m

8m

8m

Scan Method

1 / 16 Scan

1 / 6 Scan

1 / 5 Scan

1 / 3 Scan

Servicing

Front

Front

Front

Front

IP Rating

IP 65

IP 65

IP 65

IP 65
