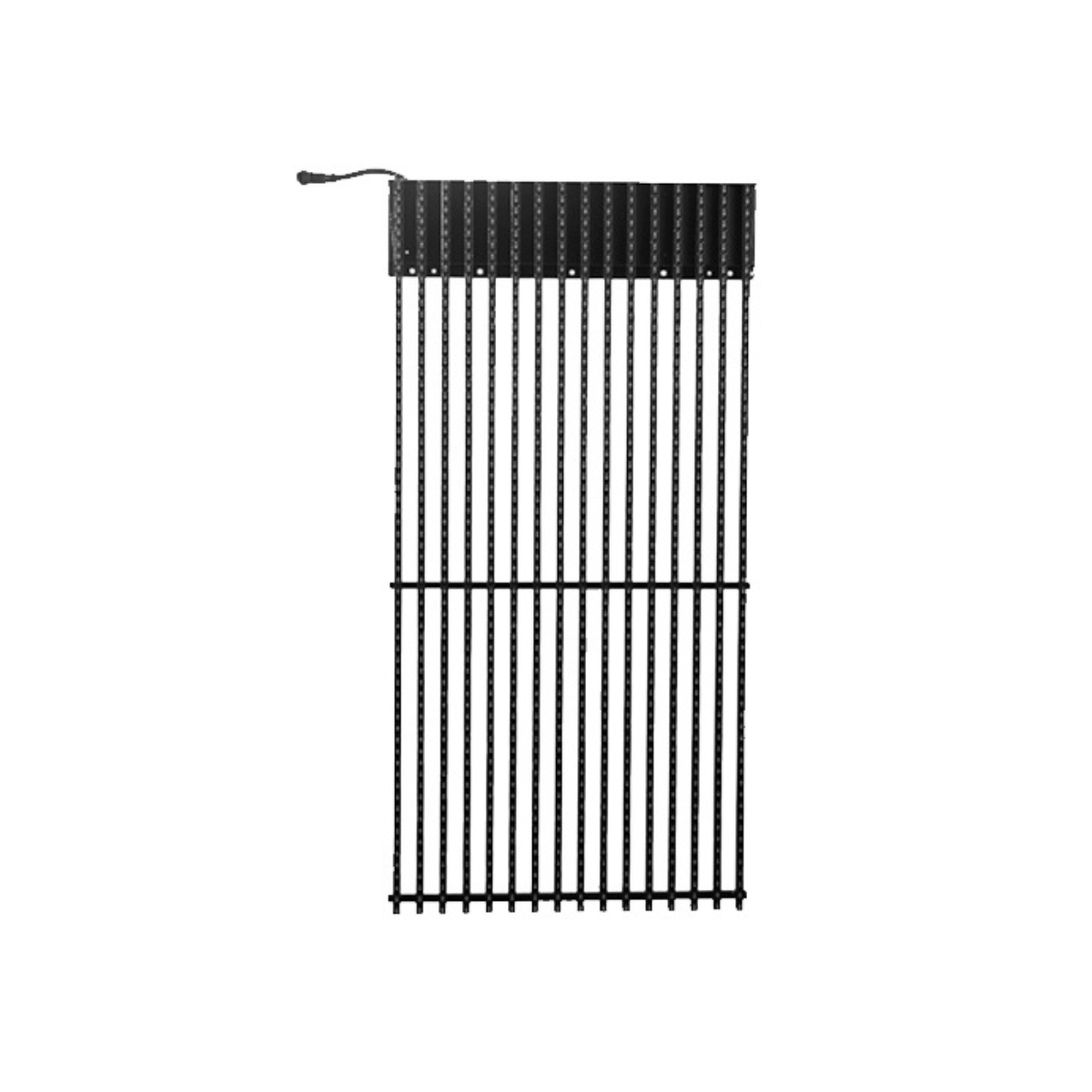

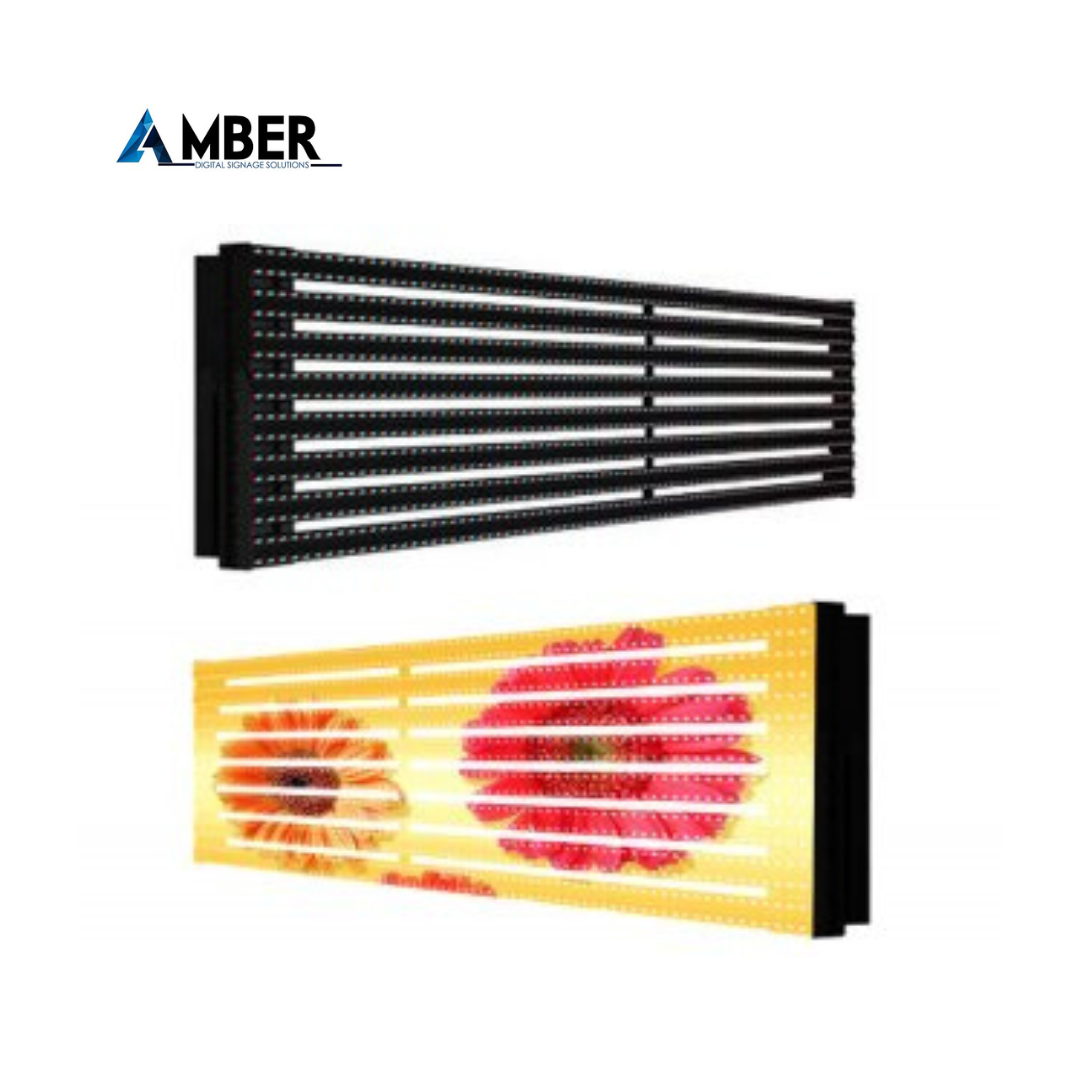

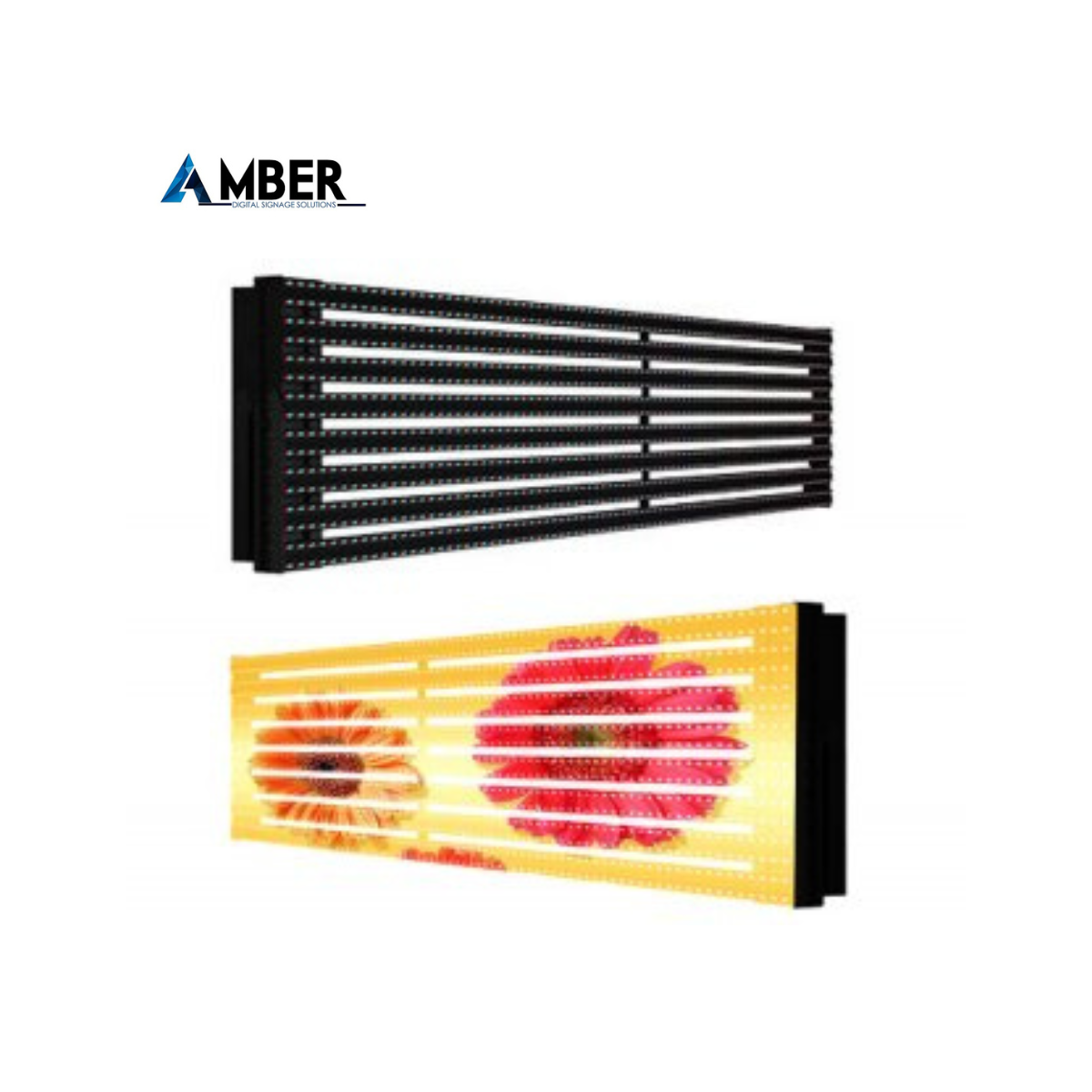

Amber BV-OC Outdoor LED Wall Fixed Install Series
Product code:High Transparency, High Brightness, Outdoor Curtain LED Display
● Ultra lightweight and slim
● High brightness for outdoor fixed installation
● High transparency
SEND AN ENQUIRYDescription
Lower Power Consumption
● Only 50% power consumption comparing to conventional displays
● Special LED selected and high efficiency power supply selected
High Transparency and High Brightness

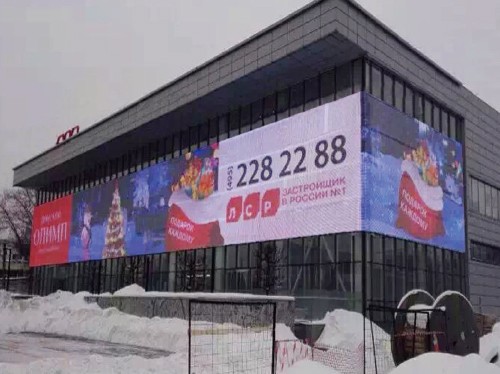

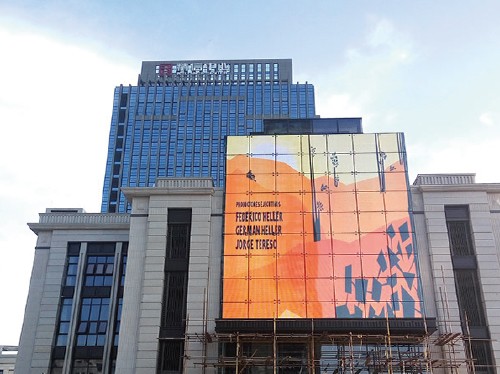

● 20-80% transparency rate, see through, suitable for glass
wall mounting
● >10,000 nits brightness, for all outdoor environment
● Vivid colors
Exceptionally Lightweight and Slim
● 7.5-13.5 kg/cabinet gross weight
● Easy to install and save installation space
High Protection Level
● IP67 for whole screen, complete waterproof
for various weather conditions
● Screen life time is increased significantly

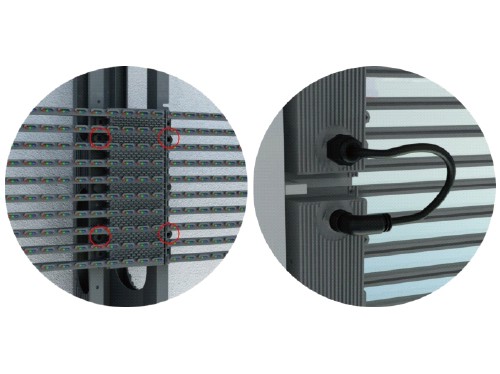

Fast Installation and Easy Maintenance
● Both front and rear accessible for maintenance
● Steel frame is canceled during installation
Additional information
BV-OC-15.625 (double line) | BV-OC-15.625 | BV-OC-3115 | BV-OC-25 | BV-OC-31 |
Physical Pitch （mm） | 15.625 | 15.625 | 31.25 H, 15.625 V | 25 | 31.25 H, 31.25 V |
Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Pixel Density | 4,096 pixels/m² | 4,096 pixels/m² | 2,048 pixels/m² | 1,600 pixels/m² | 1,024 pixels/m² |
Size of block module | 23.8x 1000mm | 23.8x 1000mm | 10 x 1000mm | 10 x 1500mm | 10 x 1000mm |
Physical Resolution of module | 2 x 64 | 1 x 64 | 64 x 1 | 1 x 60 | 32 x 1 |
Size of Cabinet | 500x 1000mm | 500x 1000mm | 500x 1000mm | 500x 1000mm | 500x 1000mm |
Weight of Cabinet | 13.5 kg | 7.5 kg | 7.5 kg | 9 kg | 9 kg /m² |
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 110 W/m² | 2,000 : 1 | 2,000 : 1 |
Average Power Consumption | 272 w/m² | 272 w/m² | 300 w/m² | 360 w/m² | 340 w/m² |
Max Power Consumption | 680 w/m² | 680 w/m² | 600 w/m² | 480 w/m² | 450 w/m² |
Brightness | 9,000 nits | 10,000 nits | 10,000 nits | 10,000 nits | 9,000 nits |
Refresh Rate | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz |
Best Viewing Angle | ≤140° | ≤140° | ≤140° | ≤140° | ≤140° |
Color temperature | 6,500K | 6,500K | 6,500K | 6,500K | 6,500K |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
IP Rating | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
Operating Voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
Transparency | 35% | 70% | 68% | 60% | 68% |
Scan Method | Static Scanning | Static Scanning | Static Scanning | Static Scanning | Static Scanning |
