Amber BV-DF Outdoor LED Wall Rental & Fixed Install Series
Product code:Innovative Outdoor Die-Cast
LED Display
● HD Resolution, Fully Front Access Option,
● Slim and Stylish Die Cast Design,
● Inventory Ready
SEND AN ENQUIRYDescription
Outdoor High Definition
● Start from P2.5mm, outdoor rated
● IP65 rating for front and rear
● High Contrast
● Unique mask for anti-glare

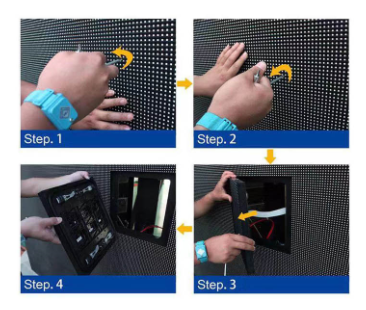

Fully Front Access Option
● Option for complete wall mountinginstallation
● Module, Power Supply, Receiver Card, Cables all accessible from front
● Also rear accessible
● Fast lock system design guarantees a quick and easy installation
● Bulky Stock for fast deliverys
● Surpassing price advantage

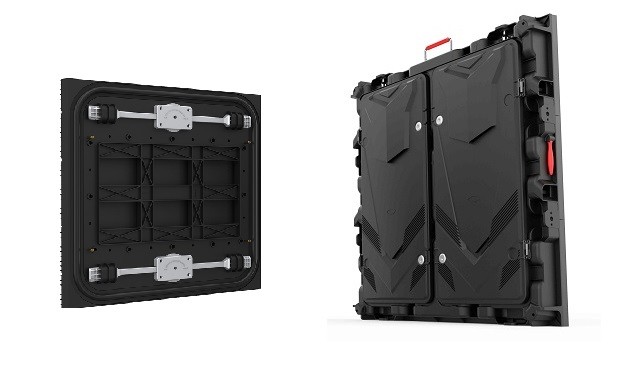

Slim and Variable Installation

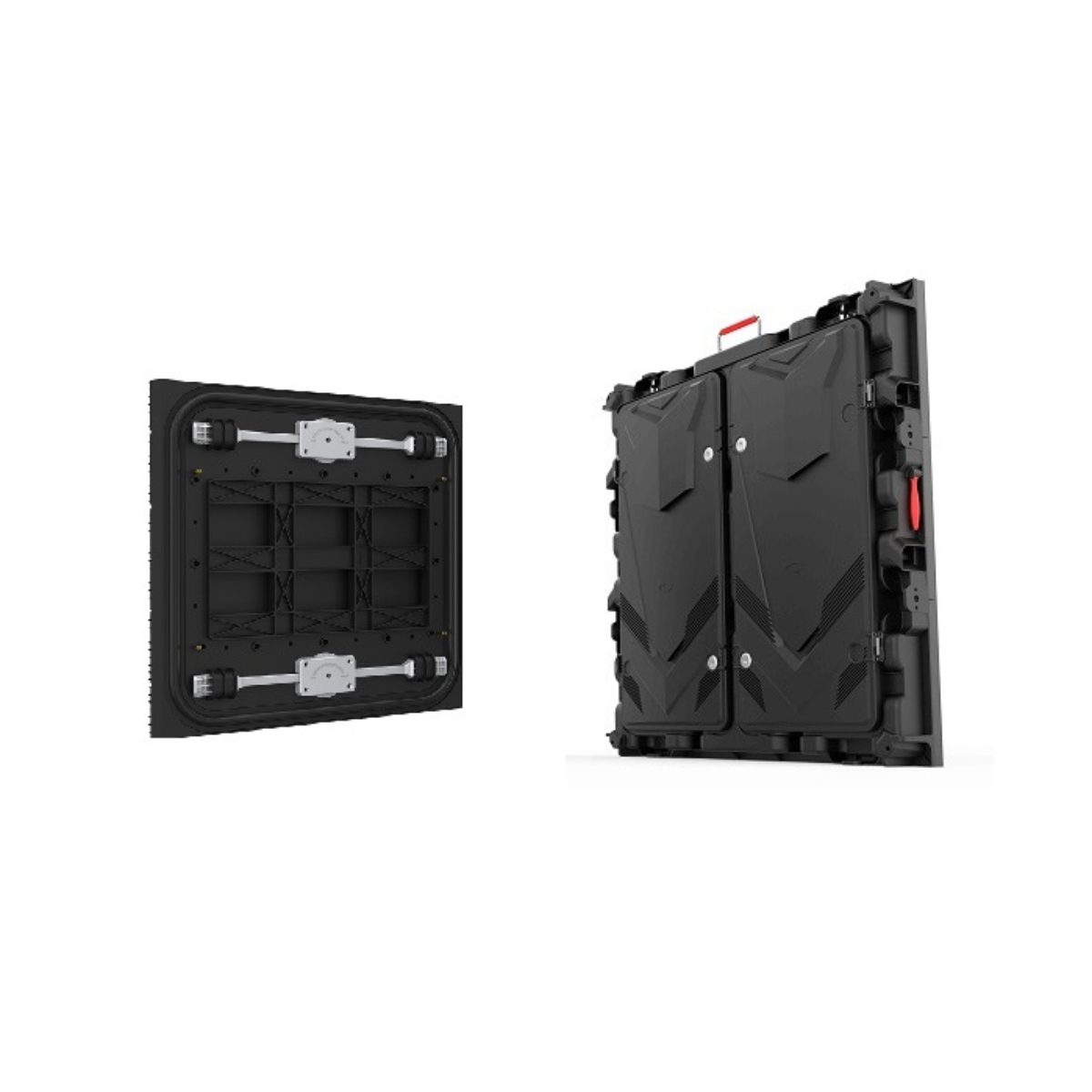

● Die-Cast aluminum and slim cabinet
● For fixed installation and stage rental both

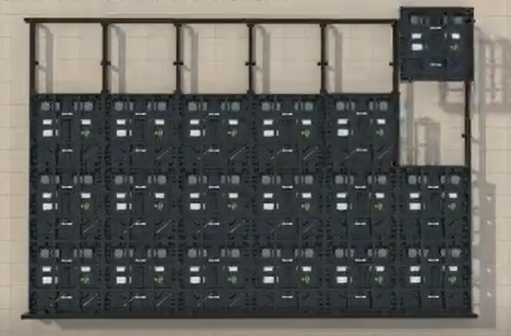

● Wall mounting, ceiling hanging, or pillar standing
Additional information
BV-DF2 | BV-DF3 | BV-DF4 | BV-DF5 |
Physical Pitch | 2.5mm | 3.076mm | 4mm | 5mm | ||
Pixel Configuration | SMD | SMD | SMD | SMD | ||
Pixel Density | 160,000 pixels/m² | 105,688 pixels/m² | 62,500 pixels/m² | 40,000 pixels/m² | ||
Module Dimensions (W× H) (mm) | 320 x 160 | 320 x 160 | 320 x 160 | 160 x 160/320 x 160 | ||
Panel Dimensions (mm) | 960 x 960 x 112 | 960 x 960 x 112 | 960 x 960 x 112 | 960 x 960 x 112 | ||
NO .of Modules Per Panel (W × H) | 3 x 6 | 3 x 6 | 3 x 6 | 6 x 6 / 3 x 6 | ||
Physical Resolution of Module ( W× H) | 128 x 64 | 104 x 52 | 80 x 40 | 32 x 32 / 64 x 32 | ||
Physical Resolution of Panel ( W× H) | 384 x 384 | 312 x 312 | 240 x 240 | 192 x 192 | ||
Single Cabinet Weight | 35 kg | 35 kg | 35 kg | 35 kg | ||
Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | ||
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | ||
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | ||
Contrast Ratio | 4000:1 | 4000:1 | 2000:1 / 4000:1 | 2000:1 / 4000:1 | ||
Average Power Consumption | 240W/Panel | 240W/Panel | 240W/Panel | 240W/Panel | ||
Max Power Consumption | 600W/Panel | 600W/Panel | 600W/Panel | 600W/Panel | ||
Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | ||
Brightness | ≥5000 nits | ≥5000 nits | ≥5000 nits | ≥5500 nits | ||
Horizontal Viewing Angle | 160° | 160° | 160° | 160° | ||
Vertical Viewing angle | 140° | 140° | 140° | 140° | ||
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | ||
Servicing | Rear | Rear | Rear | Fully Front/Rear | ||
IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 | ||
Operating Temperature | -20~60℃ 10%~90% |
| -20~60℃ 10%~90% | -20~60℃ 10%~90% | ||
Storage Temperature | -30~60℃ 10%~90% | -30~60℃ 10%~90% | -30~60℃ 10%~90% | -30~60℃ 10%~90% |
