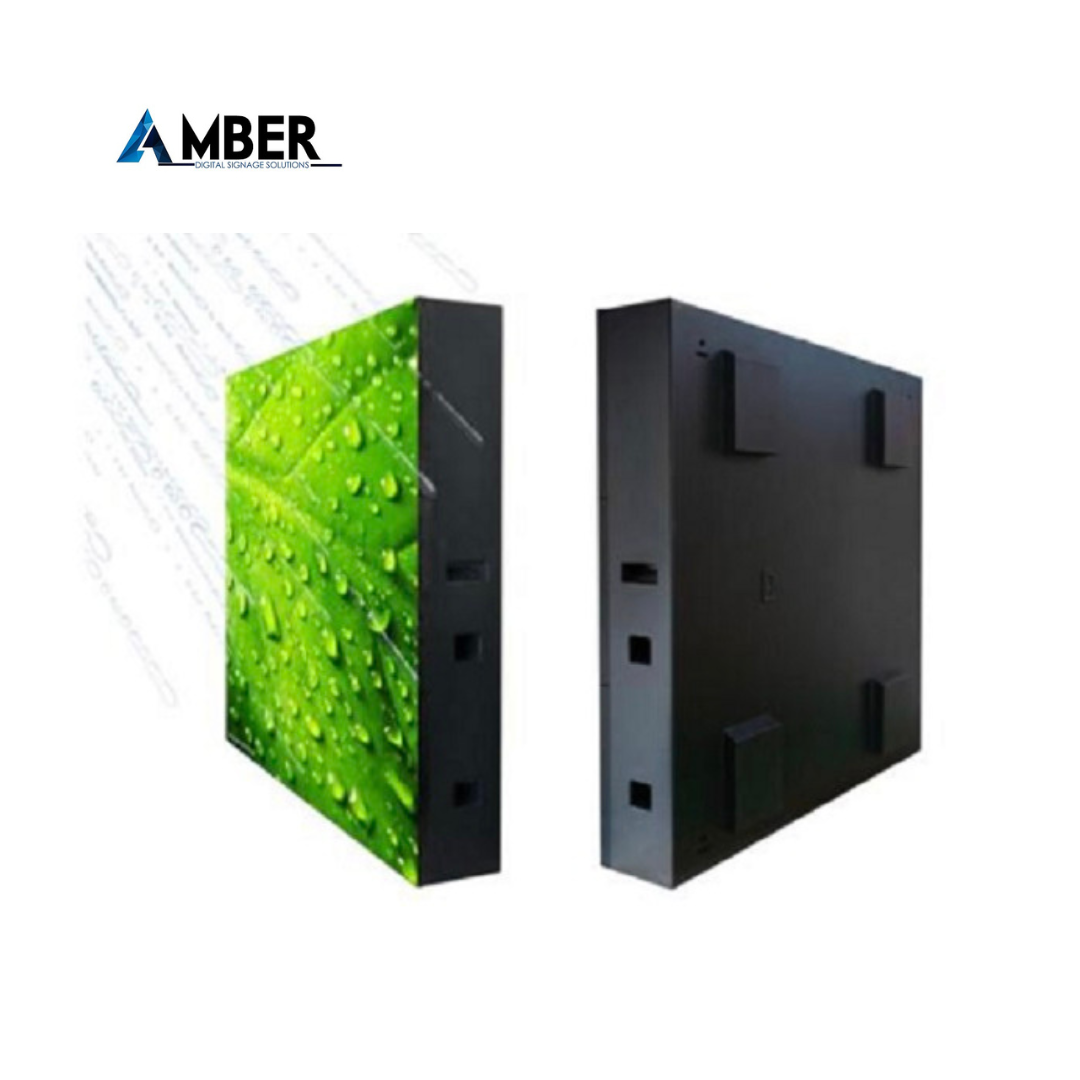

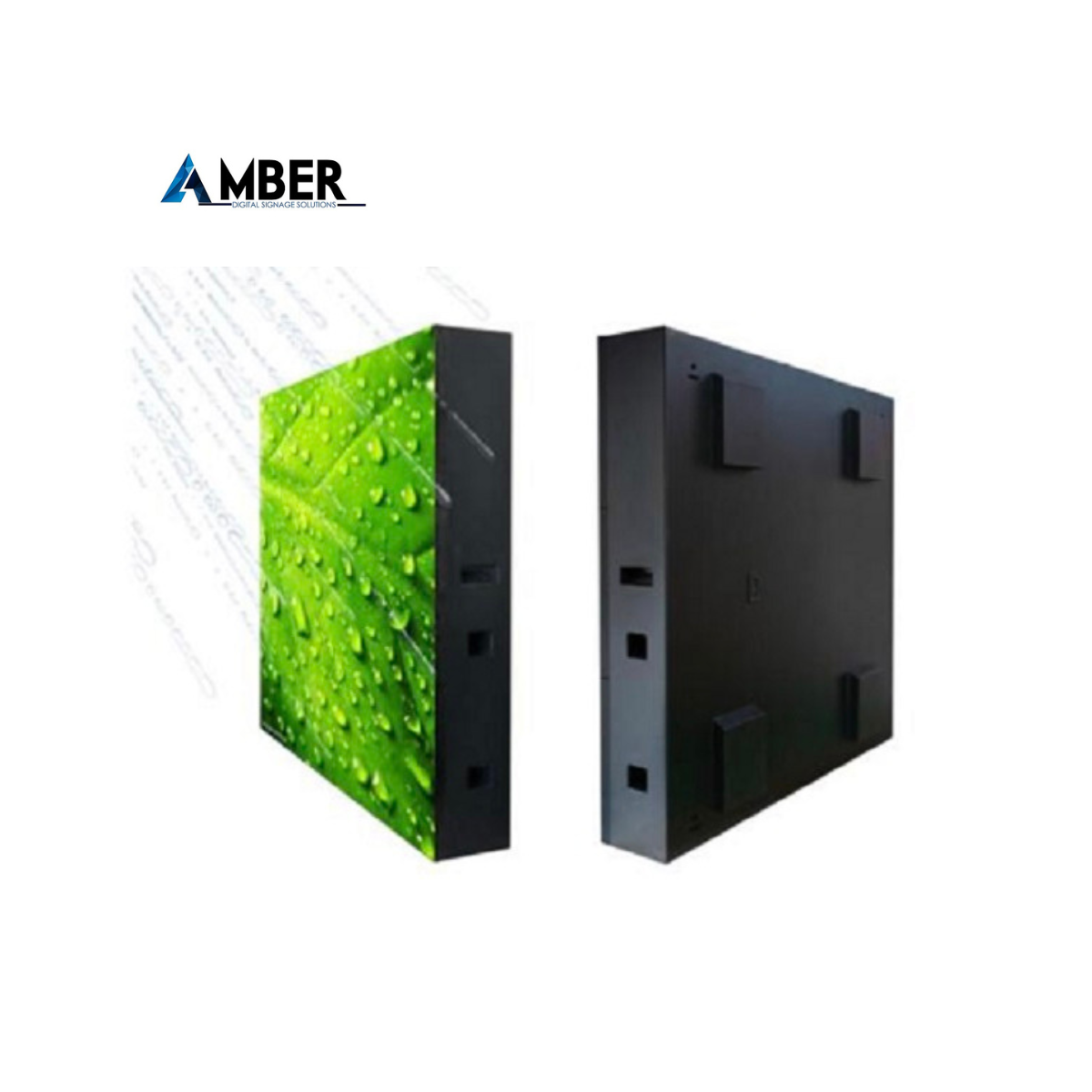

Amber BV-OF-F Outdoor LED Wall Fixed Install Series

Product code: BV-OF-F

Front Service

● Energy-saving Ready

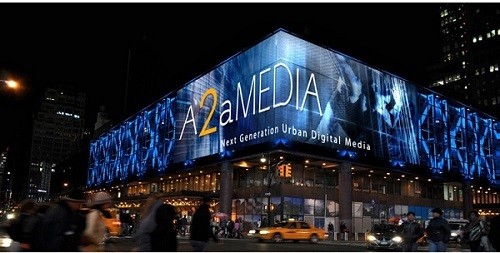

● Conventional DOOH Display

● Mechanical Front Access

● Concave, Convex with Curvilinear Angles

SEND AN ENQUIRY

Description

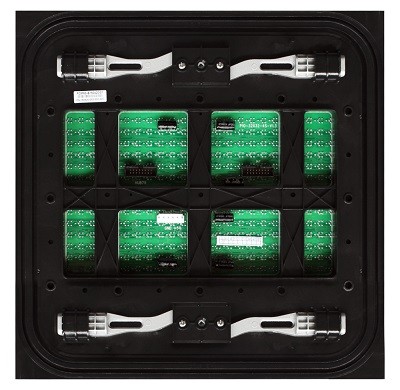

Multifunctional Module Buckle

● Special multifunctional module buckle designed for

adjusting gaps between module and cabinet to

ensure the smoothness and alignment

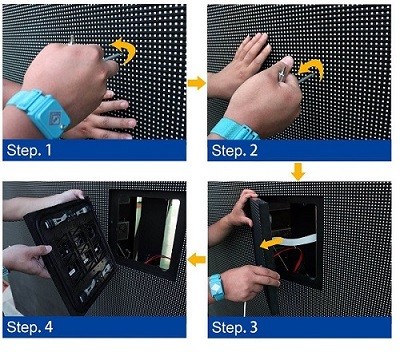

Fast Installation and Easy Maintenance

● Fast lock system design guarantees a quick and easy installation

● Mechanical front access


Energy-Saving Technology

● Cutting dege"cold display" technology

● 60% power lower than normal

● 50% temperature less than normal


Outdoor Rated


● ​IP65 rating

● Brightness adjustable for day and night

● Durable LED for 7/24 work mode


Additional information

BV-OF-F-4

BV-OF-F-5

BV-OF-F-6

BV-OF-F-8

BV-OF-F-10

Physical Pitch

4 mm

5.95 mm

6.67 mm

8 mm

8 mm

Pixel Configuration

SMD 2727

SMD 2727

SMD 2727

SMD 3535

SMD 3535

Pixel Density

43,264 pixels/m²

28,246 pixels/m²

22,500 pixels/m²

15,625 pixels/m²

10,000 pixels/m²

Module Dimensions (W × H) (mm)

250 × 250

250 × 250

320 × 320

320 × 160

320 × 160

Panel Dimensions (mm)

1000 × 1000 × 150

500 × 1000 × 150

1280 × 960 × 150

960 × 960 × 150

1280 × 960 × 150

NO .of Modules Per Panel (W × H)

4 × 4

2 × 4

4 × 3

3 × 6

4 × 6

Physical Resolution of Module (W × H)

52 × 52

52 × 52

48 × 48

32 × 32

32 × 32

Physical Resolution of Panel (W × H)

208 × 208

84 × 168

192 × 144

120 × 120

96 × 96

Panel Material

Steel / Aluminum

Steel / Aluminum

Steel / Aluminum

Steel / Aluminum

Steel / Aluminum

Weight(m²)

65/45

65/45

65/45

65/45

65/45

Processing

16 bit

16 bit

16 bit

16 bit

16 bit

Colours

281 trillion

281 trillion

281 trillion

281 trillion

281 trillion

Contrast Ratio

2,000 : 1

2,000 : 1

2,000 : 1

2,000 : 1

2,000 : 1

Average Power Consumption

360 W/m²

36 W/m²

360 W/m²

360 W/m²

360 W/m²

Max Power Consumption

900 W/ m²

900 W/ m²

900 W/ m²

900 W/ m²

900 W/ m²

Average Power After Energy Saving

-

-

90 W/ m²

90 W/ m²

90 W/ m²

Max Power After Energy Saving

-

-

230 W/ m²

230 W/ m²

230 W/ m²

Refresh Rate

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

Brightness

≥6500 nits

≥6500 nits

≥6500 nits

≥6500 nits

≥6500 nits

Vertical Viewing Angle

160°

160°

160°

160°

160°

Horizontal Viewing angle

140°

140°

140°

140°

140°

Expected Lifetime

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

Servicing

Rear

Rear

Rear

Rear

Rear

IP Rating

IP 65

IP 65

IP 65

IP 65

IP 65

Operating Temp/Humidity

-20℃-50℃

10%-90%

-20℃-50℃

10%-90%

-20℃-50℃

10%-90%

-20℃-50℃

10%-90%

-20℃-50℃

10%-90%

Storage Temp/Humidity

-20℃-50℃

10%-90%

-20℃-50℃

10%-90%

-20℃-50℃

10%-90%

-20℃-50℃

10%-90%

-20℃-50℃

10%-90%

Scan Method

1/13 Scan

1/7 Scan

1/10 Scan

1/4 Scan

1/2 Scan
