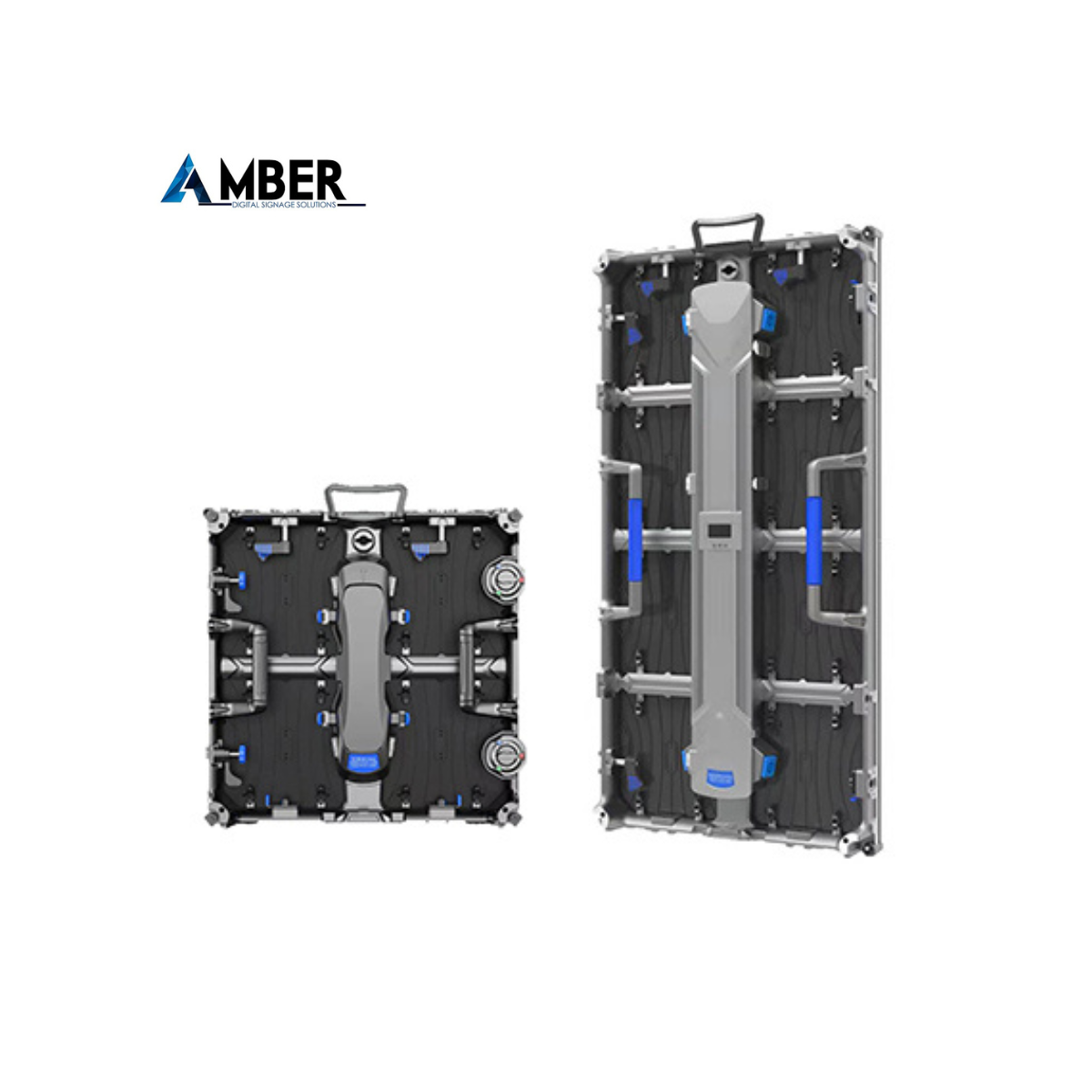

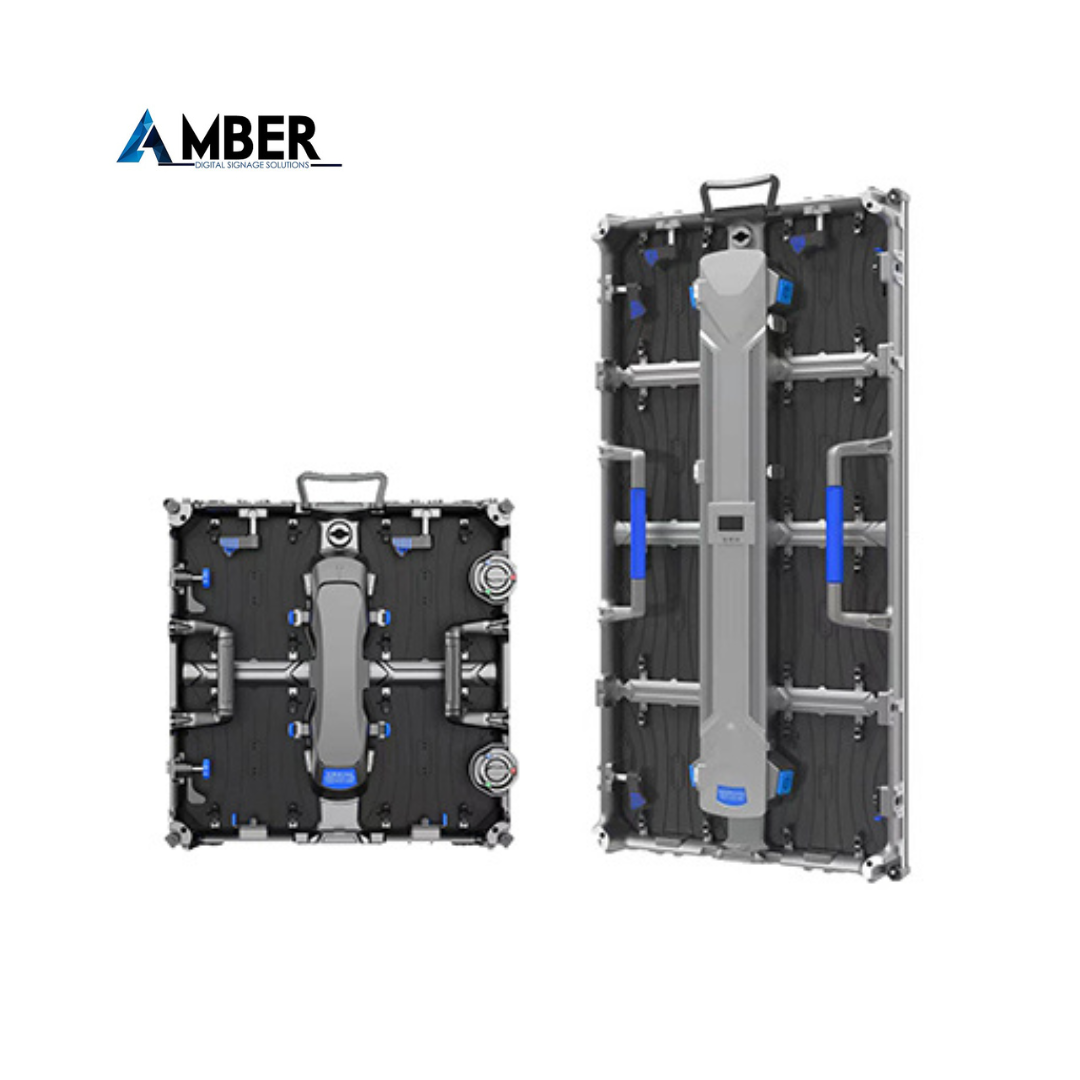

Amber BV-OR-M Outdoor LED Wall Rental Series
Product code:Modular and Independent Power & Signal Box
● Independent Modular Power & Signal Design
● Strong Waterproof Connectors for Outdoor
● Fast Assemble and Easy Maintenance
● Concave, Convex, Curvilinear
SEND AN ENQUIRYDescription

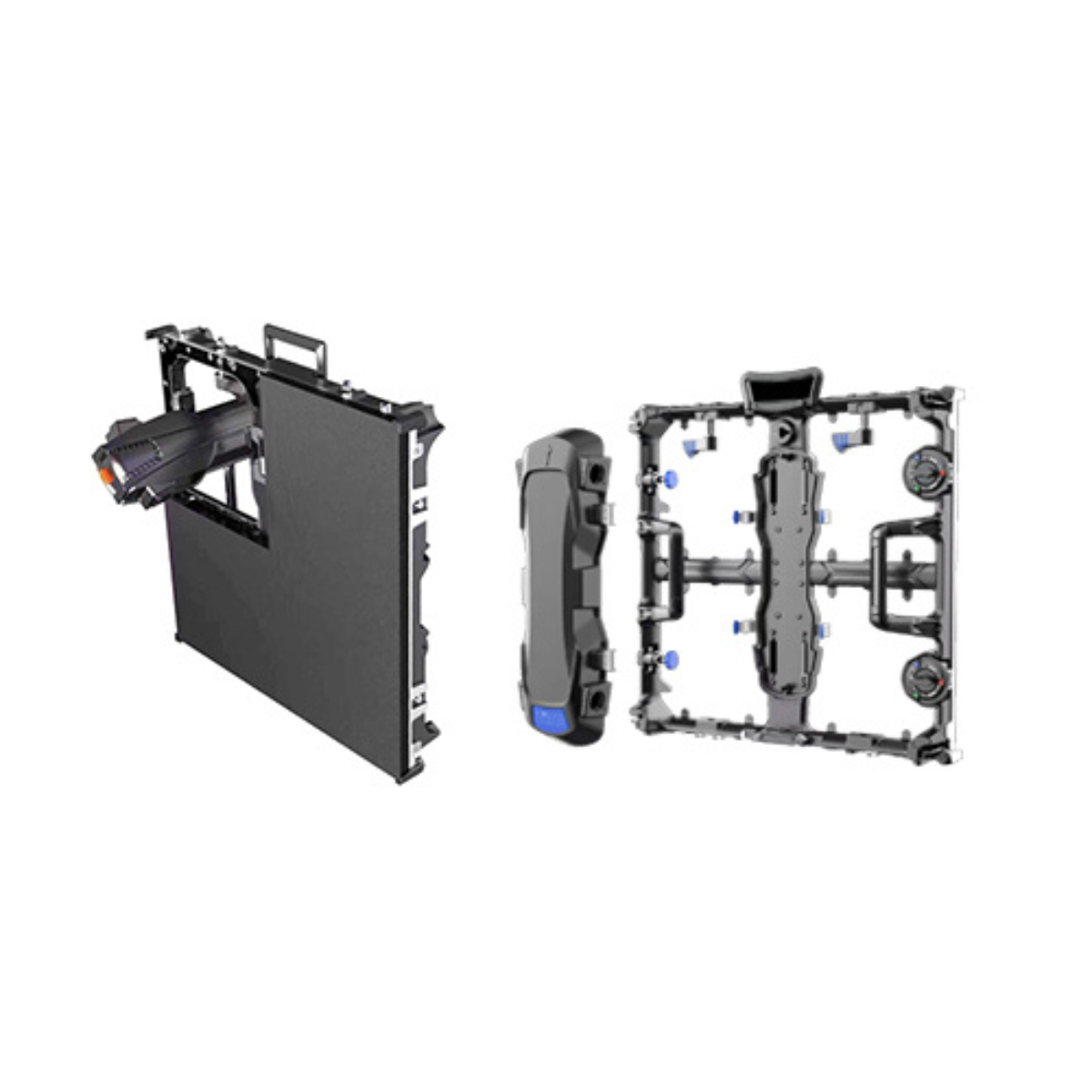

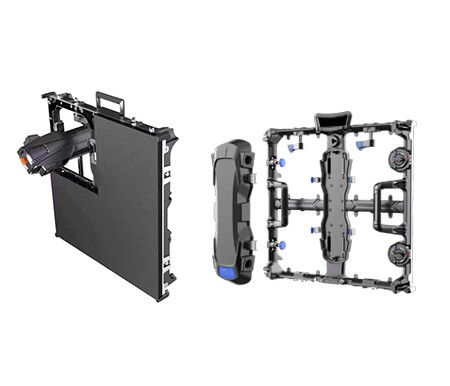

Modular Power and Signal Integration
● Modular power and signal box replaceable
● Fast and tools free replace and assemble

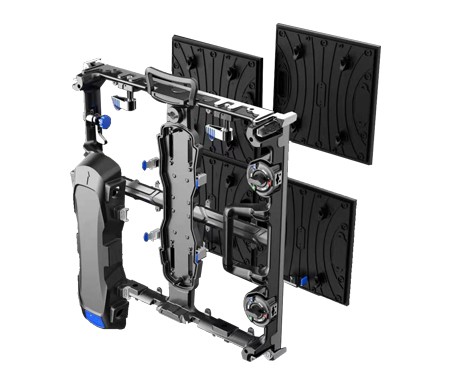

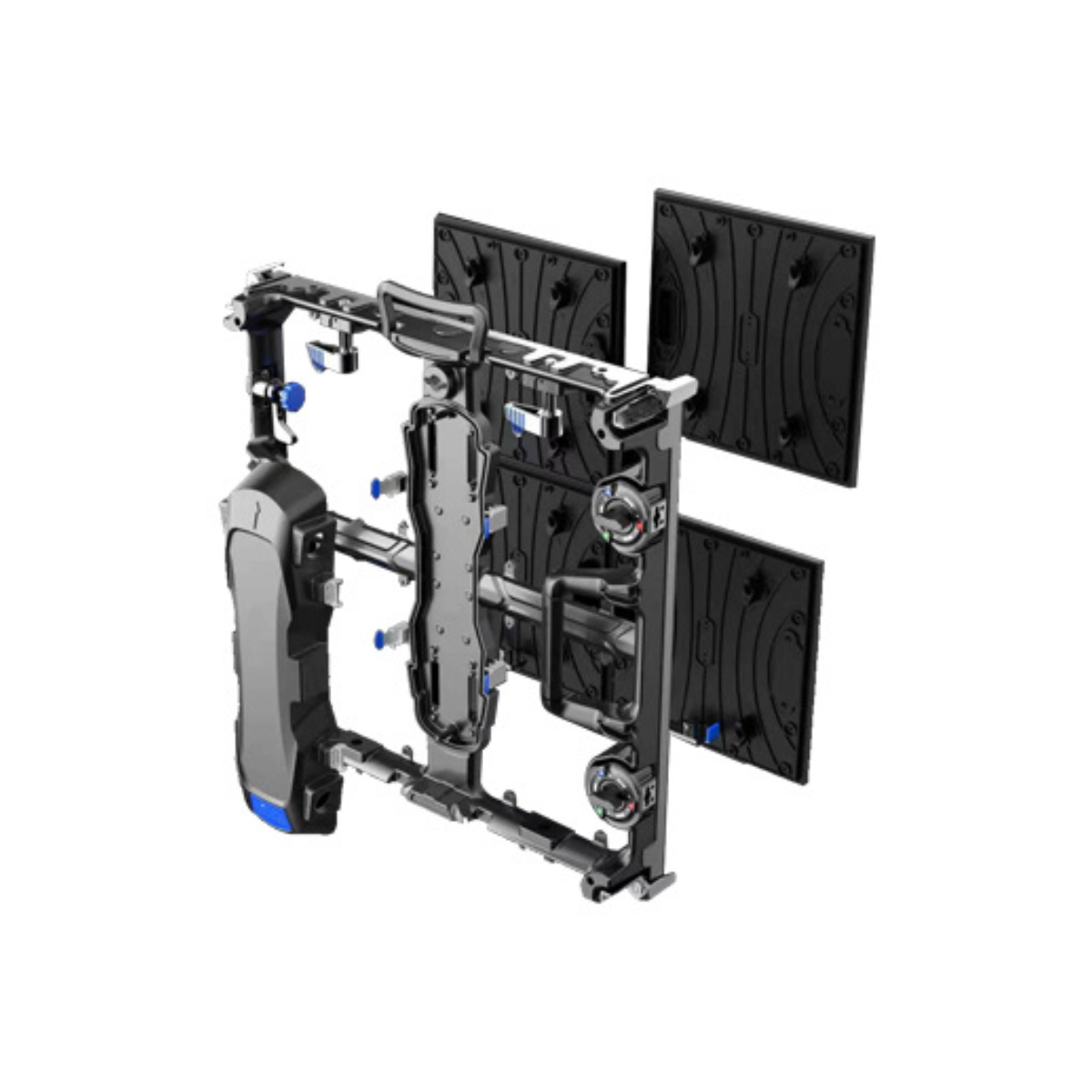

Fully Front or Rear Accessible
● Both fully front or rear service
● Magnetic modules, Cable-less Connection
● Tools-free installation and dismantling
● Easy maintenance

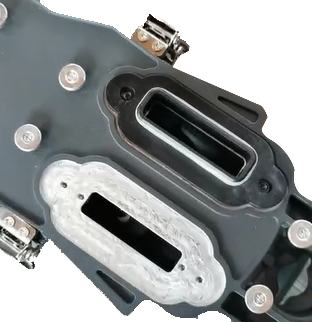

Strong Waterproof Design
● IP65 for outdoor use
● Reinforced waterproof connectors
● Robust for 24/7 working mode

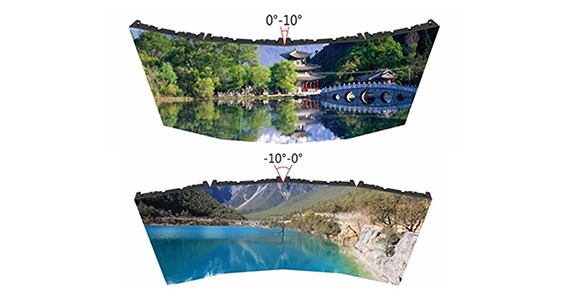

Smart Concave and Convex
● Both 500mmx500mm and 500mmx1000mm cabinets are
arc-able
● -10°-+10° concave and convex degree
Additional information
BV-OR-M3 | BV-OR-M4 | BV-OR-M5 |
Physical Pitch(mm) | 3.91 mm | 4.81 mm | 5.95 mm |
Pixel Configuration | SMD 1921 | SMD 2525 / 2727 | SMD 2525/2727 |
Pixel Density | 65，536 pixels/m² | 43，264 pixels/m² | 28,224 pixels/m² |
Module Dimensions (W × H) (mm) | 250x250 | 250x250 | 250x250 |
Panel Dimensions (mm) | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 |
No. of Modules Per Panel (W × H) | 2*2/2*4 | 2*2/2*4 | 2*2/2*4 |
Physical Resolution of Module (W x H) | 64 × 64 | 52 × 52 | 42 × 42 |
Physical Resolution of Panel (W x H) | 128 × 128 / 128 × 256 | 104 × 104 / 104 × 208 | 84 × 84 / 84 × 168 |
Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Single Cabinet Weight | 9 / 15 kg/panel | 9 / 15 kg/panel | 9 / 15 kg/panel |
Gray Scale | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
Average Power Consumption | 400 W / ㎡ | 320 W / ㎡ | 310 W / ㎡ |
Max Power Consumption | 800 W / ㎡ | 780 W / ㎡ | 750 W / ㎡ |
Operating Temp/Humidity | -20°-60℃ 10%-60% | -20°-60℃ 10%-60% | -20°-60℃ 10%-60% |
Storage Temp/Humidity | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | -20°-60℃/10%-60% | ≥6,000nits | ≥6,000nits |
Horizontal Viewing Angle | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Max Stacking | 20/10 | 20/10 | 20/10 |
Max Hanging | 20/10 | 20/10 | 20/10 |
Servicing | Front / Rear | Front / Rear | Front / Rear |
IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Scan Method | 1/16 Scan | 1/13 Scan | 1/7 Scan |
