Edbak VWM2147 Menu Board Wall Mount, modular 2×1 for 42″-49″ Screens

Product code: VWM2147

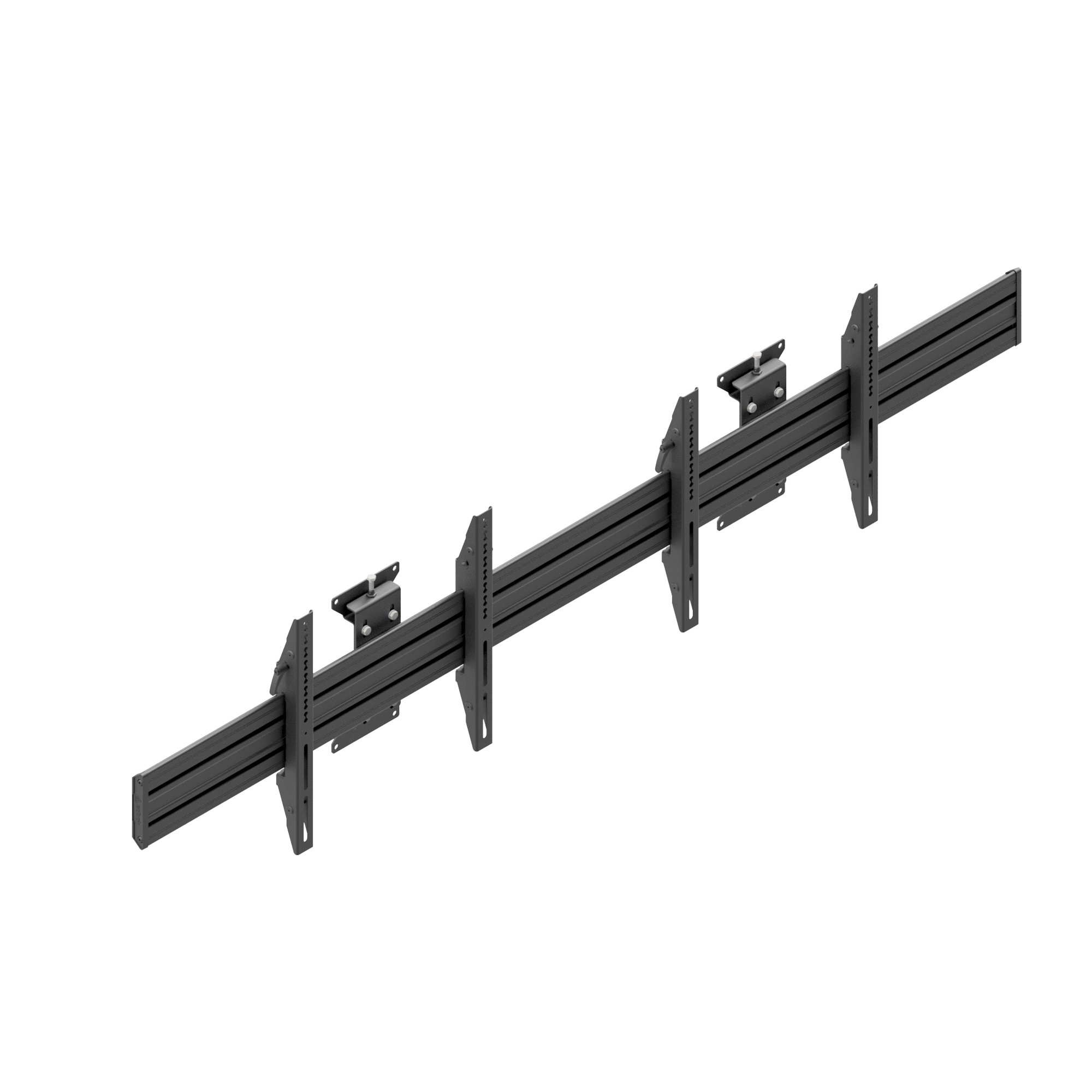

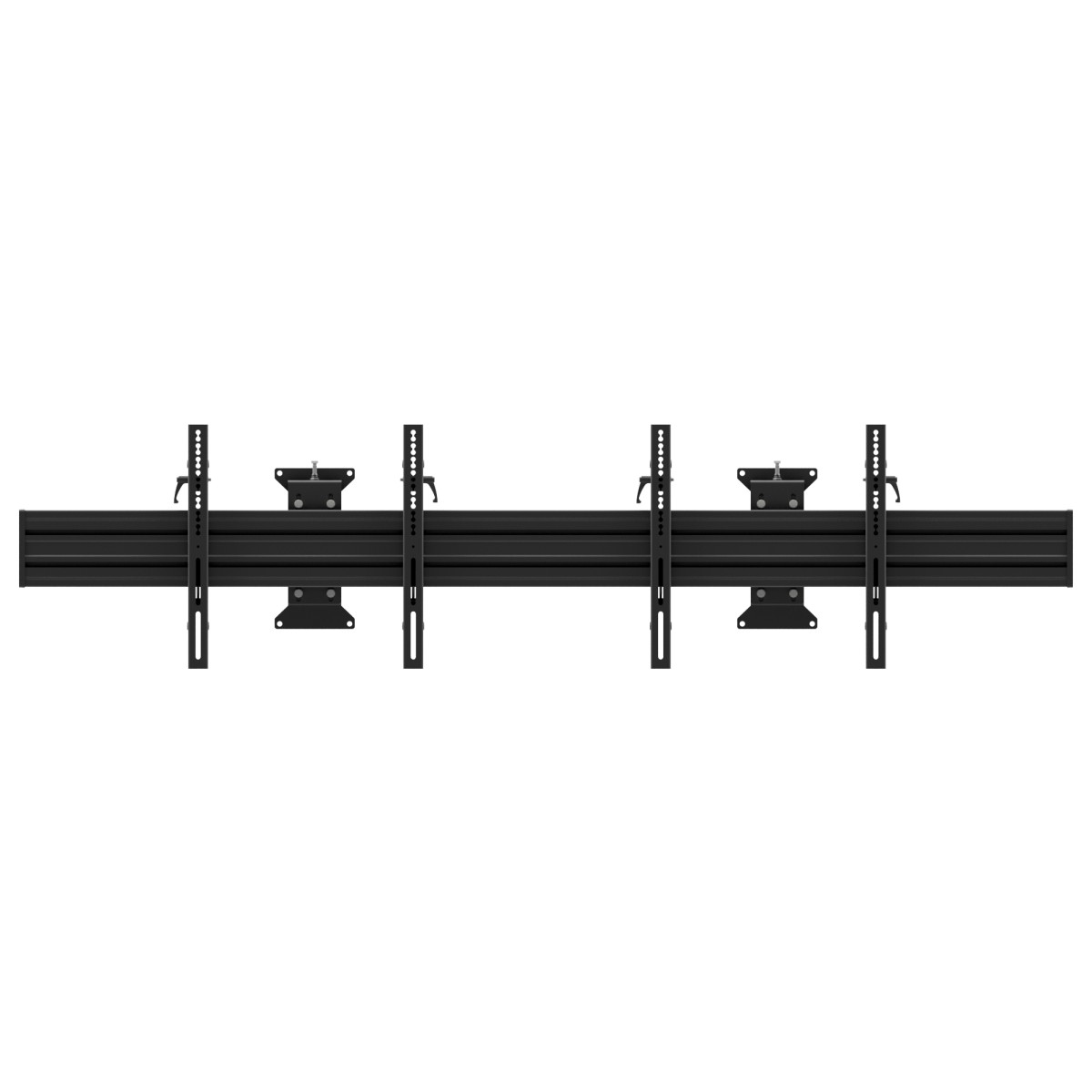

VWM2147 is a robust and accurately manufactured menu board wall mount for two 42″-49″ screens mounted in landscape orientation. The mount is designed for quick and easy video wall expansion. Thanks to the modular concept, any configuration of the video wall can be arranged. The micro-adjustment system allows you to adjust the position of the screen very precisely and adjust it to the other monitors. The integrated cable routing system allows the cabling to be hidden, guaranteeing aesthetic appearance. VWM2147 is perfect for public areas and restaurants, wherever there is a need for frequent layout changes and dynamic communication with the audience.

SEND AN ENQUIRY

Description

  • Quick and simple installation
  • For mounting 2 x 42″-49″ screens
  • Possibility of tilting the screen by 11°
  • Durable aluminum structure
  • Patented beam level adjustment system
  • Universal VESA-compliant mounting range
  • Possibility of easy extension with additional modules

Additional information

Product Specifications

Index:VWM2147
Color:Black
Warranty:Limited 5-year’s
Number of screens:2
Minimum screen size:42″
Maximum screen size:49″
Maximum load:160 kg
Forward tilting:+11°
VESA Mounting Compatibility:50×50 up to 600×400


Technical Specifications

Product dimensions:W: 85,5 mm D: 1960 mm H: 455 mm

(W: 3,37″ D: 77,17″ H: 17,91″)

Product weight:13,5 kg (30 lb)
Max. mounting pattern:600 mm x 417,5 mm
Min. mounting pattern:50 mm x 50 mm


Logistics Data

SAP Index:WUSC-VWM2147
EAN Code:5902841136106
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
