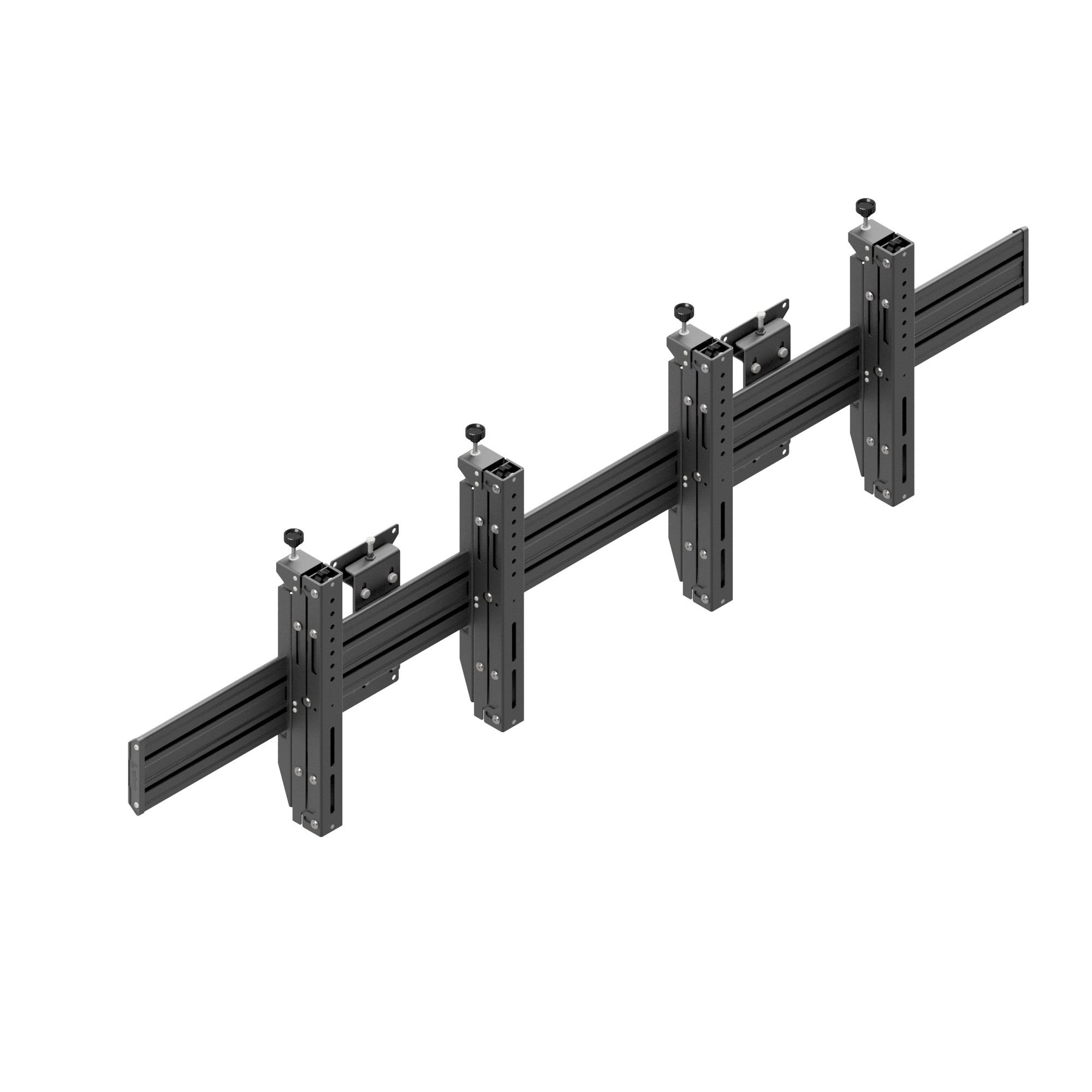

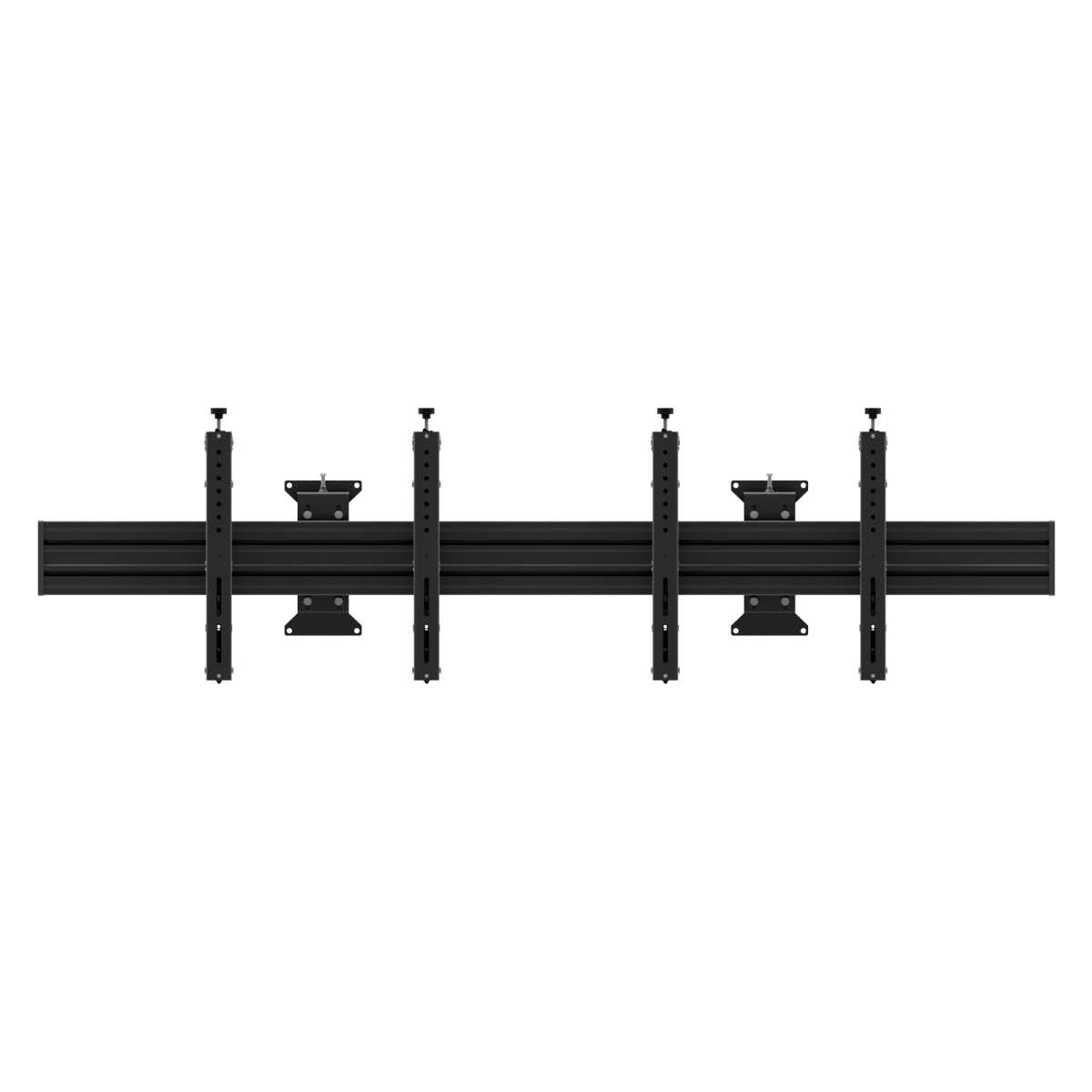

Edbak VWM2147POP Menu Board Wall Mount with Pop-Out, modular 2×1 for 42″-49″ Screens

Product code: VWM2147POP

VWM2147POP is a professional pop-out wall mount designed for easy building of a video wall using modules in a comprehensive and visually attractive manner. It is a robust and accurately manufactured menu board wall mount for two 42″-49″ screens mounted in landscape orientation. The micro-adjustment system allows you to adjust the position of the screen very precisely and adjust it to the other monitors. The click-closing and click-opening system ensures quick and easy service access. The integrated cable routing system allows the cabling to be hidden, guaranteeing aesthetic appearance. VWM2147POP is the number one choice for users who value intuitiveness and ease of use. It is perfect for public areas or restaurants, wherever there is a need for frequent layout changes and dynamic communication with the audience. The mount is designed for quick and easy video wall expansion. Thanks to the modular concept, any configuration of the video wall can be arranged.

SEND AN ENQUIRY

Description

  • For mounting 2 x 42″-49″ screens
  • Durable aluminum structure
  • Patented beam level adjustment system
  • Click-closing and click-opening system for quick and easy service access
  • Universal VESA-compliant mounting range
  • Possibility of easy extension with additional modules

Additional information

Product Specifications

Index:VWM2147POP
Color:Black
Warranty:Limited 5-year’s
Number of screens:2
Minimum screen size:42″
Maximum screen size:49″
Maximum load:160 kg
VESA Mounting Compatibility:50×50 up to 600×400


Technical Specifications

Product dimensions:W: 135 mm D: 1960 mm H: 525 mm

(W: 5,31″ D: 77,17″ H: 20,67″)

Product weight:23 kg (51 lb)
Max. distance from mounting surface:293 mm (11,54″)
Min. distance from mounting surface:135 mm (5,31″)
Max. mounting pattern:600 mm x 417,5 mm
Min. mounting pattern:50 mm x 50 mm


Logistics Data

SAP Index:WUSC-VWM2147POP
EAN Code:5902841136120
HS Code (Harmonized System):732690
HTS Code (Harmonized Tariff Schedule):7326909890
Country of origin:Poland
