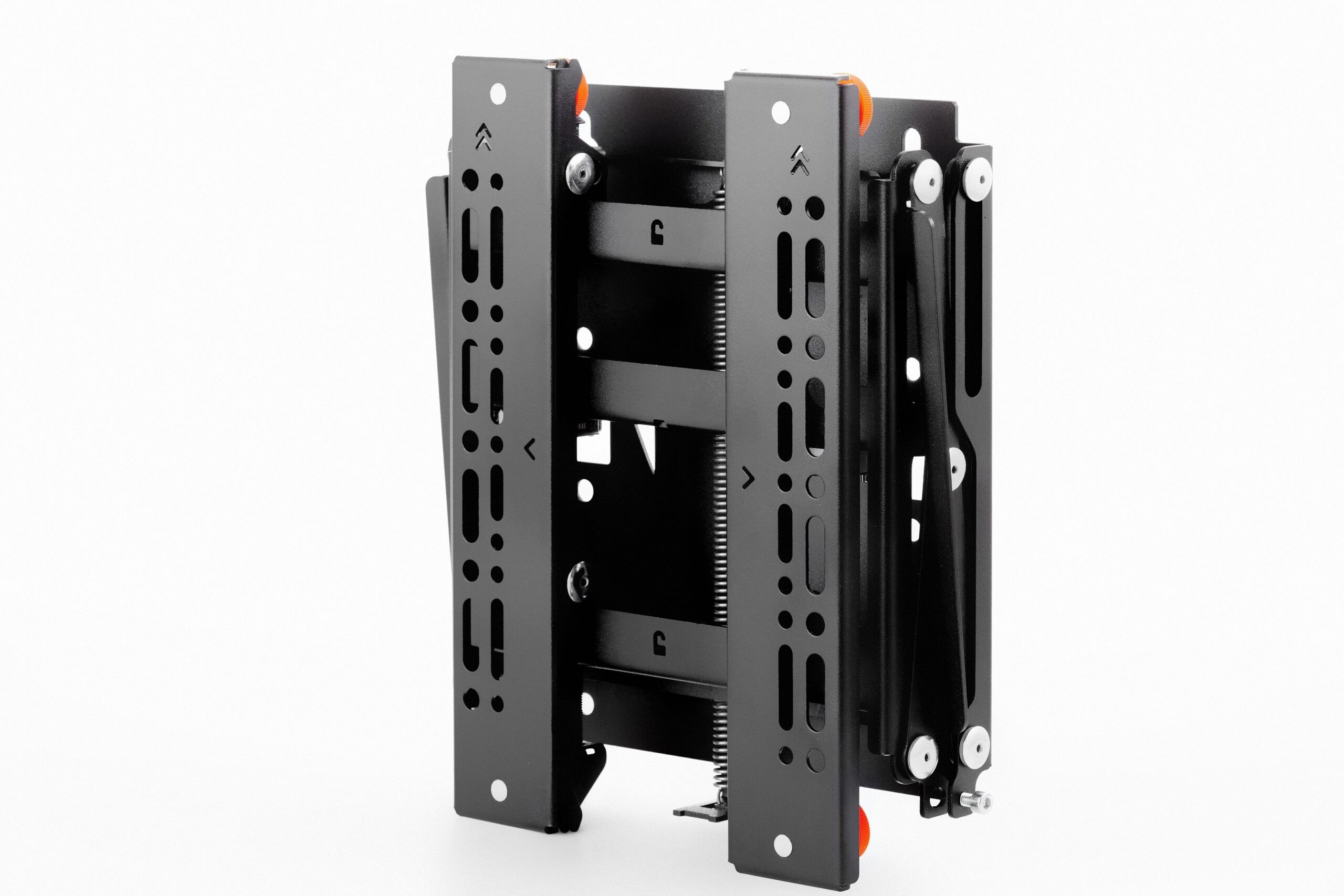

Edbak VWPOP40 Video Wall Pop-Out Mount with Quick Release for 19″-43″ Screens
Product code:VWPOP40 is designed for the installation of video walls with smaller screens.

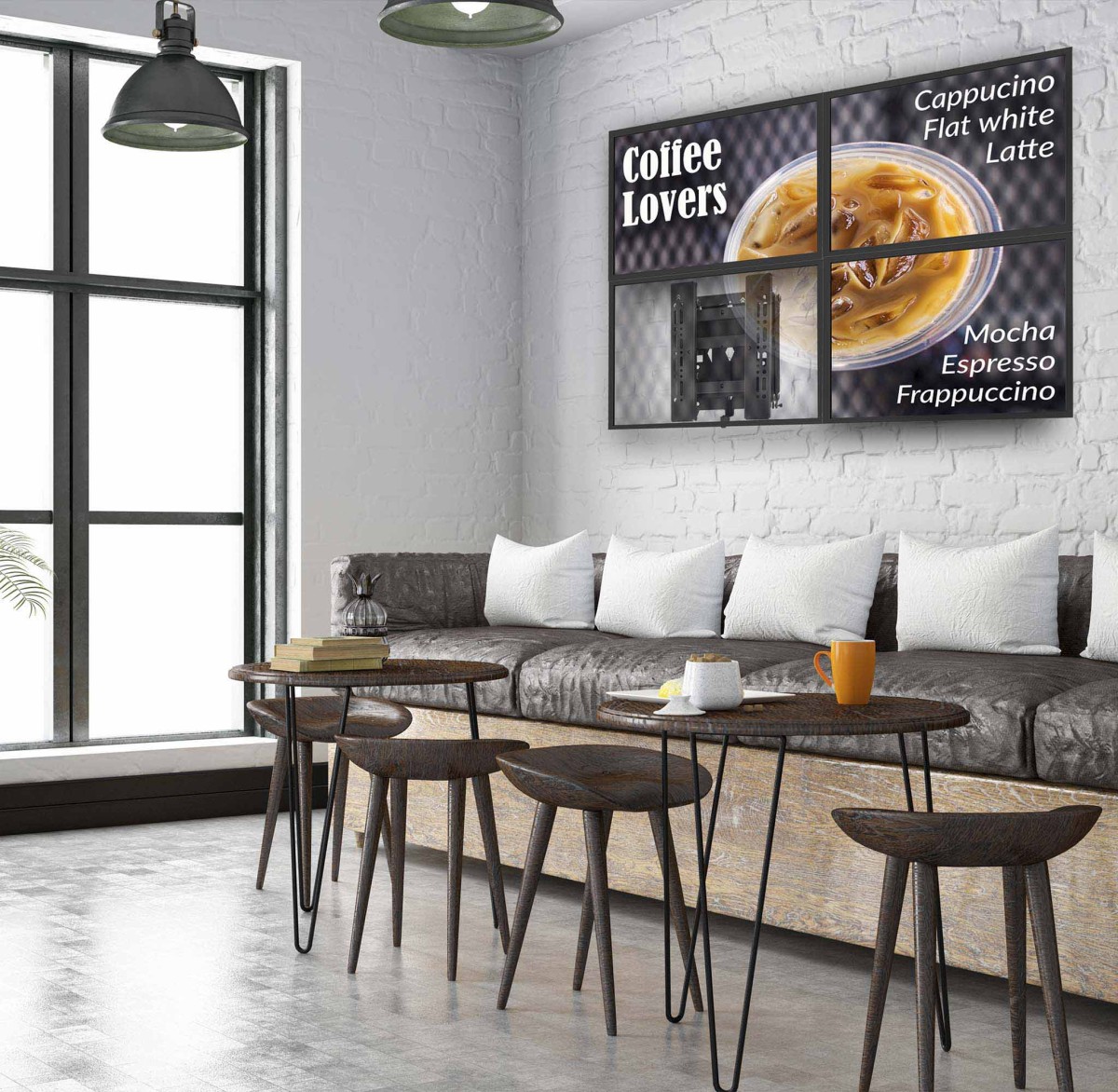

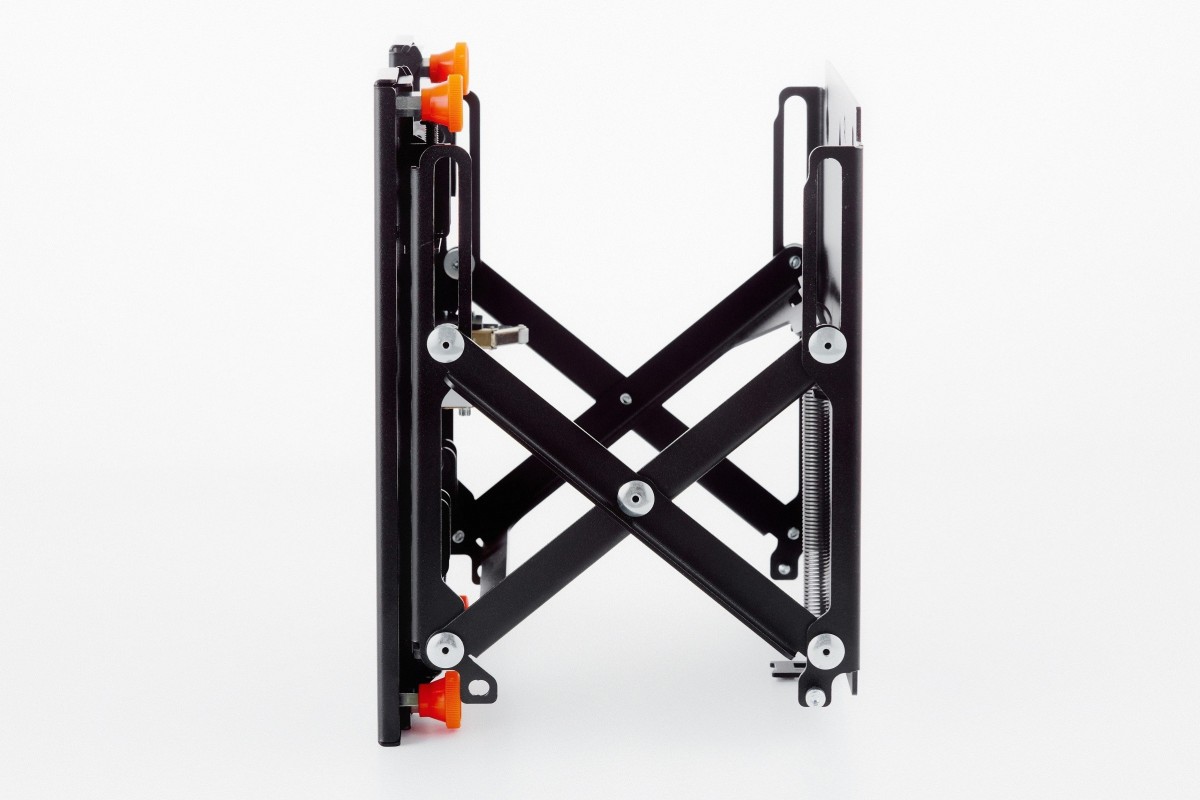

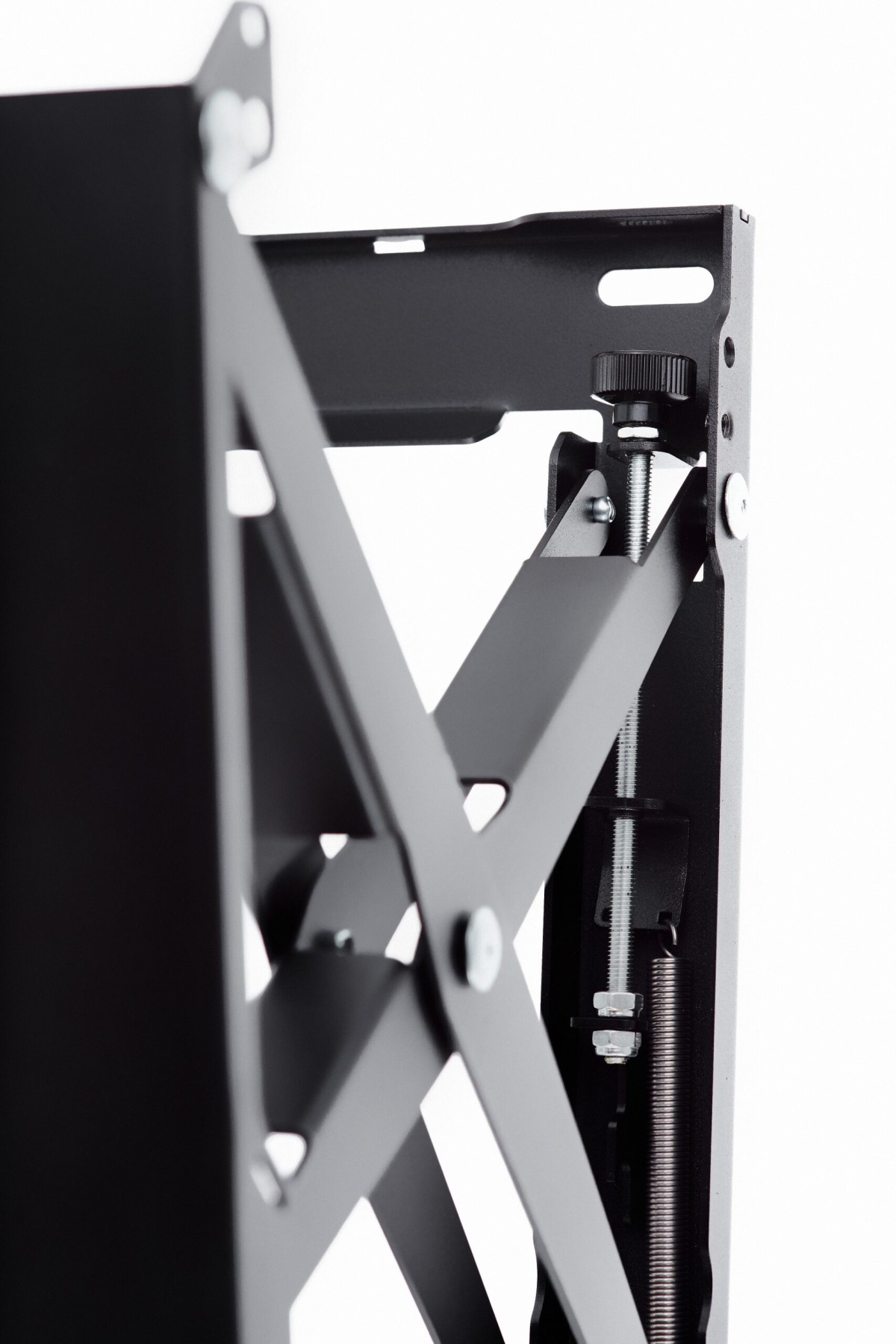

Eight positions of screen adjustment, spring-loaded mechanism for adjusting the masses of individual screens or an easy service access system offer great construction possibilities. This mount is the number one choice for users who care about intuitiveness and operating comfort. VWPOP40 provides optimum comfort during the construction of a modular audio/visual wall.
Description
- Dedicated for screens up to 43″
- 8-point +/- 5 mm micro-adjustment allows precise alignment of screens without the use of tools
- Open product design for quick and easy servicing access

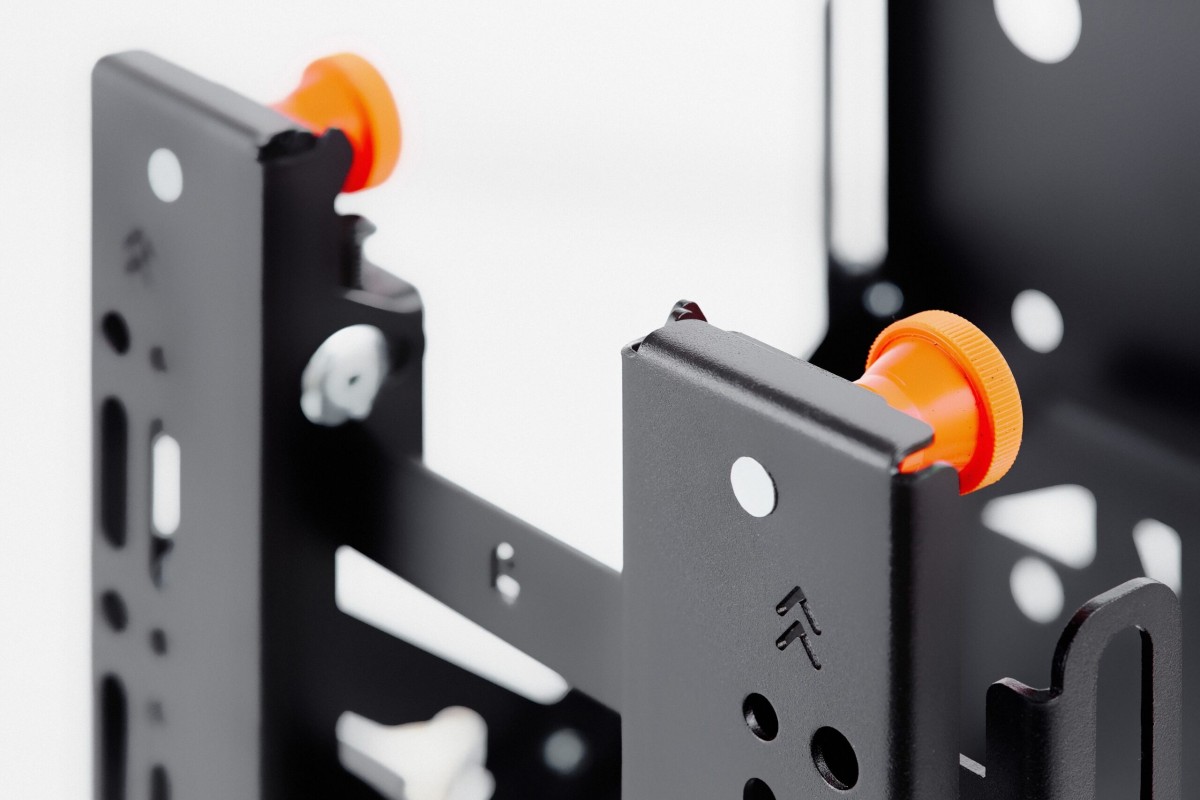

- Bolt protection prevents the screen from being slid out accidentally
- Integrated cable management system
Additional information
Product Specifications
| Index: | VWPOP40 |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Minimum screen size: | 19″ |
| Maximum screen size: | 43″ |
| Maximum load: | 25 kg |
| VESA Mounting Compatibility: | 75×75 to 200×200 |
Technical Specifications
| Product dimensions: | W: 250 mm D: 67 mm H: 295 mm
(W: 9,84″ D: 2,64″ H: 11,61″) |
| Product weight: | 3 kg (7 lb) |
| Max. distance from mounting surface: | 210 mm (8,27″) |
| Min. distance from mounting surface: | 67 mm (2,64″) |
| Max. mounting pattern: | 200 x 200 mm |
| Min. mounting pattern: | 75 x 75 mm |
Logistics Data
| SAP Index: | WUSC-VWPOP40 |
| EAN Code: | 5902841134881 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
