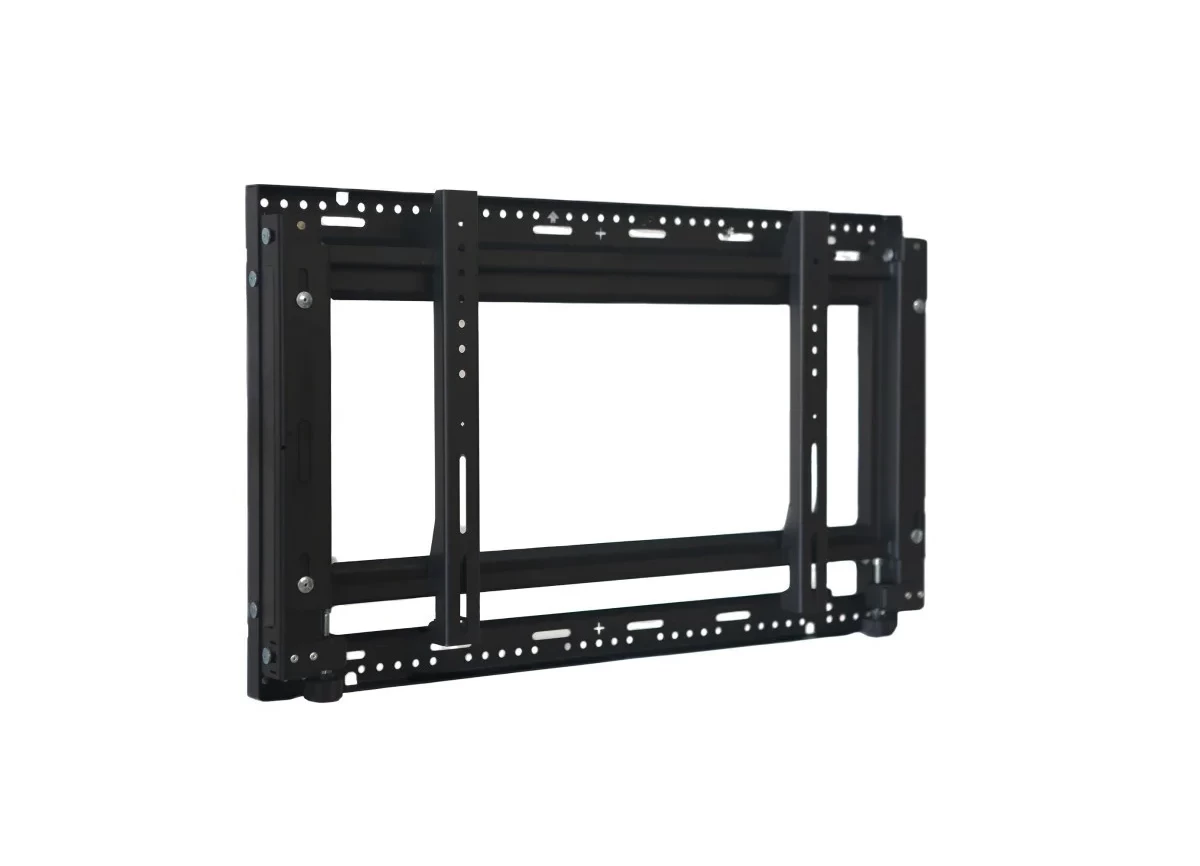

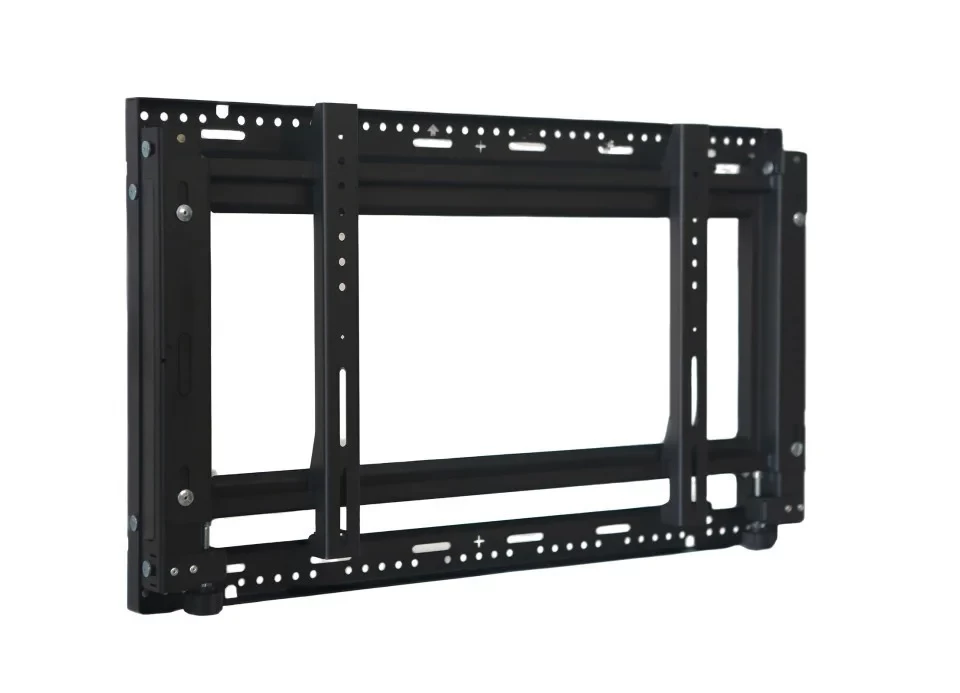

Edbak VWFX65-L Fixed Video Wall Mount for 42″-65″ Screens, Landscape
Product code:VWFX65-L is a professional video wall mount with multi-point micro-adjustment of the screen position allowing smooth alignment of screens without the use of tools.
SEND AN ENQUIRYDescription
- The mount is designed for the installation of video walls
- Mounting holes and carefully selected spacers eliminate the need for calculations on site
- Independent 8 position adjustment allows precise alignment of screens without the use of tools
- The anti-theft padlock enhances safety of the installation in public areas
- The modular design allows the installation of video walls in any configuration, compatible with VWPOP and VWFS products
Additional information
Product Specifications
| Symbol: | VWFX65-L |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Minimum screen size: | 42″ |
| Maximum screen size: | 65″ |
| Maximum load: | 60kg |
| VESA Mounting Compatibility: | 100×100 up to 600×400 |
Technical Specifications
| Product dimensions: | W: 834 mm D: 85 mm H: 500 mm
(W: 32,83″ D: 3,35″ H: 19,69″) |
| Product weight: | 11 kg (24 kg) |
| Max. distance from mounting surface: | 100 mm (3,94″) |
| Min. distance from mounting surface: | 85 mm (3,35″) |
| Max. mounting pattern: | 630 x 405 mm |
| Min. mounting pattern: | 50 x 85 mm |
Logistics Data
| SAP Index: | WUSC-VWFX65-L |
| EAN Code: | 5908252968558 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
