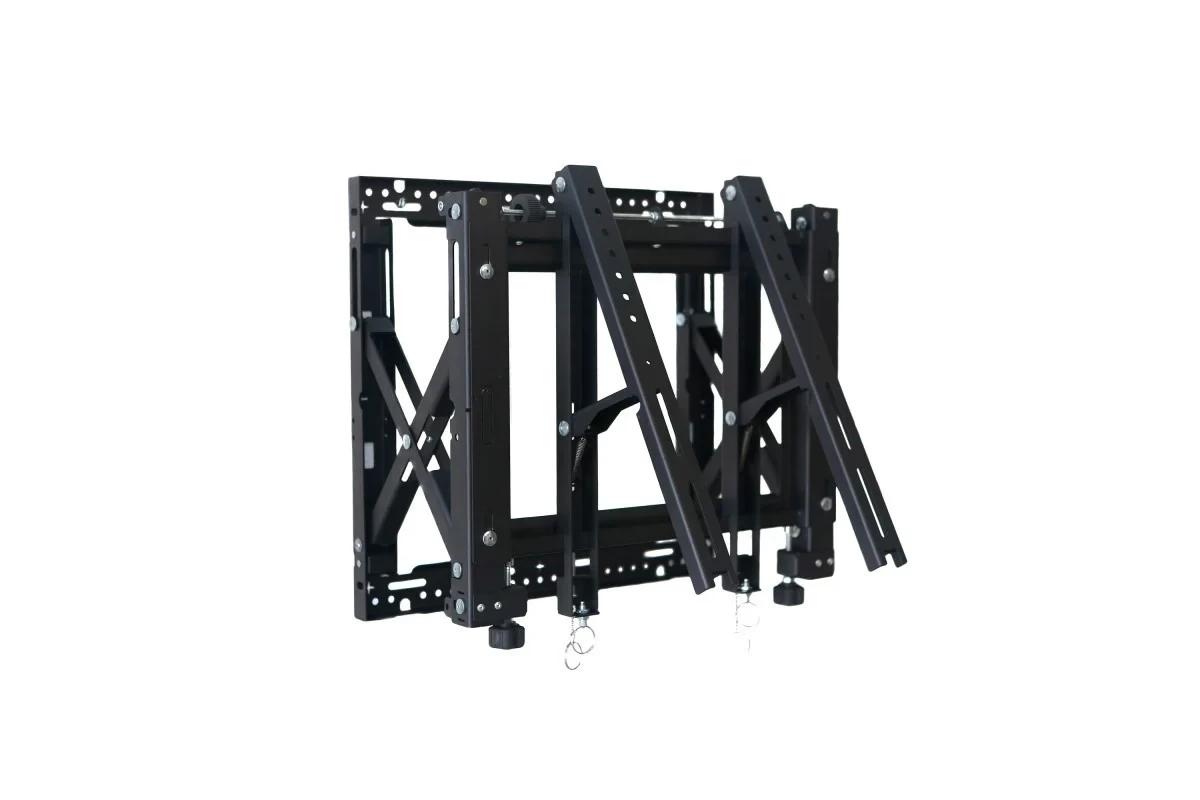

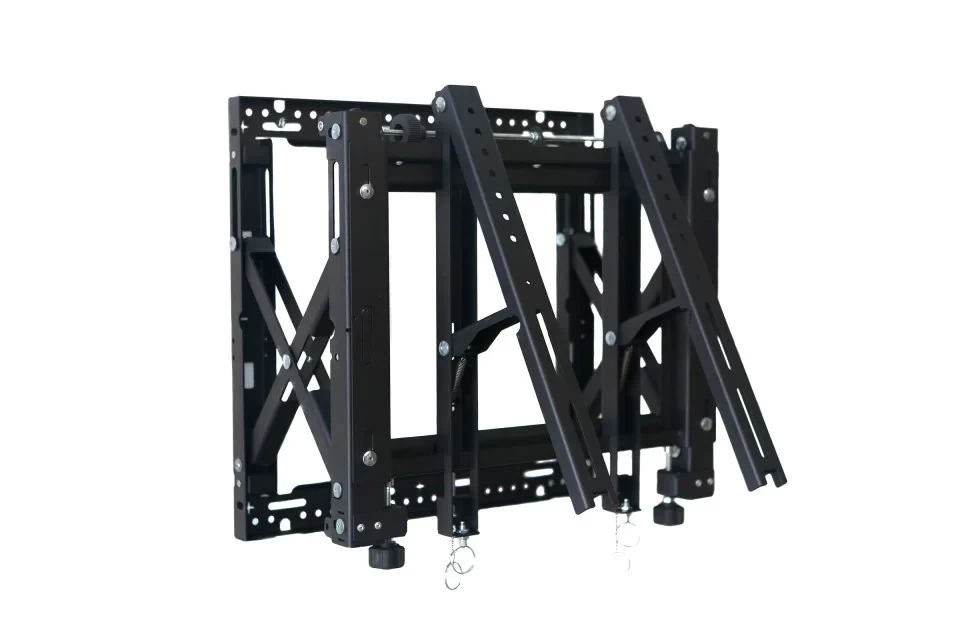

Edbak VWPOP65-P Video Wall Pop-Out Mount with Quick Release 42″-65″, Portrait
Product code:Professional pop-out mount designed to build portrait video walls. The open design of the VWPOP65-P allows full access to cabling, and the included ties are used to hide the cables easily and aesthetically.
SEND AN ENQUIRYDescription
- Independent 8-point micro adjustment allows precise alignment of screens without the use of tools
- The retractable mechanism provides convenient service access to screens installed in recesses and places difficult to access
- The retractable mechanism can be secured with a lock screw to prevent the screen from being accidentally extended
- The open design of the product provides full access to cabling, and the supplied ties facilitate cable management
- Mounting holes and carefully selected spacers eliminate the need for calculations on site
- Adjustment of the retractable mechanism spring enables proper adjustment for screens of different masses to obtain safe and controlled extension
- TUV tested
Additional information
Product Specifications
| Index: | VWPOP65-P |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Number of screens: | 1 |
| Minimum screen size: | 42″ |
| Maximum screen size: | 65″ |
| Maximum load: | 60 kg |
| Forward tilting: | +28° |
| Screen orientation: | Portrait |
| Height adjustment: | Yes |
| VESA Mounting Compatibility: | 200×400 up to 400×600 |
Technical Specifications
| Product dimensions: | W: 512 mm D: 90 mm H: 630 mm
(W: 20,16″ D: 3,54″ H: 24,80″) |
| Product weight: | 15 kg (33 lb) |
| Max. distance from mounting surface: | 270 mm (10,63″) |
| Min. distance from mounting surface: | 90 mm (3,54″) |
| Max. mounting pattern: | 400 mm x 600 mm |
| Min. mounting pattern: | 45 mm x 85 mm |
Logistics Data
| Index: | WUSC-VWPOP65-P |
| EAN Code: | 5908252968589 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
