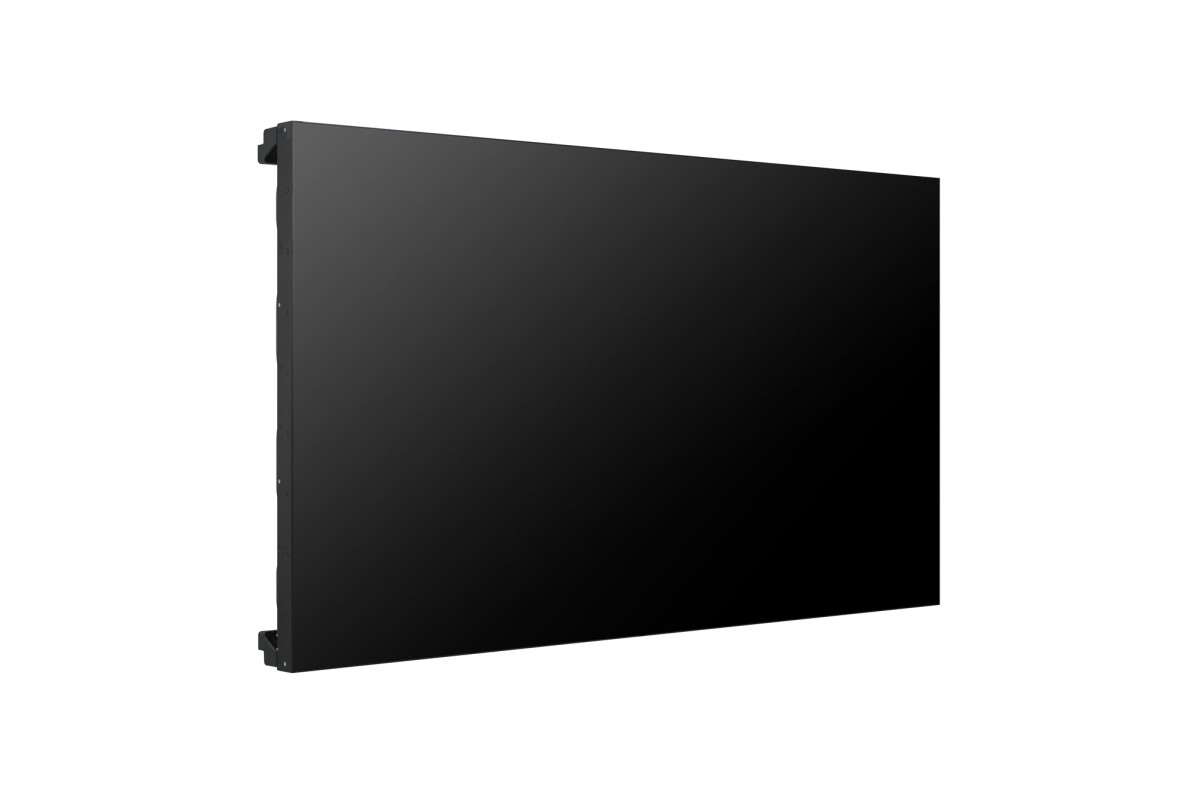

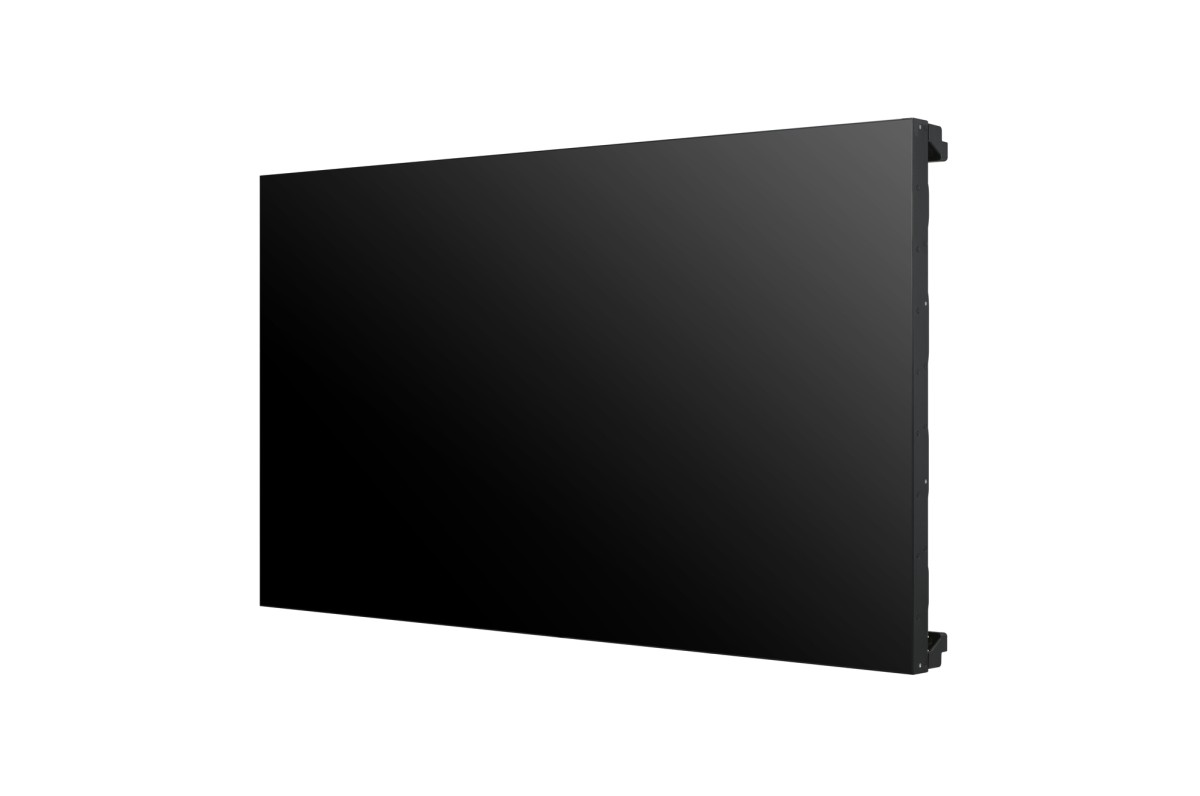

LG 49VL5F-A Ultra Slim Bezel Video Wall Display
Product code:The VL5F series provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from any angle. With its extremely attractive and highly functional design, it can be used to deliver advertising and information in a variety of business environments.
Description
Panel
| Screen Size | 49" |
|---|---|
| Panel Technology | IPS |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Aspect Ratio | 16:9 |
| Brightness (Typ., cd/m²) | 450 |
| Dynamic CR | 500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.) |
| Viewing Angle (H x V) | 178 × 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 3% |
| Life Time (Typ.) | 60,000 Hrs |
| Operation Hours | 24 Hrs |
| Orientation | Landscape & Portrait |
Additional information
Mechanical Specification
| Bezel Width | 2.25 mm (T/L), 1.25 mm (B/R) |
|---|---|
| Weight (Head) | 17.8 kg |
| Packed Weight | 22.8 kg |
| Monitor Dimensions (W × H × D) | 1,077.6 x 607.8 x 89.7 mm |
| Carton Dimensions (W × H × D) | 1,214 x 778 x 263 mm |
| VESA™ Standard Mount Interface | 600 x 400 mm |
Connectivity
| Input | HDMI, DP, DVI-D, RGB, Audio, USB 2.0 |
|---|---|
| Output | DP, Audio |
| External Control | RS232C In/out, RJ45 (LAN) In, IR In |
Environment Conditions
| Operation Temperature | 0°C to 40°C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ. | 90 W |
|---|---|
| Max. | 110 W |
| Smart Energy Saving | 55 W |
Certification
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes (EU Only) |
Software Compatibility
| Content Management Software | SuperSign CMS |
|---|---|
| Control and Monitoring Software | SuperSign Control/Control+ |
Accessory
| Basic | Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual |
|---|---|
| Optional | Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V) |
