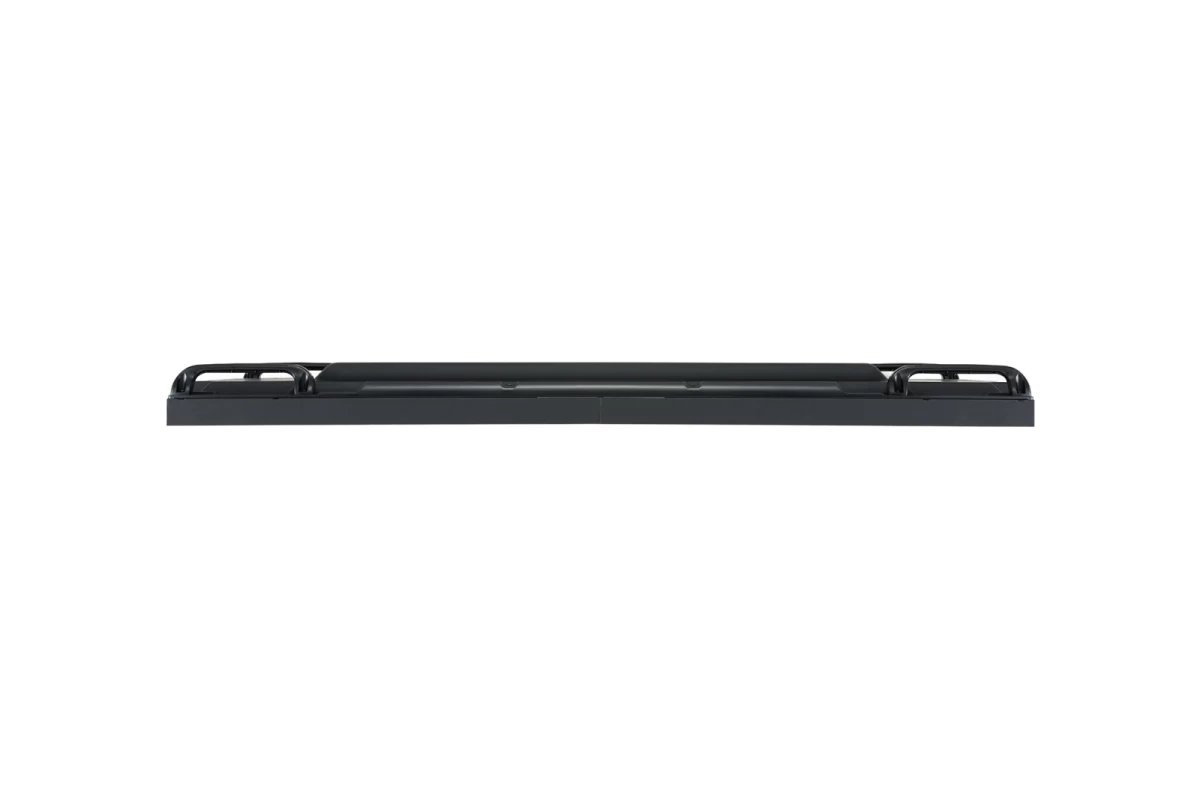

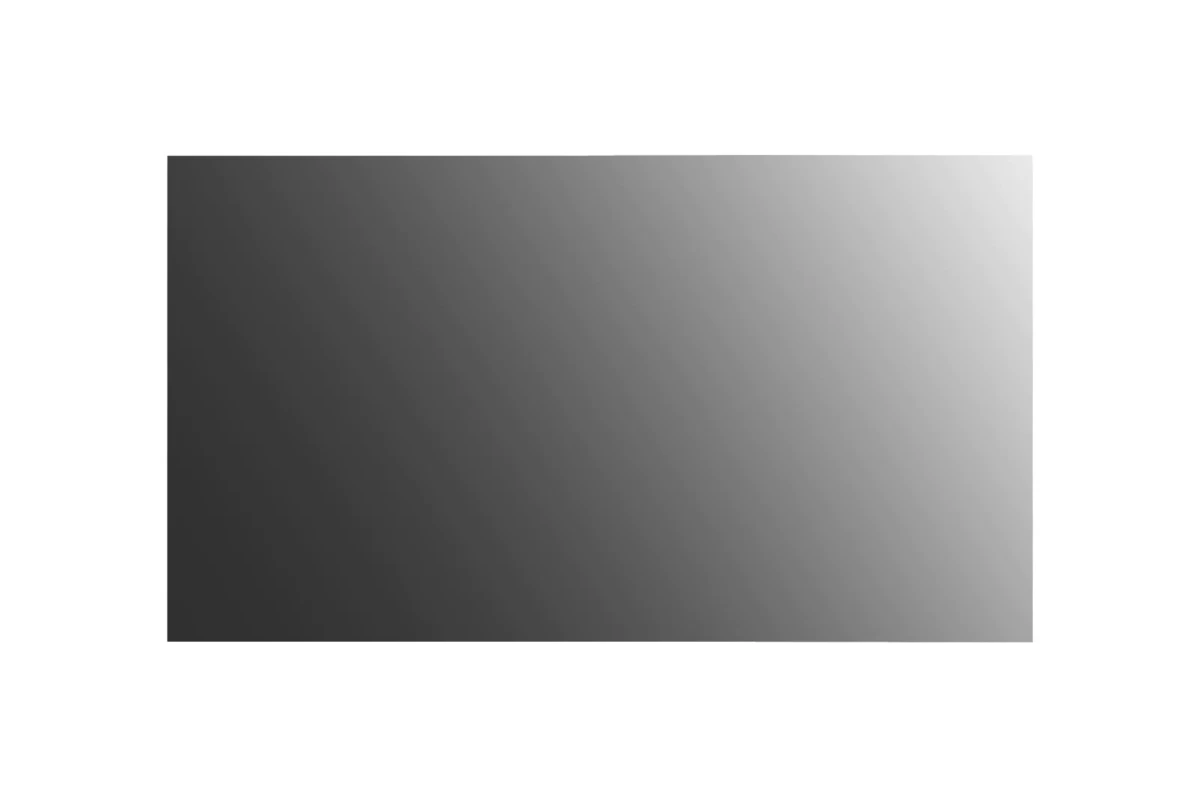

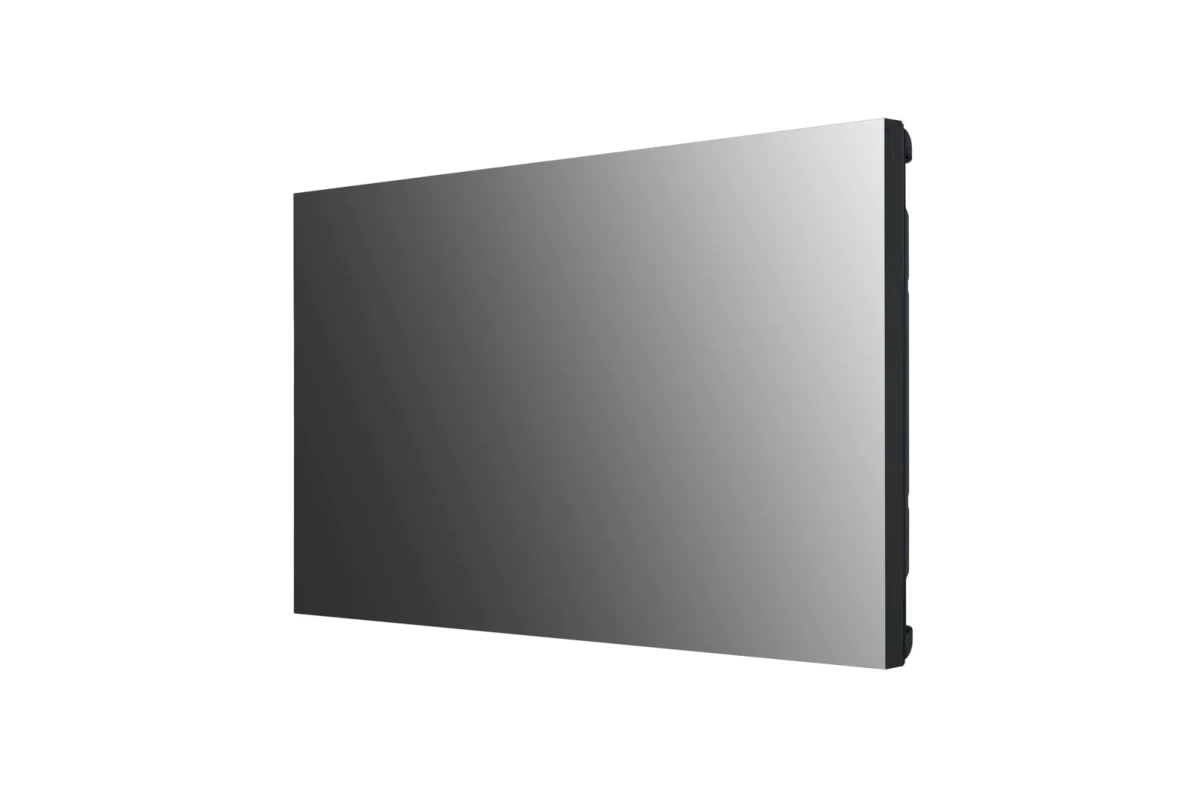

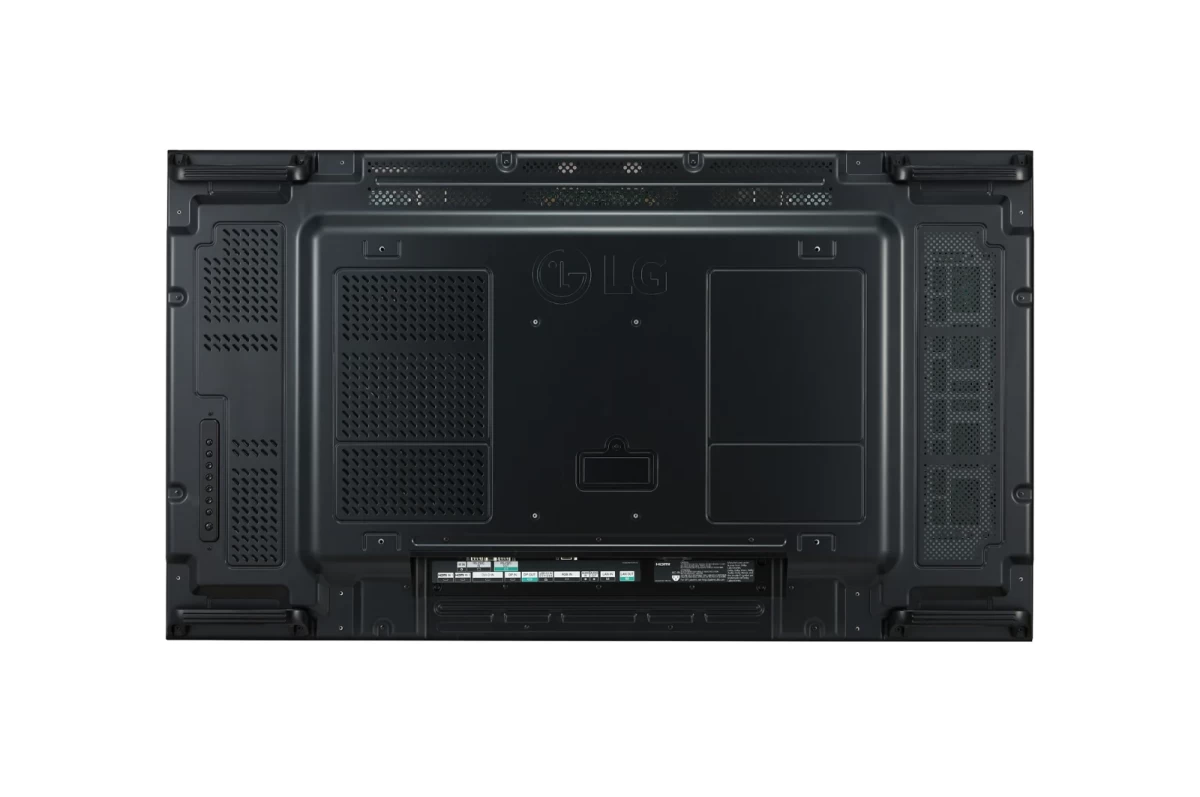

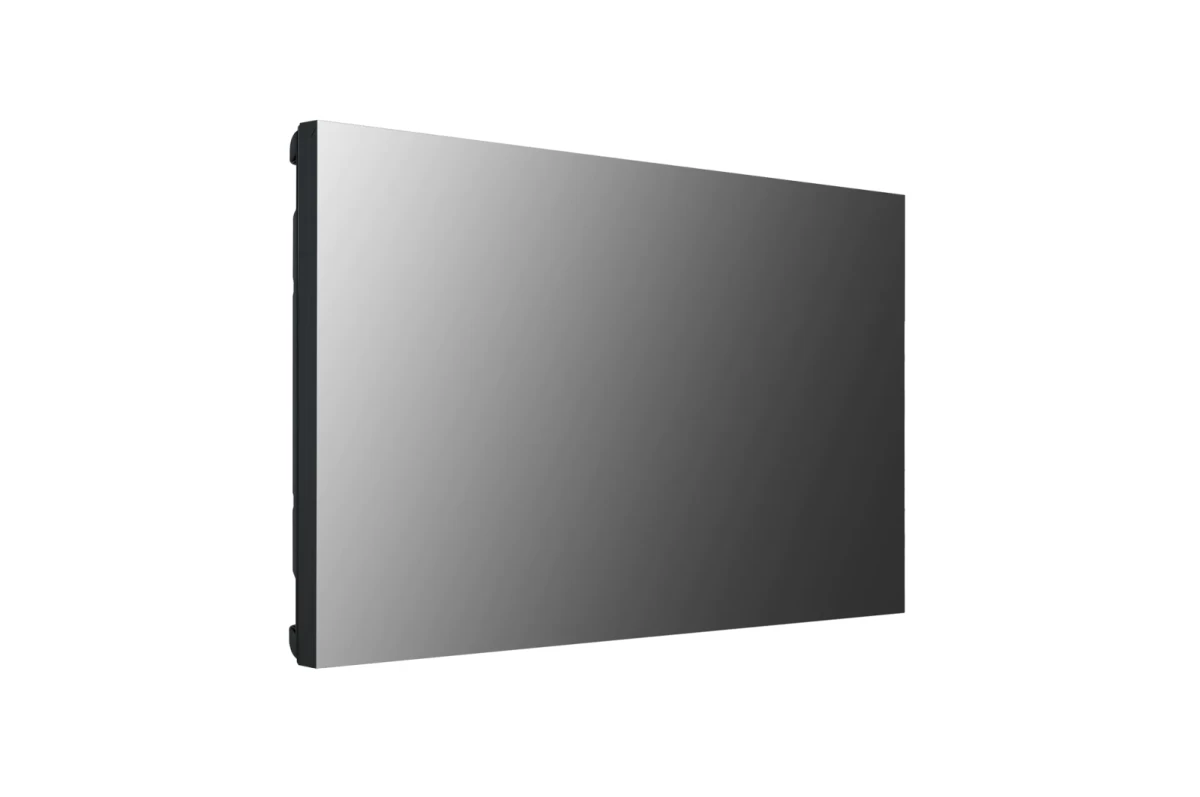

LG 55SVH7PF-H Full HD 0.44mm Even Bezel Video Wall
Product code:The 0.44mm Even Bezel Video Wall using LG's leading display technology, creates a truly seamless view with vivid color throughout the assembled large screen. Also, designed with an external power box, it is more optimal for Mission Critical Environment, where continuous, stable and reliable power supply is required for 24 hours.
SEND AN ENQUIRYDescription
Panel
| Screen Size | 55" |
| Panel Technology | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness(Typ.,cd/m²) | 700 |
| Contrast Ratio | 1,100:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment | Haze 28% |
| Life Time (Typ.) | 60,000 Hrs |
| Operation Hours | 24 Hrs |
| Orientation | Landscape & Portrait |
| OS | webOS 4.0 |
Additional information
Connectivity
| Input | HDMI (2), DP, DVI-D, Audio, USB, Power In, Power Loop In |
| Output | DP, Audio, Power Loop Out |
| External Control | RS232C In/out, RJ45 (LAN) In/out, IR In |
Mechanical Specifications
| Bezel Color | Black |
| Bezel Width | 0.44 mm (Even) |
| Monitor Dimensions (W × H × D) | 1,210.51 x 681.22 x 86.5 mm |
| Weight (Head) | 16.8 kg |
| Handle | Yes |
| VESA™ Standard Mount Interface | 600 x 400 mm |
Environment Conditions
| Operation Temperature | 0°C to 40°C |
| Operation Humidity | 10 % to 80 % |
Power Consumption
| Typ. | 188W |
| Max. | 240W |
Certification
| Safety | CB / NRTL |
| EMC | FCC Class “A” / CE / KC |
Software Compatibility
| Content Management Software | SuperSign CMS |
| Control and Monitoring Software | SuperSign Control / Control+ |
| Signage365Care | Yes |
Accessory
| Basic | Remote Controller, RS232C Cable, Lan Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual, Power loop cable |
| Optional | Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), External Power Box (LPLG001-FV3)), Power cable (6m, ACC-LAPPC06), Power cable (60m, ACC-LAPPC60), OPS Kit (KT-OPSF) |
Datasheet
