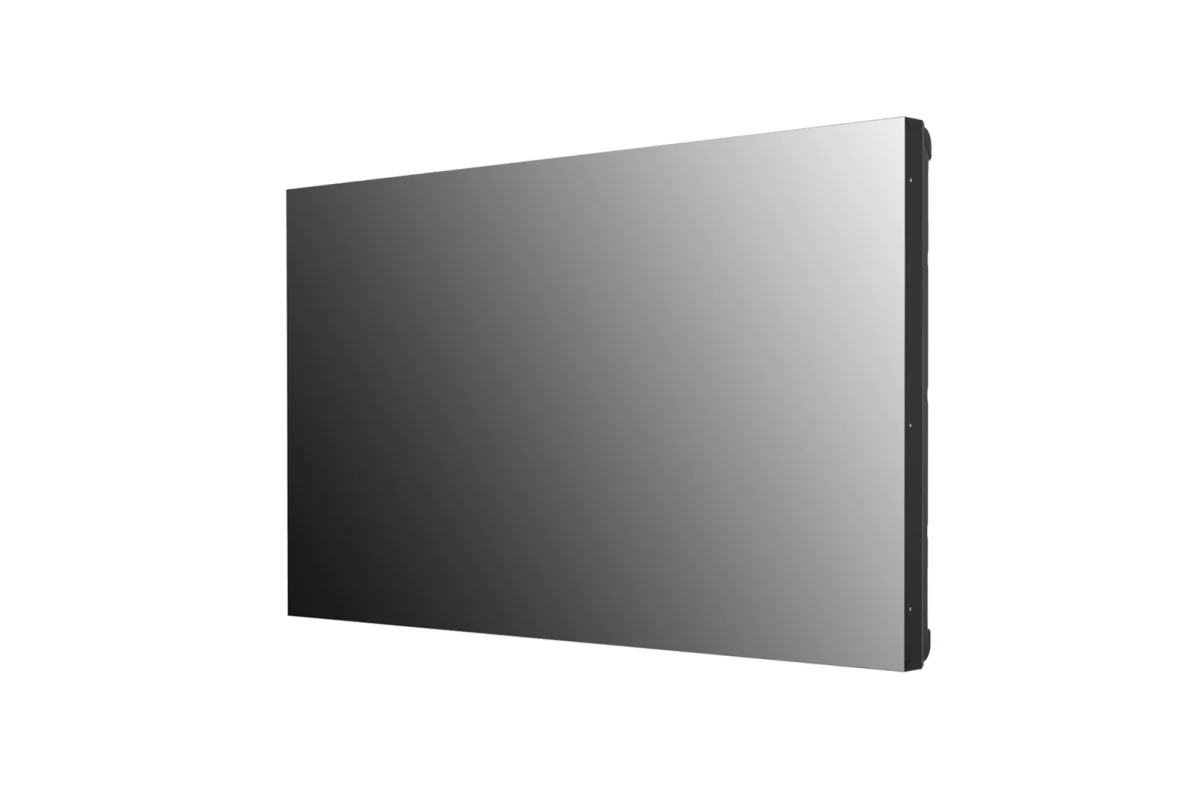

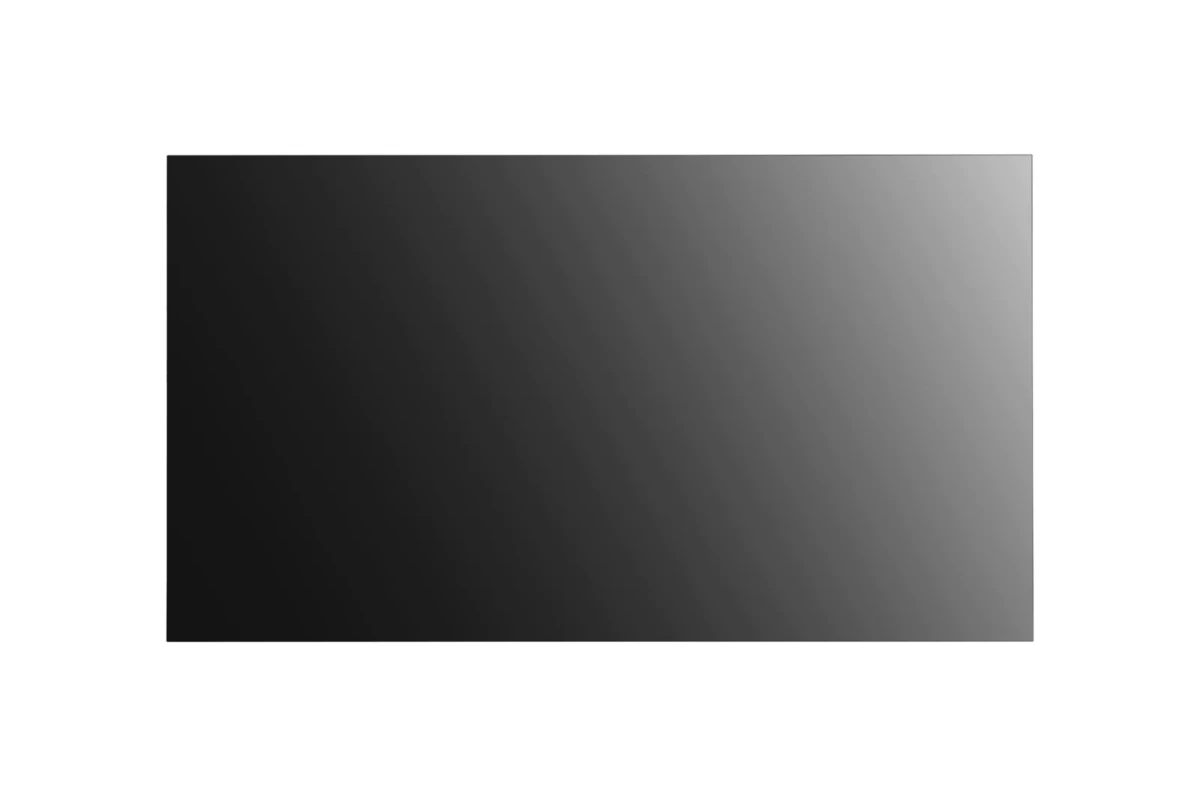

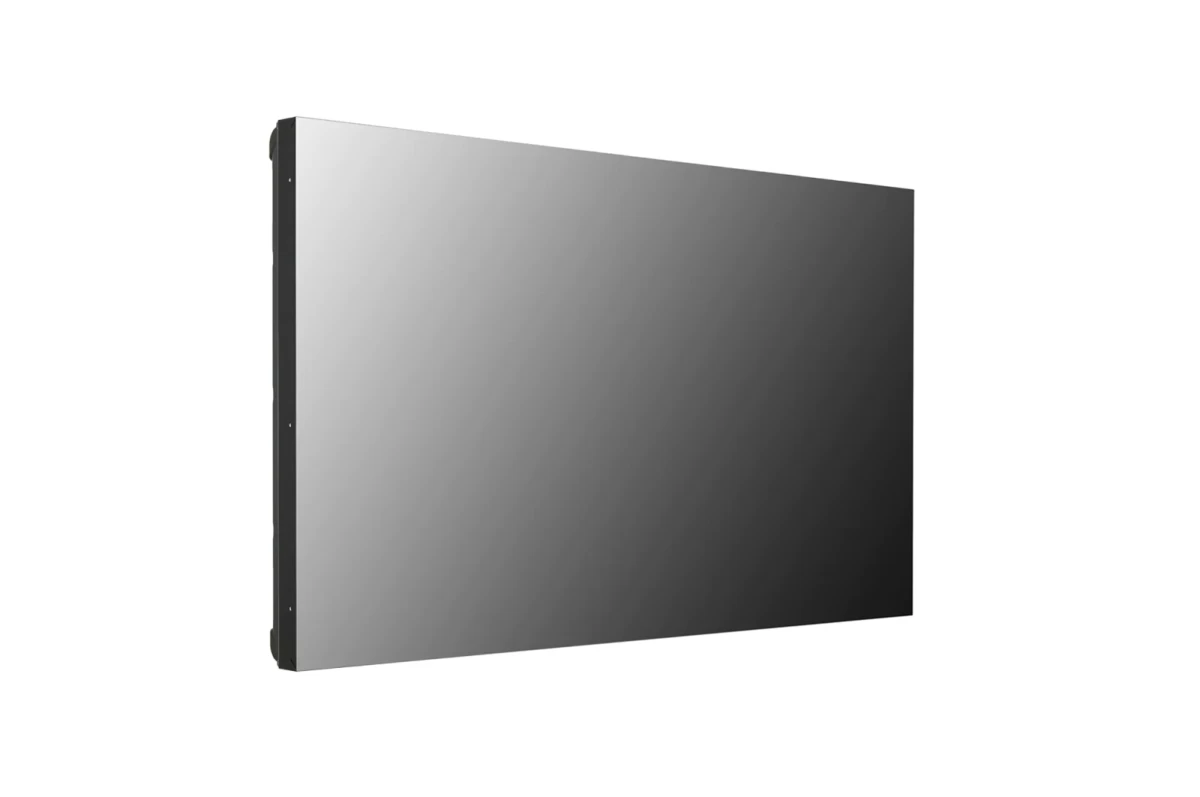

LG 55VH7E-H Full HD 0.9mm Even Bezel Video Wall
Product code:- Brightness(Typ.) : 700 cd/m²
- Surface Treatment(Haze): 44%
- Bezel : 0.9 mm (Even)
- Depth : 86.5 mm
- Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
Description
Panel
| Screen Size | 55" |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness(Typ.,cd/m²) | 700 |
| Contrast Ratio | 1,200:1 |
| Dynamic CR | 500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.) |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Haze 44% |
| Life Time (Typ.) | 60,000 Hrs |
| Operation Hours | 24 Hrs |
| Orientation | Landscape & Portrait |
| OS | webOS 4.0 |
Additional information

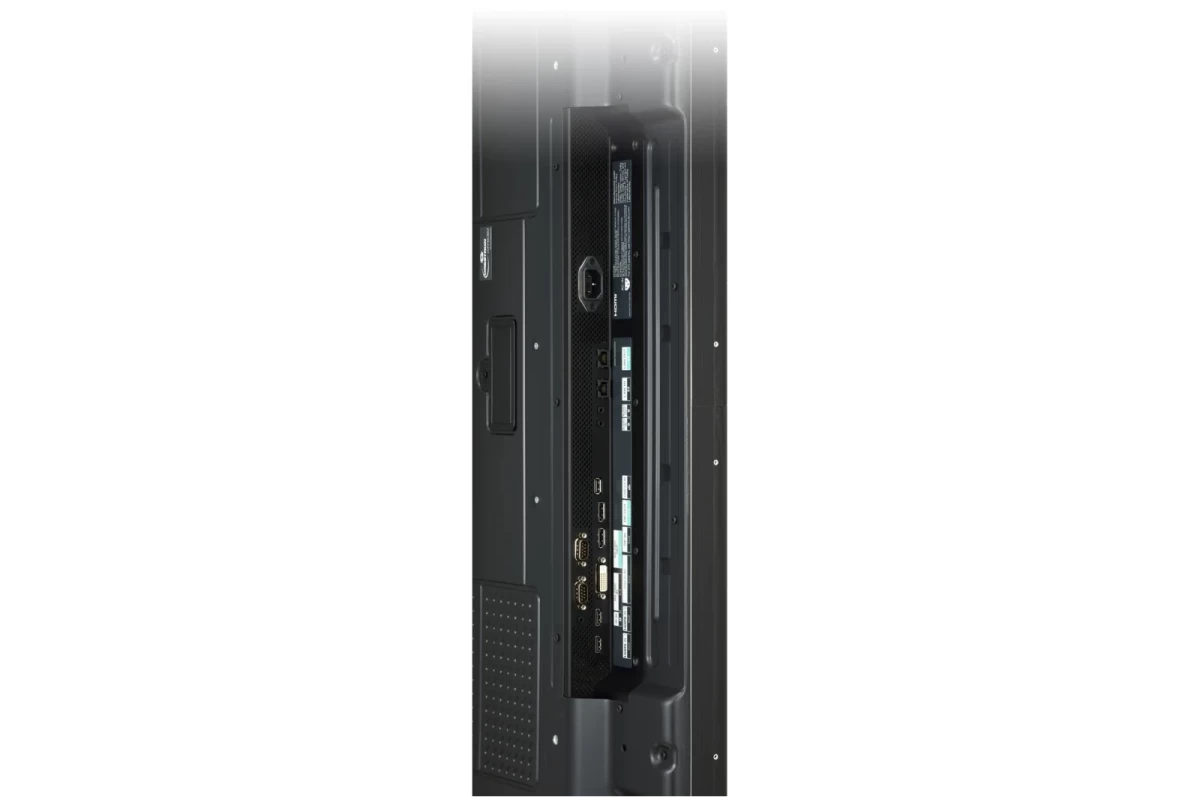

Connectivity
| Input | HDMI (2), DP, DVI-D, Audio, USB 2.0 |
| Output | DP, Audio |
| External Control | RS232C In/out, RJ45(LAN) In/out, IR In |
Mechanical Specs
| Bezel Width | 0.9 mm (Even), B to B 1.8 mm |
| Monitor Dimensions (W × H × D) | 1,211.4 x 682.2 x 86.5 mm |
| Weight (Head) | 18.6 kg |

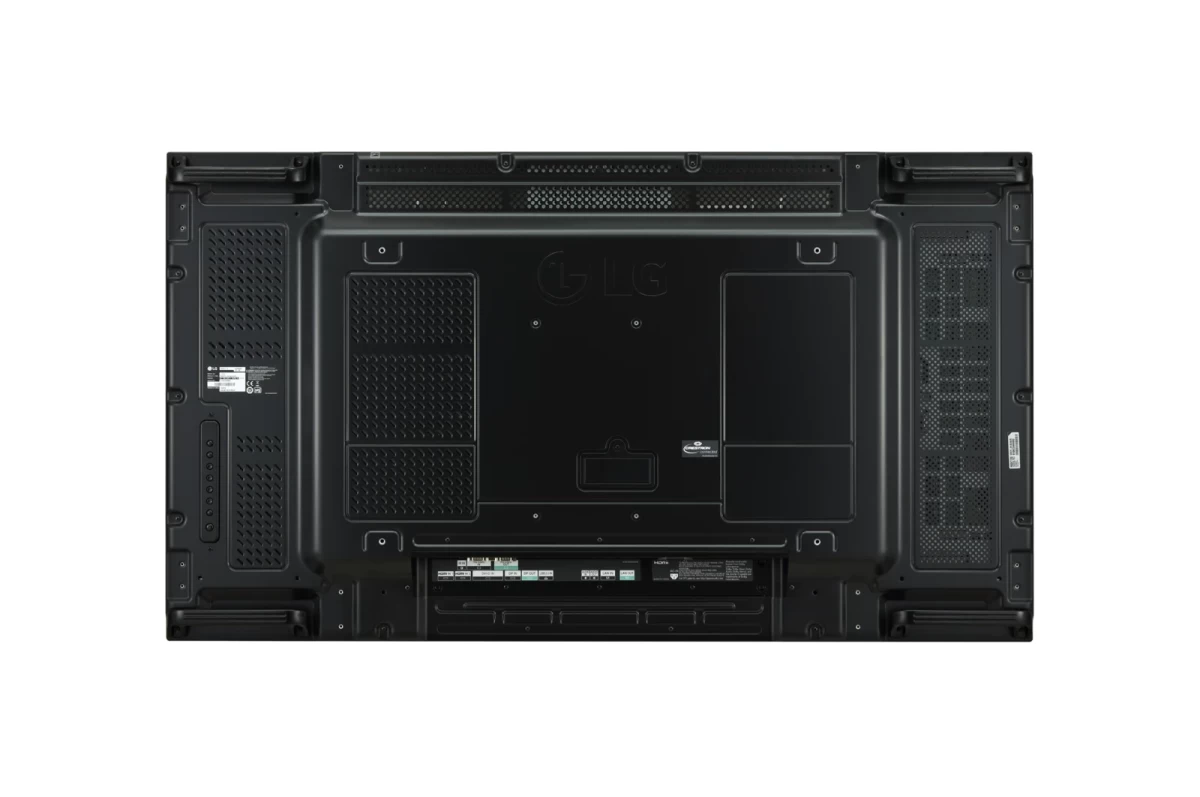

| VESA™ Standard Mount Interface | 600 x 400 mm |
Environment Conditions
| Operation Temperature | 0°C to 40°C |
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption (Typ./Max.) | 220 W / 260 W |
Certification
| Safety | CB / NRTL |
| EMC | FCC Class "A" / CE / KC |
Media Player Compatibility
| OPS type compatible | Yes (Piggyback) |
Software Compatibility
| Content Management Software | SuperSign CMS |
| Control and Monitoring Software | SuperSign Control/Control+ |
Accessory
| Basic | Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual |
| Optional | Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF) |
