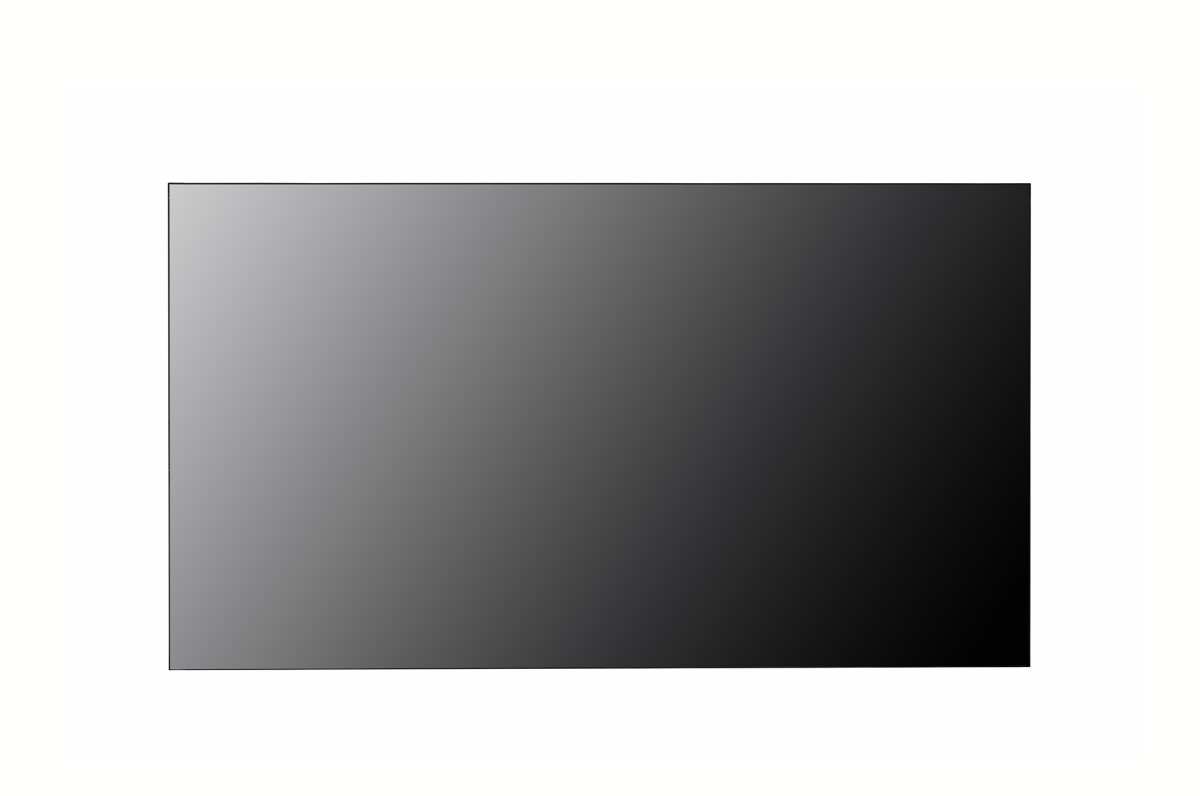

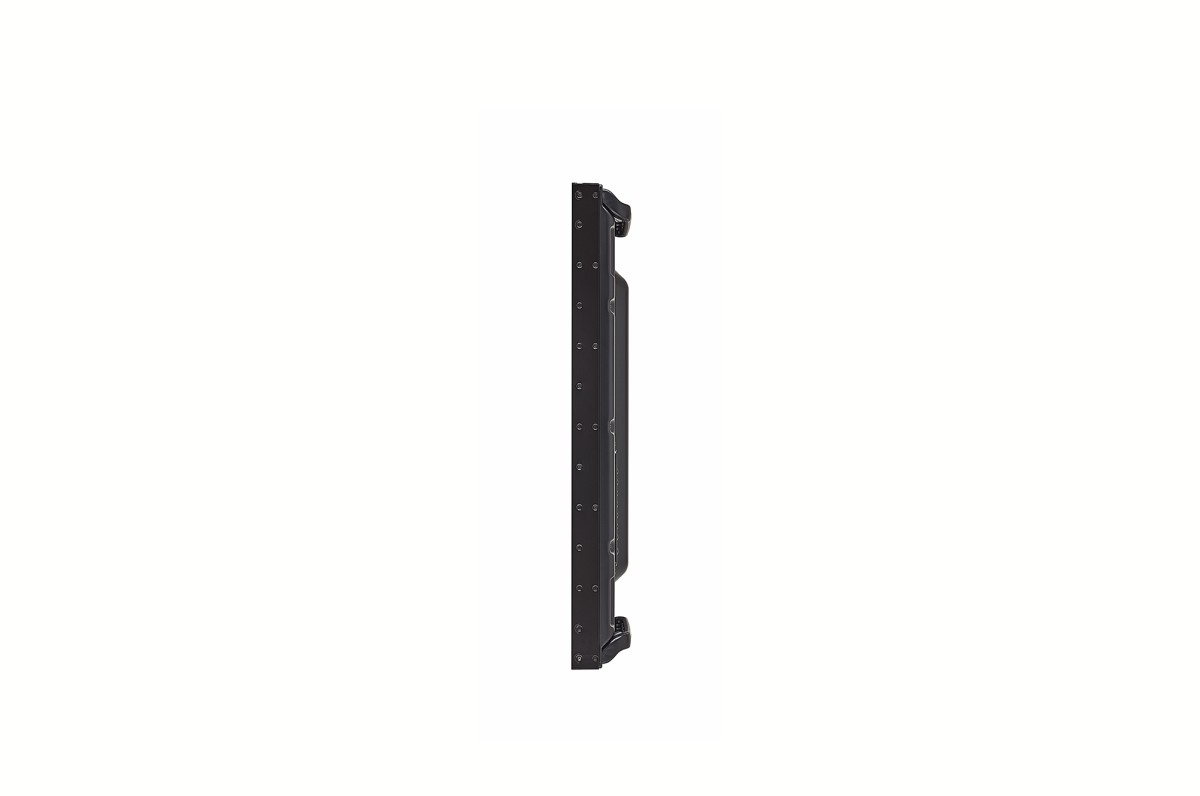

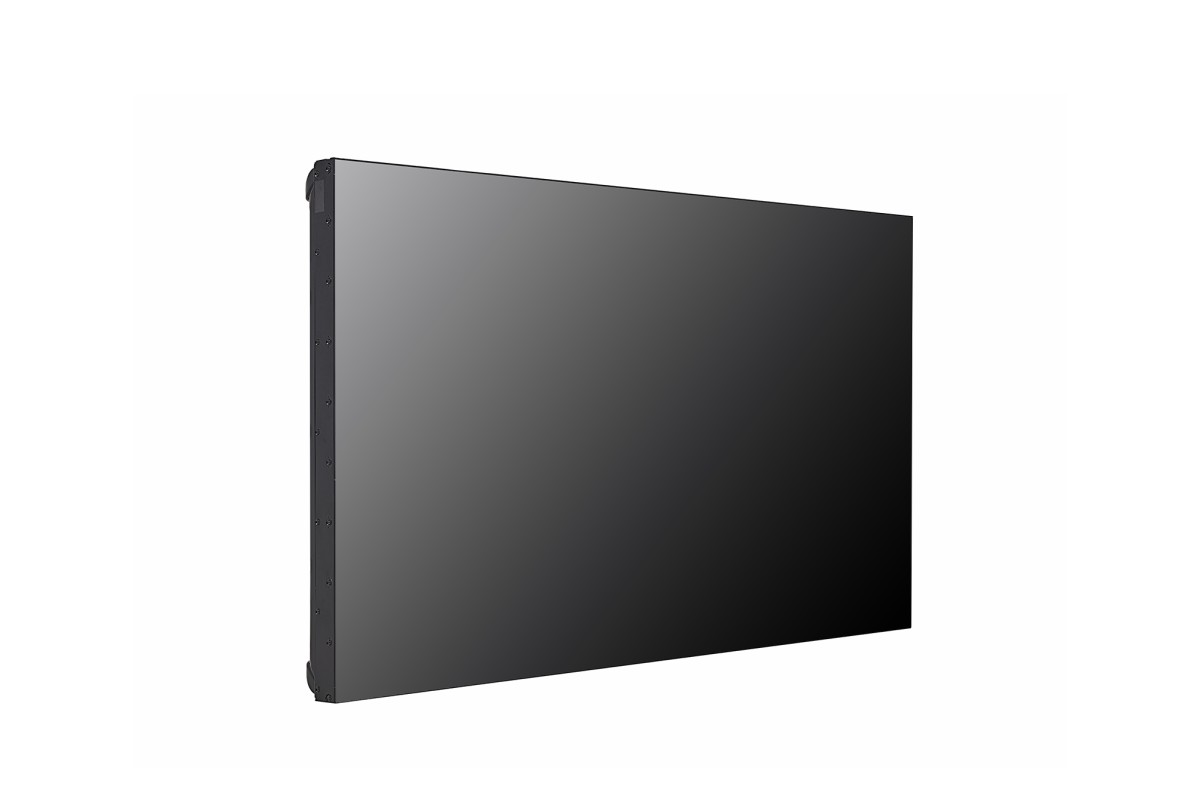

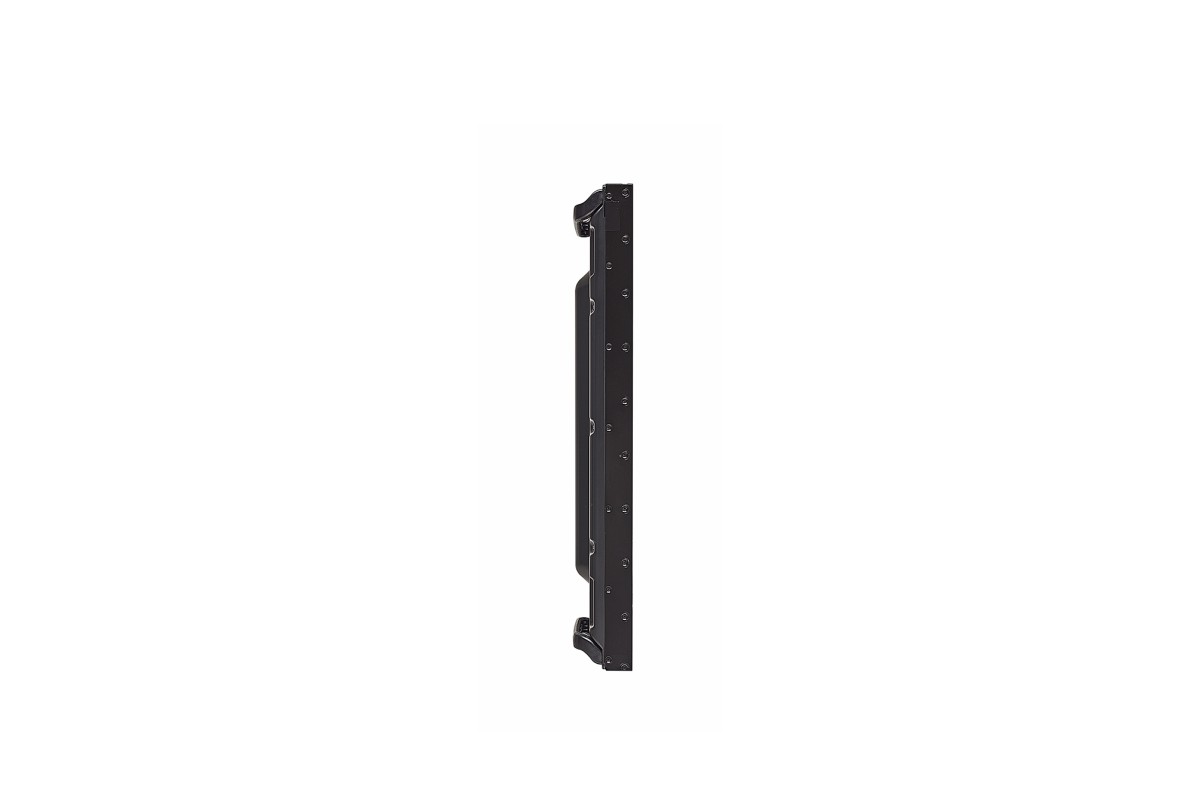

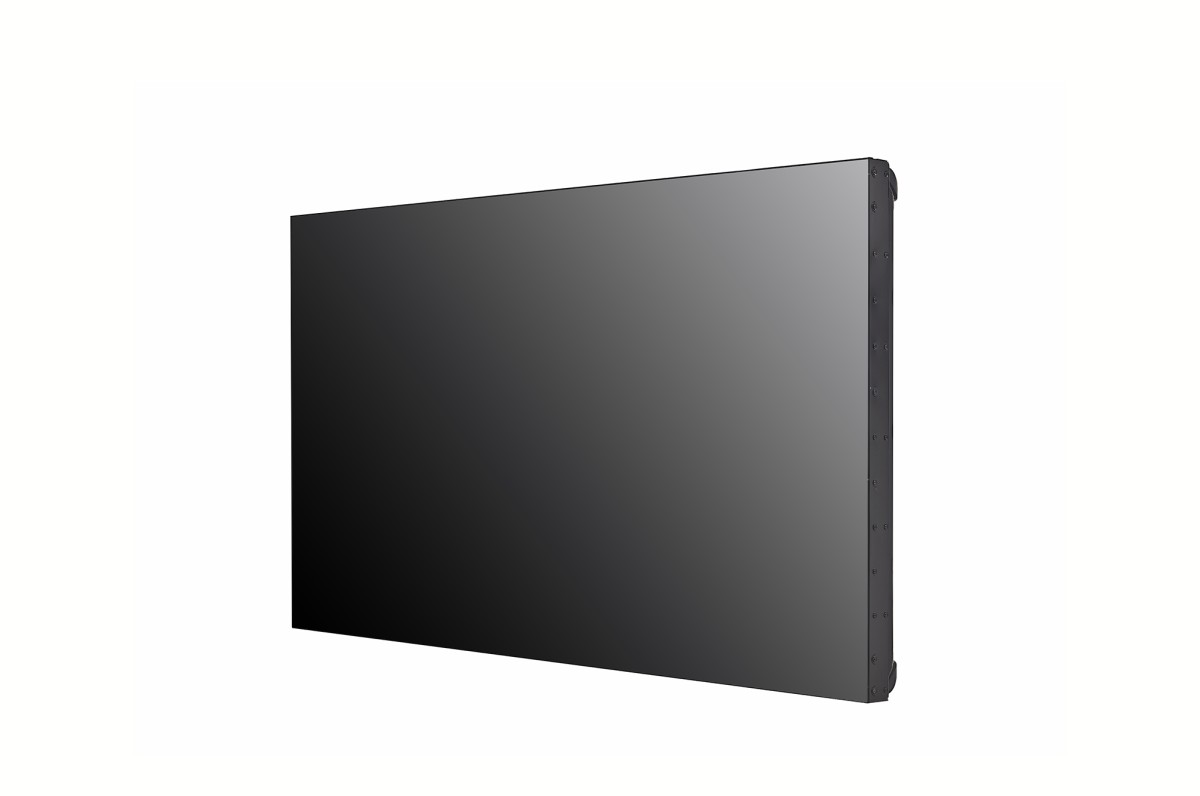

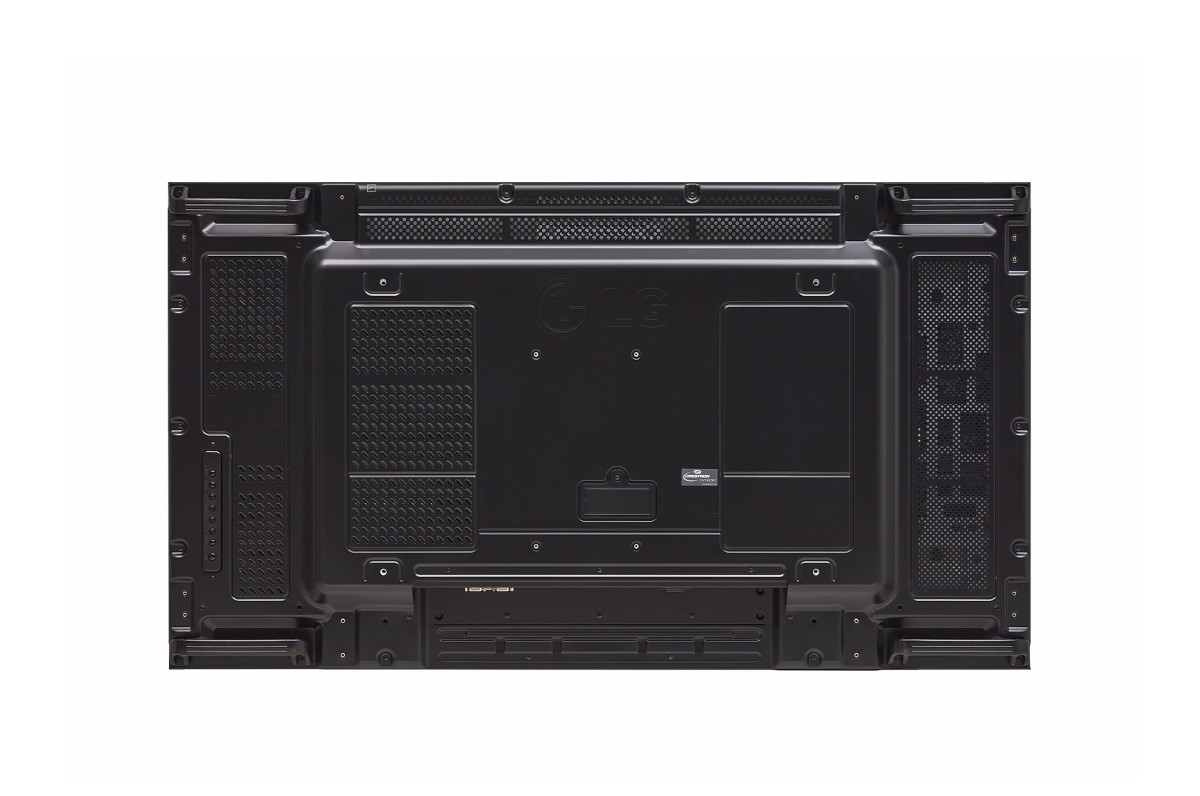

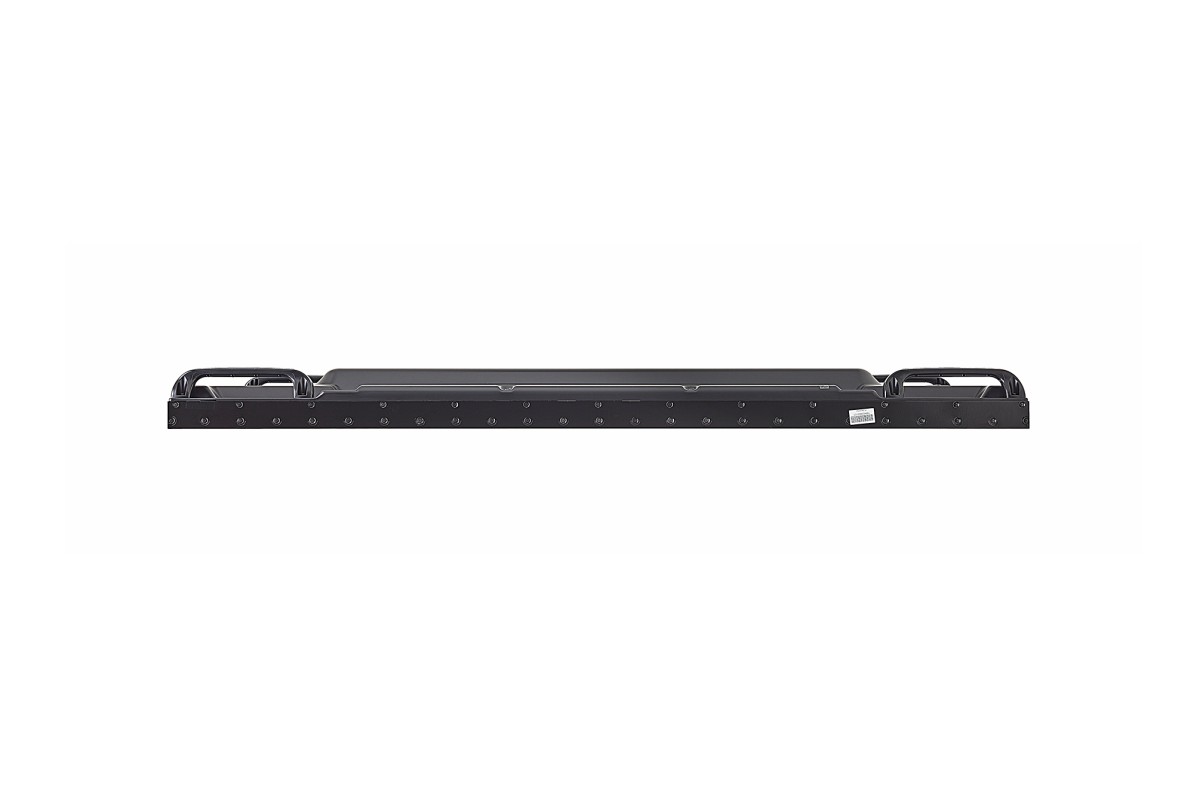

LG 55VM5J-H Full HD Slim Bezel Video Wall

Product code: 55VM5J-H

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

SEND AN ENQUIRY

Description

Panel

Screen Size55"
Panel TechnologyIPS
Aspect Ratio16 : 9
Native Resolution1,920 x 1,080 (FHD)
Refresh Rate60Hz
Brightness500
Contrast Ratio1,000:1
Dynamic CR500,000 : 1
Color gamutNTSC 72%
Viewing Angle (H x V)178x178
Color Depth10bit, 1.07Billion colors
Response Time8 ms (G to G)
Surface Treatment (Haze)28%
Life Time (Typ.)60,000Hrs
Life Time (Min.)50,000Hrs
Operation Hours (Hours / Days)  24/7
Portrait / LandscapeYes / Yes
OSwebOS 4.1

Additional information

Mechanical Specification

Bezel Color  Black
Bezel Width  B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R)
A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
Weight (Head)  18.8 Kg
Monitor Dimensions (W × H × D)  1,212.2 × 683.0 × 86.9 mm
Handle  Yes
VESA™ Standard Mount Interface  600 x 400

Special Feature

IP Rating  IP5X tested

Key Feature

HW  Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
SW  webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless  Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion

Connectivity

Input  HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
Output  DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)

Environment Conditions

Operation Temperature  0 °C to 40 °C
Operation Humidity  10 % to 80 %

Power

Power Supply  AC 100-240V~, 50/60Hz
Power Type  Built-In Power

Power Consumption

Typ.  160 W
Max.  190 W
Smart Energy Saving  90 W
DPM  0.5 W
Power off  0.5 W
BTU (British Thermal Unit)  546 BTU/Hr(Typ.), 648 BTU/Hr(Max)

Certification

Safety  CB / NRTL
EMC  FCC Class "B" / CE / KC
ErP  Yes (EU Only)

Media Player Compatibility

OPS type compatible  Yes (Piggyback)

Software Compatibility

SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare

Accessory

Basic  Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional  OPS Kit (KT-OPSF)
