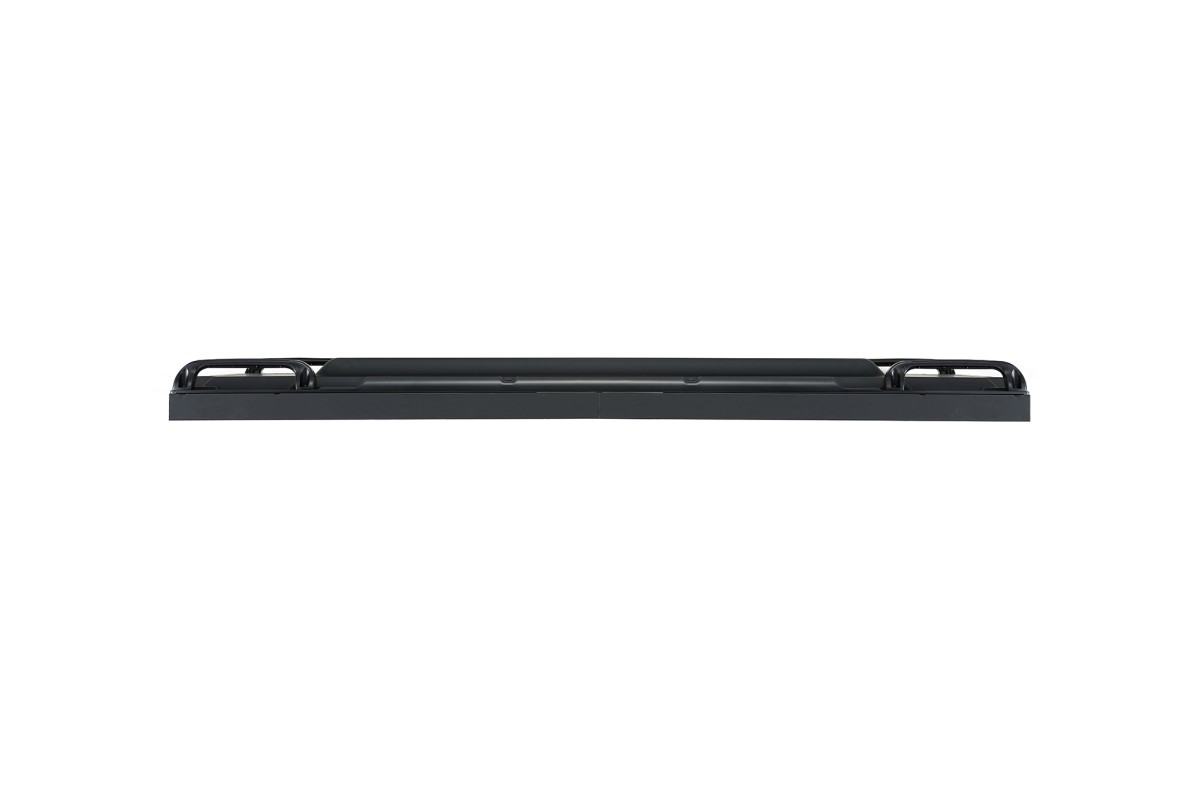

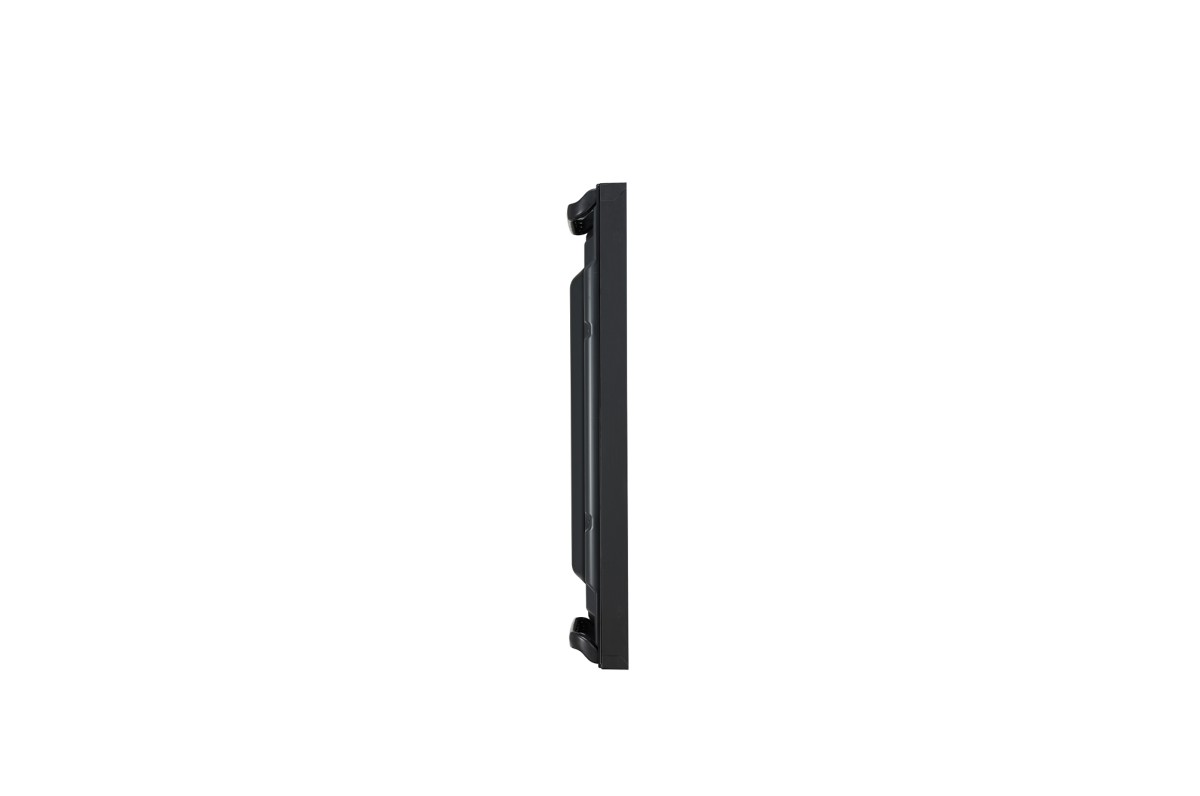

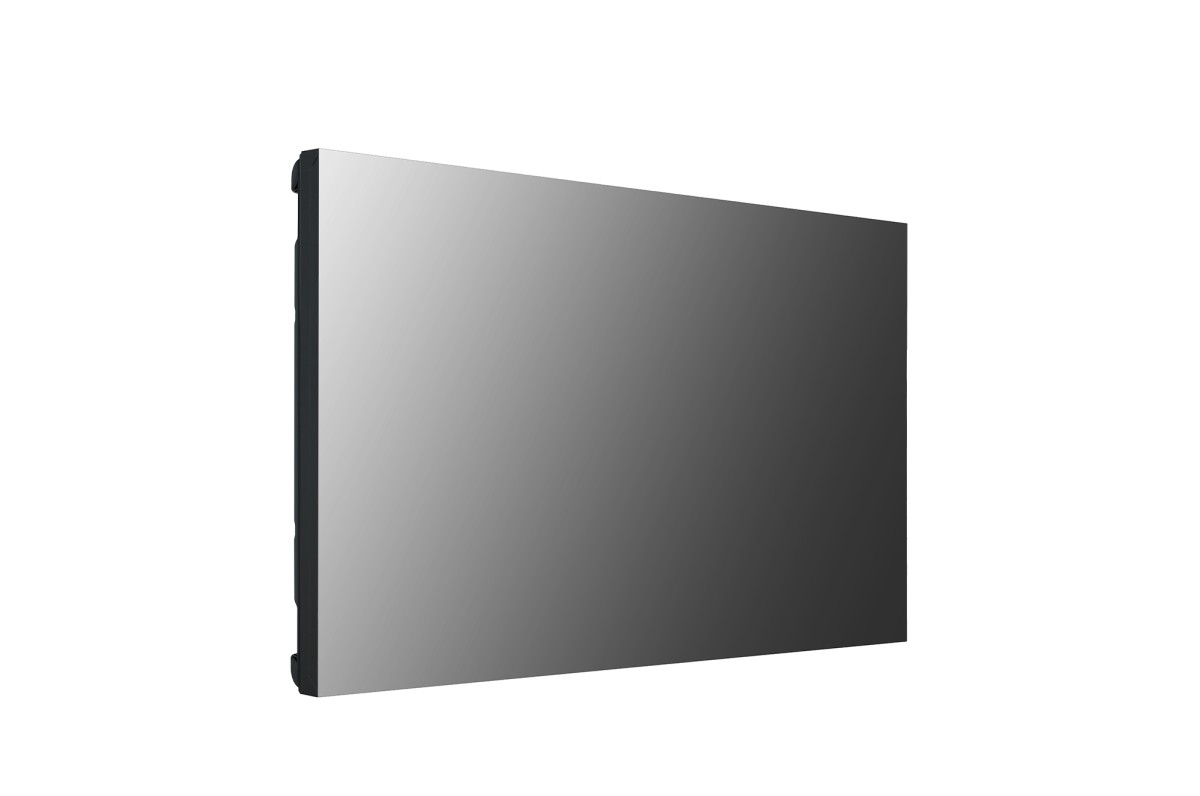

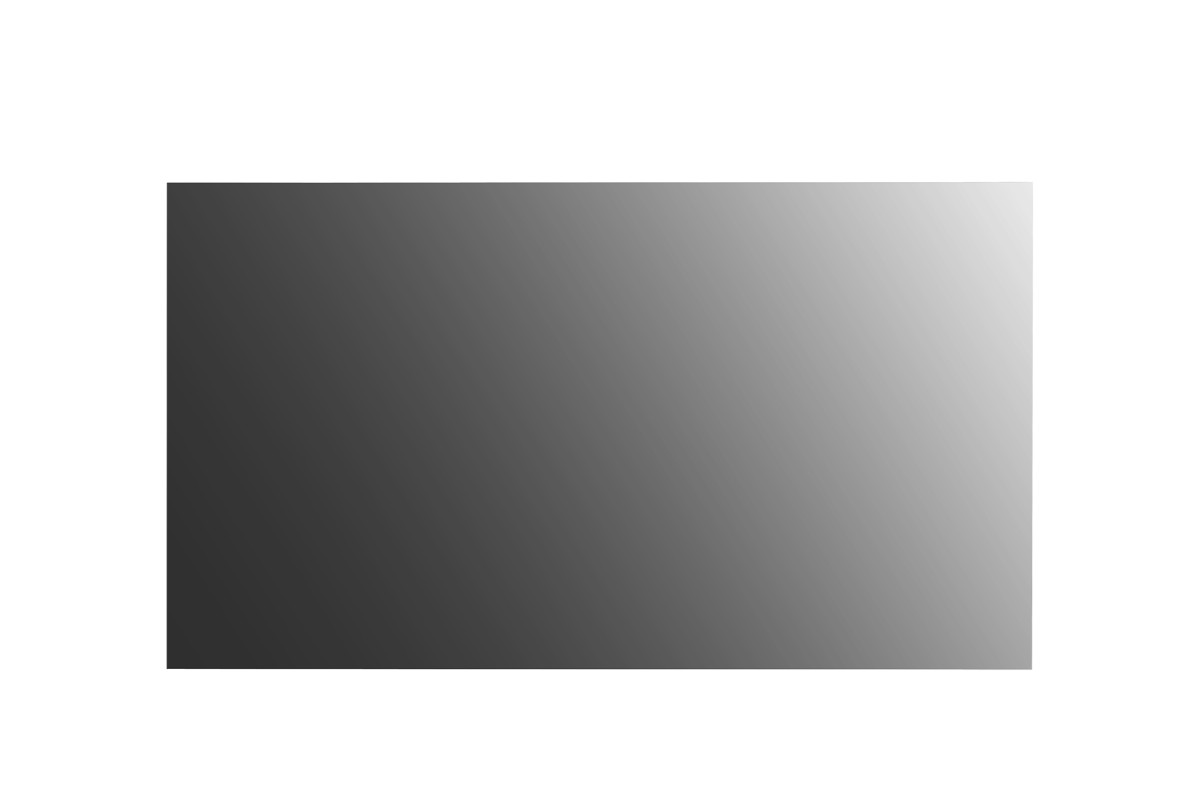

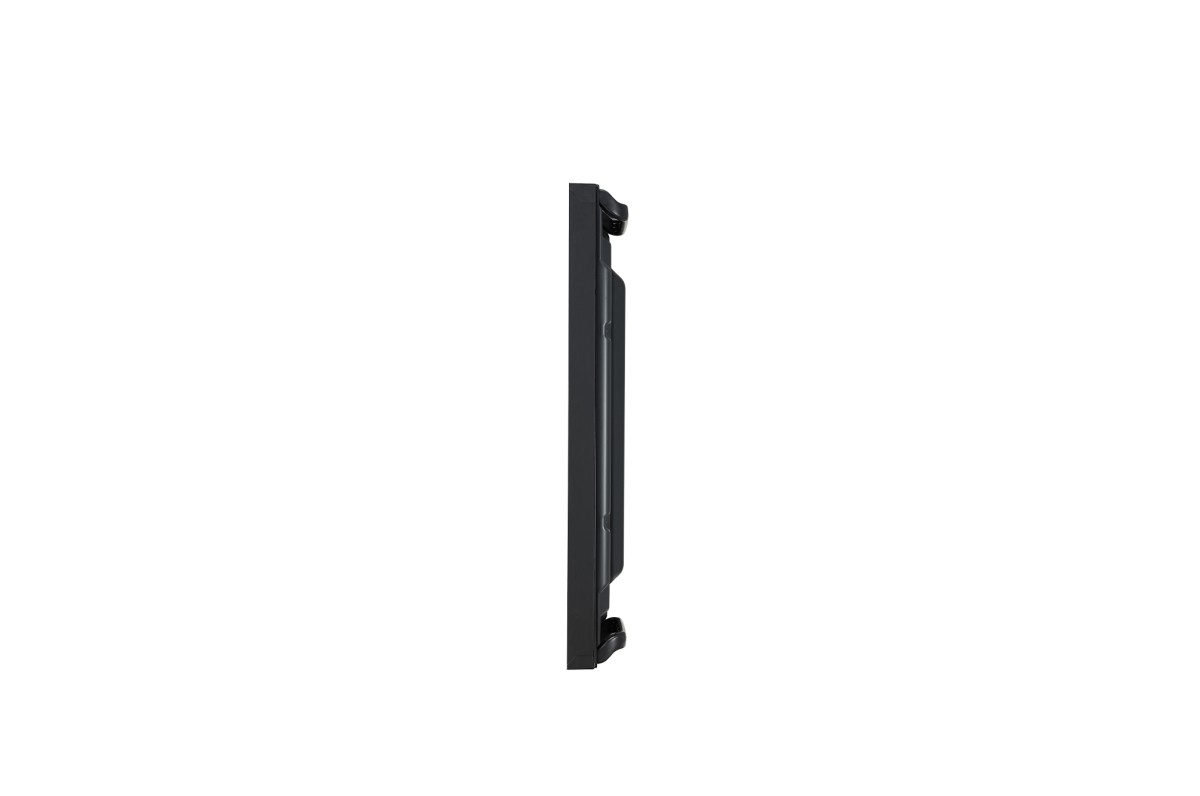

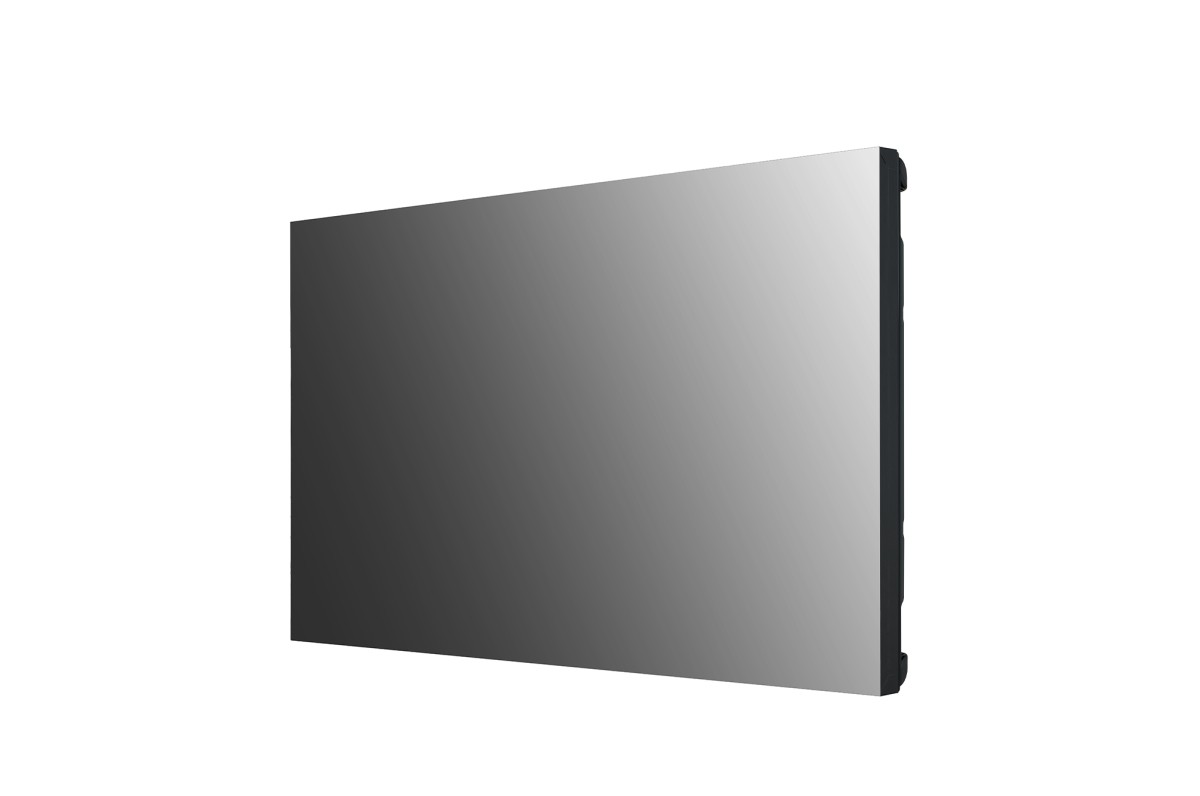

LG 55VSM5J Full HD 0.44mm Even Bezel Video Wall

Product code: 55VSM5J

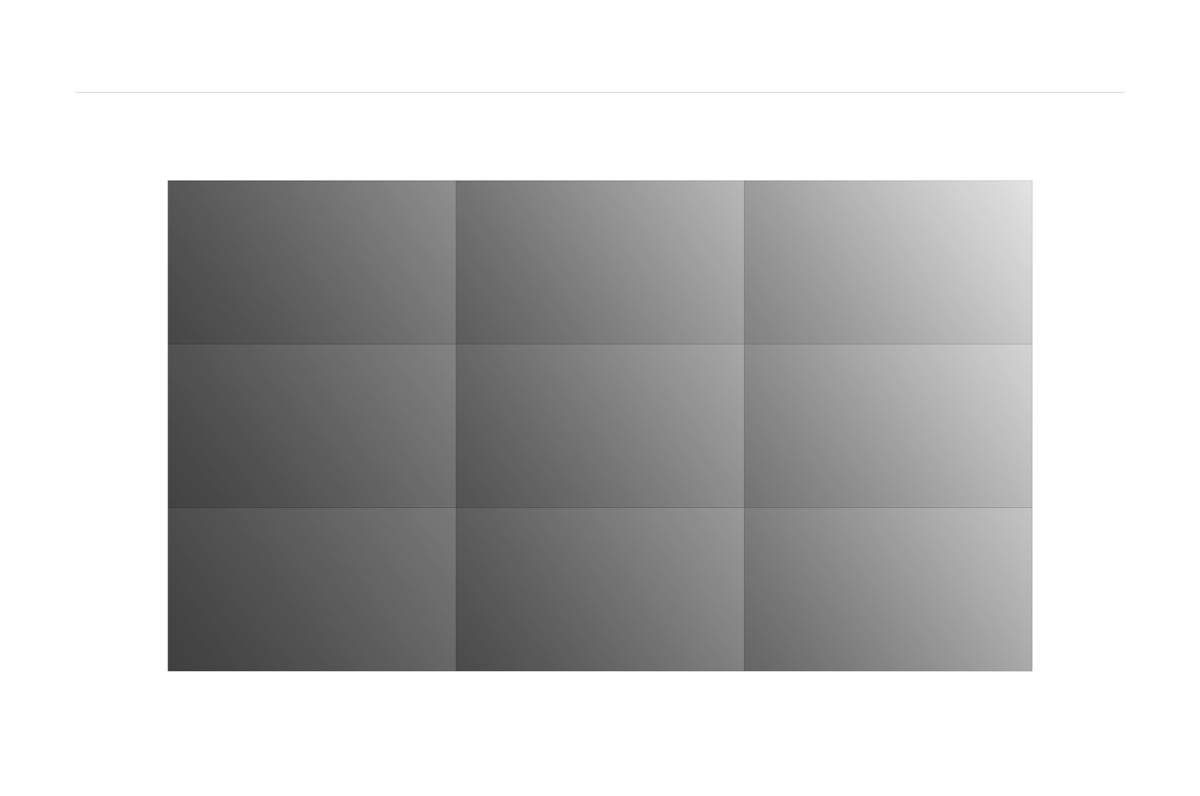

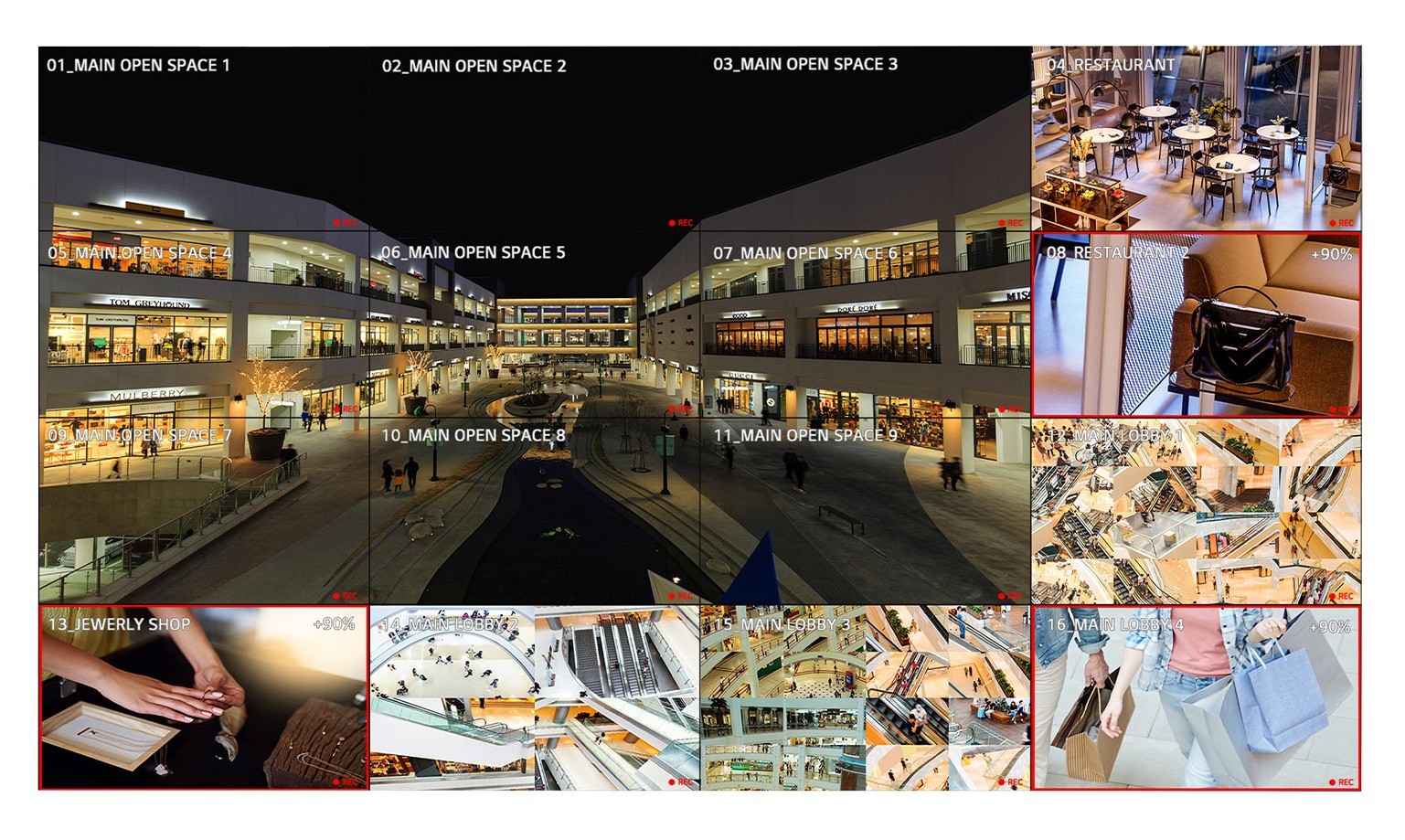

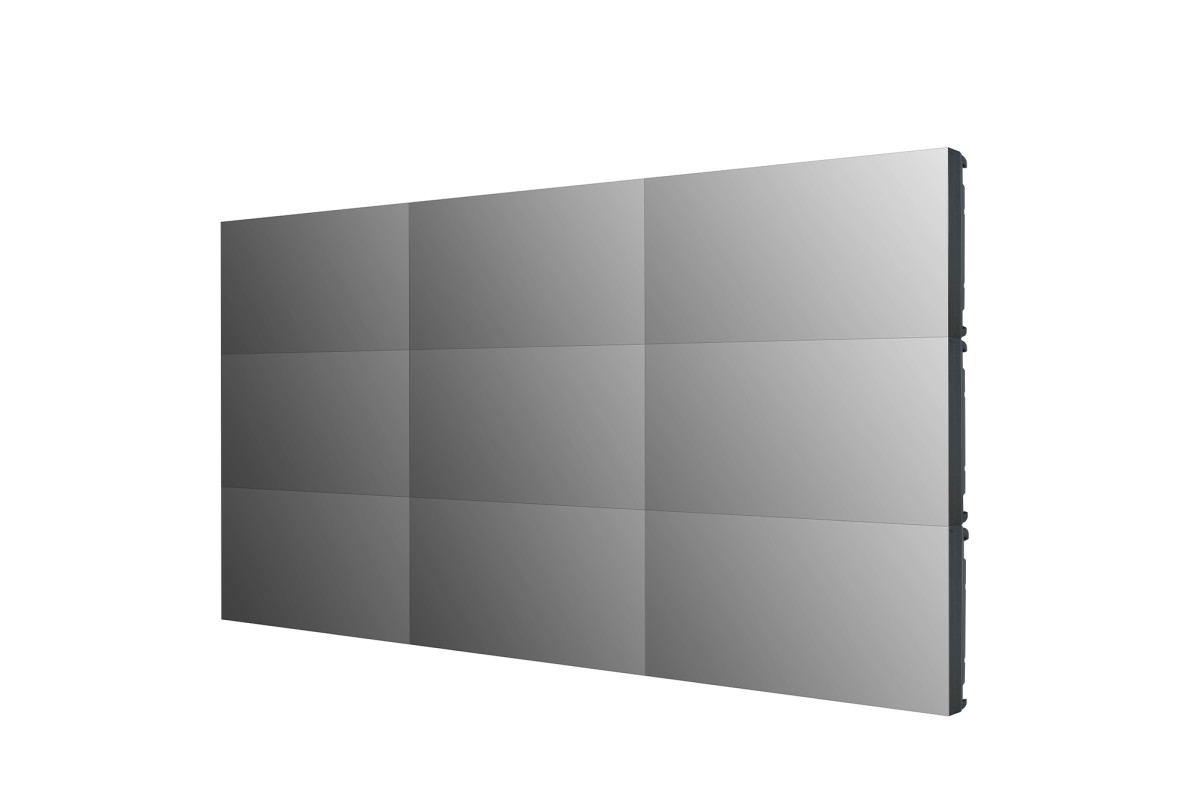

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSM5J series will provide an even more immersive experience to viewers.

SEND AN ENQUIRY

Description

Panel

Screen Size55"
Panel TechnologyIPS
Aspect Ratio16:9
Native Resolution1,920 X 1,080 (FHD)
Brightness (Typ.)500nit
Contrast Ratio1,100:1
Viewing Angle (H x V)178 X 178
Response Time8ms (G to G)
Surface Treatment (Haze)28%
Operation Hours (Hours / Days)  24/7
Portrait / LandscapeYes / Yes
OSWeb OS

Additional information

Mechanical Specification

Bezel Color  Black
Bezel Width  Even bezel : 0.44mm
Weight (Head)  16.8Kg
Packed Weight  23.6Kg
Monitor Dimensions (W × H × D)  1,210.51 x 681.22 x 86.5mm
Carton Dimensions (W × H × D)  1,353 x 855 x 263mm (Box outer size)
Handle  Yes
VESA™ Standard Mount Interface  600 x 400

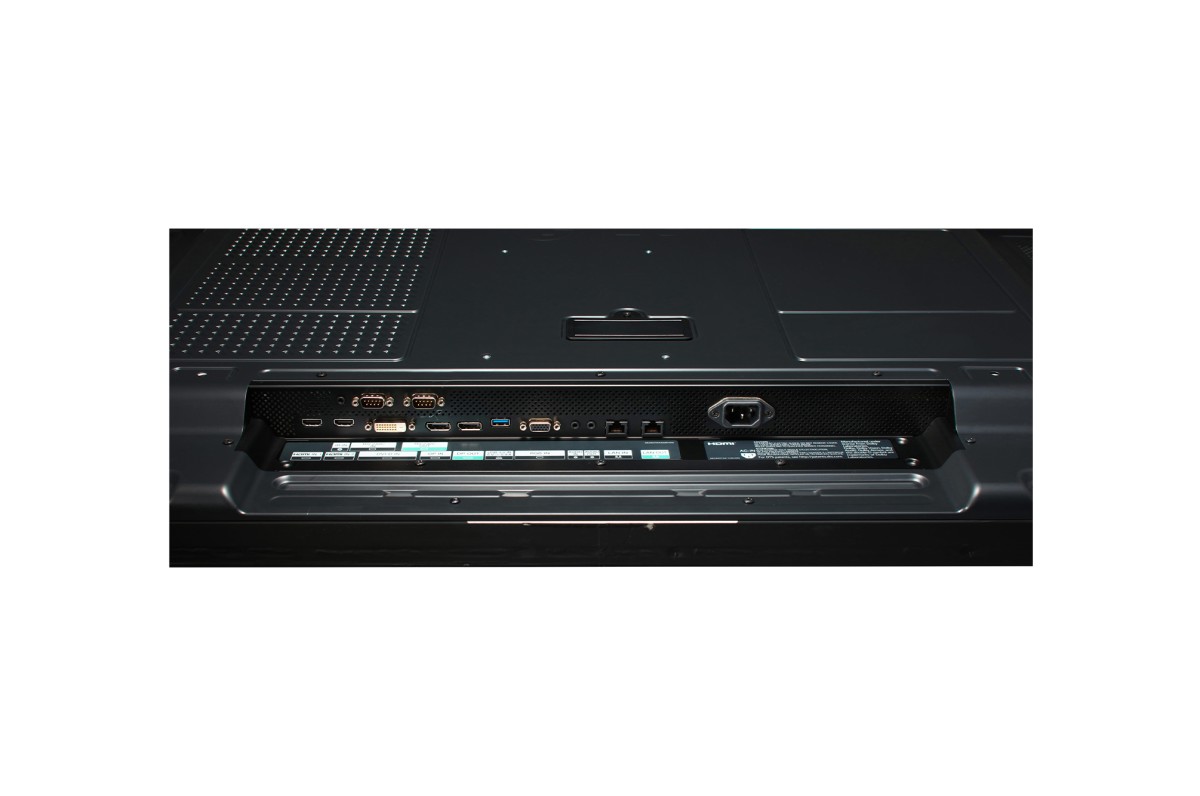

Connectivity

Input  HDMI (2, HDCP2.2), DP (HDCP2.2), DVI-D (HDCP1.4), Audio, USB2.0 Type A(1)
Output  DP (Input : HDMI / DVI / DP), Audio
External Control  RS232C In/Out, RJ45 In/Out, IR In


Environment Conditions

Operation Temperature  0 °C to 40 °C
Operation Humidity  10 % to 80 %

Power

Power Supply  AC 100-240V~, 50/60Hz
Power Type  Built-In Power

Power Consumption

Typ./Max.  160 W / 190 W
Smart Energy Saving  90W
DPM  0.5 W
Power off  0.5 W
BTU (British Thermal Unit)  546 BTU/Hr(Typ.), 648 BTU/Hr(Max)

Standard (Certification)

Safety  CB / NRTL
EMC  FCC Class "B" / CE / KC
ErP  Yes (EU Only)

Software Compatibility

SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare

Accessory

Basic  Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional  OPS Kit(KT-OPSF)
