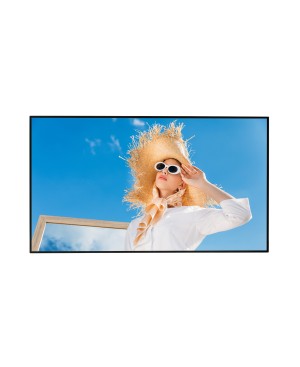

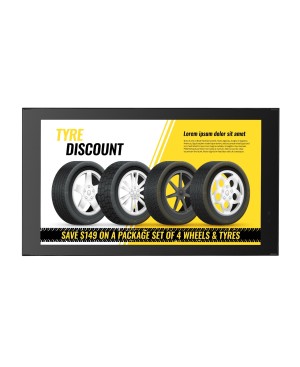

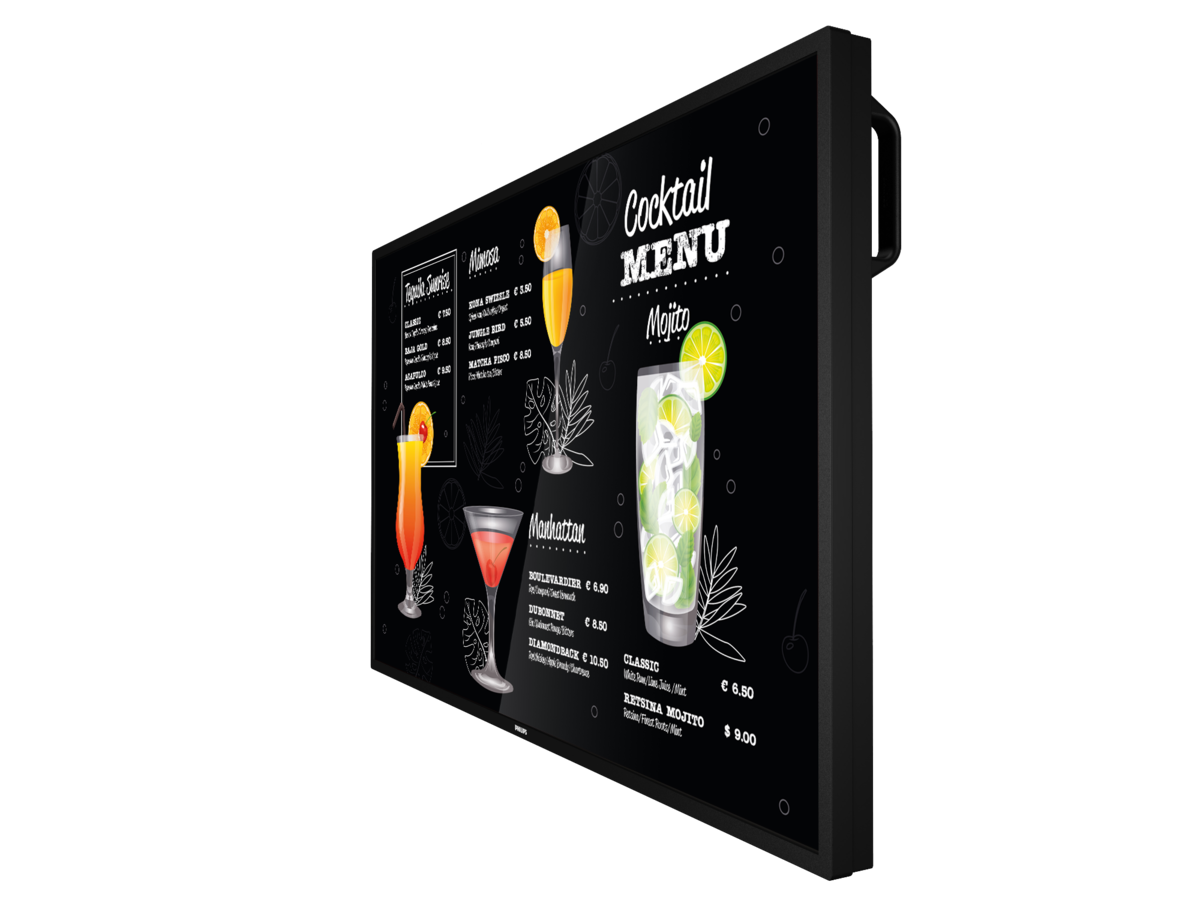

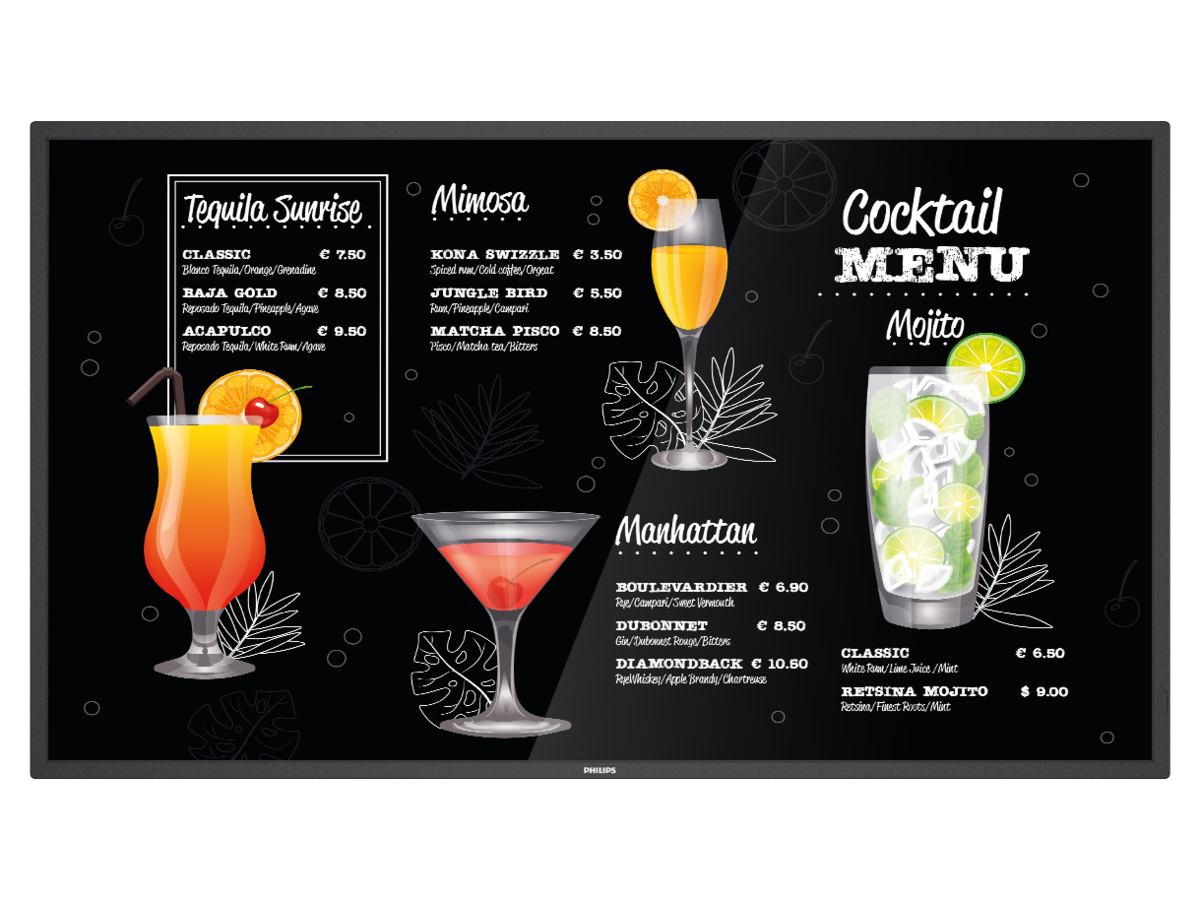

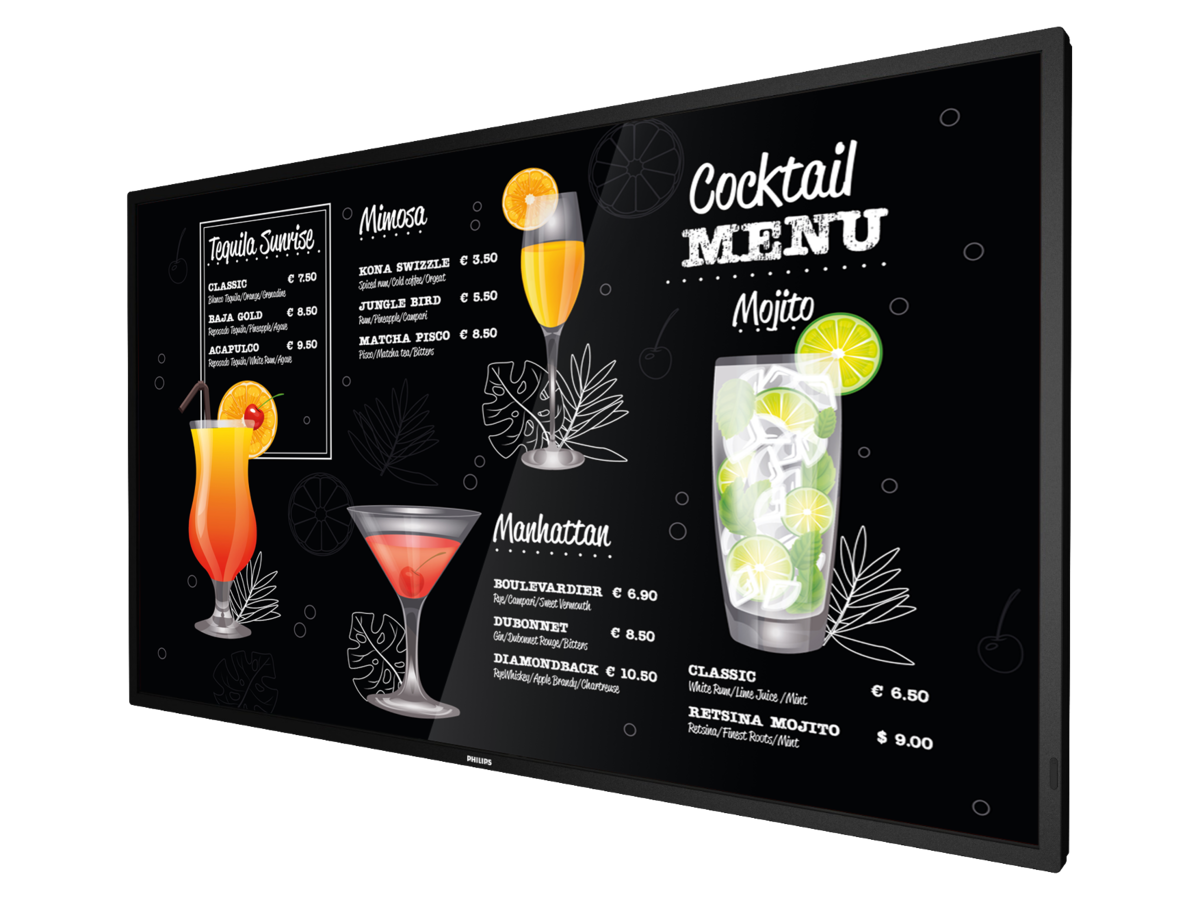

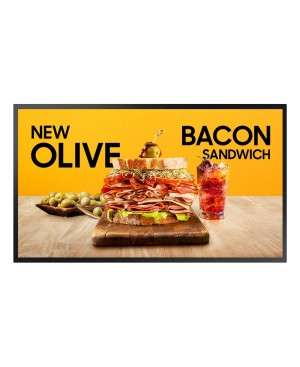

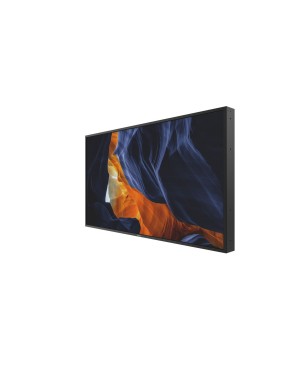

Philips P-Line 43BDL3117P/00 Digital Signage
Product code:Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high brightness make it perfect for demanding environments such as retail, transportation, and food and drink.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 108 |
|---|---|
| Diagonal screen size (inch) | 42.5 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 750 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.2451 x 0.2451 mm |
| Display colours | 1.07 billion |
| Panel technology | ADS |
| Contrast ratio (typical) | 1200:1 |
| Haze | 25% |
Additional information
Supported Display Resolution
| Computer formats | 1440 x 900, 60 Hz / 1024 x 768, 60, 70, 75 Hz / 1152 x 864, 75 Hz / 1152 x 870, 75 Hz / 1280 x 1024, 60 Hz / 1280 x 720, 60 Hz / 1280 x 800, 60 Hz / 1600 x 1200, 60 Hz / 1680 x 1050, 60 Hz / 1920 x 1080, 60 Hz / 640 x 480, 60, 67, 72, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 56, 60, 72, 75 Hz |
|---|---|
| Video formats | 480p, 60 Hz / 576p, 50 Hz / 720p, 50, 60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 3840 x 2160, 30Hz / 3840 x 2160, 60 Hz |
Connectivity
| Video input | Display Port1.2 (x 1), DVI-I (x 1), USB 2.0 (x 1), HDMI 2.0 (x 3) |
|---|---|
| Audio input | 3.5 mm jack |
| Video output | DisplayPort 1.2 (x 1), HDMI 2.0 (x 1) |
| Audio output | 3.5 mm jack |
| External control | IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack, Ambient Light Sensor |
| Other connections | Micro SD (x 1), SDM-L, Thermal sensor |
Convenience

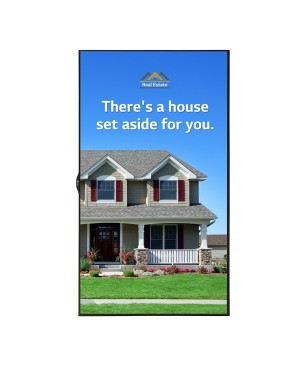

| Placement | Landscape (24/7), Portrait (24/7) |
|---|---|
| Tiled Matrix | Up to 15 x 15 |
| Screen-saving functions | Pixel Shift, Low Bright |
| Signal loop through | DisplayPort, RS232, HDMI, IR Loop through, |

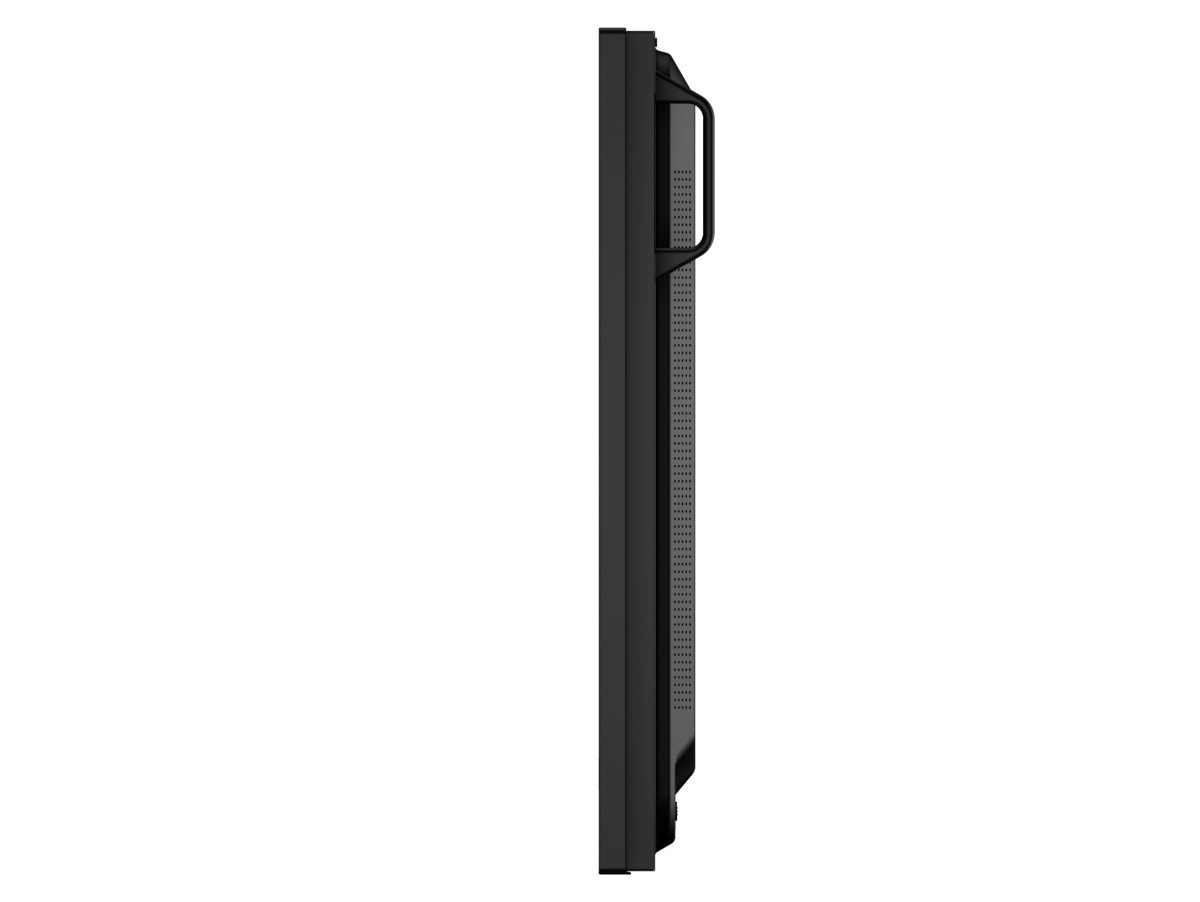

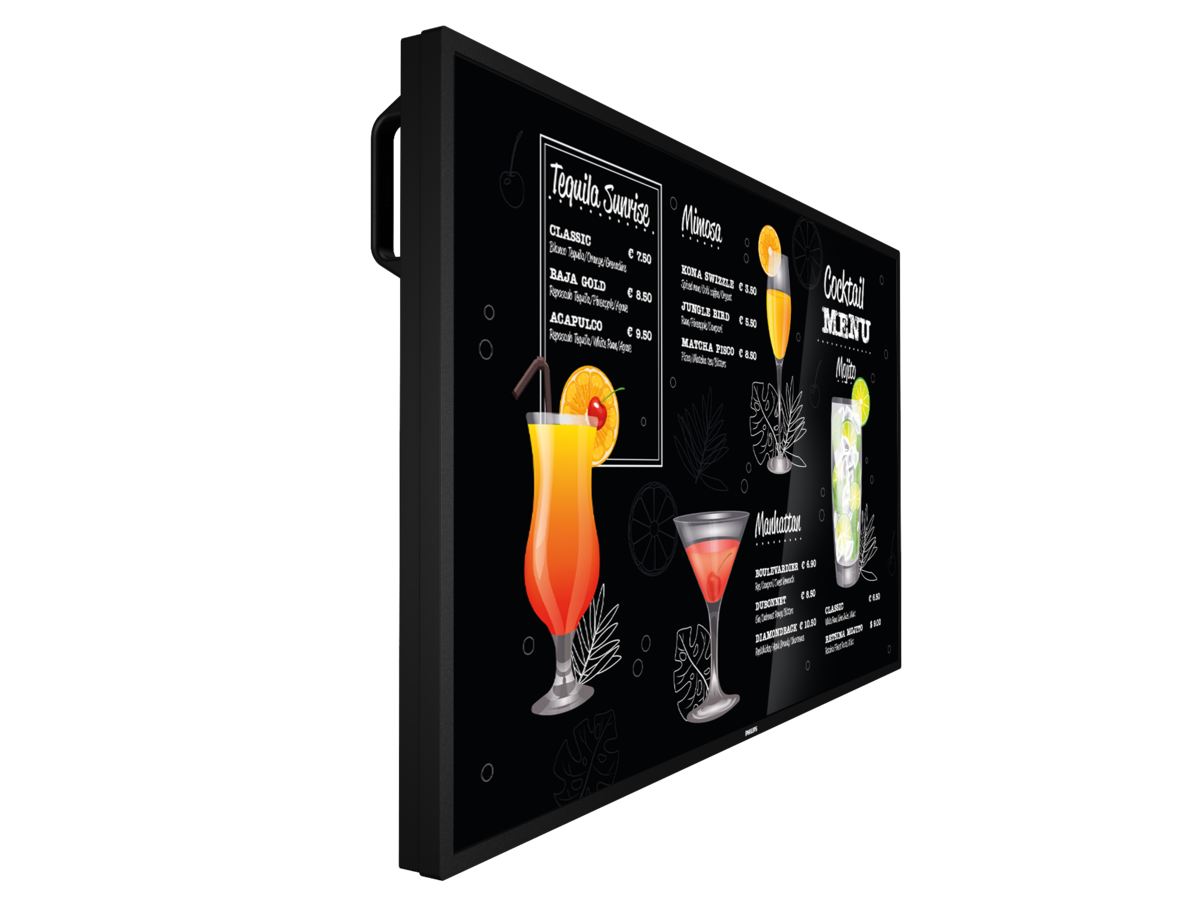

| Ease of installation | Carrying Handles |
| Energy-saving functions | Smart Power |
| Network controllable | RS232/RJ45 |
| Keyboard control | Hidden, Lockable |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
Power
| Consumption (Typical) | 80 |
|---|---|
| Consumption (Max) | 220 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Accessories
| Stand | BM05922(optional) |
|---|---|
| Included Accessories | AC Switch Cover, Philips logo (x 1), Power cable (x 3), Quick start guide (x 1), Remote control and AAA batteries, RS232 cable (3 m) (x 1), RS232 daisy chain cable (x 1), USB Cover (x 1), Wire Clamper (x 3), Edge Alignment Kit (x 2) |
Miscellaneous
| On-Screen Display Languages | Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | CE, FCC Class A, CB, BSMI, EAC, EMF, VCCI, PSB, ETL, EPA |
| Warranty | 3 year warranty |
Multimedia Applications
| USB Playback Video | H.264, Motion JPEG, MPEG1/2, WMV3 |
|---|---|
| USB Playback Picture | BMP/JPEG/PNG |
| USB Playback Audio | AAC/MPEG/HEAAC |
Dimensions
| Set Width | 973 |
|---|---|
| Set Height | 561.2 |
| Set Depth | 76.80 |
| Set Width (inch) | 38.31 |
| Set Height (inch) | 22.1 |
| Set Depth (inch) | 3.02 |
| Bezel width | 13.9 mm (Even bezel) |
| Wall Mount | 200 x 200 mm, M6 |
| Product weight | 13.94 |
| Product weight (lb) | 30.73 |
