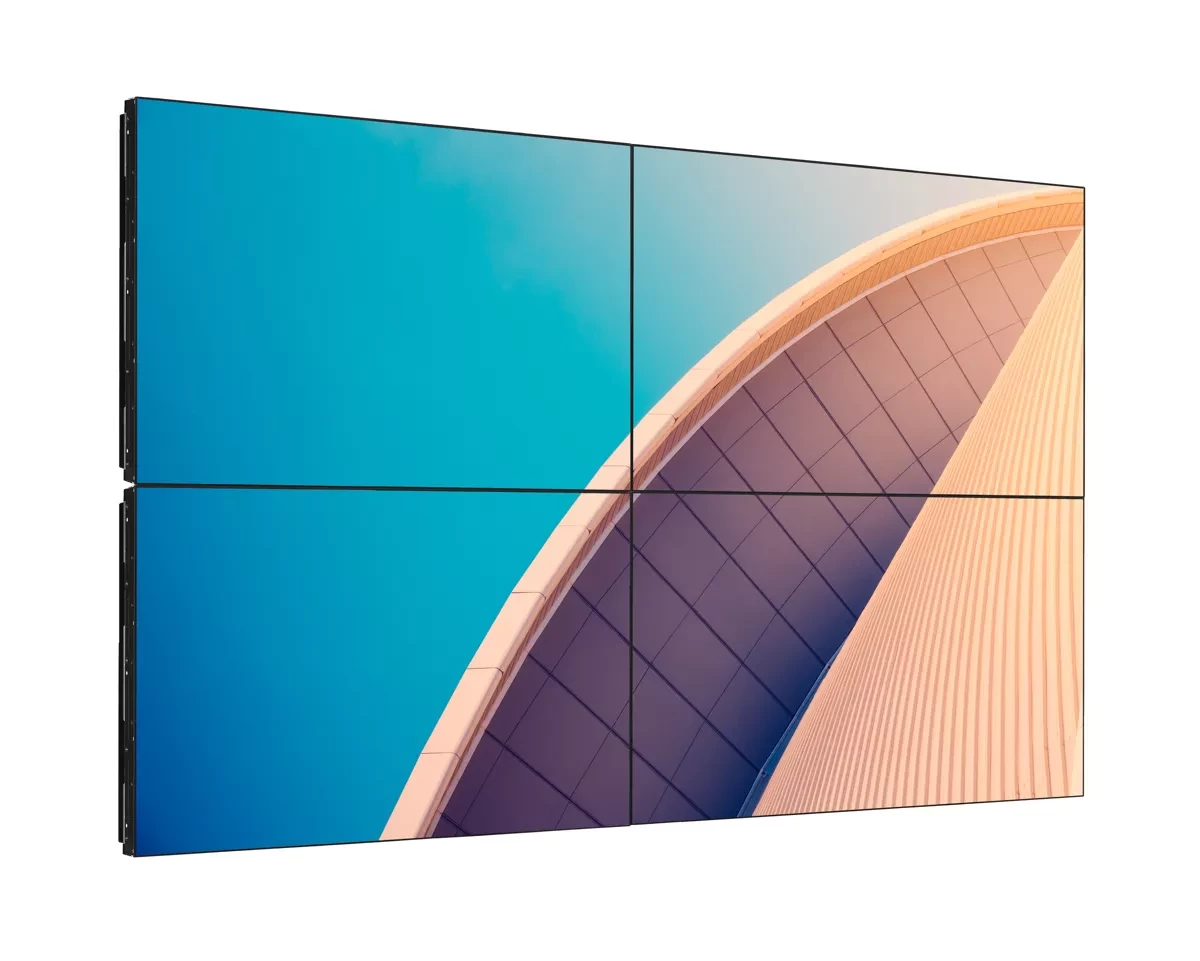

Philips X-Line 55BDL3105X/00 Videowall

Product code: 55BDL3105X/00

Command attention with a Philips X-Line Videowall display. An ultra-narrow bezel allows for near seamless linking for a display of any size, whilst Advanced Colour Calibration ensures a clear image in any lighting condition.

SEND AN ENQUIRY

Description

Picture/Display

Diagonal screen size (metric)	138.7
Diagonal screen size (inch)	54.6
Panel resolution	1920 x 1080p
Optimum resolution	1920 x 1080 @ 60 Hz
Brightness	500
Contrast ratio (typical)	1200:1
Dynamic contrast ratio	500,000:1
Response time (typical)	8
Aspect ratio	16:9
Viewing angle (horizontal)	178
Viewing angle (vertical)	178
Pixel pitch	0.63 x 0.63 mm
Display colours	1.07 B
Picture enhancement	3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

Additional information

Supported Display Resolution

Computer formats	1920 x 1080, 60 Hz / 1600 x 1200, 60 Hz / 1366 x 768, 60 Hz / 1360 x 768, 60 Hz / 1280 x 1024, 60 Hz / 1280 x 800, 60 Hz / 1280 x 768, 60 Hz / 1024 x 768, 60, 75 Hz / 1280 x 960, 60 Hz / 640 x 480, 60, 72, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 60, 75 Hz
Video formats	1080p, 50, 60 Hz / 720p, 50, 60 Hz / 1080i, 25, 30 Hz

Connectivity

Video input	Component BNC (x 3), Composite (Share component Y), DisplayPort, DVI-D (x 1), VGA (Analogue D-Sub) (x 1), HDMI (x 2)
Video output	DisplayPort, DVI-I (x 1)
Audio input	3.5 mm jack, Audio Left/Right (RCA)
Audio output	Audio Left/Right (RCA)
External control	IR (in/out) 3.5 mm jack, RS232C (in/out) 2.5 mm jack, RJ45
Other connections	OPS

Convenience

Signal loop through	RS232, DisplayPort, IR Loop through
Ease of installation	Carrying Handles, Smart Insert
Energy-saving functions	Smart Power
Network controllable	RS232/RJ45
Placement	Landscape, Portrait
Screen-saving functions	Pixel Shift, Low Bright
Tiled Matrix	Up to 15 x 15
Control software	SICP / CMND & Control

Dimensions

Bezel thickness	3.5 mm (A-A)
Bezel width	Top/Left: 2.3 mm, Bottom/Right: 1.2 mm
Set Width	1213.4
Set Height	684.2
Set Depth	98 mm (D@Wall Mount)/99.2 (D@Handle)
Set Width (inch)	47.77
Set Height (inch)	26.94
Set Depth (inch)	3.86 (D@Wall Mount)/3.91 (D@Handle)
Product weight	26.2
VESA Mount	400 x 400 mm

Operating conditions

Temperature range (operation)	0 ~ 40
Temperature range (storage)	-20 ~ 60
Altitude	0 ~ 3000 m
MTBF	50,000
Humidity range (operation)[RH]	20~80% RH (No condensation)
Humidity range (storage) [RH]	5~95% RH (No condensation)

Power

Standby power consumption	<0.5 W
Consumption (Max)	320 W
Consumption (Typical)	160
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Energy Label Class	G

Sound

Built-in speakers	2 x 10 W (RMS)

Accessories

Included accessories	Remote Control, Batteries for remote control, AC Power Cord, Quick start guide, Edge alignment pins, DVI-D cable, RS232 cable
Optional accessories	Edge finishing kit, Colour calibration kit, CRD41
Included Accessories	Edge Alignment Kit (1) - 1 pcs, Edge Alignment Kit (2) - 2 pcs, HDMI cable (1.8 m) (x 1), IR cable, IR sensor cable (1.8 m) (x 1), RS232 daisy chain cable, Thumb Screw (x 8)

Miscellaneous

On-Screen Display Languages	Arabic, Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish
Regulatory approvals	CE, CB, BSMI, CU, EPA, ETL, FCC Class A, PSB, RoHS, VCCI
Warranty	3 year warranty

Multimedia Applications

USB Playback Audio	AAC/AIF/AIFF/ASF/LPCM/M3U/M4A/MP3/MP4/PLS/WMA
USB Playback Picture	BMP/GIF/JPEG/JPG/PNG
USB Playback Video	ISM/M4V/Manifest/MK3D/MKV/MP4/MPD/MPEG/MPG/MT2/MTS/TS/TTS/VOB
