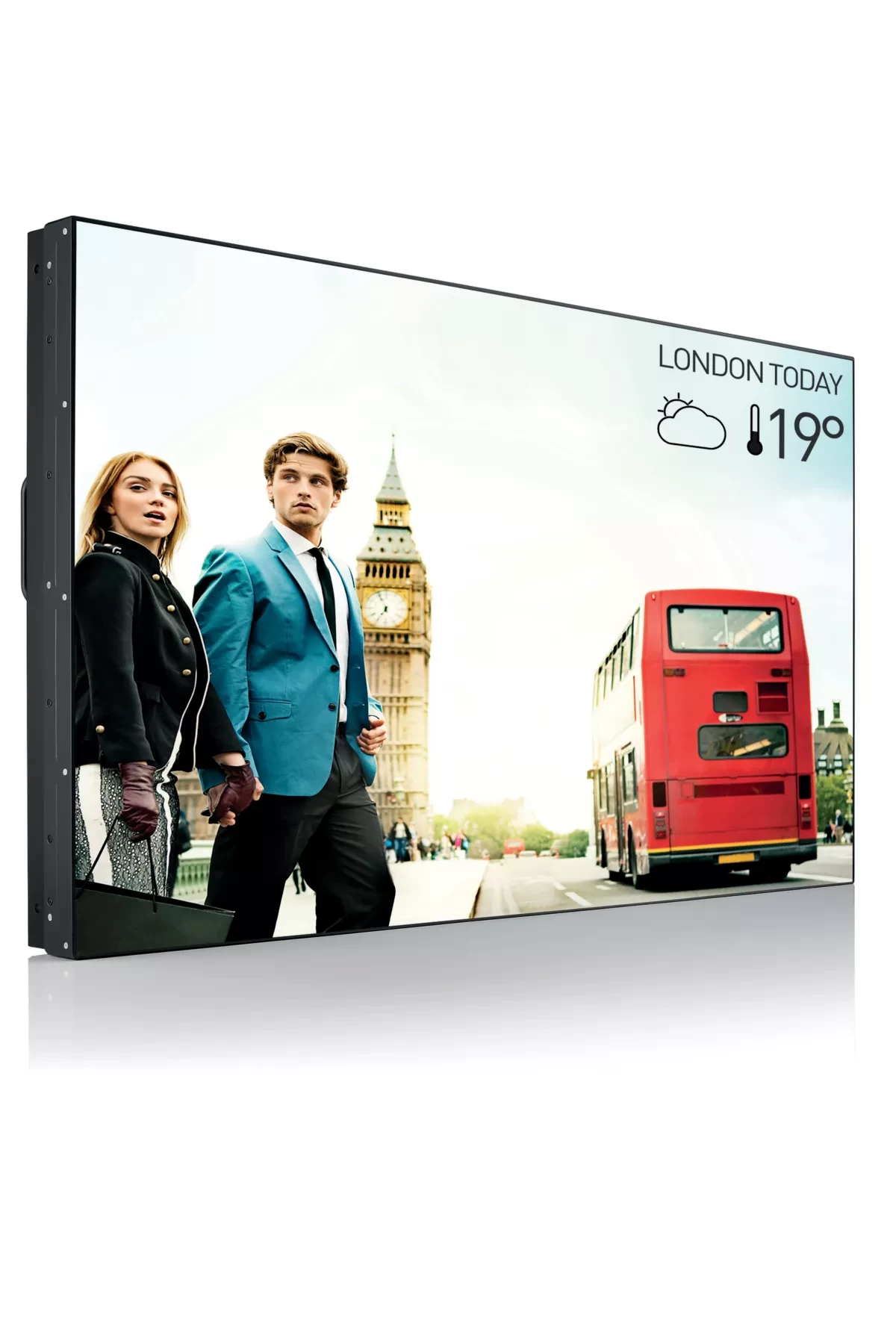

Philips X-Line 55BDL4007X/00 Videowall
Product code:Command attention with an X-Line professional videowall display. Crisp contrast and slim bezels enable clear, distraction-free imaging. Whether you're running an airport or hosting a conference.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 138.7 |
|---|---|
| Diagonal screen size (inch) | 54.6 |
| Panel resolution | 1920 x 1080p |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Brightness | 700 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.63 x 0.63 mm |
| Display colours | 1.07 B |
| Contrast ratio (typical) | 1200:1 |
| Haze | 28% |
Additional information
Supported Display Resolution
| Computer formats | 640 x 480, 60, 67, 72, 75 Hz / 800 x 600, 56, 60, 72, 75 Hz / 1024 x 768, 60 Hz / 1280 x 768, 60 Hz / 1280 x 800, 60 Hz / 1280 x 1024, 60 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1440 x 900, 60 Hz / 1600 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 1920 x 1200, 60 Hz / 3840 x 2160, 30Hz |
|---|---|
| Video formats | 480i, 60 Hz / 480p, 60 Hz / 576p, 50 Hz / 576i, 50 Hz / 720p, 50, 60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 3840 x 2160, 30Hz |
Connectivity
| Video input | Composite (Share component Y), Component BNC (x 3), Display Port1.2 (x 1), DVI-D (x 1), HDMI 1.4 (x 2), VGA (Analogue D-Sub) (x 1), USB 2.0 (x 1) |
|---|---|
| Audio input | 3.5 mm mini jack (x 1), Audio Left/Right (RCA) x 1 |
| Video output | DVI-I (x 1), DisplayPort 1.2 (x 1) |
| Audio output | External speaker connector, 3.5 mm Mini Jack (x 1) |
| External control | RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack, RJ45 x 2 |
| Other connections | OPS, Thermal sensor |
Convenience
| Placement | Landscape (24/7), Portrait (24/7) |
|---|---|
| Tiled Matrix | Up to 10 x 10 |
| Screen-saving functions | Pixel Shift, Low Bright |
| Signal loop through | DisplayPort, RS232, DVI Loop through, IR Loop through |
| Ease of installation | Carrying Handles, Smart Insert |
| Energy-saving functions | Smart Power |
| Network controllable | RS232/RJ45 |
| RJ45 hub | available |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20 - 80% (without condensation) |
| Humidity range (storage) [RH] | 5 - 90% (without condensation) |
Power
| Standby power consumption | <0.5 W |
|---|---|
| Consumption (Max) | 360 W |
| Consumption (Typical) | 165 |
Sound
| Built-in speakers | 2 x 10 W (RMS) |
|---|
Accessories
| Stand | BM05462/BM05922 (Optional) |
|---|---|
| Included Accessories | AC Switch Cover, Gap pad x 3, Kit-1 (x1), Kit-2 (x2), Power cable (3 m), Quick start guide (x 1), Remote control and AAA batteries, RS232 Cable (3 m), RS232 daisy-chain cable, Wire Clamper (x 3), HDMI cable (1.8 m) (x 1) |
Miscellaneous
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | FCC Class A, RoHS, CB, BSMI, PSB, CE, CU, ETL, CCC, CECP |
| Warranty | 3 year warranty |
Multimedia Applications
| USB Playback Video | ISM/M2TS/M4V/Manifest/MK3D/MKV/MP4/MPEG/MPG/MPD/MT2/MTS/TS/VOB |
|---|---|
| USB Playback Audio | AAC/AIF/AIFF/ASF/M3U/M4A/MP3/MP4/PLS/WAV/WMA |
| USB Playback Picture | BMP/GIF/JPEG/JPG/PNG |
Dimensions
| Set Width | 1211.4 |
|---|---|
| Set Height | 682.2 |
| Set Depth | 97.3 (D@Handle)/98.4 (D@Wall mount) |
| Set Width (inch) | 47.69 |
| Set Height (inch) | 26.86 |
| Set Depth (inch) | 3.83 (D@Handle)/3.87 (D@Wall mount) |
| Bezel width | 0.9 mm |
| Wall Mount | 400 mm x 400 mm, M6 |
| Product weight | 24.9 |
