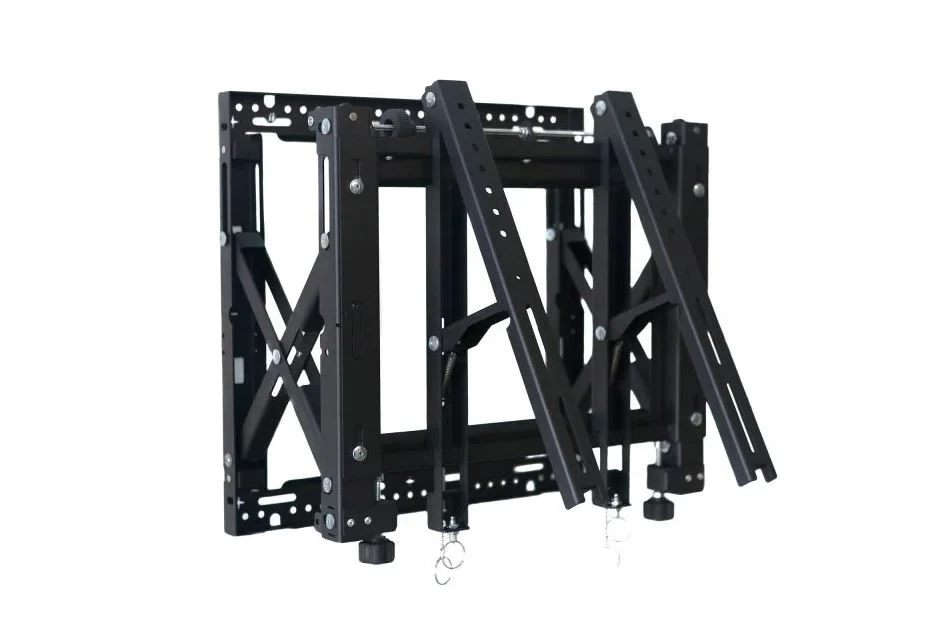

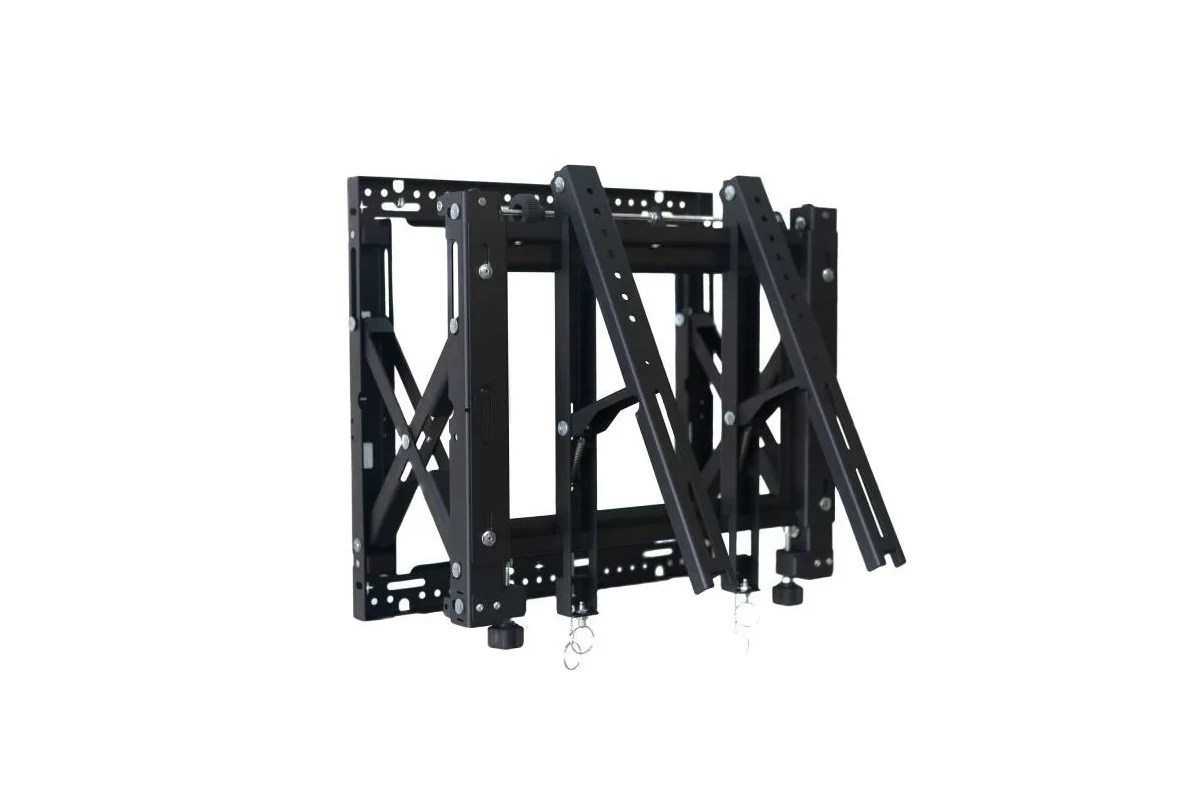

Edbak VWPOP95-P Video Wall Pop-Out Mount with Quick Release for 70″-98″ Screens, Portrait
Product code:VWPOP95-P is a professional pop-out mount designed to build portrait video walls. The open design allows full access to cabling, and the included ties are used to hide the cables easily and aesthetically.
SEND AN ENQUIRYDescription
- Independent 8 position adjustment allows precise alignment of screens without the use of tools
- The retractable mechanism provides convenient service access to screens installed in recesses and places difficult to access for service purposes
- 20° tilt of the screen with the mount open increases access to the back of the screen from the bottom
- The retractable mechanism can be secured with a lock screw to prevent the screen from being accidentally extended
- The open design of the product provides full access to cabling, and the supplied ties facilitate cable management
- Mounting holes and carefully selected spacers eliminate the need for calculations on site
- Adjustment of the retractable mechanism spring enables proper adjustment for screens of different masses to obtain safe and controlled extension
Additional information
Product Specifications
| Index: | VWPOP95-P |
| Color: | Black |
| Warranty: | Limited 5-year’s |
| Minimum screen size: | 70″ |
| Maximum screen size: | 98″ |
| Maximum load: | 130 kg |
| Forward tilting: | +20 |
| VESA Mounting Compatibility: | 100×100 to 600×600 |
Technical Specifications
| Product dimensions: | W: 883 mm D: 100 mm H: 701 mm
(W: 34,76″ D: 3,94″ H: 27,60″) |
| Product weight: | 30,5 kg (67 lb) |
| Max. distance from mounting surface: | 315 mm (12,40″) |
| Min. distance from mounting surface: | 100 mm (3,94″) |
| Max. mounting pattern: | 600 mm x 606 mm |
| Min. mounting pattern: | 60 mm x 85 mm |
Logistics Data
| SAP Index: | WUSC-VWPOP95-P |
| EAN Code: | 5908252968138 |
| HS Code (Harmonized System): | 732690 |
| HTS Code (Harmonized Tariff Schedule): | 7326909890 |
| Country of origin: | Poland |
