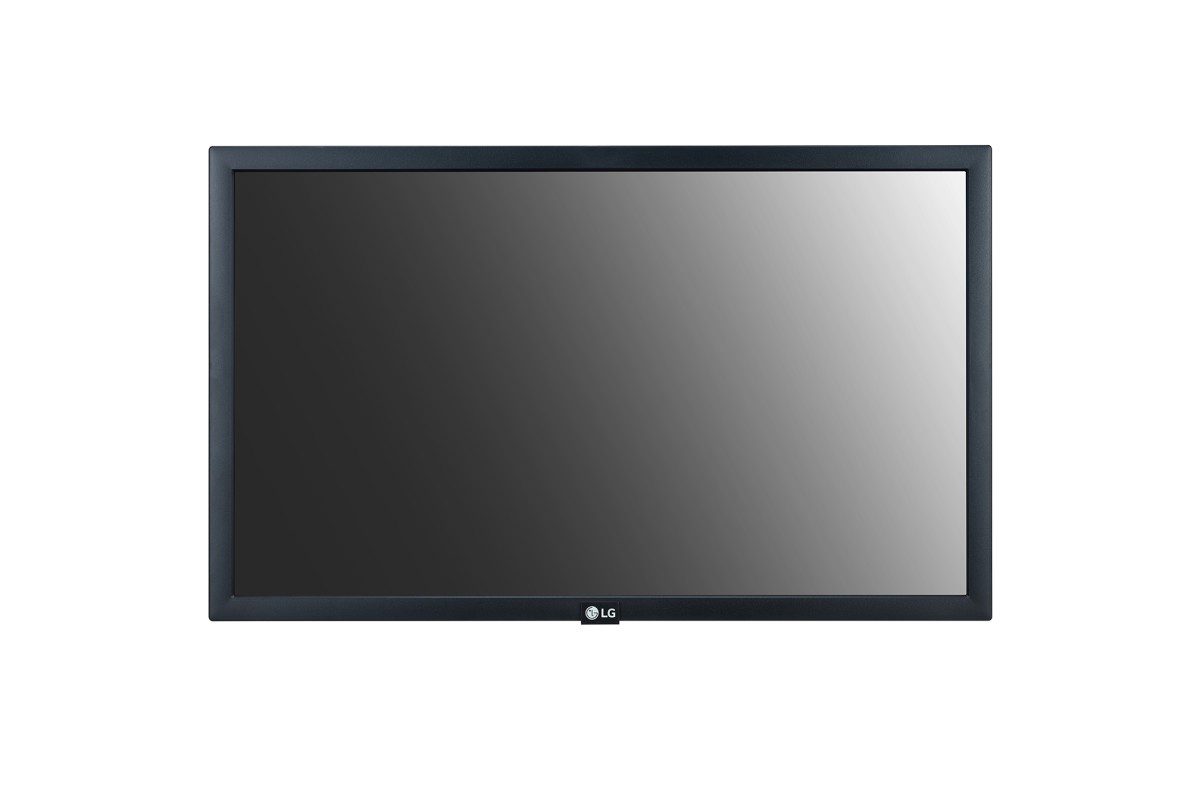

LG 22SM3G-B Full HD Digital Signage Display
Product code:22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
Description
Panel
| Screen Size | 21.5” |
|---|---|
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 X 1,080 (FHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ., cd/m²) | 250 |
| Contrast Ratio | 1,000 : 1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 14ms (G to G) |
| Surface Treatment (Haze) | 25 % |
| Life Time (Min.) | 30,000 Hrs |
| Operation Hours (Hours / Days) | 16 / 7 |
| Portrait / Landscape | Yes / Yes |
| OS | webOS 4.0 |
Additional information

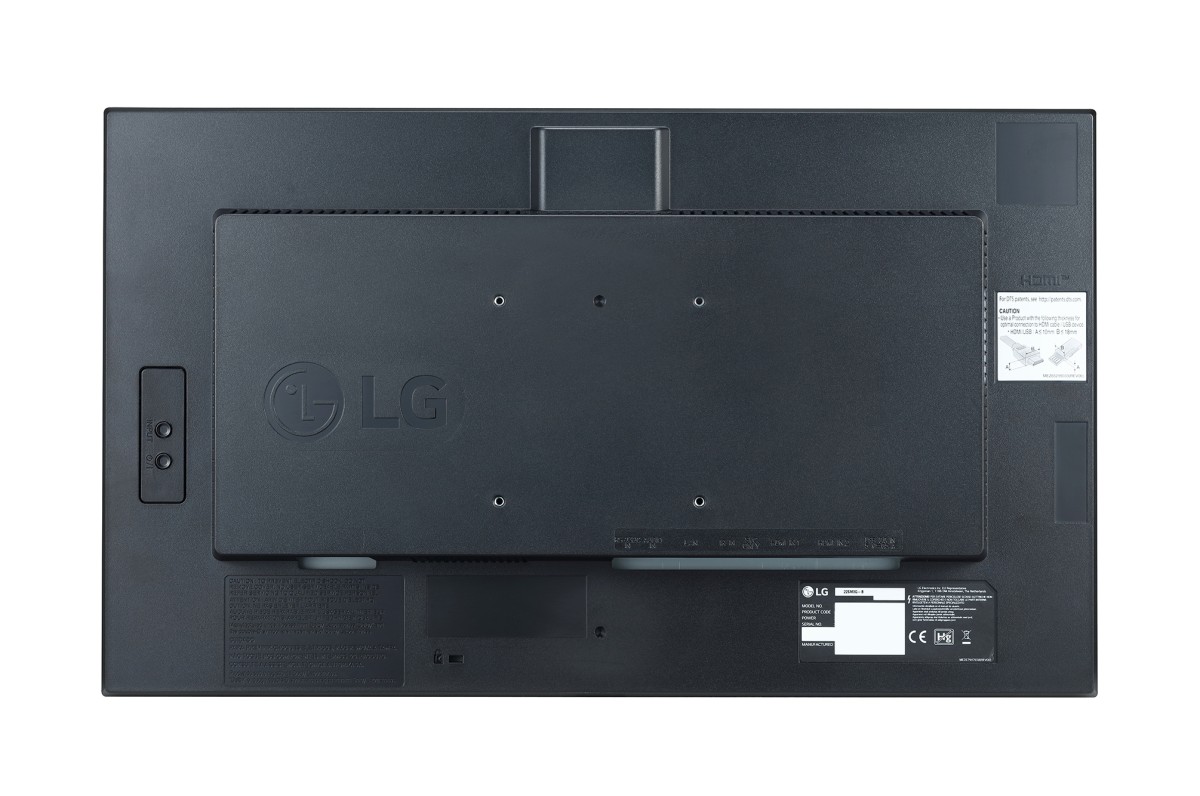

Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | 16.3 mm (Even Bezel) |
| Weight (Head) | 3.34 kg |
| Monitor Dimensions (W × H × D) | 510.3 x 302.1 x 53.8 mm |
| VESA™ Standard Mount Interface | 100 x 100 mm |
Feature
| Key Feature | Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:Idiom |
|---|

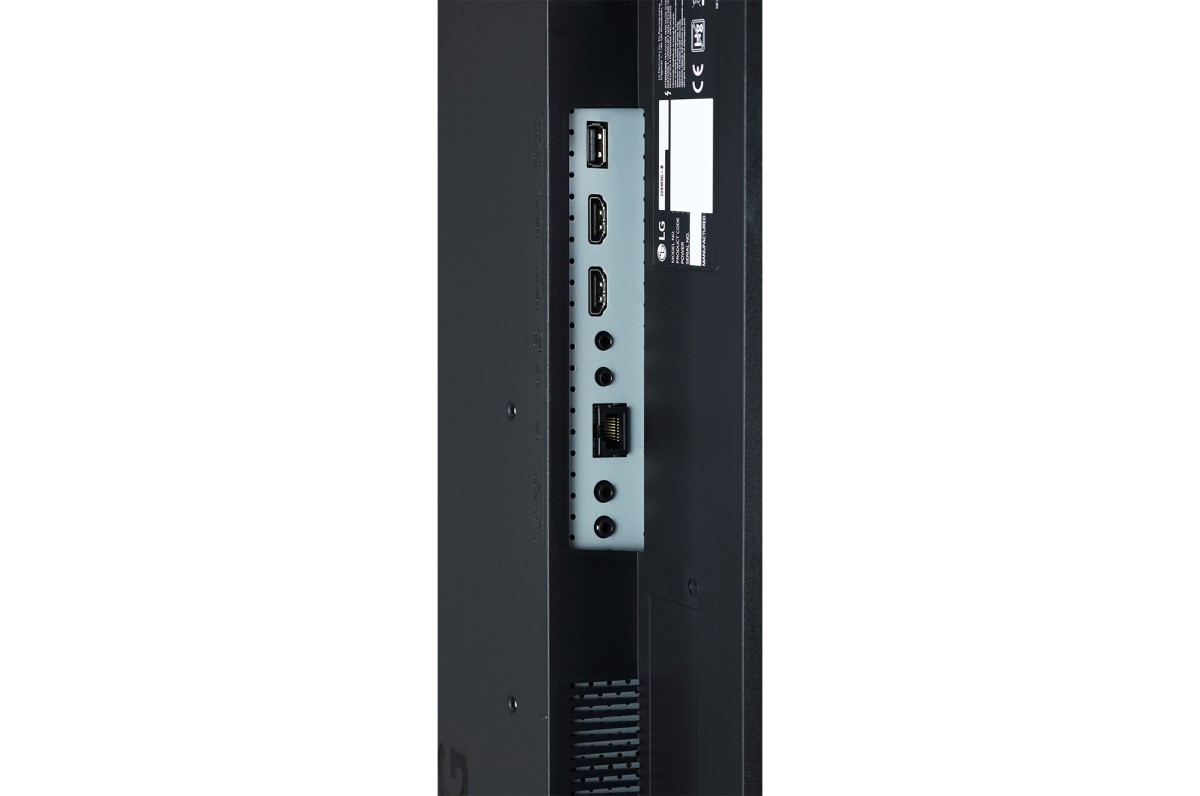

Connectivity
| Input | HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In |
|---|---|
| Output | - |
| External Control | RS232C In (Phone-jack), RJ45 (LAN) In, IR In |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240 V~, 50 / 60 Hz |
|---|---|
| Power Type | Built-In Power |
| Power Consumption (Typ. / Max.) | 30 W / 33 W |
| Power Consumption (Smart Energy Saving) | 15 W ± 5 % |
Certification
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class “A” / CE |
| ErP | Yes (EU Only) |
| ePEAT (US Only) | No |
Software Compatibility
| Content Management Software | SuperSign CMS |
|---|---|
| Control and Monitoring Software | SuperSign Control / Control+ |
| LG ConnectedCare | Yes (The availability of the “LG ConnectedCare” service differs by region.) |
Sound
| Speaker | Yes (1 W x 2 ea) |
|---|
Accessory
| Basic | Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet |
|---|
