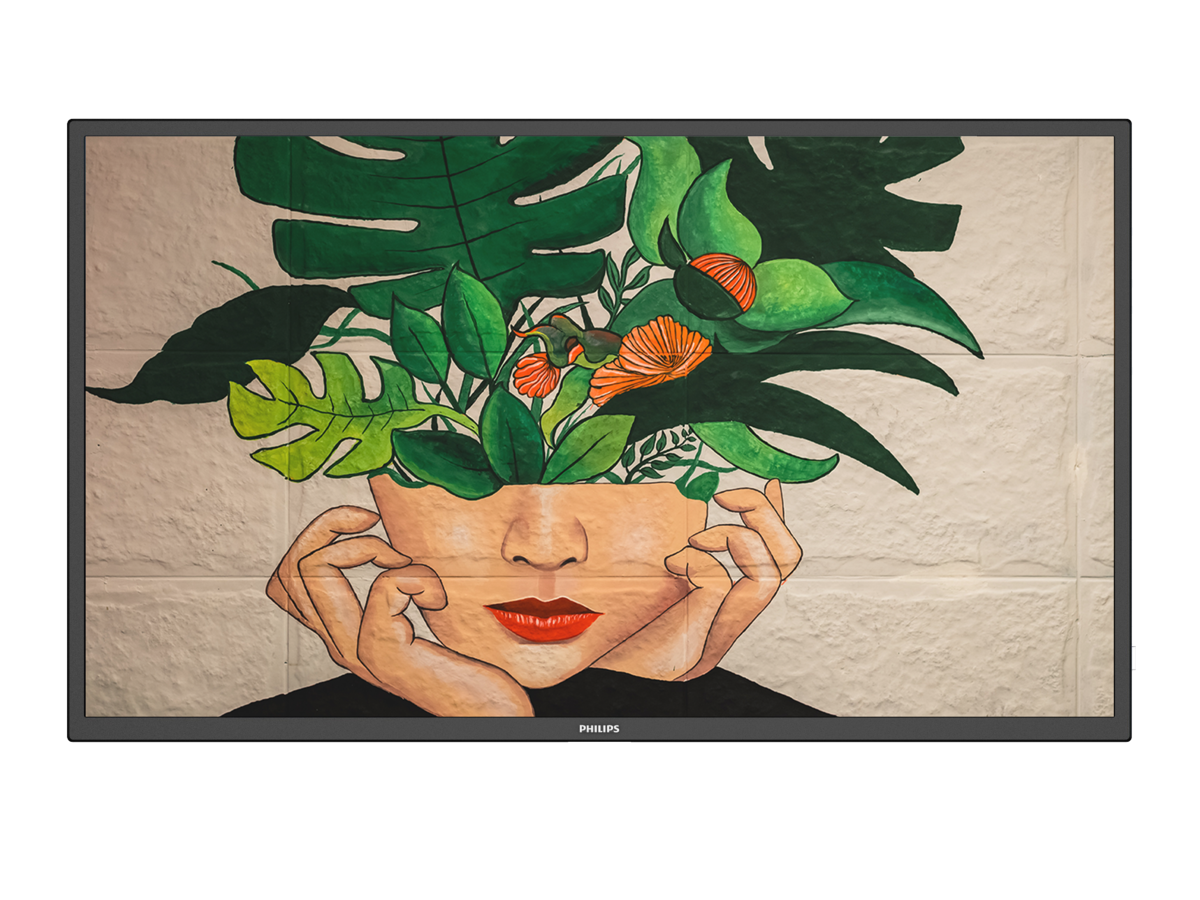

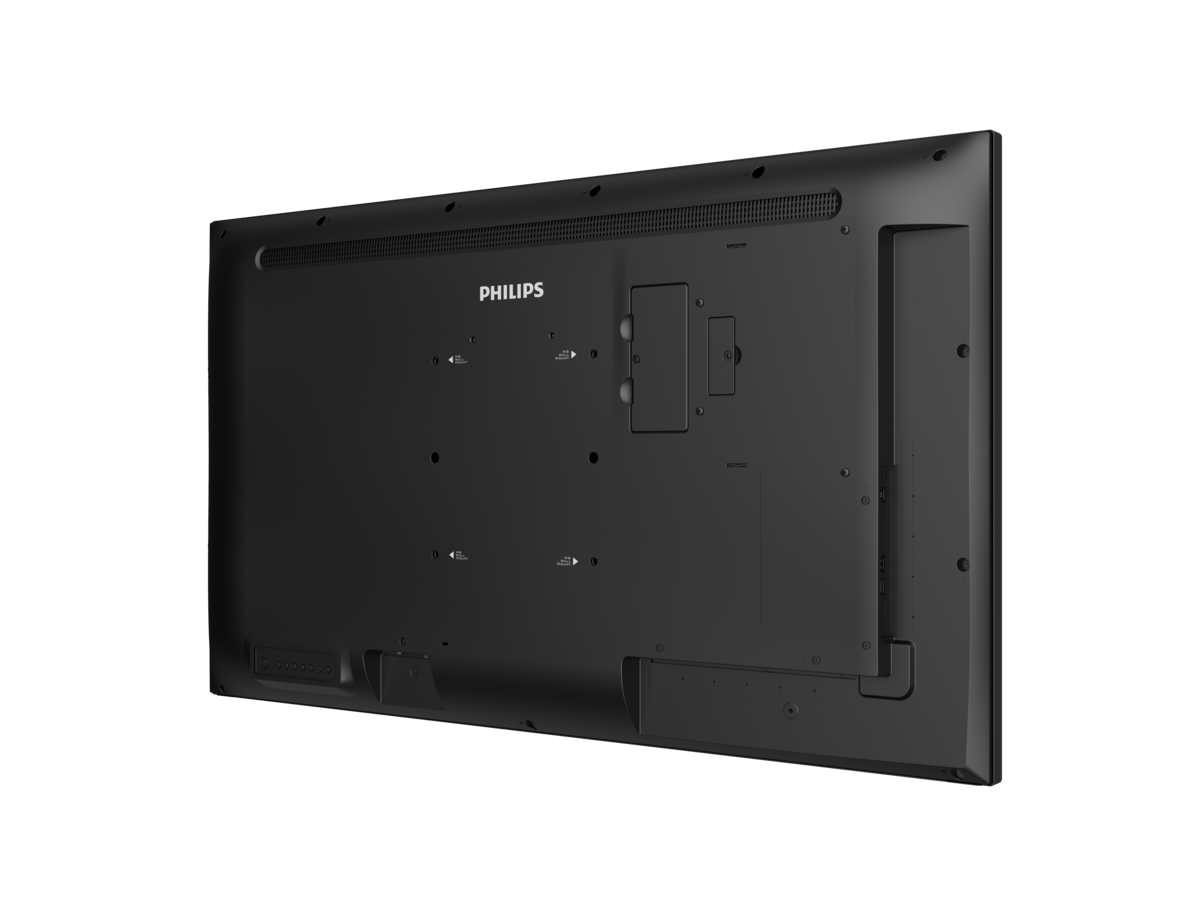

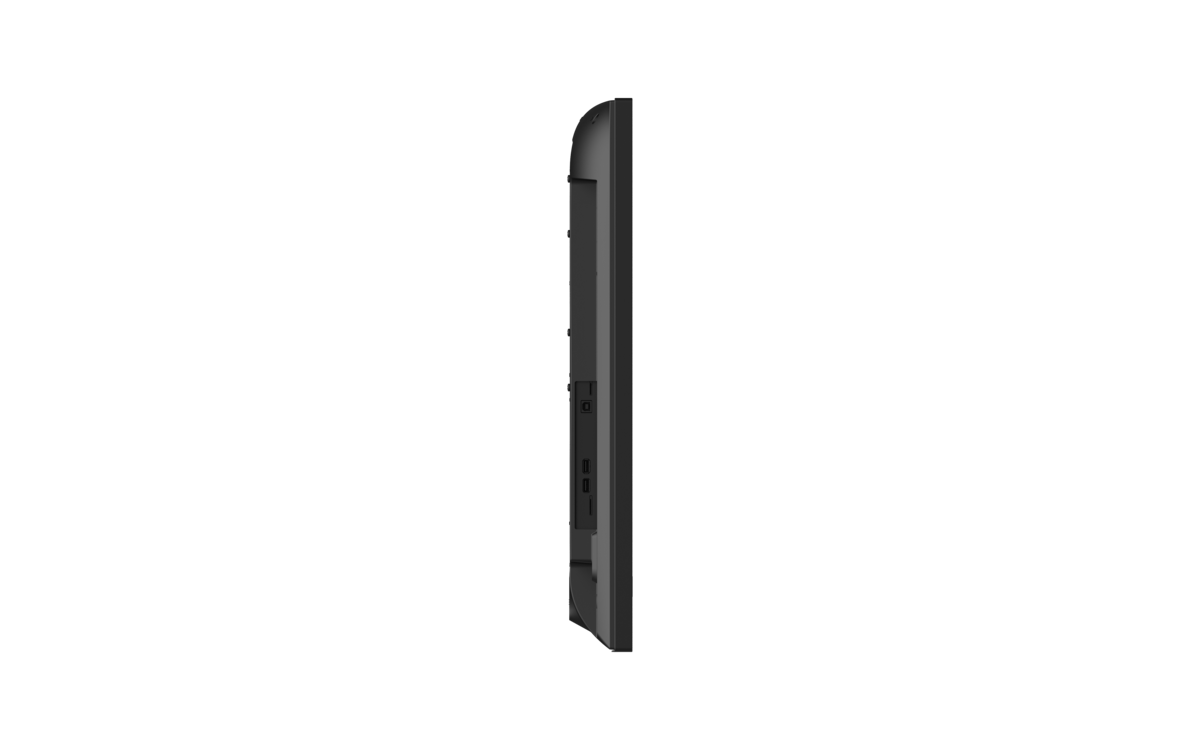

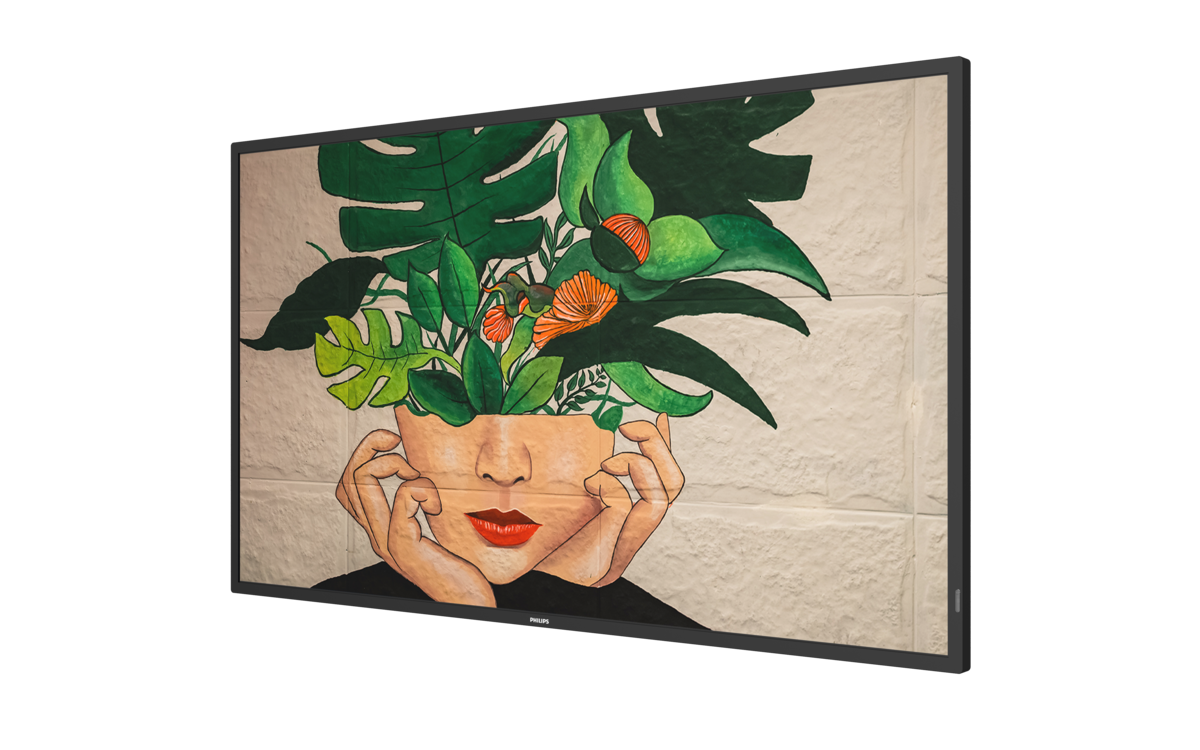

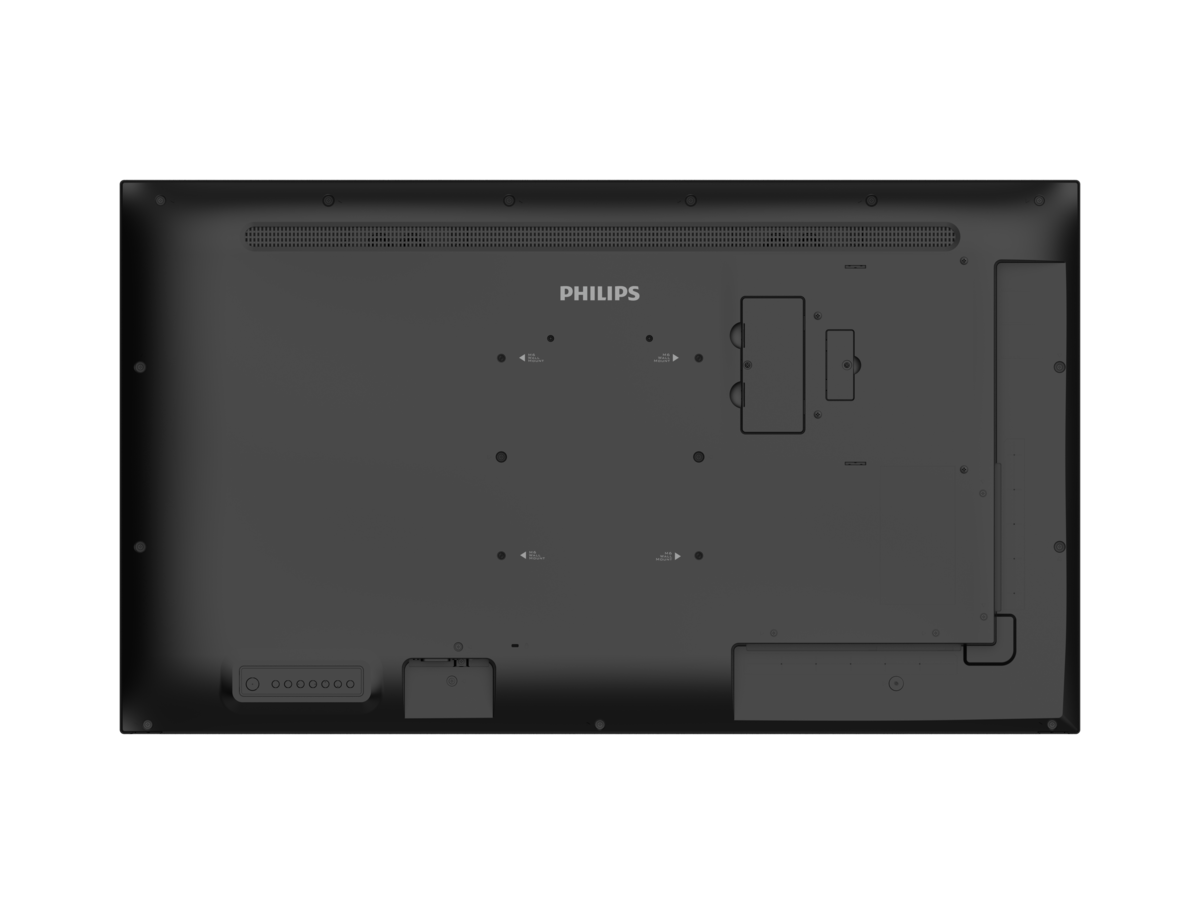

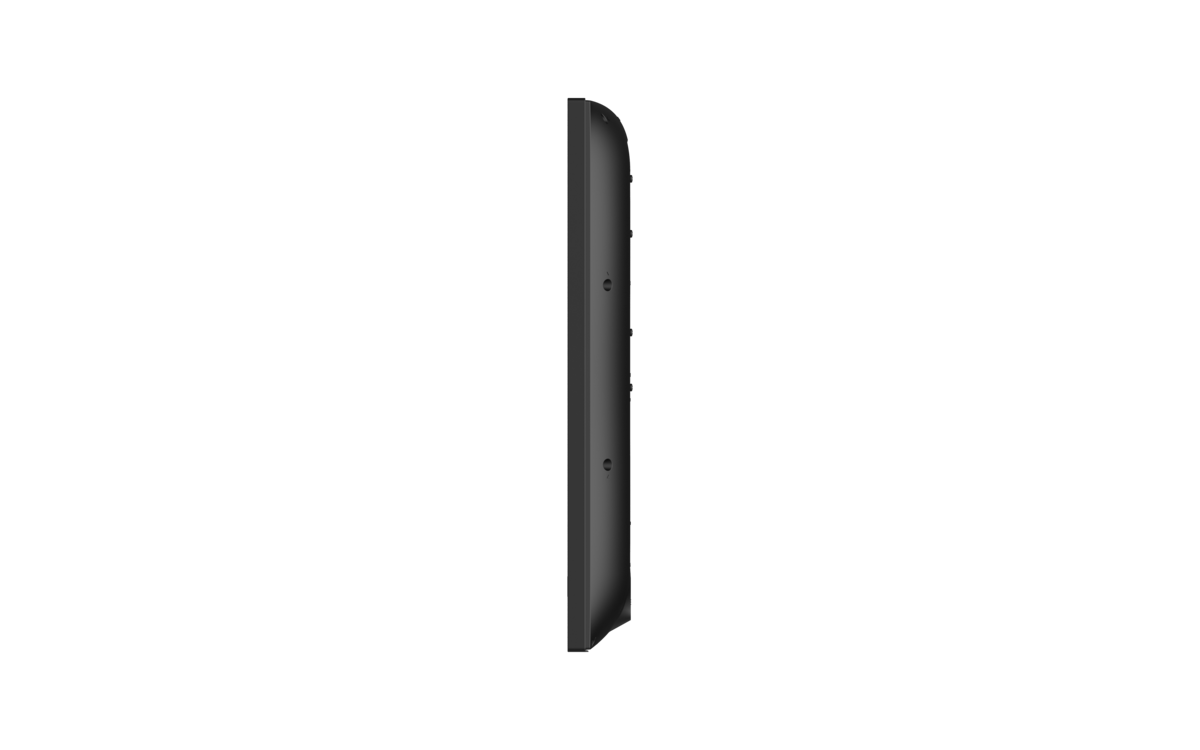

Philips D-Line 43BDL4511D/00 Digital Signage

Product code: 43BDL4511D/00

Make it stand out with a fast Philips D-Line Professional 4K UHD display. Philips superb picture quality ensures true colours and intense contrast. You can effortlessly display content from multiple sources on a single screen.

SEND AN ENQUIRY

Description

Picture/Display

Diagonal screen size (metric)108.0
Diagonal screen size (inch)42.5
Panel resolution3840 x 2160
Optimum resolution3840 x 2160 @ 60 Hz
Brightness500
Dynamic contrast ratio500,000:1
Response time (typical)8
Aspect ratio16:9
Viewing angle (horizontal)178
Viewing angle (vertical)178
Pixel pitch0.2451 x 0.2451 mm
Display colours1.07 Billion
Panel technologyADS
Contrast ratio (typical)1200:1
Haze25%

Additional information

Supported Display Resolution

Computer formats 640 x 480, 60 Hz / 800 x 600, 60 Hz / 1024 x 768, 60 Hz / 1280 x 720, 60 Hz / 1280 x 1024, 60 Hz / 1440 x 900, 60 Hz / 1600 x 900, 60 Hz / 1680 x 1050, 60 Hz / 1920 x 1080, 60 Hz / 3840 x 2160, 30, 60 Hz
Video formats 480i, 60 Hz / 480p, 60 Hz / 576p, 50 Hz / 576i, 50 Hz / 720p, 50,60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 2160p, 24, 30, 60 Hz


Connectivity

Video input Display Port1.2 (x 1), DVI-I (x 1), HDMI 2.0 (x 2), USB 2.0 (x 2)
Audio input 3.5 mm jack
Video output DisplayPort 1.2 (x 1), HDMI 2.0 (x 1)
Audio output 3.5 mm jack
External control IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack
Other connections OPS


Convenience

Placement Landscape (24/7), Portrait (24/7)
Screen-saving functions Pixel Shift, Low Bright
Signal loop through DisplayPort, RS232, HDMI, IR Loop through
Energy-saving functions Smart Power
Network controllable RS232/RJ45
Keyboard control Hidden, Lockable


Operating conditions

Temperature range (operation) 0 ~ 40
Temperature range (storage) -20 ~ 60
Altitude 0 ~ 3000 m
MTBF 50,000
Humidity range (operation)[RH] 20–80% RH (No condensation)
Humidity range (storage) [RH] 5–95% RH (No condensation)


Power

Consumption (Typical) 62
Consumption (Max) 170 W
Standby power consumption 0.5 W
Mains power 100 ~ 240 VAC, 50 ~ 60 Hz
Energy Label Class G


Sound

Built-in speakers 2 x 10 W RMS


Accessories

Stand BM05922(Optional)
Included Accessories AC Switch Cover, Philips logo (x 1), RS232 daisy-chain cable, AC power cord, IR sensor cable (1.8 m) (x 1), Quick start guide (x 1), Remote control and AAA batteries, RS232 cable, USB Cover and screw x 1, Wire Clamper (x 3)


Miscellaneous

On-Screen Display Languages Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese
Regulatory approvals CE/FCC Class A/CCC/RoHS/CB/BSMI/EMF/VCCI/PSB/ETL/CECP/EAC/EnergyStar 8.0
Warranty 3 year warranty


Multimedia Applications

USB Playback Video H.263/H.264/H.265/MPEG
USB Playback Picture BMP/JPEG/PNG
USB Playback Audio AAC/MPEG/HEAAC


Dimensions

Set Width 973.0
Set Height 561.2
Set Depth 63.5
Set Width (inch) 38.31
Set Height (inch) 22.09
Set Depth (inch) 2.50
Bezel width 13.9 mm (Even bezel)
Wall Mount 200 (H) x 200 (V) mm, M6
Product weight 10.71
Product weight (lb) 23.61
