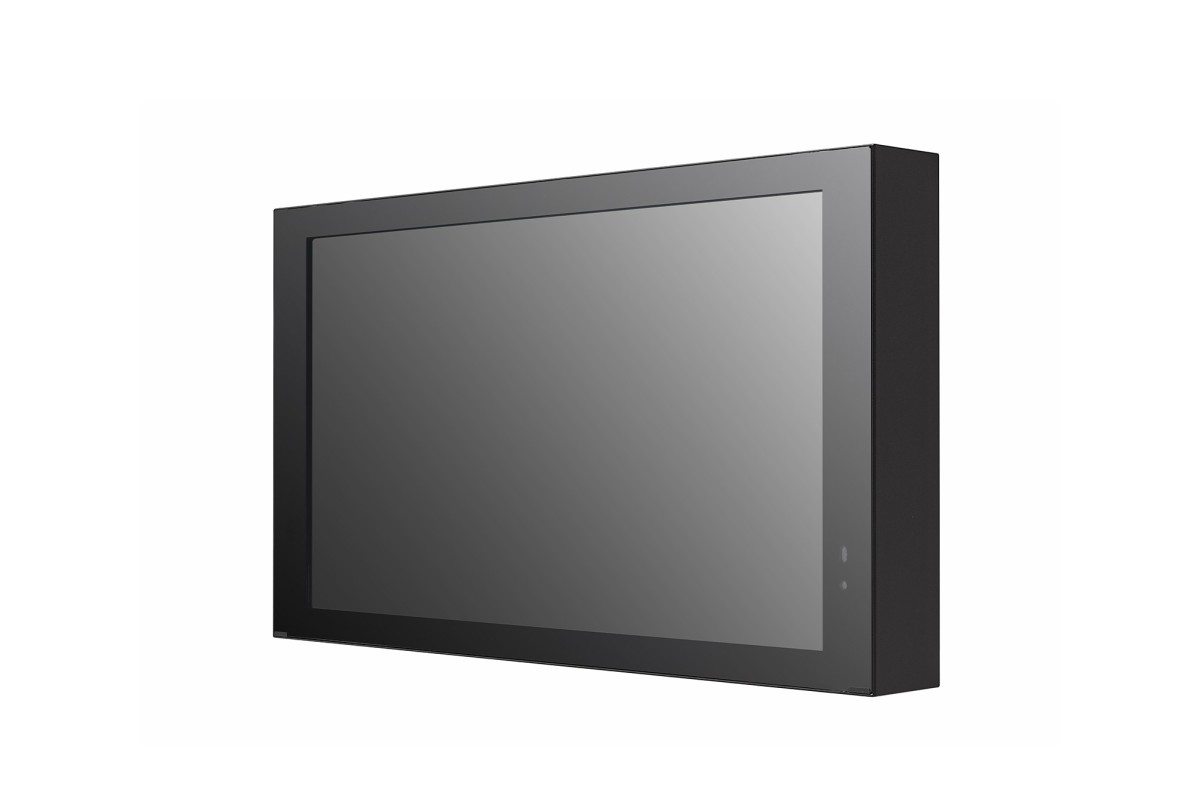

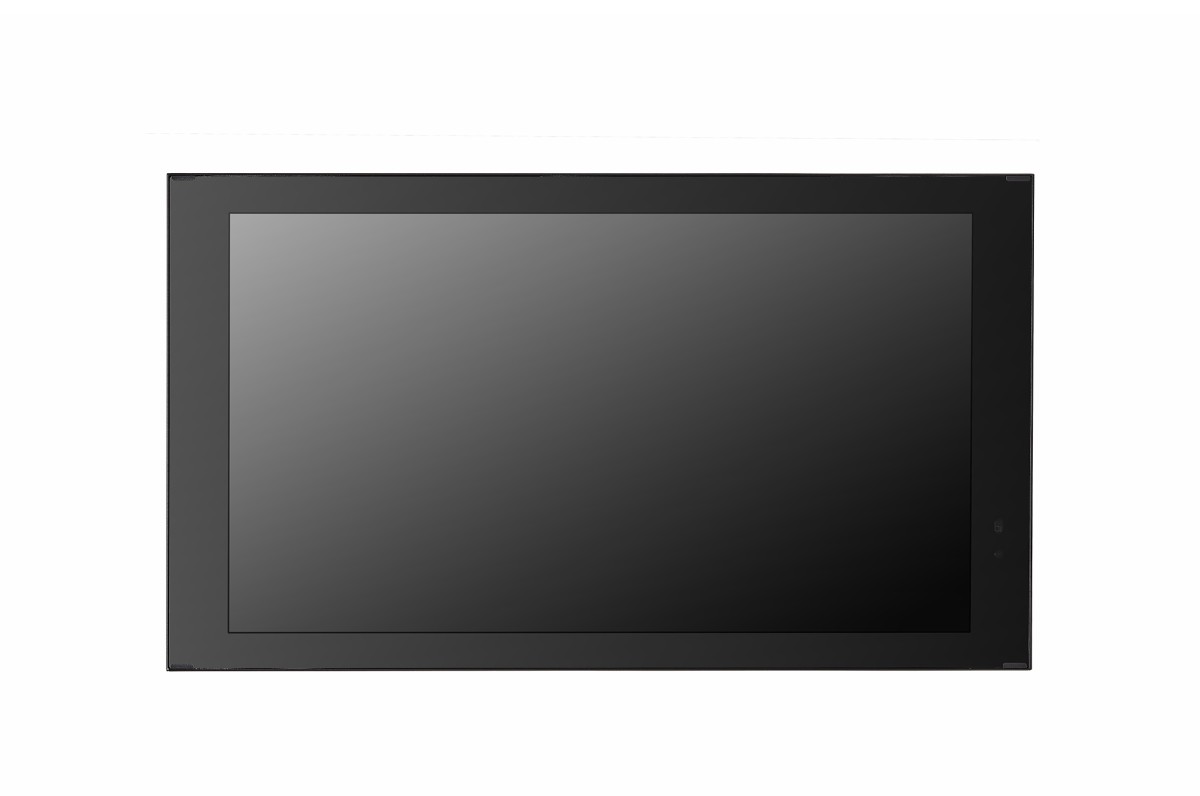

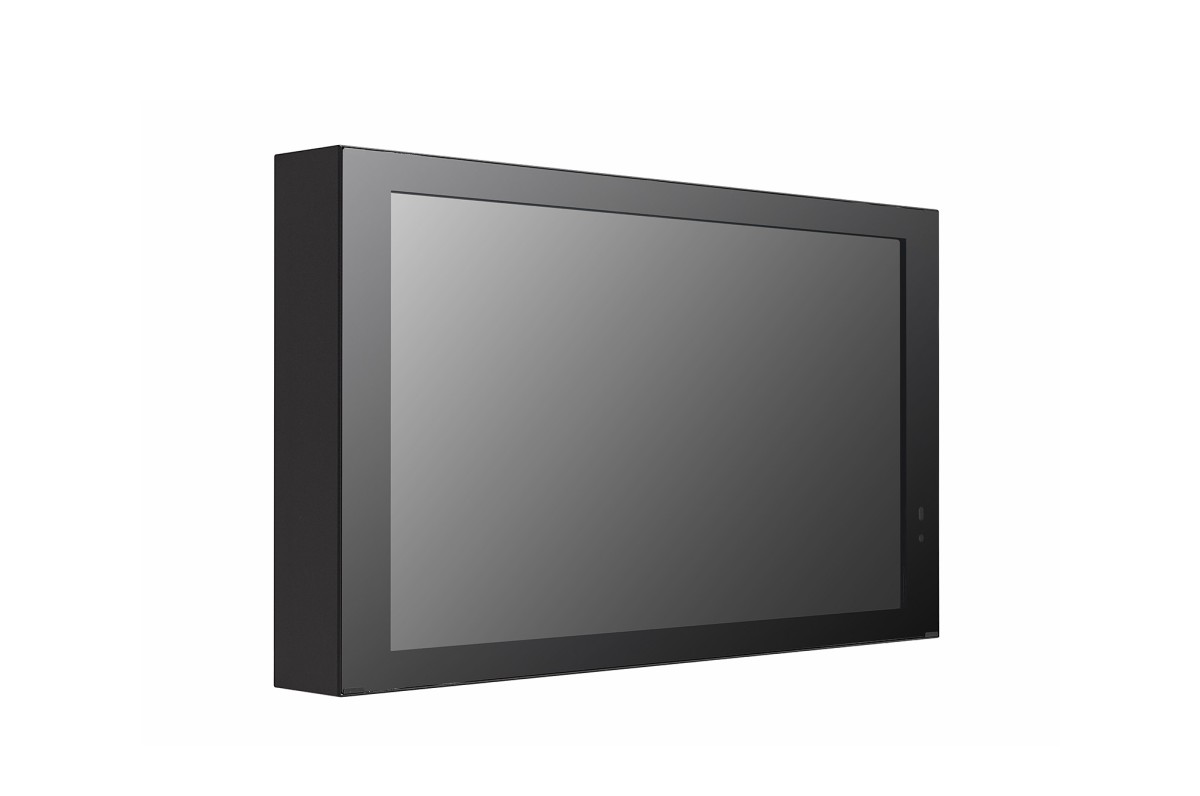

LG 22XE1J-B High Brightness Full HD Outdoor Display

LG 22XE1J-B High Brightness Full HD Outdoor Display

Product code: 22XE1J-B

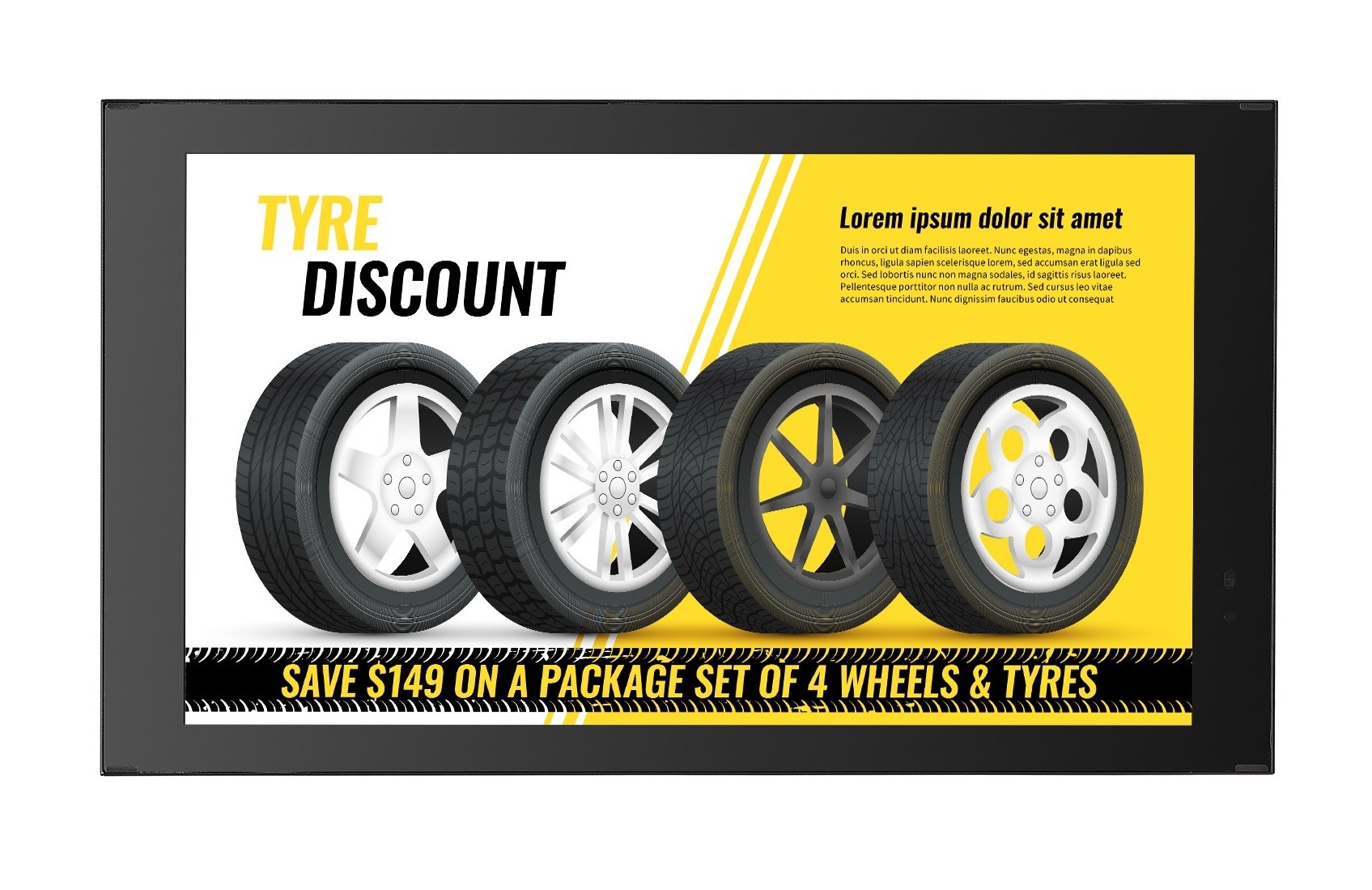

With a brightness of 1,500 nits, 22XE1J boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

SEND AN ENQUIRY

Description

Panel

Screen Size	21.5"
Panel Technology	AHVA (IPS)
Back Light Type	Edge
Aspect Ratio	16:9
Native Resolution	1,920 x 1,080 (FHD)
Refresh Rate	60Hz
Brightness	1,500nit (Typ, w/ Glass)
Contrast Ratio	1,000:1 (Typ)
Dynamic CR	800,000:1
Color gamut	NTSC 72%
Viewing Angle (H x V)	178 x 178
Color Depth	8bit, 16.7Million colors
Response Time	25ms (G to G)
Surface Treatment (Haze)	Anti glare, 3H (Haze 25%)
Lifetime	70,000 Hrs (Typ)
OS	webOS4.1
Operation Hours (Hours / Days)	24/7

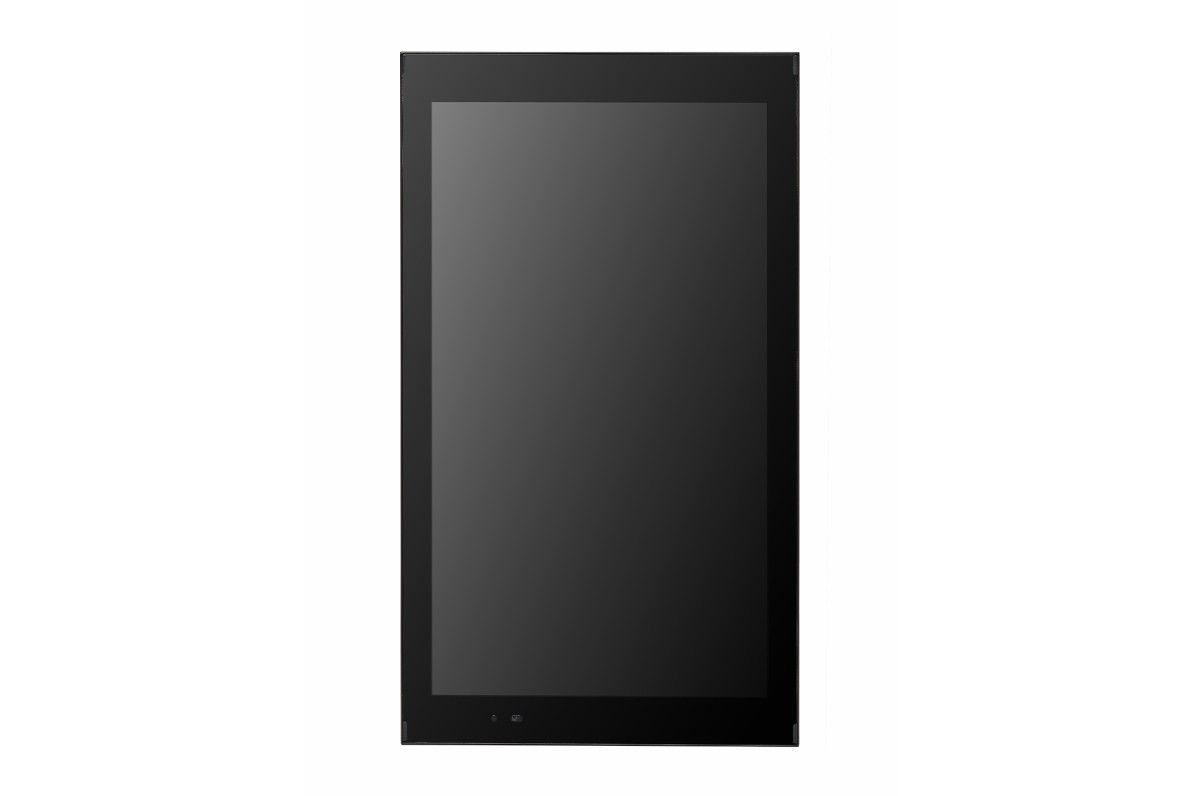

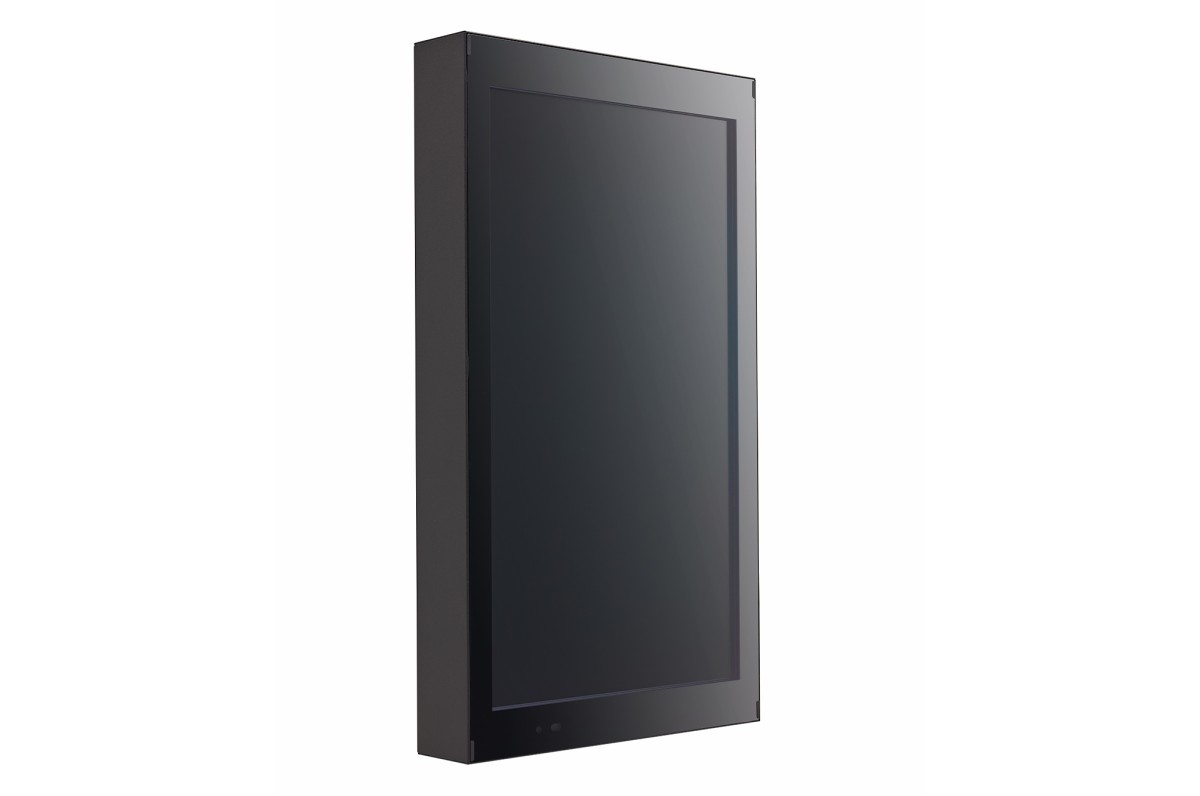

Portrait / Landscape	Yes / Yes
QWP (Quarter Wave Plate)	Yes (Apply on glass)

Additional information

Mechanical Specification

Bezel Color	Black
Bezel Width	38.3mm (R/L), 24.0mm (T/B)
Weight (Head)	8.3kg
Packed Weight	10kg
Monitor Dimensions (W × H × D)	557.3 x 319.8 x 65 mm
Carton Dimensions (W × H × D)	632 x 394 x 187 mm (Box outer size)

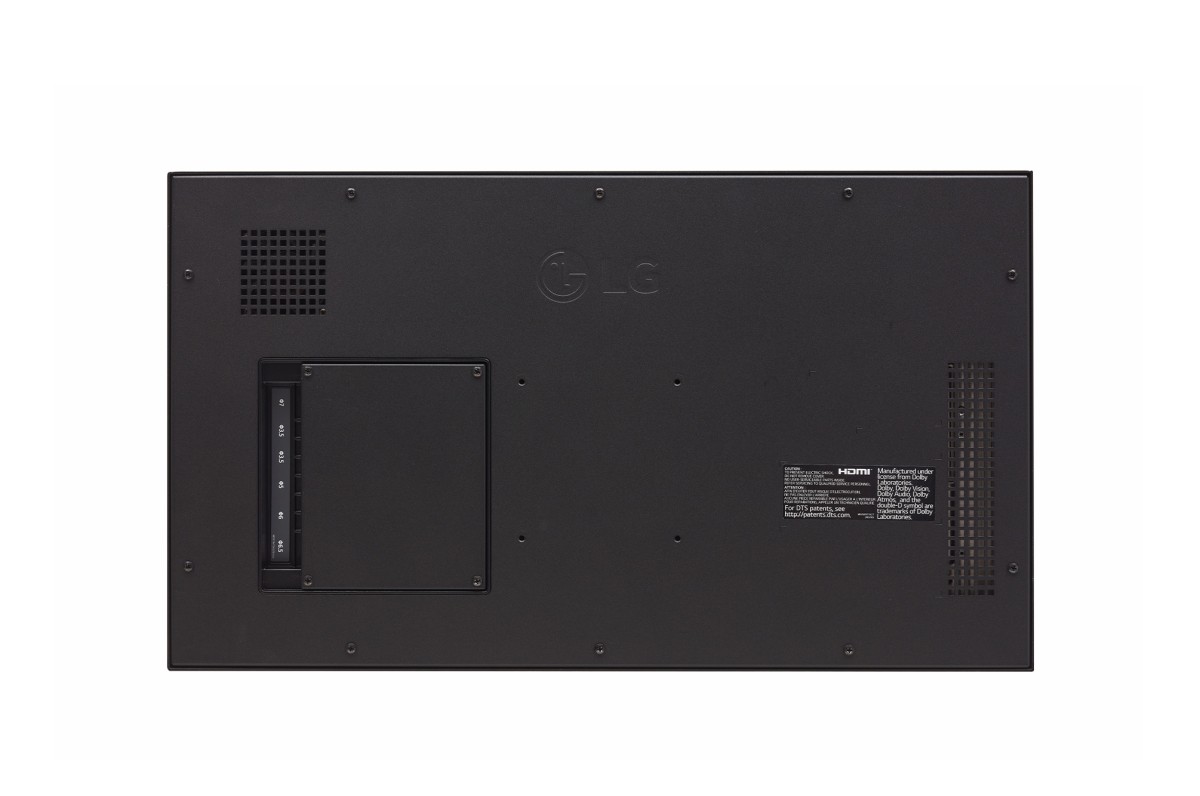

VESA™ Standard Mount Interface	100x100
Protection Glass	Depth 2mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective, Infrared - Resistance (IR), Shatter-Proof

Special Feature

Tilt (Facedown)	Yes (Max -15º degree, Face Down) PP
IP Rating	IP56
Direct Sunlight	Yes

Key Feature

HW	Internal Memory 16GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration (Gyro) Sensor, Power Indicator, FAN
SW	webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting , webRTC, Pro:Idiom

Internal Memory 16GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration (Gyro) Sensor, Power Indicator, FAN

webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting , webRTC, Pro:Idiom

Connectivity

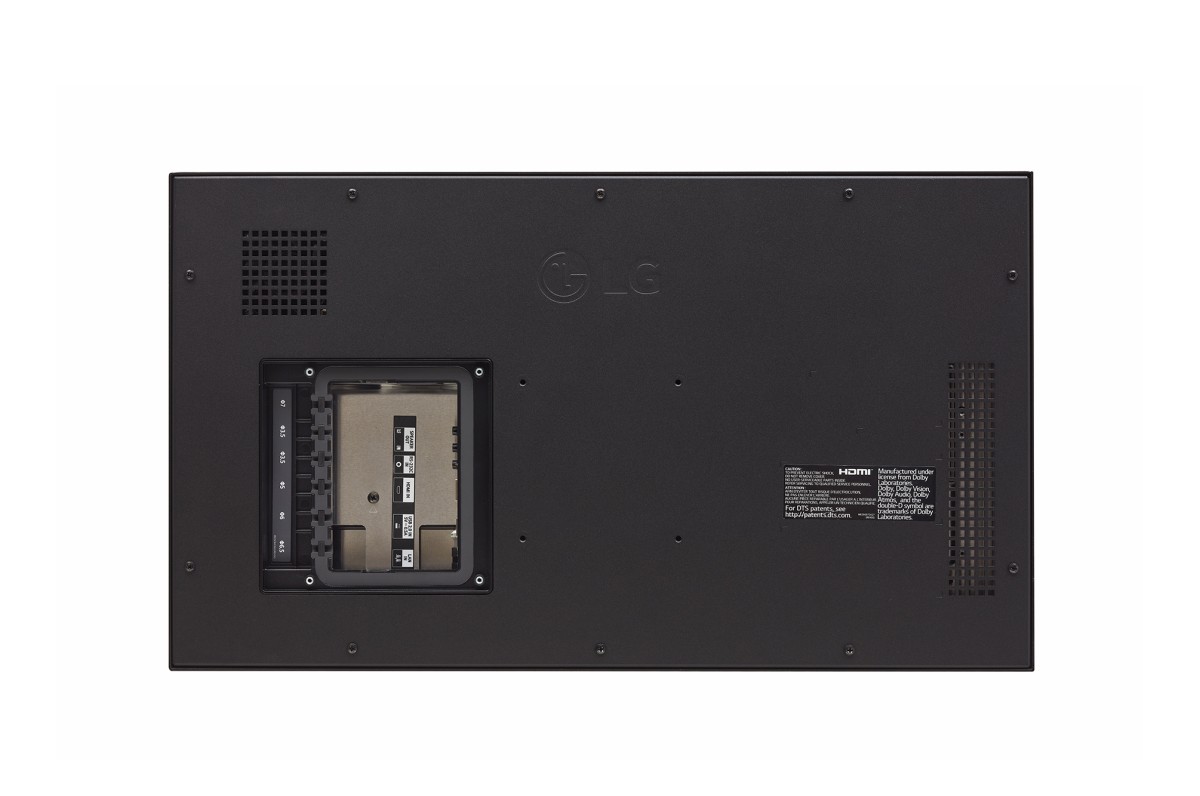

Input	HDMI (1, HDCP1.4), RS232C IN, RJ45 (LAN), USB2.0 Type A (1)
Output	Externel Speaker Out (1, L/R, 10W+10W)

Environment Conditions

Operation Temperature	-30°C to 50 °C
Operation Humidity	5 % to 100 %

Power

Power Supply	AC 100-240V~, 50/60Hz
Power Type	Built-In Power

Power Consumption

Typ.	85W
Max.	115W
Smart Energy Saving	40W
DPM	0.5W↓
Power off	0.5W↓
BTU (British Thermal Unit)	290 (Typ), 393 (Max)

Certification

Safety	CB / NRTL
EMC	FCC Class "A" / CE / KC / VCCI
ErP	Yes

Software Compatibility

SuperSign CMS	Yes
SuperSign Control / Control+	Yes / Yes
LG ConnectedCare	Yes

Language

OSD	English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Arab, Turkish
