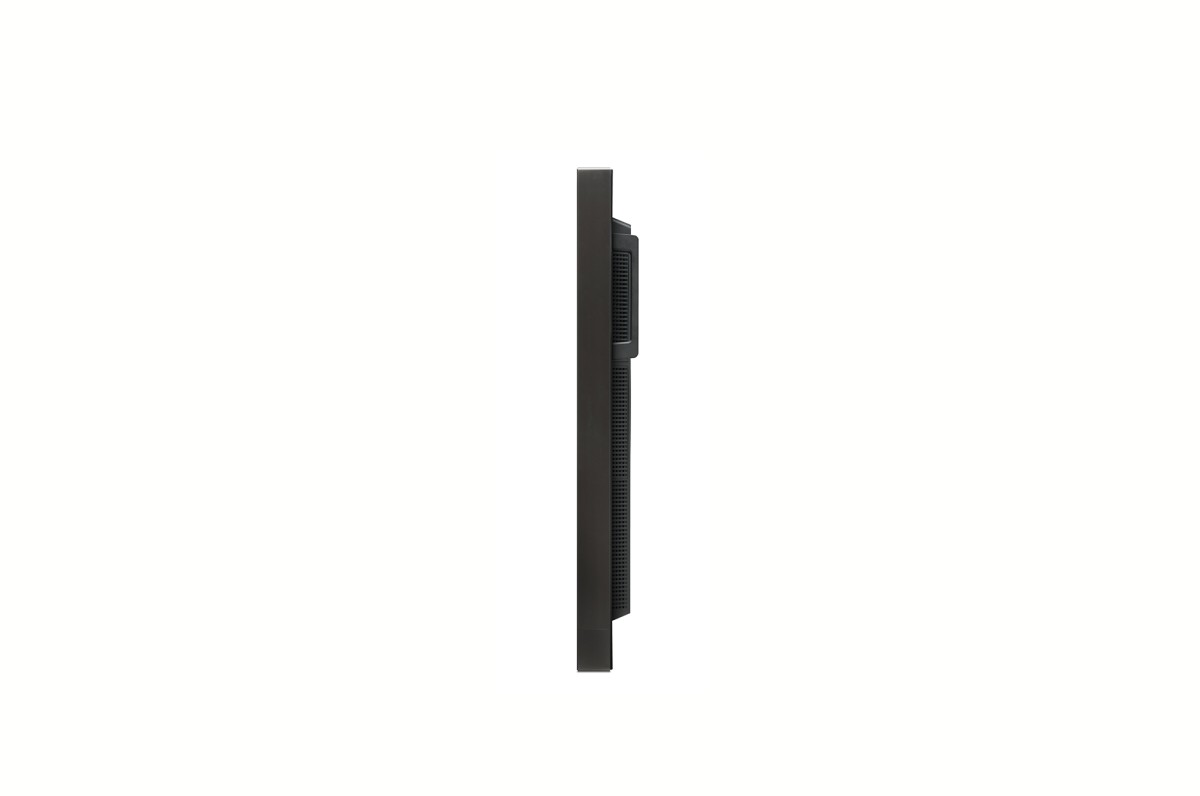

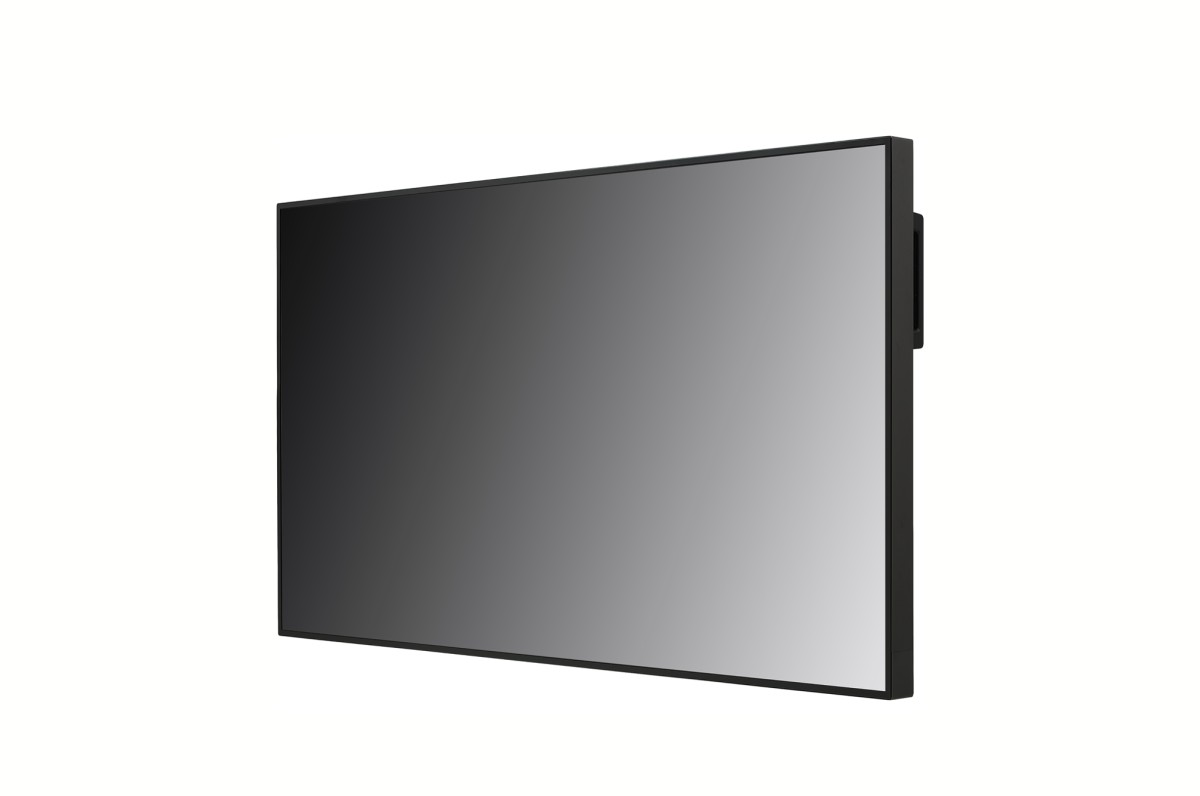

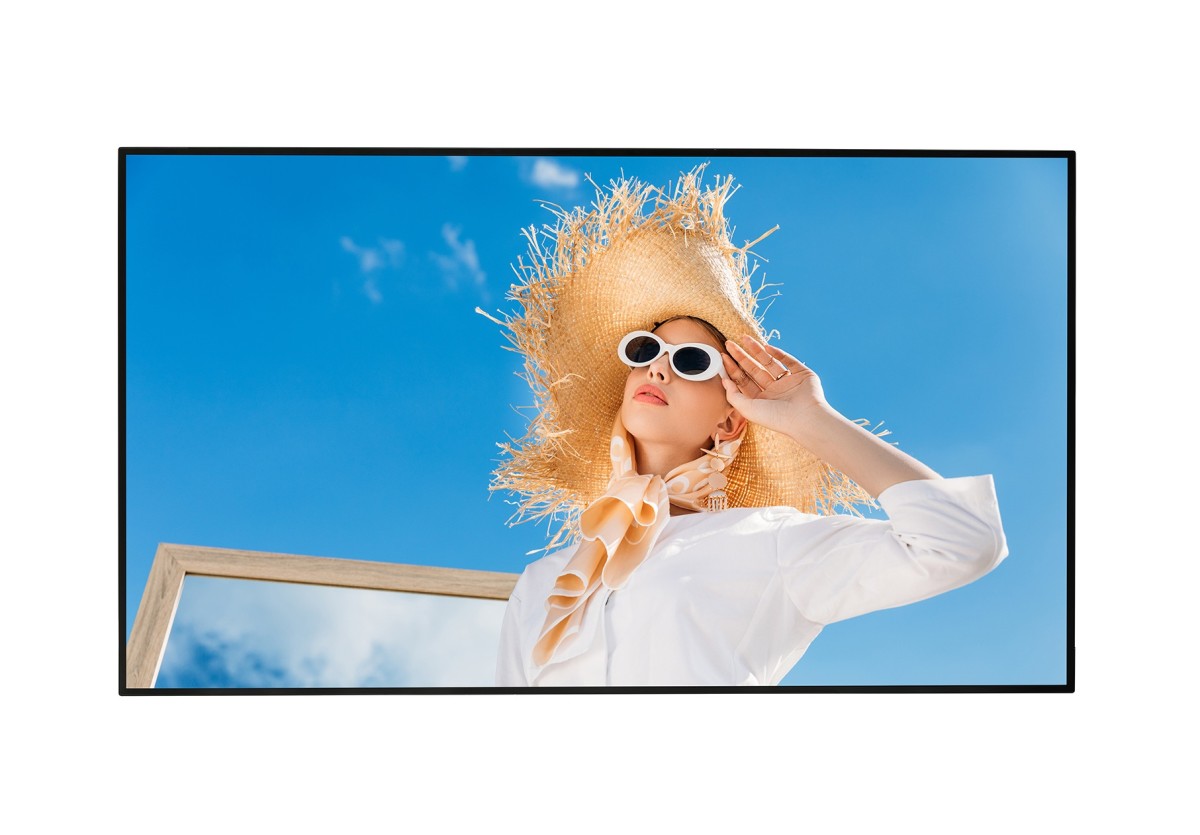

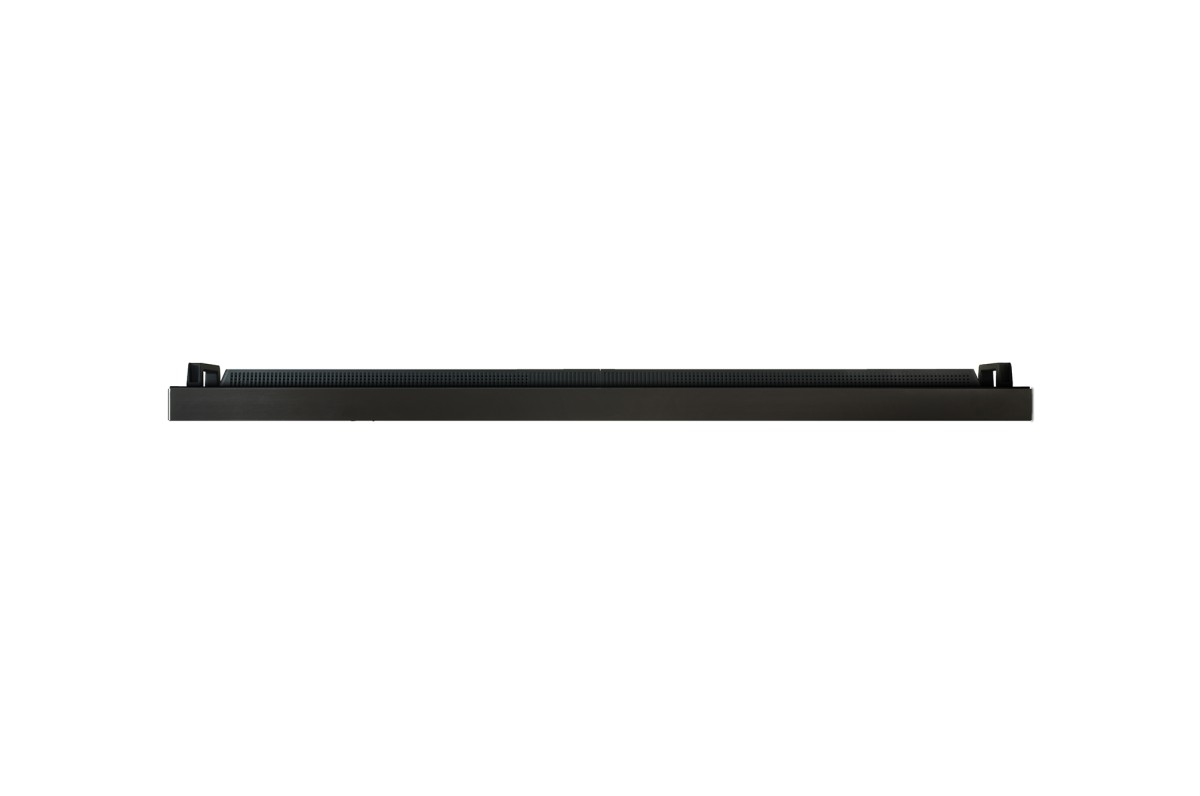

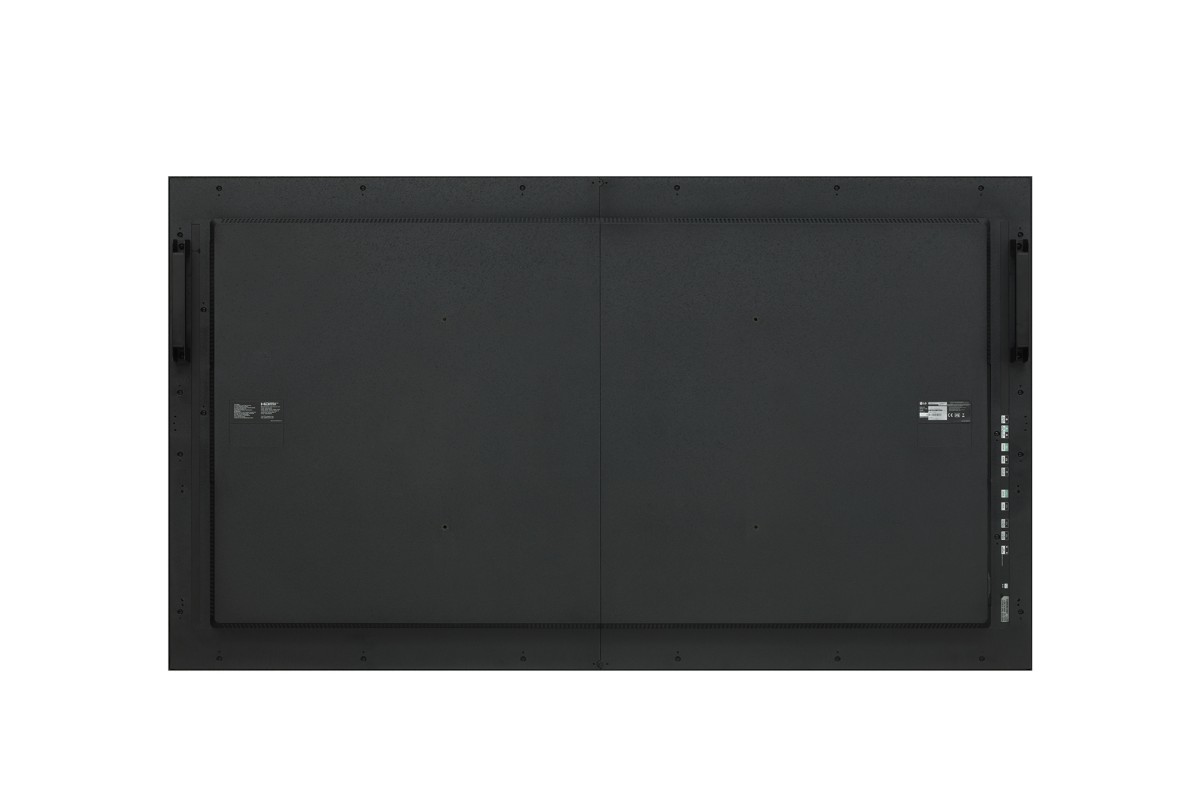

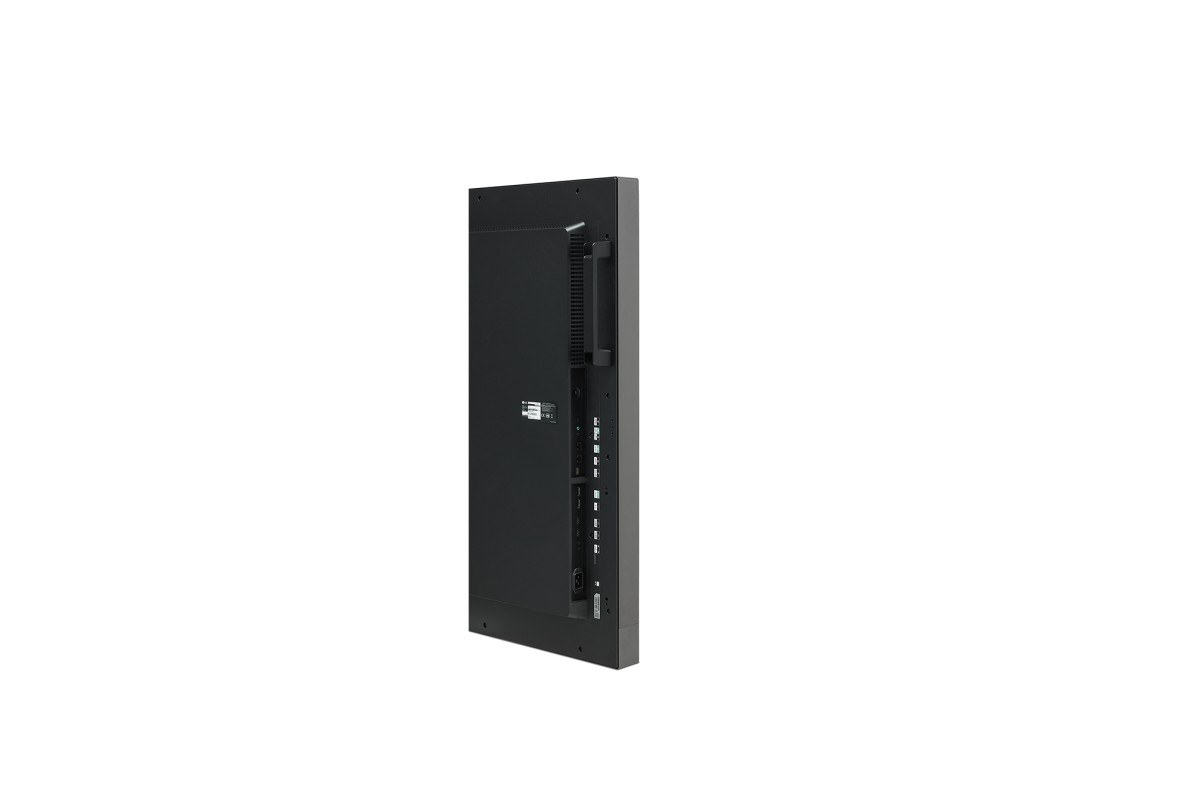

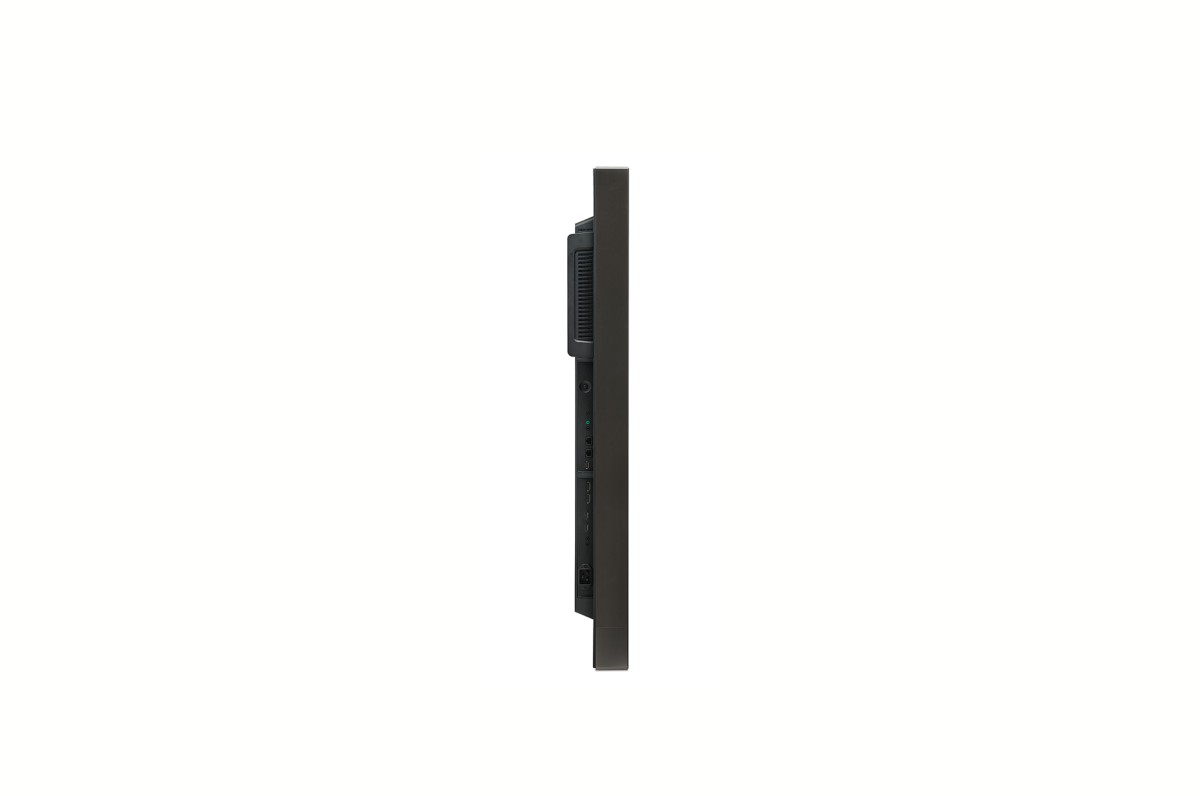

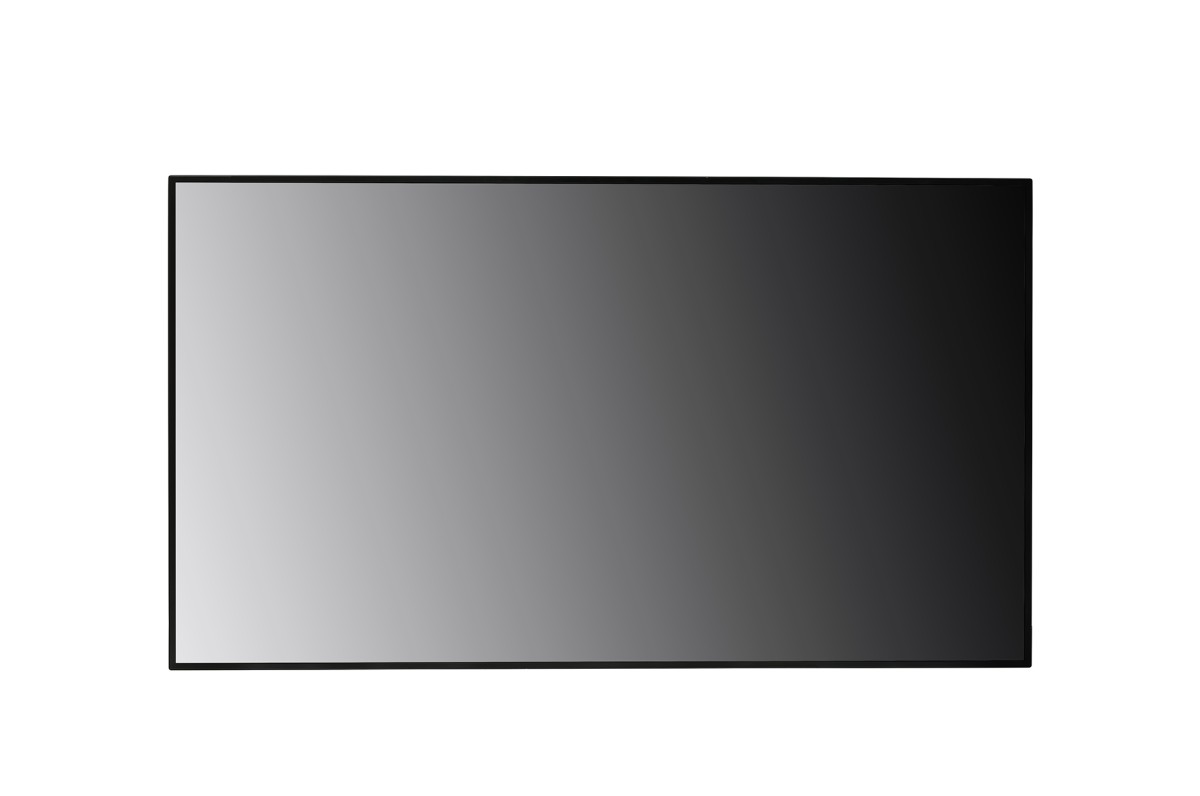

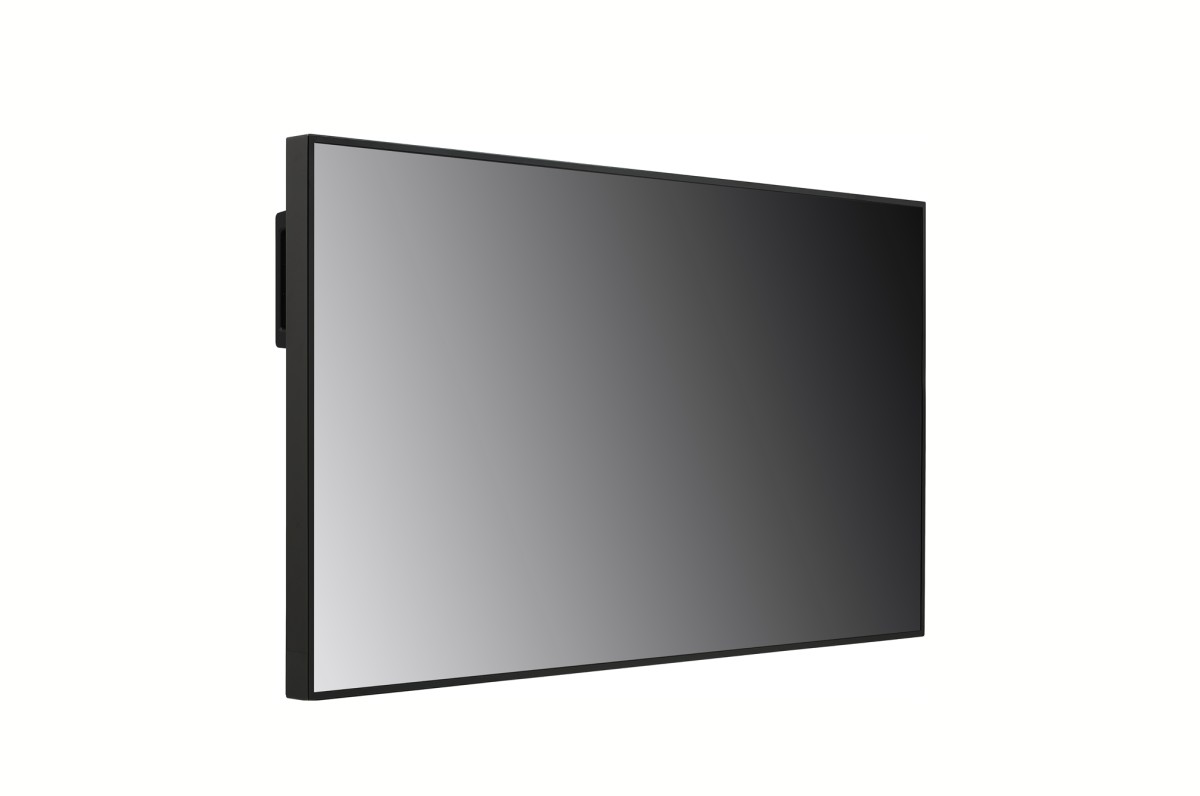

LG 75XS4G High Brightness Window Facing Display
Product code:With a great brightness of 4,000 nits** and UHD picture quality, 75XS4G clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility. QWP*** enables clear visibility even when the viewer is wearing polarized sunglasses.
Description
Panel
| Screen Size | 75" |
|---|---|
| Panel Technology | IPS, M+ (WRGB) |
| Aspect Ratio | 16:9 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness | 4,000 nit (Typ.), 3,200 nit (Min.) |
| Contrast Ratio | 1,200:1 (Typ.) |
| Dynamic CR | 500,000:1 |
| Color gamut | NTSC 68% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 10 bit, 1.07 Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | 3% |
| OS | webOS 4.1 |
| Operation Hours (Hours / Days) | 24 / 7 |
| Portrait / Landscape | Yes / Yes |
Additional information
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | Even bezel : 13.8 mm |
| Weight (Head) | 39.6 kg |
| Packed Weight | 50 kg |
| Monitor Dimensions (W × H × D) | 1,679.2 x 957.6 x 104 mm |
| Carton Dimensions (W × H × D) | 1,816 x 1,106 x 285 mm (Box outer size) |
| Handle | Yes |
| VESA™ Standard Mount Interface | 600 x 400 |
Connectivity
| Input | HDMI (2), HDCP2.2 / 1.4, DP (1), HDCP2.2 / 1.3, USB2.0 Type A (1) |
|---|---|
| Output | DP Out (1), Input DP/HDMI |
| External Control | RS232C In/Out, RJ45 In/Out, IR In |
Environment Conditions
| Operation Temperature | 0 °C to 40°C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30°C (Direct Sunlight) |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 750 W / 790 W |
|---|---|
| Smart Energy Saving | 400 W |
| DPM | 0.5 W Under |
| Power off | 0.5 W Under |
| BTU (British Thermal Unit) | 2,559 BTU/Hr (Typ.), 2,696 BTU/Hr (Max.) |
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC / VCCI |
| ErP | Yes |
Software Compatibility
| SuperSign CMS | Yes |
|---|---|
| SuperSign Control / Control+ | Yes |
| LG ConnectedCare | Yes |
Accessory
| Basic | Remote Controller (including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver (w/ Ambient Light Sensor), RS-232C Gender, IR Sheet |
|---|---|
| Optional | Double sided Bracket (Landscape&Portrait : WM-B640S) |
