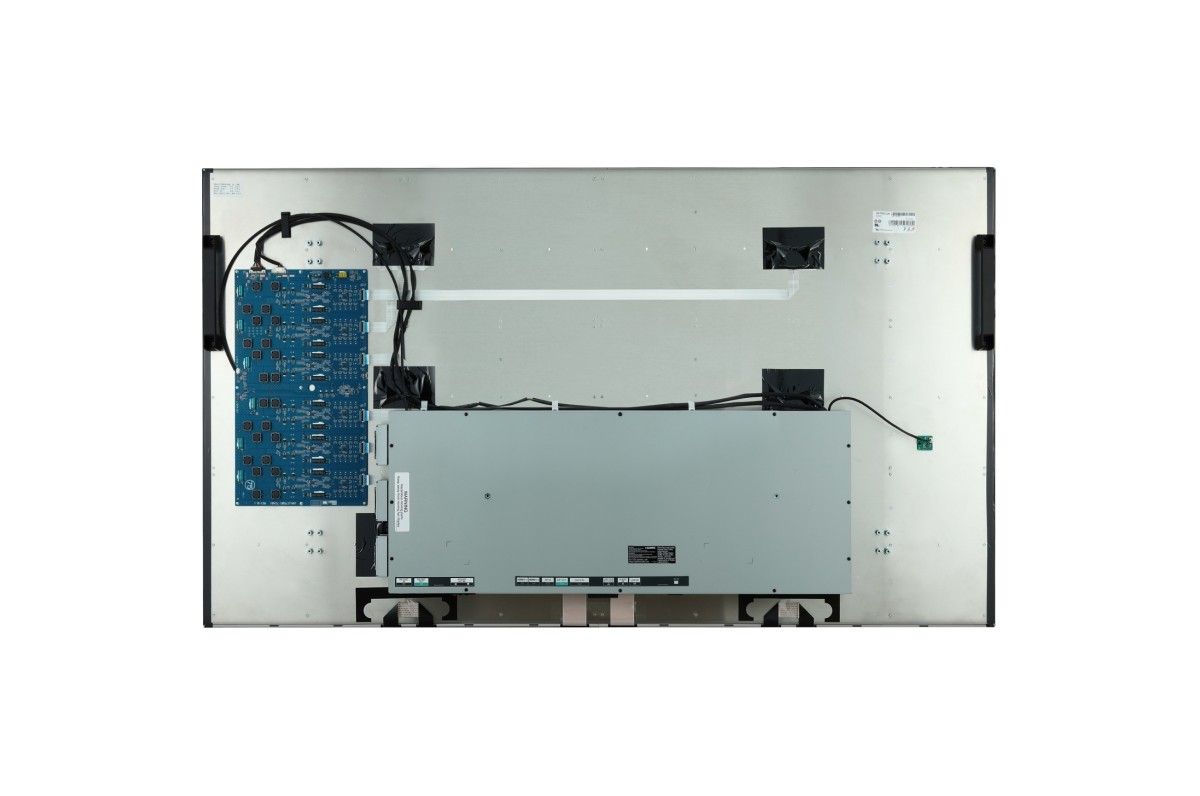

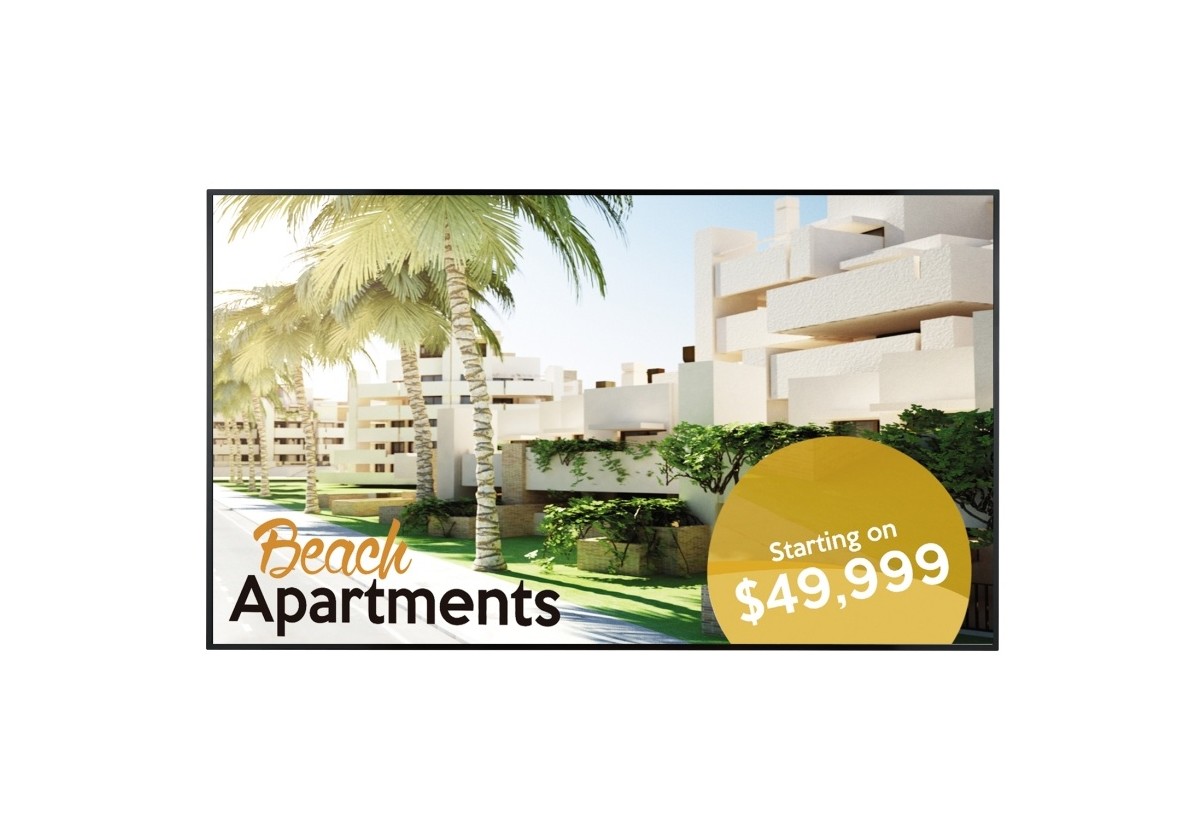

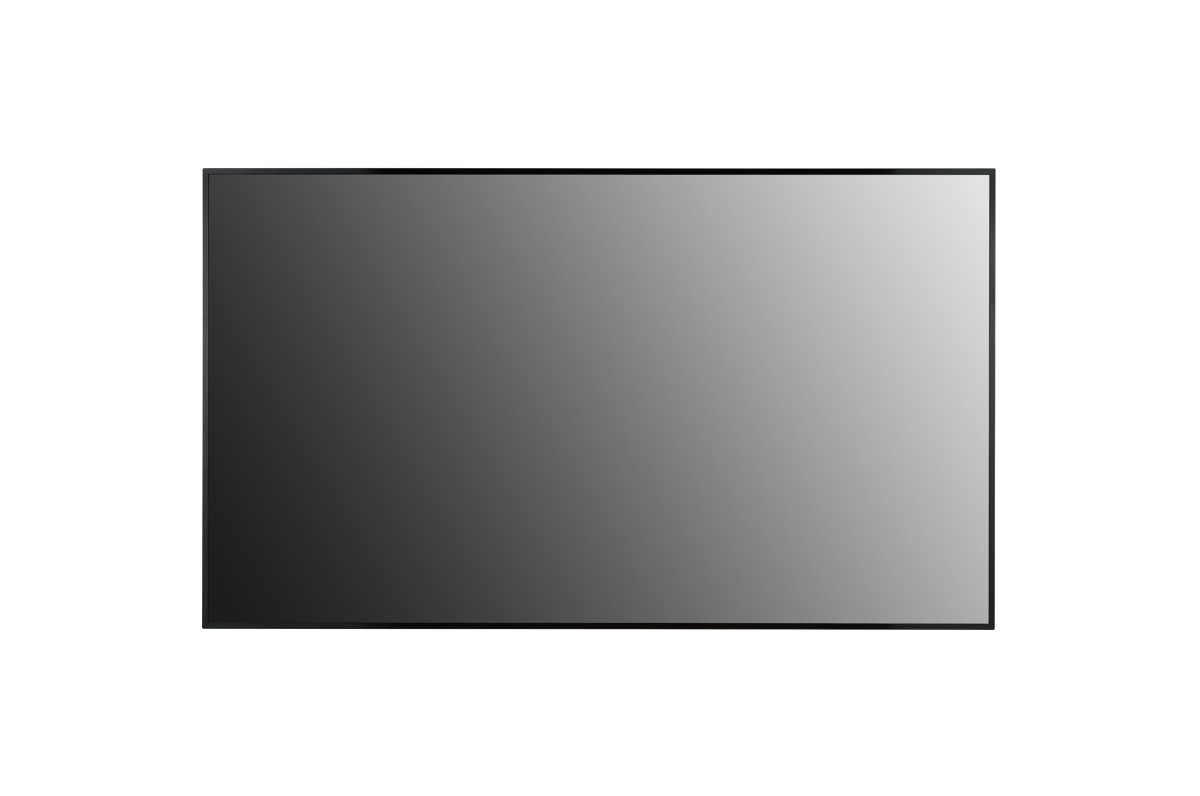

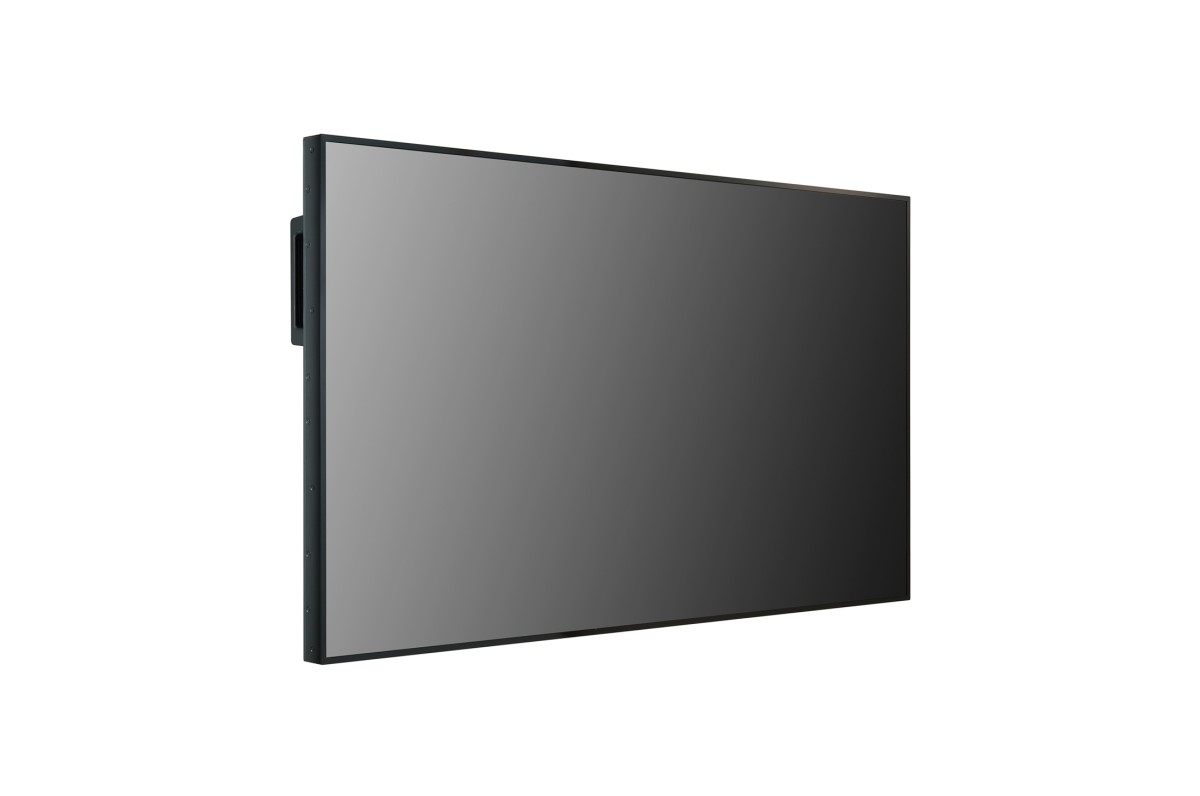

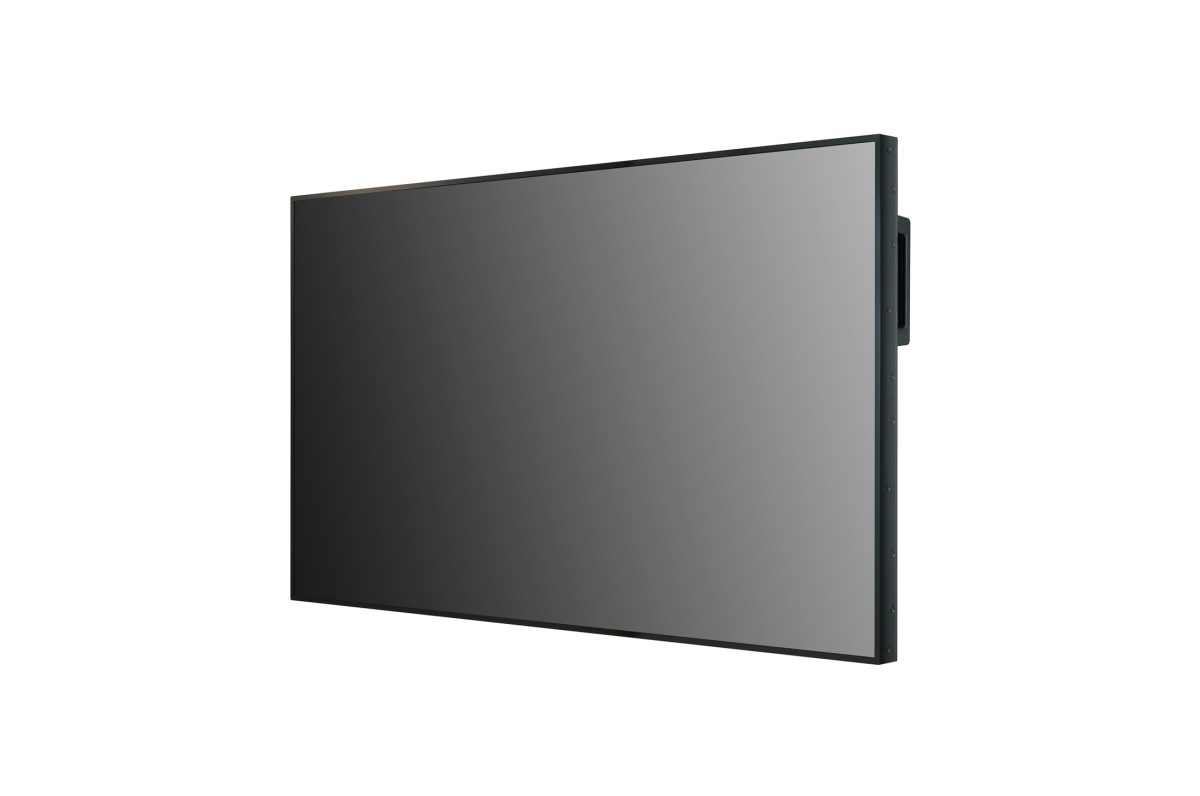

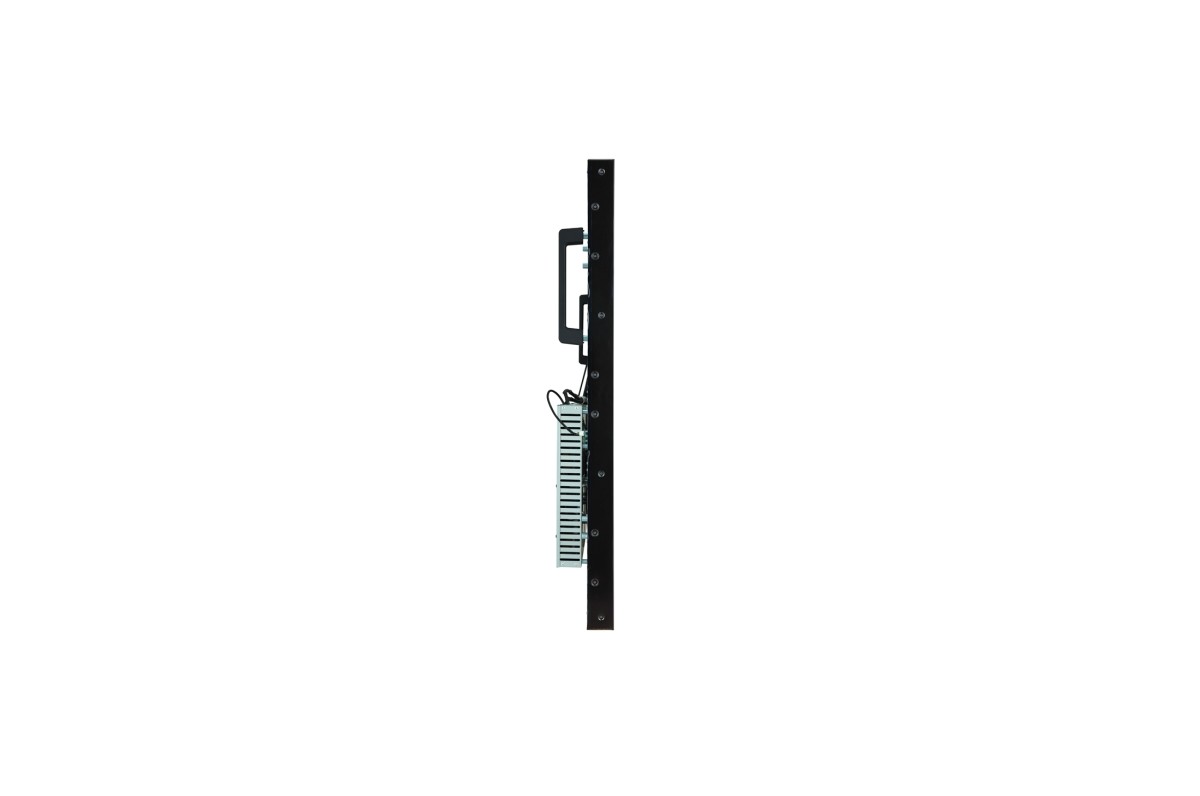

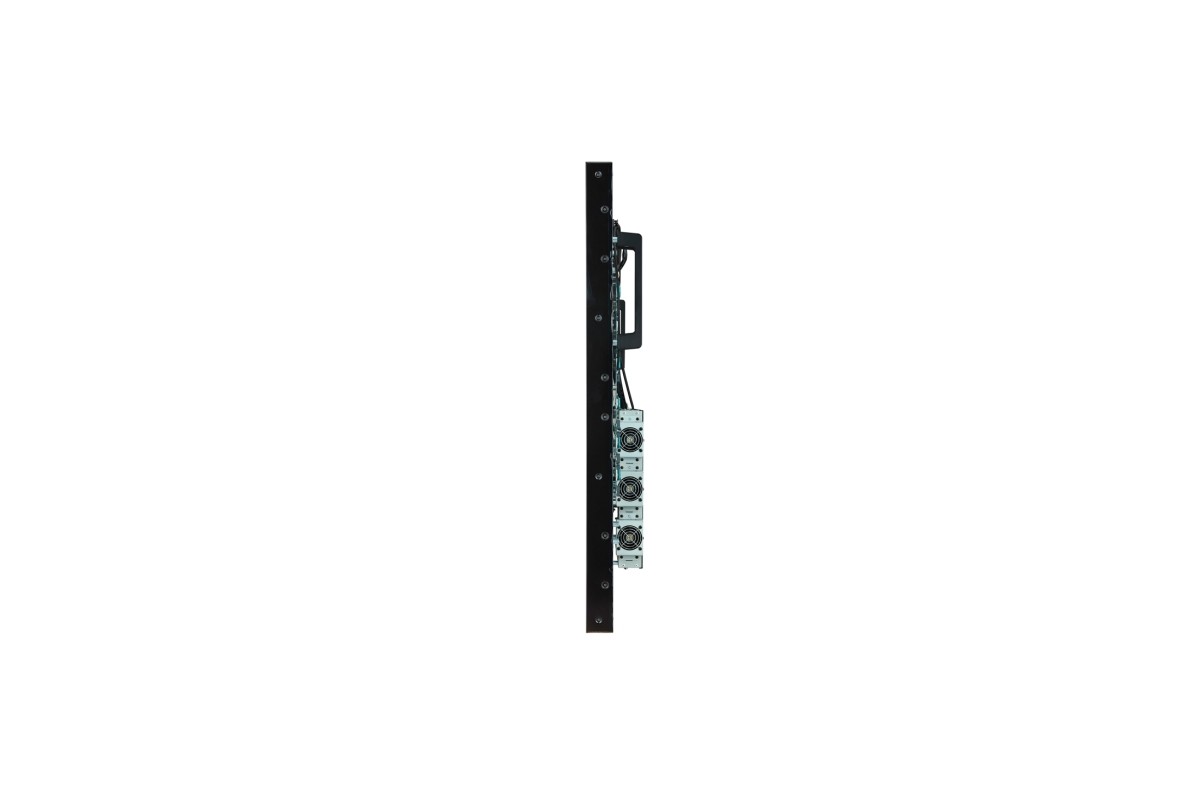

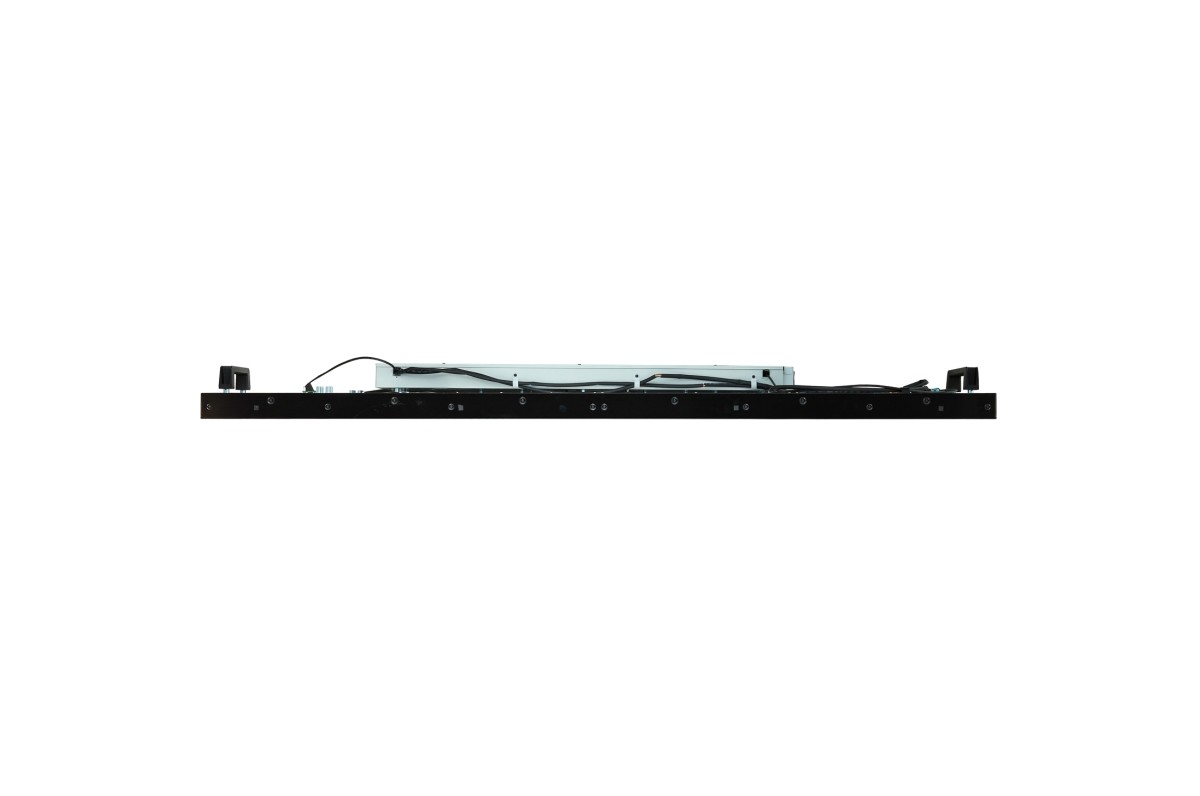

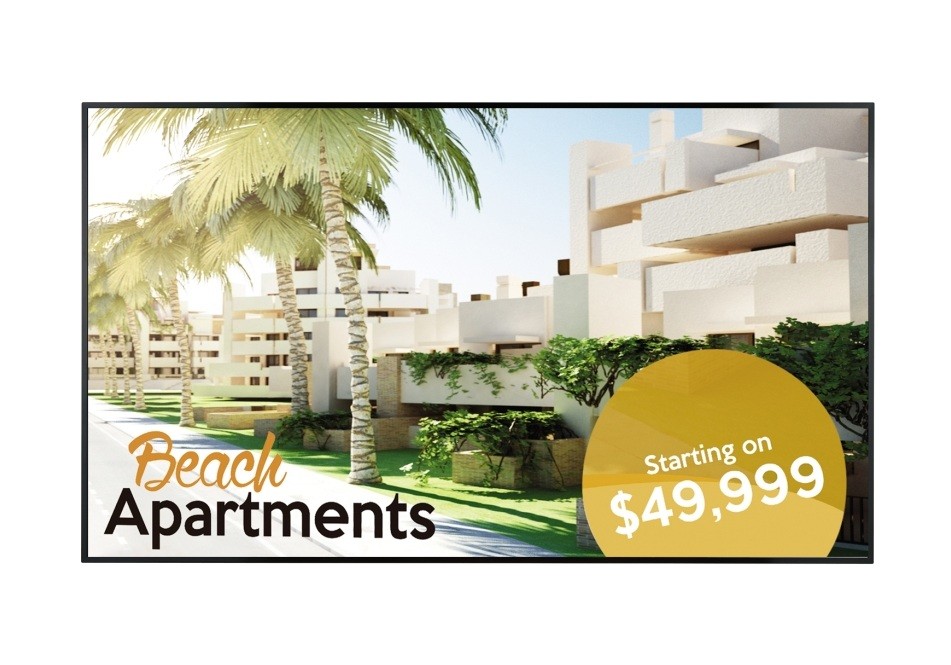

LG 75XF3ES-B High Brightness Open-frame Display
Product code:With a great brightness of 3,000 cd/m², XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
Description
Panel
| Screen Size | 75" (74.52" Measured Diagonal) |
|---|---|
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness (Typ., cd/m²) | 3000 |
| OS | webOS 3.0 |
| Orientation | Landscare & Portrait |
| Hours of Operation | 24/7 |
Additional information
Physical Specification
| Bezel Width | 11.8 mm (Even) |
|---|---|
| Monitor Dimension (W x H x D) | 1,675.2 x 953.6 x 128.9 mm |
| Weight (Head) | 37.5 kg |
| Carton Dimensions (W x H x D) | 1,816 x 1,106 x 285 mm |
| Packed Weight | 47.0 kg |

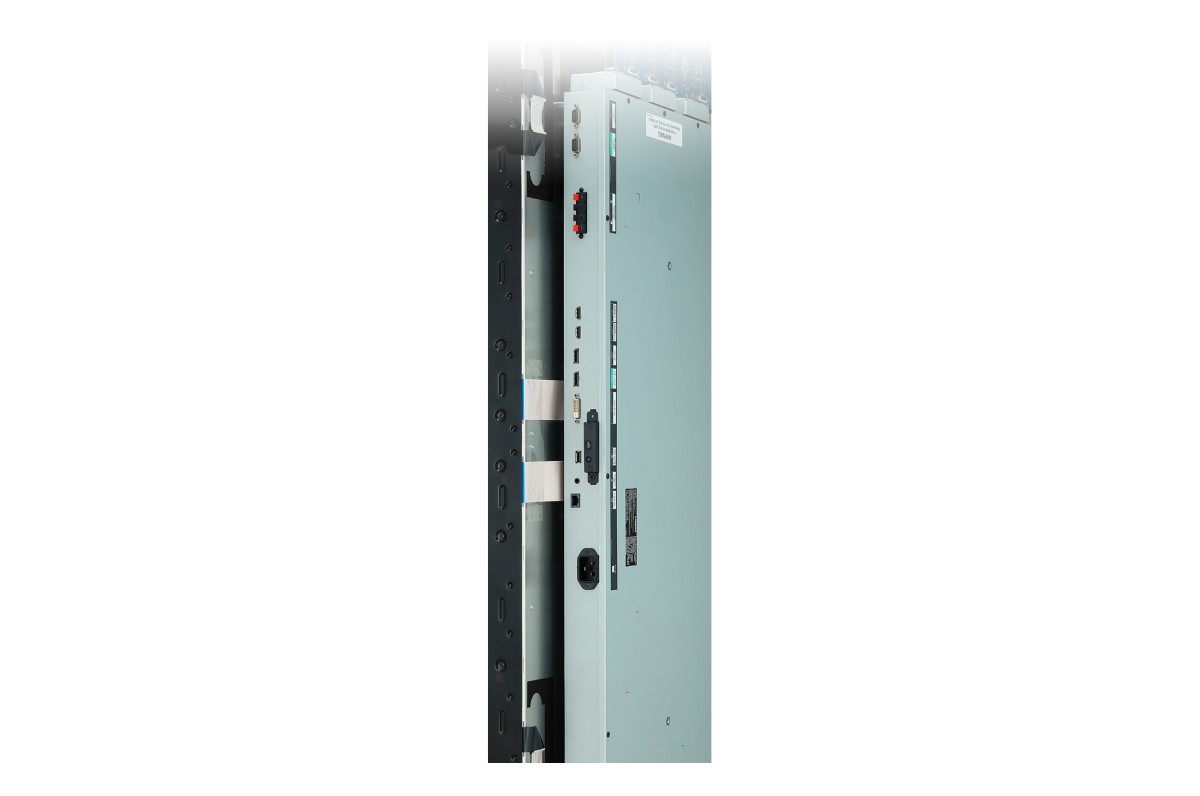

Connectivity
| Input | HDMI (2), DP, DVI-D, Audio, USB |
|---|---|
| Output | DP, External Speaker |
| External Control | RS232C In/out, RJ45 In, IR |
Environment Conditions
| Operation Temperature | 0℃ to 50℃ |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | 100-240 V~, 50/60 Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 620 W / 700 W |
|---|---|
| Smart Energy Saving | 350 W |
Standard (Certification)
| Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes (EU Only) |
Software Compatibility
| Content Management Software | SuperSign CMS |
|---|---|
| Control and Monitoring Software | SuperSign Control+ / Control |
Accessory
| Basic | Remote Controller, Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG) |
|---|---|
| Optional | Wi-Fi Dongle (AN-WF500) |
