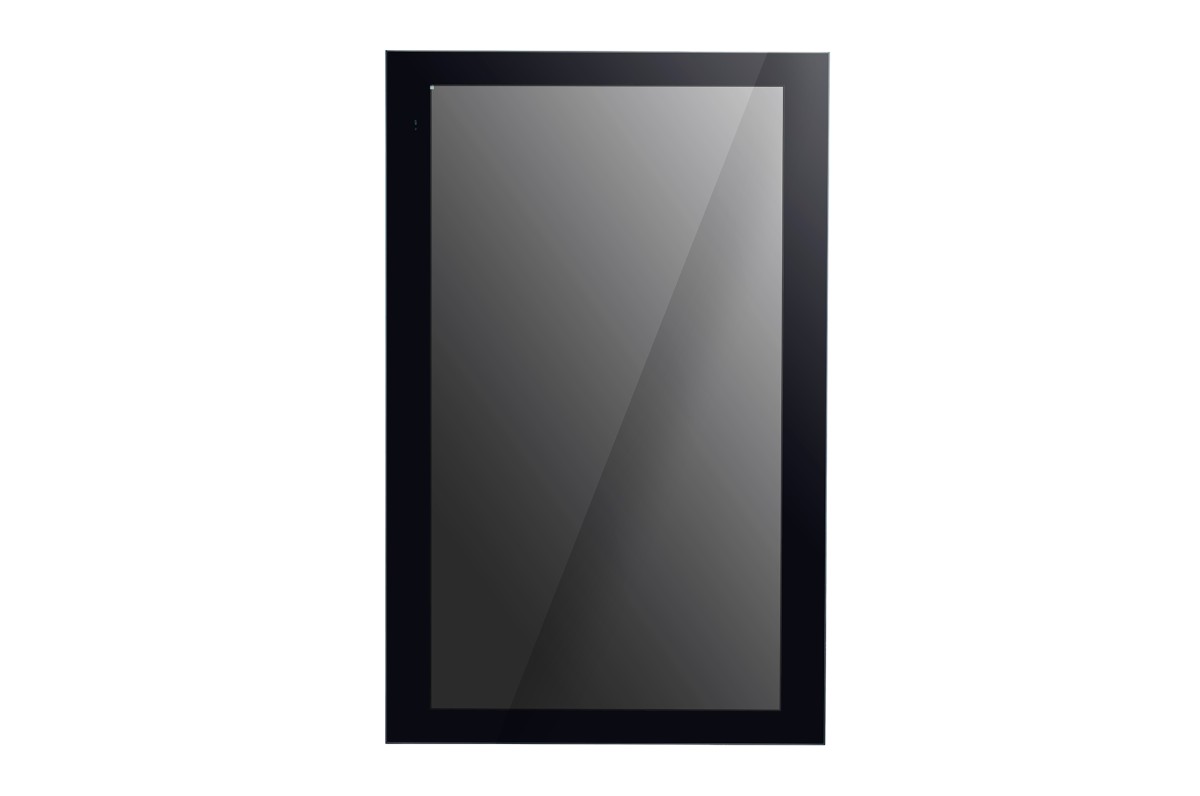

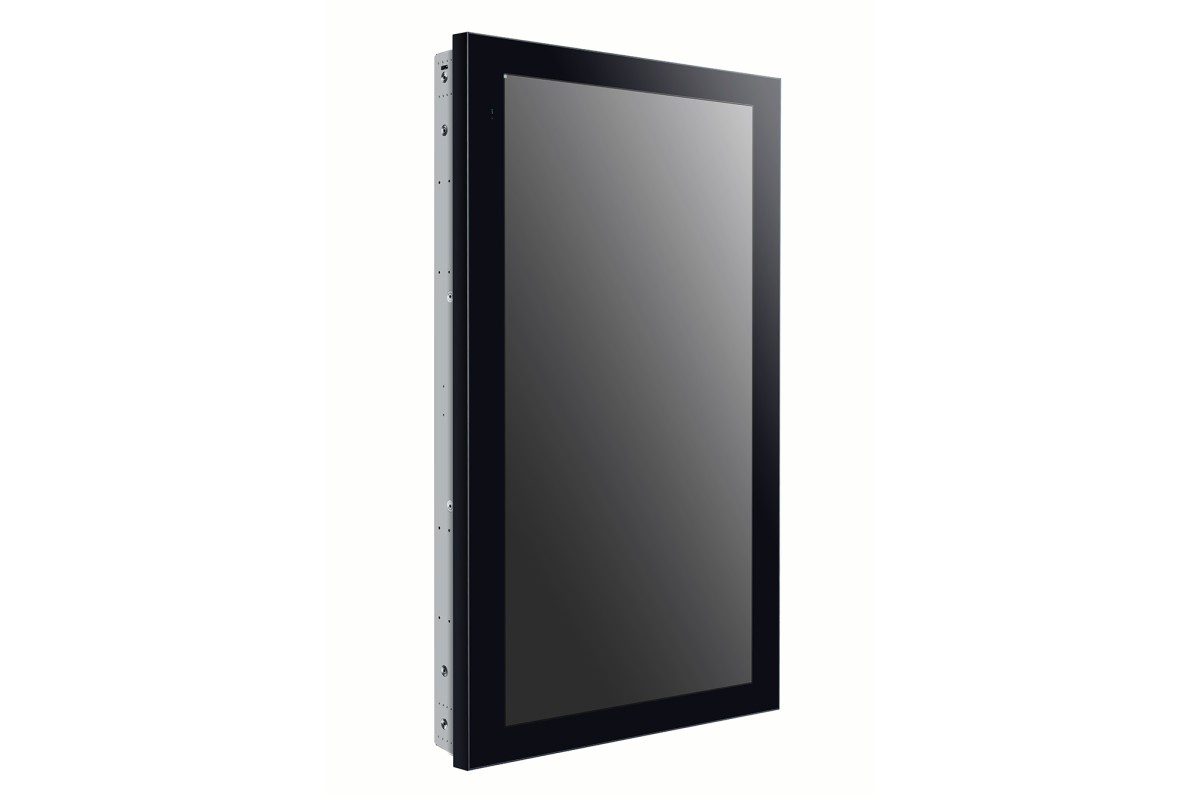

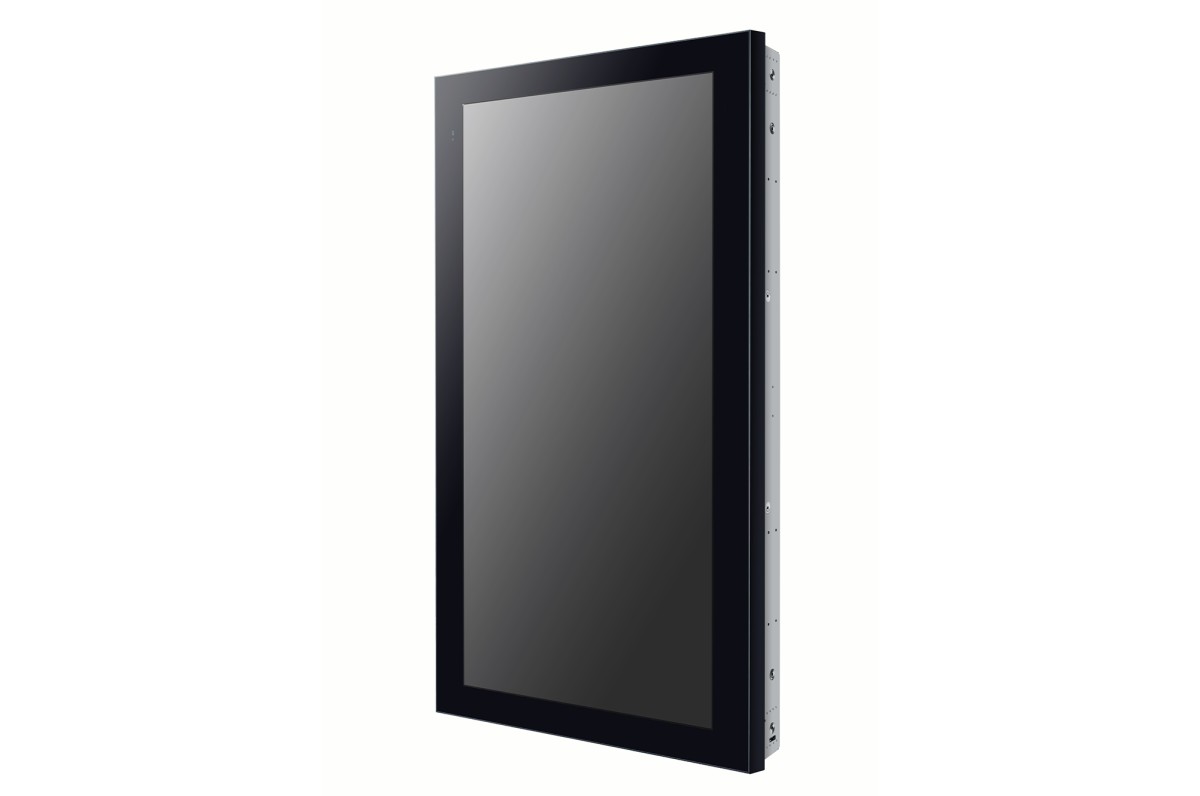

LG 86XE3FS-B High Brightness Outdoor Display
Product code:Boasting a high brightness of 3,000 nits, LG’s outdoor display, 86XE3FS, captures the attention of passersby even under direct sunlight. Carefully designed to withstand a variety of extreme changes in the environment, the display will stably deliver eye-catching content for as long as you need it to.
Description
Panel
| Screen Size | 86" |
|---|---|
| Panel Technology | IPS RGB |
| Backlight Type | Direct |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3840 x 2160 (UHD) |
| Brightness (Typ., cd/m²) | 3000 |
| Brightness (Min., cd/m²) | 2800 |
| Contrast Ratio | 1200:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Colour gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Colour Depth | 10BIT, 1.07 Billion |
| Response Time | 8 ms (G to G) |
| Surface Treatment | Haze 3% |
| Life Time (Typ.) | 50,000 Hrs |
| Operation Hours | 24Hrs / 7Days |
| Orientation | Portrait |
| OS | webOS 3.0 |
| QWP (Quarter Wave Plate) | Yes |
Additional information
Mechanical Specification
| Bezel Color | Black |
| Bezel Width | 101 mm (T/B), 135 mm (L/R) |
|---|---|
| Weight (Head) | 276 kg |
| Packed Weight | 310 kg |
| Monitor Dimensions (W × H × D) | 1,338 x 2,100 x 187 mm |
| Protection Glass | 9.52mm - 4mm(glass)+1.52mm(lami)+4mm(glass), P2A Certified, Tempered, Anti-Reflective, Shatter-Proof |
| Handle | Yes |
Key Feature
| Internal Memory(16GB), Temperature Sensor, Auto Brightness sensor, Pixel sensor, Current Sensor, BLU Sensor, Humidity Sensor, Acceleration (Gyro) Sensor, Power Indicator, Fan, Embedded CMS(Local Contents Scheduling), USB Plug & Play, Fail over, SW - Background Image - Booting Logo Image, SW - Background Image - No Signal Image, Sync mode(RS-232C Sync, Local Network Sync), Video Tag, Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting(Max. 15x15), Setting Data Cloning, SNMP, ISM Mode (Image Sticking Minimization), Auto Set ID, Status Mailing, Control Manager, 3rd Party Control Compatibility, HDMI-CEC, SI Server Setting, Brightness Compensation |
Special Features
| IP Rating(IP56), Power protection(Circuit Breaker), Direct Sunlight |
Connectivity
| Input | HDMI, DP, DVI-D, Audio, USB |
|---|---|
| Output | External Speaker |
| External Control | RS232C In/out, RJ45(LAN) In, RJ45(LAN) Out(4), External IR In |
Environment Conditions
| Operation Temperature | -30°C to 50°C |
|---|---|
| Operation Humidity | 5% to 100% |
Power
| Power Supply | 100-240 V~, 50/60 Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 1,450 W / 1,850 W |
|---|
Certification
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes (EU Only) |
Media Player Compatibility
| OPS type compatible | No |
|---|
Software Compatibility
| Content Management Software | SuperSign CMS |
|---|---|
| Control and Monitoring Software | SuperSign Control/Control+ |
Language
| OSD | English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Arab |
Accessory
| Basic | Remote Controller, HDMI Cable, USB Cable, Manual(IG&EIG), Regulation Book, Phone to RS232C Gender, LAN Extension Cable, Cord Grip Rubbers |
|---|
