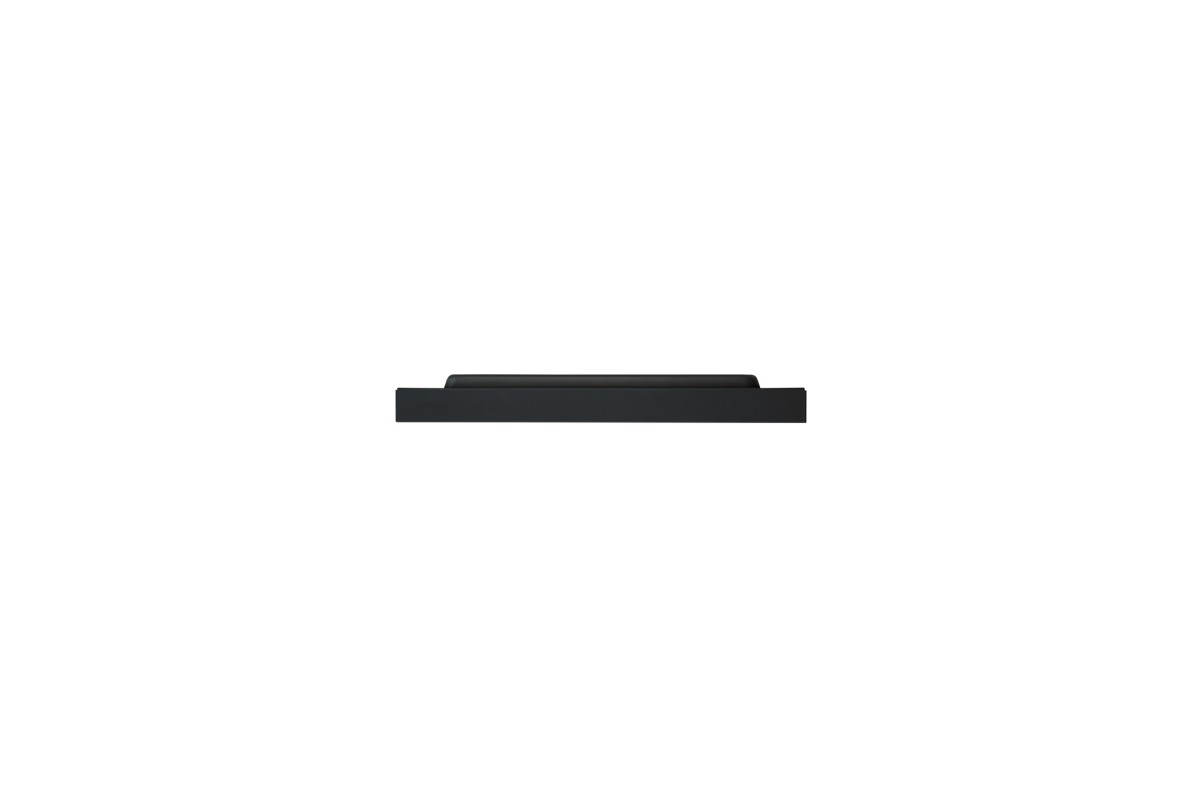

LG 55XE4F-M High Brightness Outdoor Display
Product code:The XE4F series possesses powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
Description
Panel
| Screen Size | 55" |
|---|---|
| Panel Technology | IPS, M+(WRGB) |
| Backlight Type | Direct |
| Aspect Ratio | 16 : 9 |
| Resolution | 1920 x 1080 pixels |
| Brightness (Typ., cd/m²) | 4000 |
| Brightness (Min., cd/m²) | 3200 |
| Contrast Ratio | 1,000:1 |
| Dynamic CR | 500,000:1 |
| Response Time | Typ. 9ms (G to G BW) |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | Typ. 9ms (G to G BW) |
| Surface Treatment | Haze 3%, QWP |
| Local dimming | 48 Blocks |
| Life Time (Typ.) | 50,000 Hrs |
| OS | webOS 4.0 |
| Orientation | Portrait & Landscape |
| Hours of Operation | 24/7 |
Additional information
Physical Specification
| Protection Glass | 5mm(IK 10, Degree of Protection, Chemical Strengthening, Anti-Reflective) |
|---|---|
| Bezel Color | Black |
| Bezel Width | 38.4mm(T/B), 26.0mm(L/R) |
| Monitor Dimension (W x H x D) | 1,292.5 x 737.4 x 88.0mm |
| Weight (Head) | 40kg |
| Packed Weight | 46kg |
| Handle | X |
Connectivity
| Input | HDMI(2), DP, HDBaseT, USB(2) |
|---|---|
| Output | External Speaker Out(L/R) |
| External Control | RS232C In/Out, RJ45(LAN) In/Out |
Environment Conditions
| Operation Temperature | -30°C to 50 °C |
|---|---|
| Operation Humidity | 5 % to 100 % |
Power
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 330W/400W |
|---|
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC / VCCI |
| ErP | Yes (EU Only) |
Software Compatibility
| LG ConnectedCare | Yes |
|---|---|
| SuperSign | Yes(CMS, Control) |
Accessory
| Basic | Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE |
|---|
