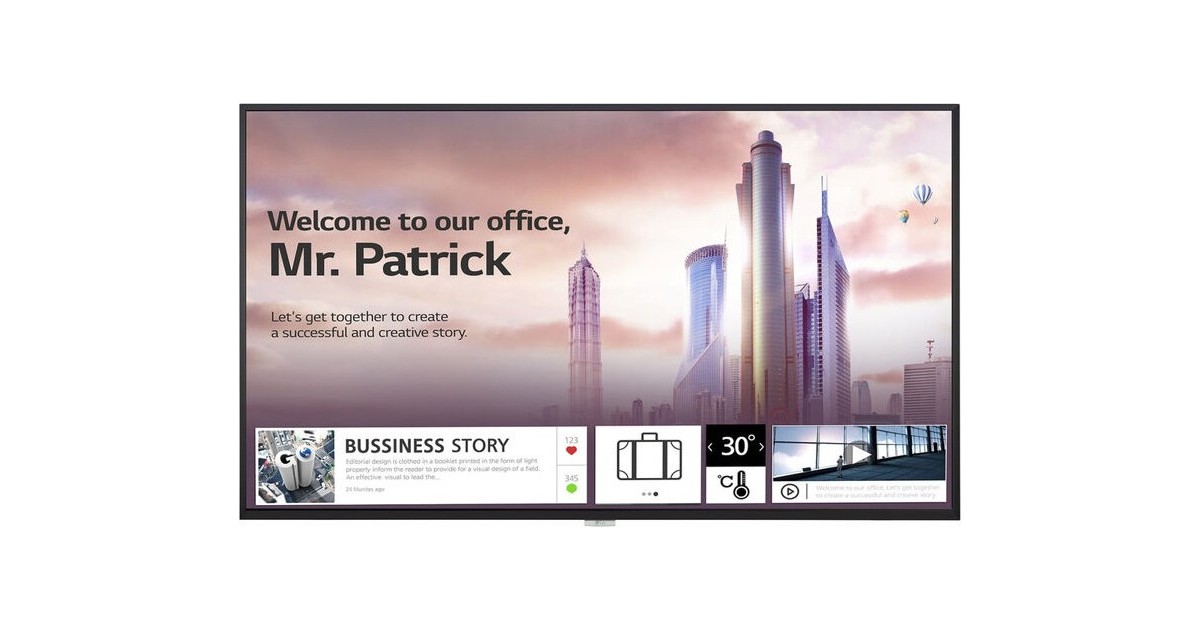

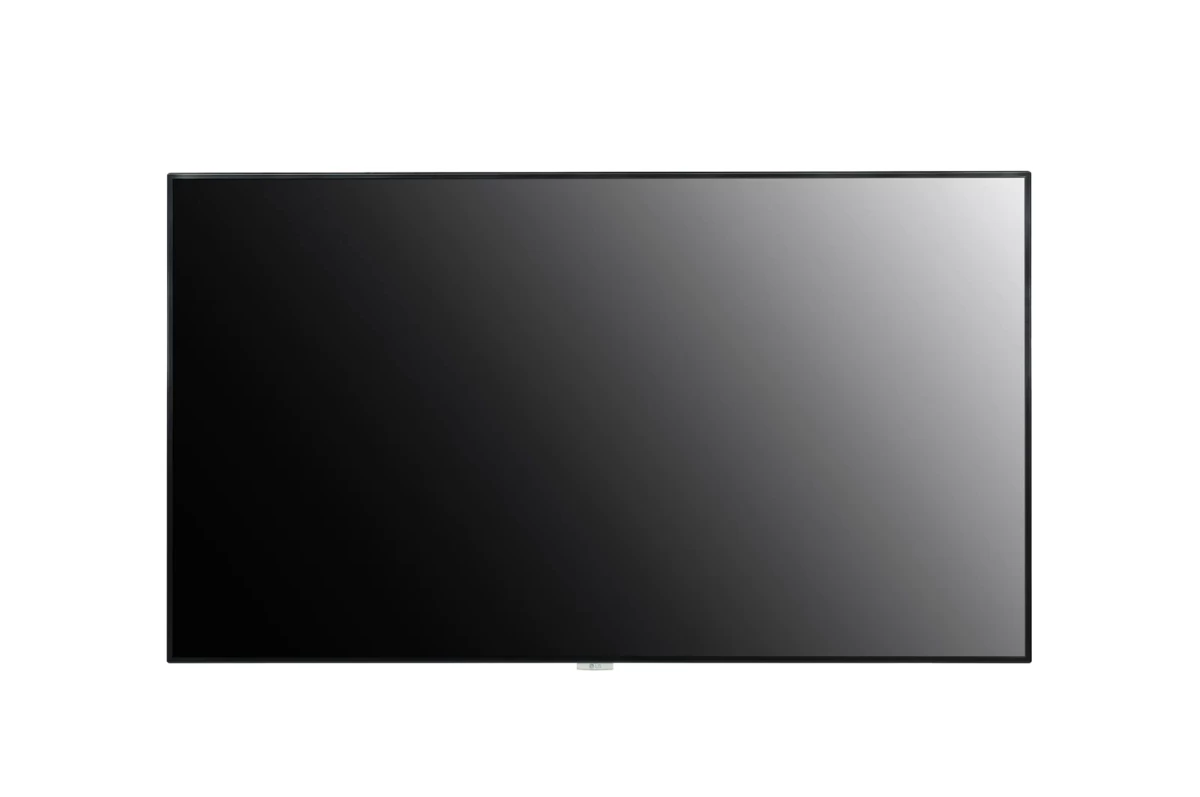

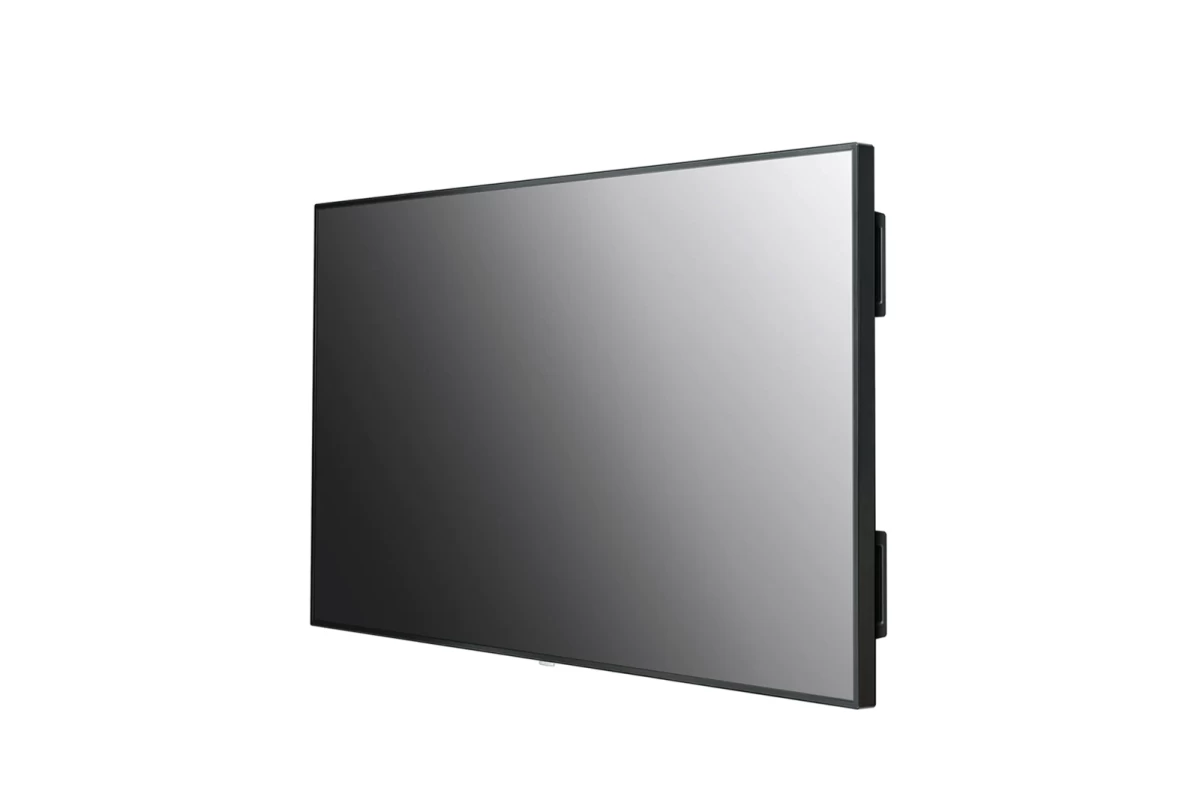

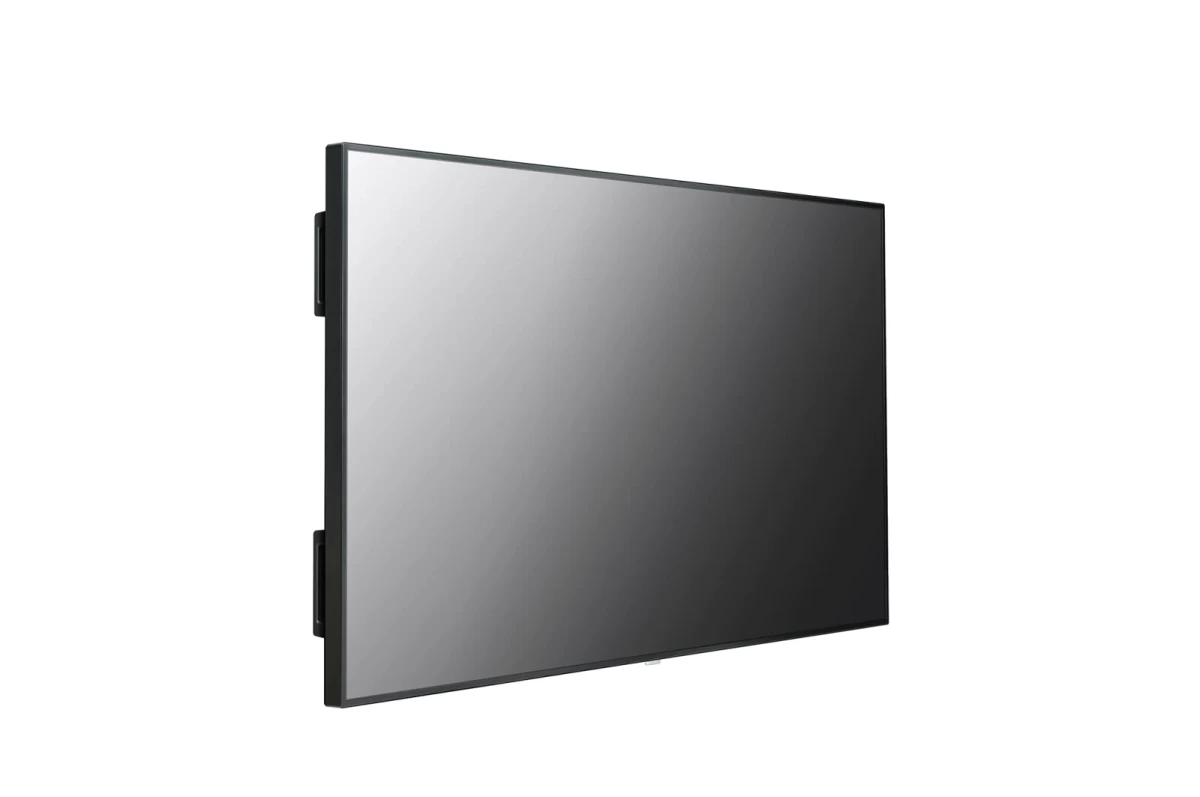

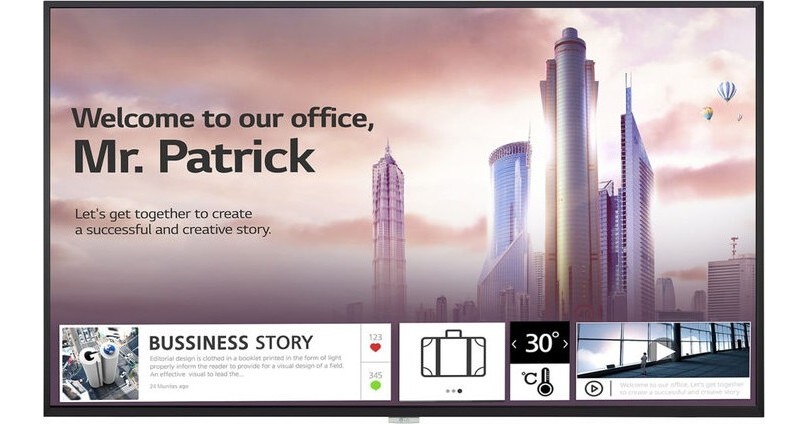

LG 65UH5F-H UHD Digital Signage Display
Product code:Viewers may be disturbed by reflections when viewing the screen in brightly lit conditions. The UH5F-H series has solved these viewing difficulties by increasing the shading level, which enhances the visibility and sharpness of text.
SEND AN ENQUIRYDescription
Panel
| Screen Size | 65" |
| Panel Technology | IPS |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness (Typ.) | 500 |
| Contrast Ratio | 1,100:1 |
| Dynamic CR | 1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition. |
| Color gamut | BT709 95% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 1.07 Billion Colors (10 bit) |
| Response Time | 8ms (G to G) |
| Surface Treatment | Haze 28% |
| Operation Hours (Hours / Day) | 24/7 |
| Portrait / Landscape | Yes / Yes |
| OS | webOS 4.1 |
Additional information
Connectivity
| Input | HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A |
| Output | DP, Audio |
| External Control | RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In |
Mechanical Specs
| Bezel Color | Black |
| Bezel Width | 9.9mm (T/R/L), 14.4mm (B) |
| Weight (Head) | 28.2 kg |
| Monitor Dimension (W × H × D) | 1,453.3 × 844.0 × 39.9 mm |
| VESA™ Standard Mount Interface | 300 × 300 mm |
Environment Conditions
| Operation Temperature | 0°C to 40°C |
| Operation Humidity | 10% to 80% |
Power
| Power Supply | AC 100–240 V ~, 50/60 Hz |
| Power Type | Built-In Power |
Power Consumption
| Typ./Max | 120 W / 165 W |
| BTU (British Thermal Unit) | 409 BTU/Hr (Typ.), 563 BTU/Hr (Max.) |
Sound
| Speaker | Yes |
Certification
| Safety | CB, NRTL |
| EMC | FCC Class “A” / CE / KC |
Software Compatibility
| SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Signage365Care (The availability can differ by region.) |
Accessory
| Basic | Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender |
