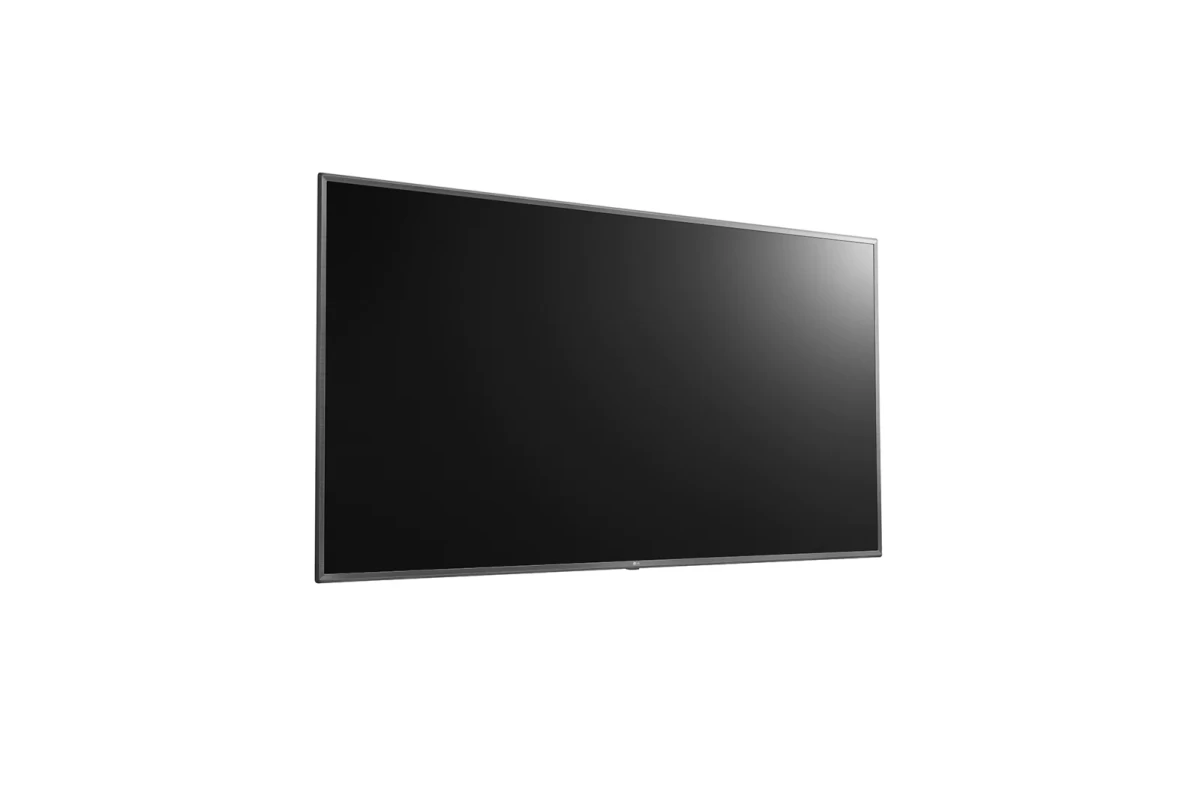

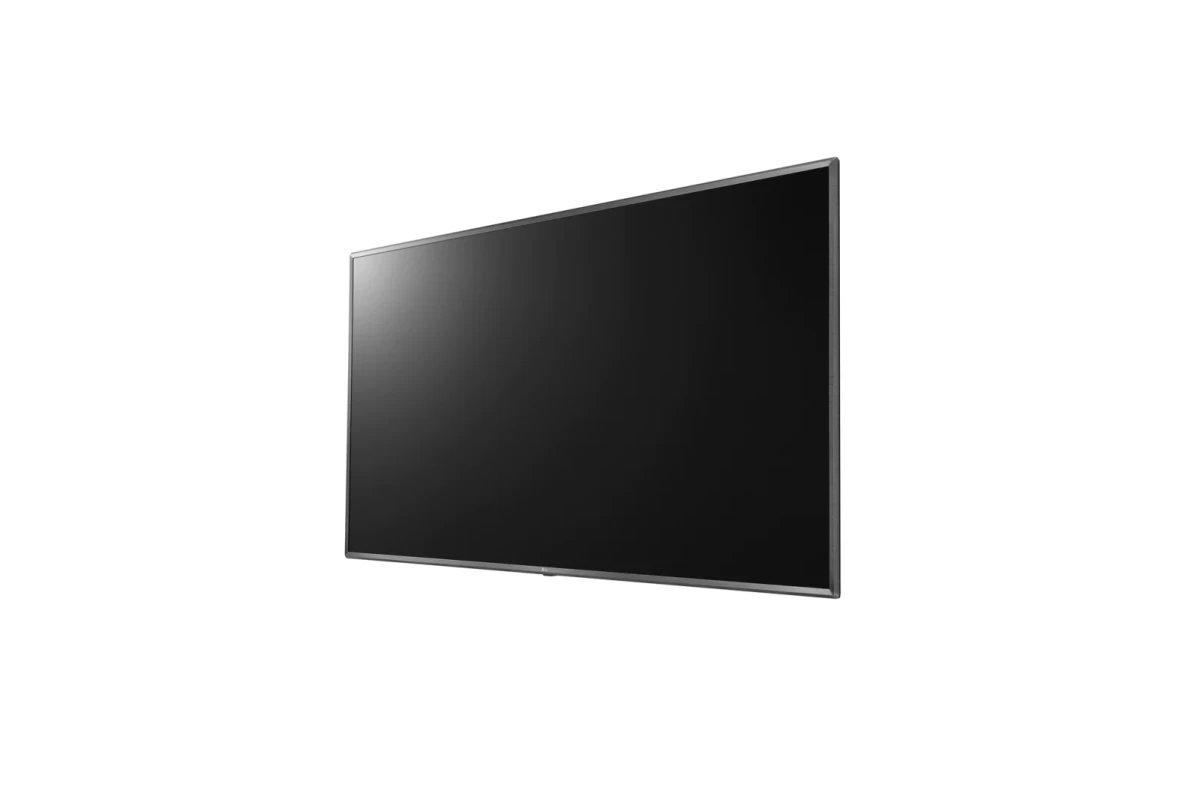

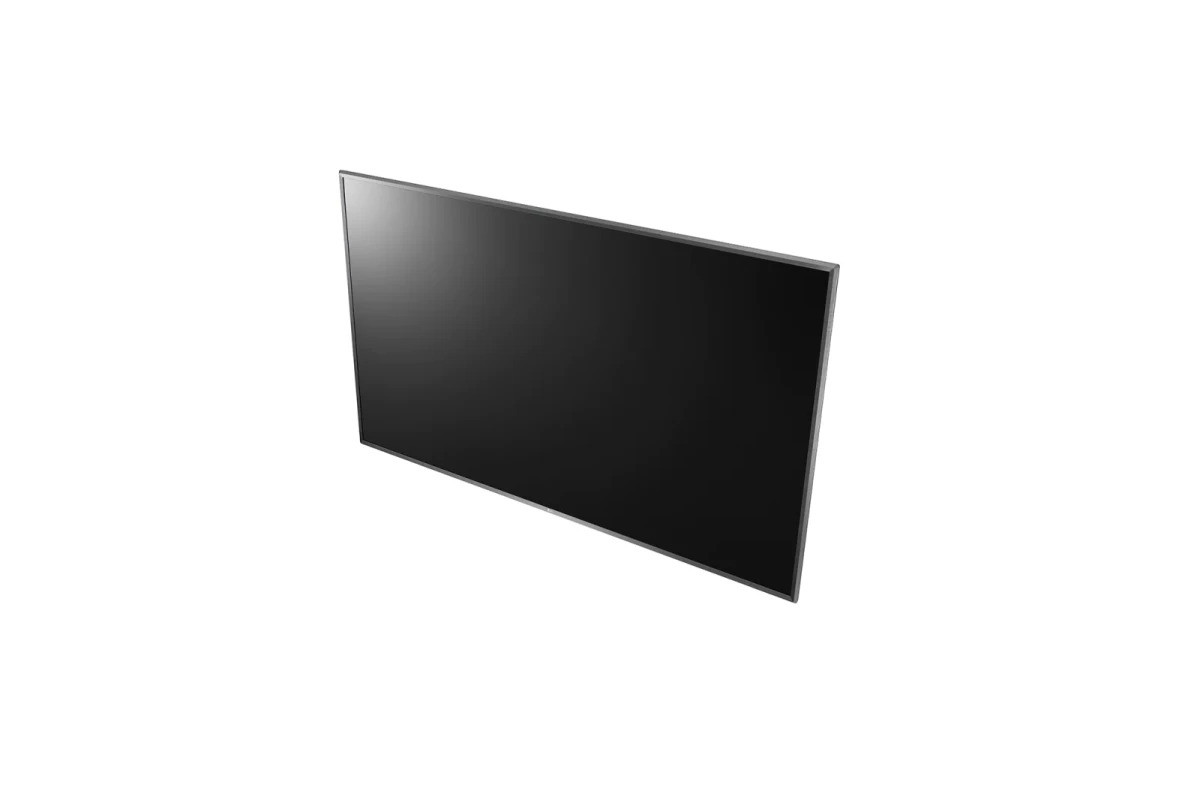

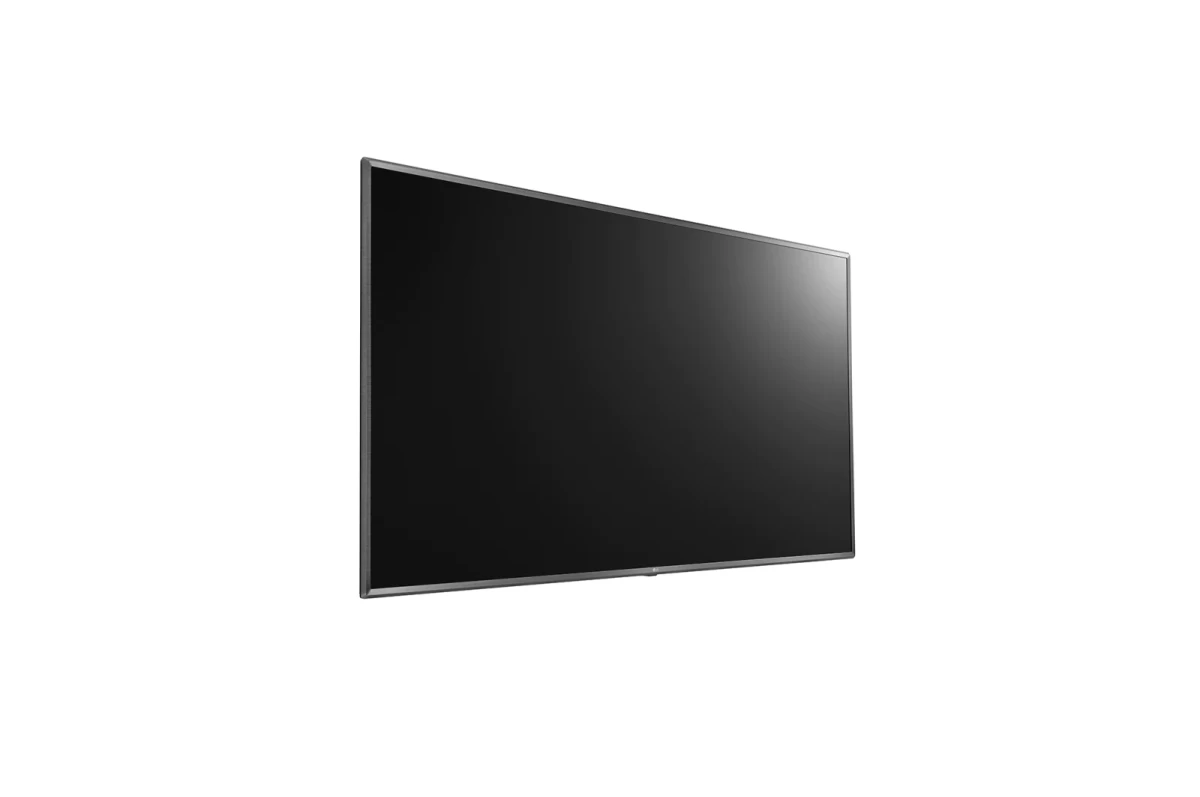

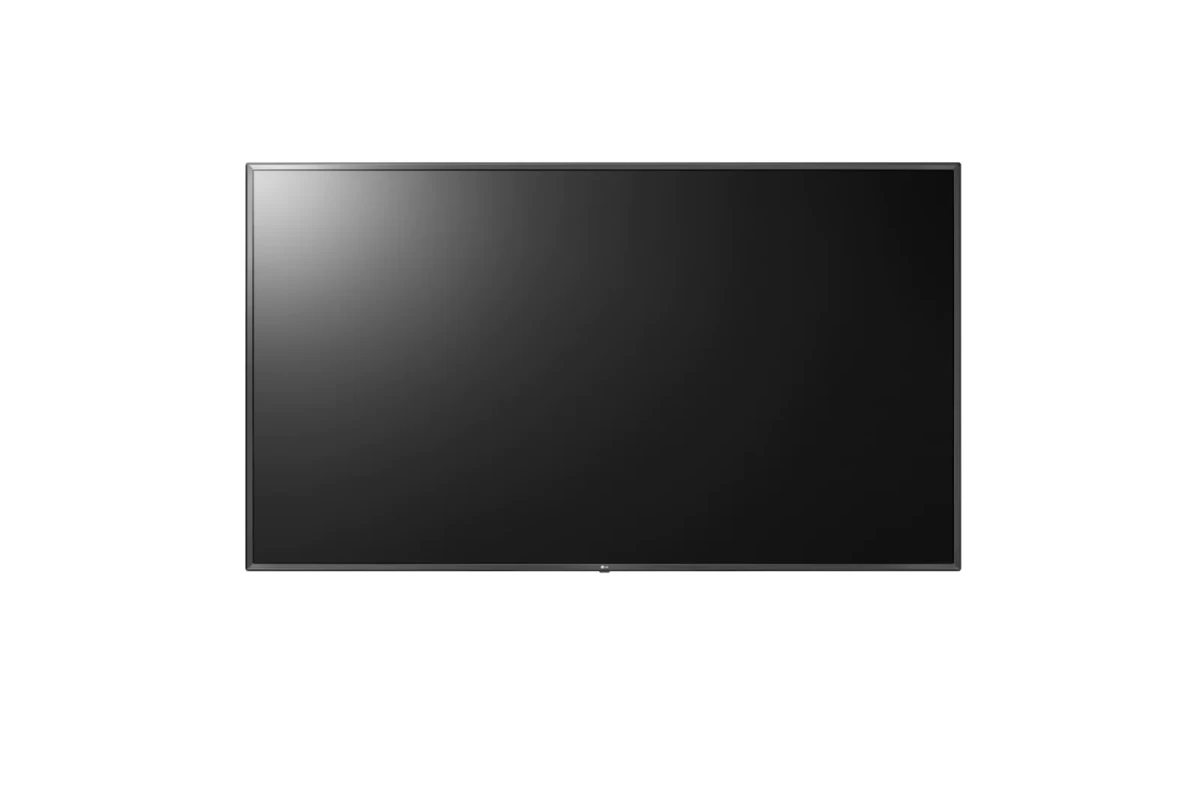

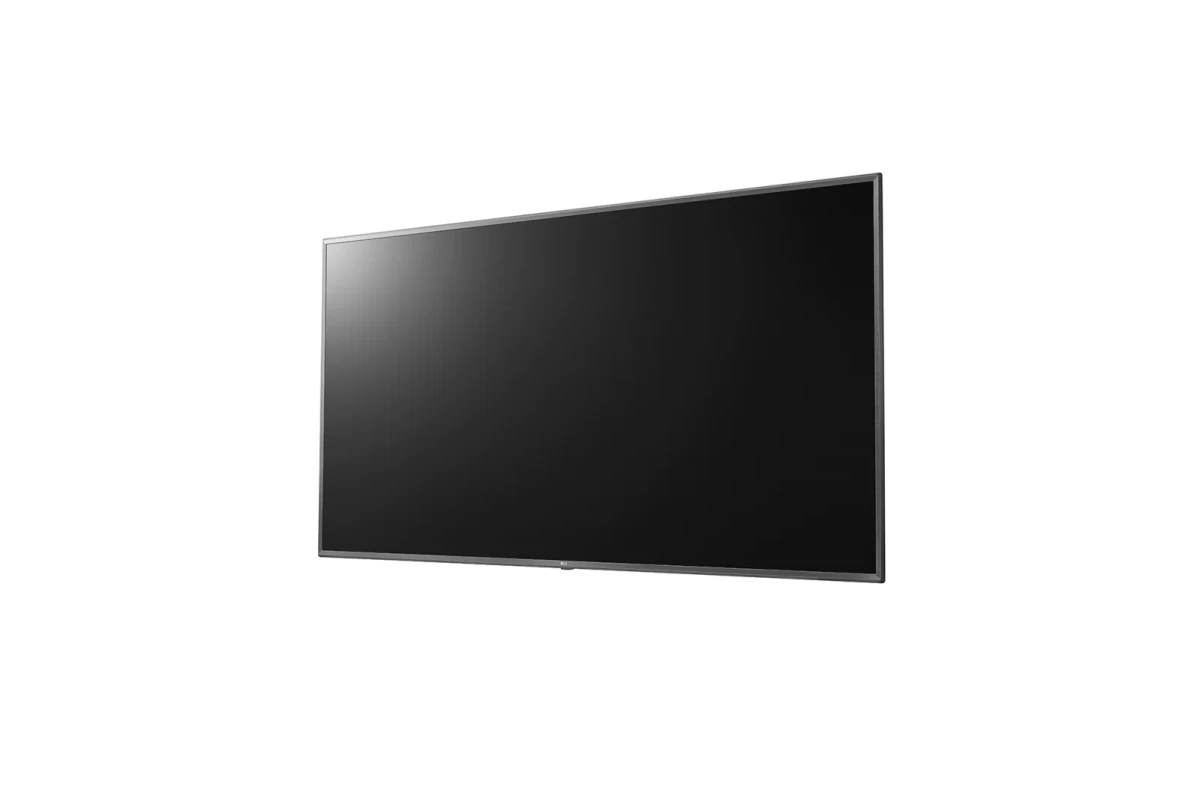

LG 86UL3G-B webOS Ultra HD Digital Signage Display

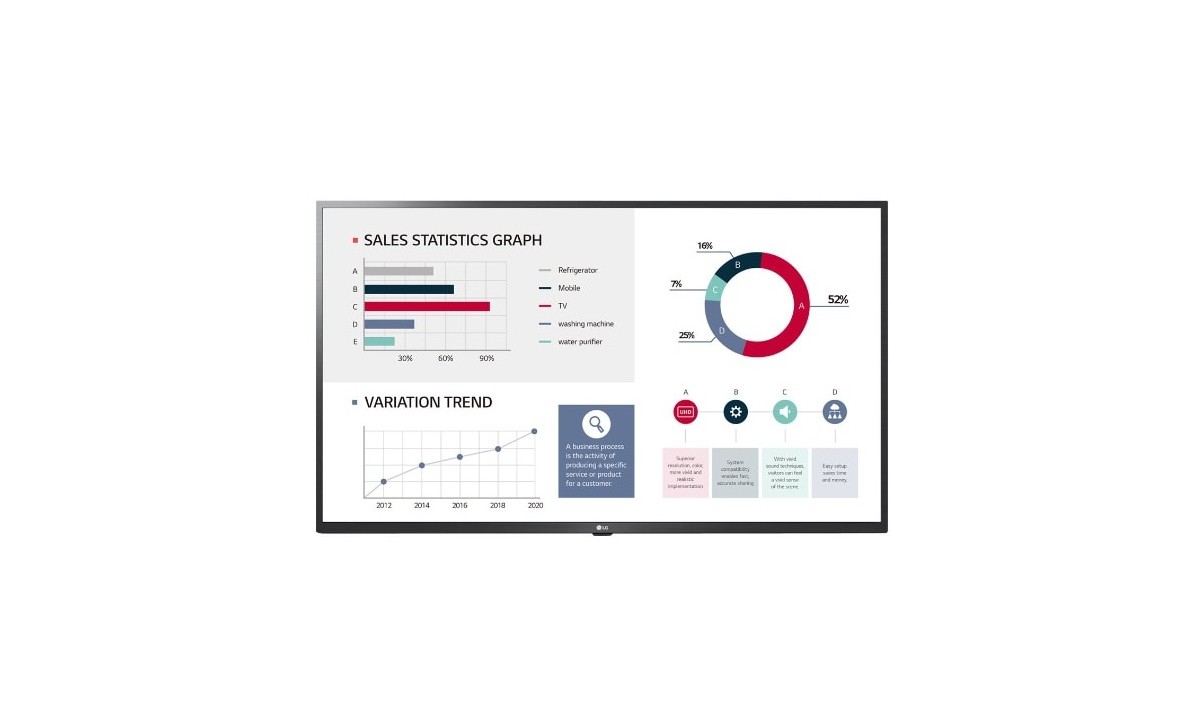

Product code:An Ultra HD large display, the 86UL3G will improve business productivity in any location. All content is delivered in vivid colors and with fine details, giving audiences a clearer viewing experience.
SEND AN ENQUIRYDescription
Panel
| Screen Size | 86” |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Refresh Rate | 120 Hz |
| Brightness(Typ.,cd/m²) | 350 |
| Contrast Ratio | 1,400:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 5ms (G to G) |
| Surface Treatment (Haze) | Haze 3% |
| Life Time (Min.) | 30,000 Hrs (Min.) |
| Operation Hours (Hours / Day) | 16 / 7 (Hours / Day) |
| Portrait / Landscape | No / Yes |
| OS | webOS 4.1 |
Additional information
Connectivity
| Input | HDMI (3, HDCP2.2), USB 2.0 Type A (2) |
| Output | Audio |
| External Control | RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In |
Mechanical Specs
| Bezel Color | Dark Meteo Titan |

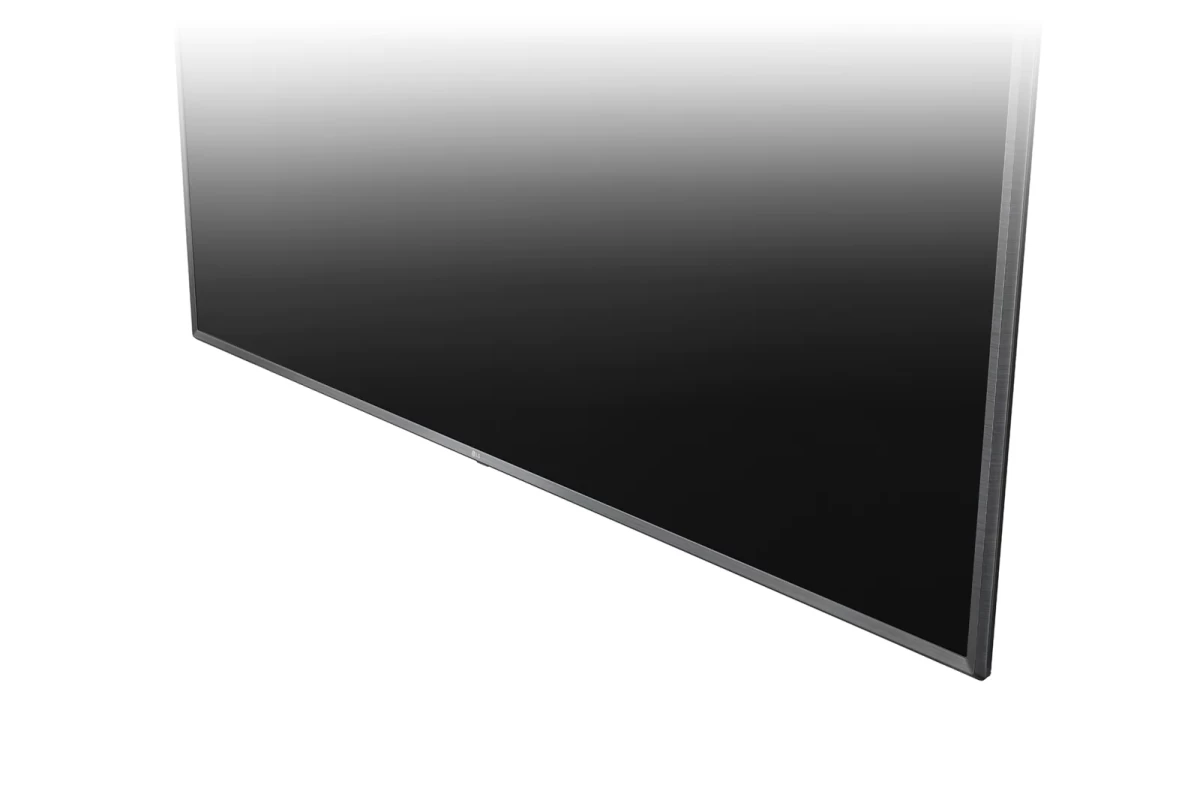

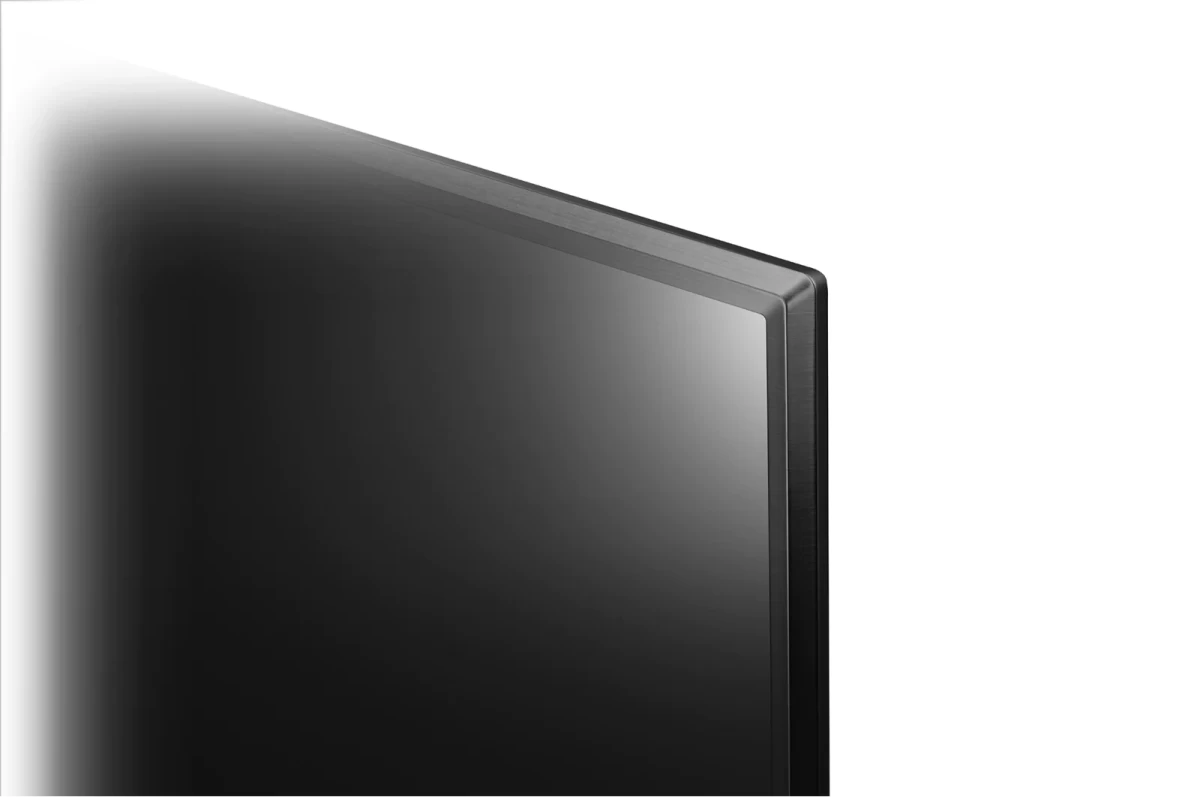

| Bezel Width | 21.9 mm (Even Bezel) |
| Weight (Head) | 44.2 kg |
| Weight (Head+Stand) | 45.0 kg |
| Monitor Dimensions (W × H × D) | 1,943 x 1,118 x 77.9 mm (Thickest Point 93.3 mm) |
| Monitor incl. Stand Dimensions (W x H x D) | 1,943 x 1,188 x 345 mm (EU, UK: N/A, stand not provided) |
| VESA™ Standard Mount Interface | 600 x 400 mm |
Environment Conditions
| Operation Temperature | 0°C to 40°C |
| Operation Humidity | 10% to 80% |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
Power Consumption
| Typ. / Max. | 240 W / 325 W |
| Smart Energy Saving | 168 W |
Sound
| Speaker | Yes |
Certification
| Safety | CB |
| EMC | FCC Class “A” / CE / KC |
Software Compatibility
| SuperSign CMS, SuperSign Control+/Control, Signage365Care |
Accessory
| Basic | Remote Controller, Power Cord, Regulation Book, Phone to D-Sub9 Gender, Stand (EU, UK: not provided), Cable Holder |
