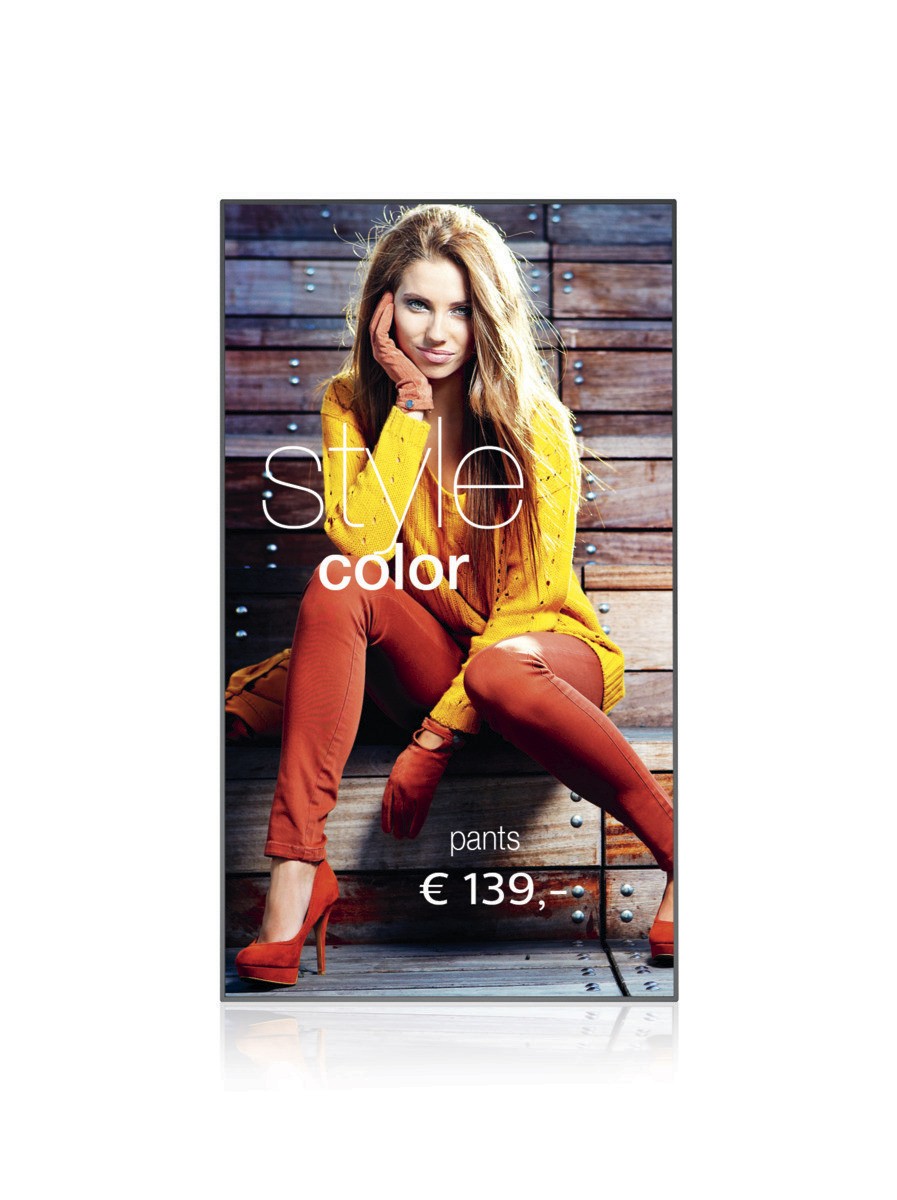

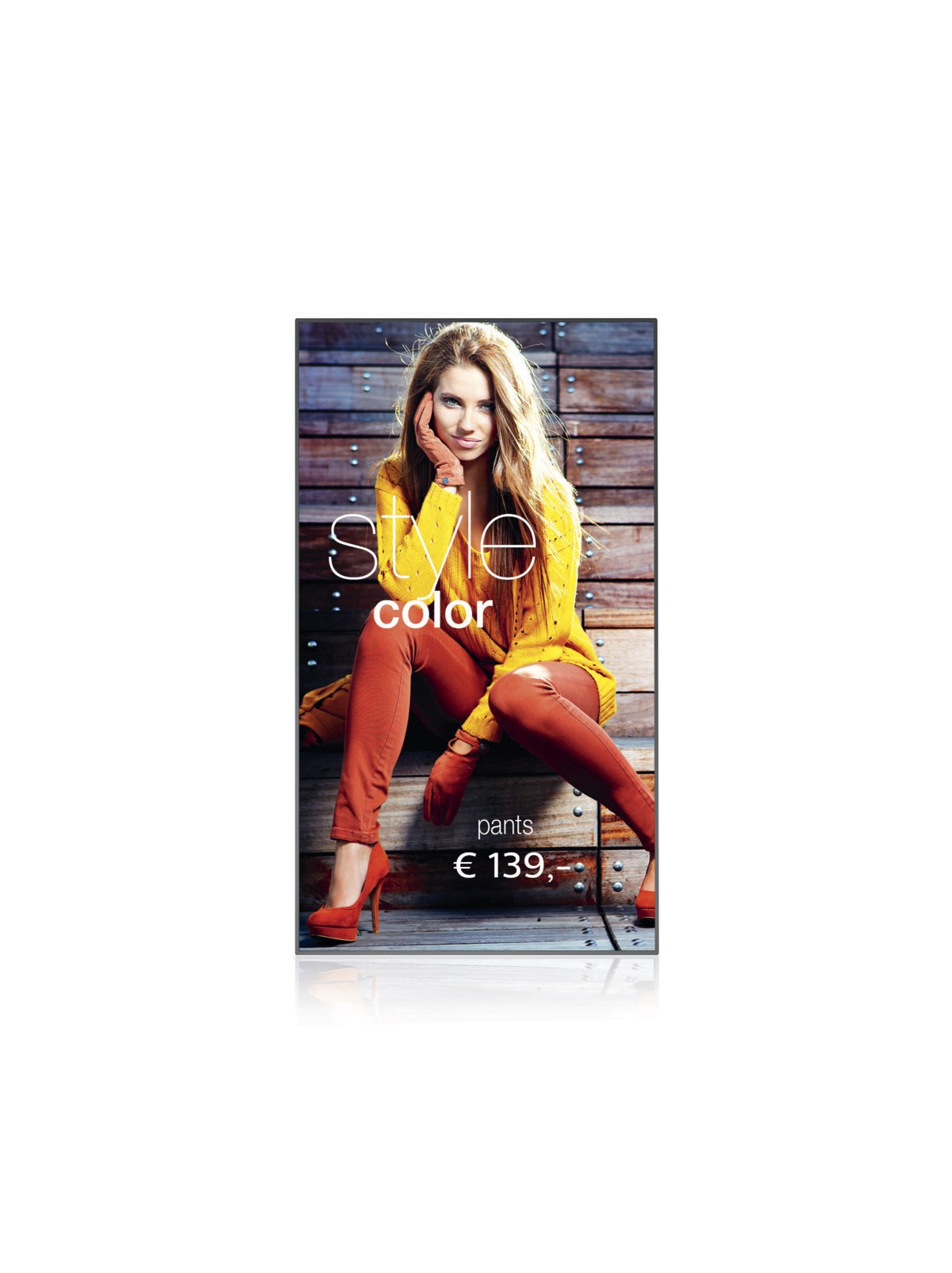

Philips H-Line 75BDL3003H/00 Digital Signage
Product code:Stay visible day and night with a Philips H-Line Ultra-bright Professional 4K UHD Display. Astonishing clarity and contrast make this a perfect solution for window displays and bright locations. From airports to shopping centres.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (inch) | 74.5 |
|---|---|
| Diagonal screen size (metric) | 189.3 |
| Panel technology | IPS |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 3000 |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio | 500,000:1 |
| Aspect ratio | 16:9 |
| Response time (typical) | 8 |
| Pixel pitch | 0.429 x 0.429 mm |
| Display colours | 1.07 Billion |
| Viewing angle (horizontal) | 89 |
| Viewing angle (vertical) | 89 |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Dynamic contrast enhancement, Motion compens. deinterlacing, Progressive scan |
| Panel resolution | 3840 x 2160 |
Additional information
Connectivity
| Video input | VGA (Analogue D-Sub), DisplayPort (1.2), DVI-D, HDMI (x 2), Component Video (RCA) 3x, Composite (Share component Y) |
|---|---|
| Video output | DisplayPort |
| Audio input | 3.5 mm jack, Audio Left/Right (RCA) |
| Audio output | 3.5 mm jack, External speaker connector, SPDIF |
| External control | RS232C (in/out) 2.5 mm jack, RJ45, IR (in/out) 3.5 mm jack |
| Other connections | AC-out, OPS, USB |
Dimensions
| Bezel width | 15.3 mm |
|---|---|
| Set Width | 1681.2 |
| Set Height | 955.6 |
| Set Depth | 142.4 |
| Set Width (inch) | 66.19 |
| Set Height (inch) | 37.62 |
| Set Depth (inch) | 5.61 |
| VESA Mount | 600 x 400 mm, M8 |
| Product weight | 54.1 |
| Product weight (lb) | 119.27 |
| Smart insert height | 300 |
| Smart insert width | 136 |
Convenience
| Placement | Landscape (24/7), Portrait (24/7) |
|---|---|
| Network controllable | RS232, HDMI (One Wire), LAN (RJ45) |
| Signal loop through | RS232, DisplayPort, IR Loop through |
| Energy-saving functions | Smart Power |
| Remote control signal | Lockable |
| Keyboard control | Hidden, Lockable |
| Ease of installation | Smart Insert |
| Other convenience | Carrying handles |
| Screen-saving functions | Pixel Shift, Low Brightness |
| Picture in picture | PIP |
| Picture performance | Advanced colour control |
Power
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
|---|---|
| Consumption (Typical) | 400 |
| Standby power consumption | <0.5 W |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Relative humidity | 20 ~ 80 |
| MTBF | 50,000 |
| Altitude | 0 ~ 3000 m |
Accessories
| Included accessories | AC Power Cord, Batteries for remote control, Remote Control, RS232 cable, HDMI cable, IR sensor cable (1.8 M), Quick start guide, VGA cable |
|---|---|
| Optional accessories | IR Light Motion Sensor (CRD41) |
| Included Accessories | RS232 daisy-chain cable |
Miscellaneous
| On-Screen Display Languages | English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Portuguese |
|---|---|
| Regulatory approvals | CE, BSMI, CB, FCC Class B, EAC, EnergyStar 7.0, PSB, UL |
| Warranty | 3 year warranty |
Multimedia Applications
| USB Playback Audio | AAC/AIF/AIFF/ASF/LPCM/M3U/M4A/MP3/MP4/WAV/WMA/PLS |
|---|---|
| USB Playback Picture | BMP/GIF/JPEG/PNG |
| USB Playback Video | M2TS/M4V/MK3D/MKV/MP4/MPEG/MPG/MTS/TS/TTS/VOB/WMV |
Supported Display Resolution
| Computer formats | 1024 x 768, 60 Hz / 1280 x 1024, 60 Hz / 1280 x 768, 60 Hz / 1280 x 800, 60 Hz / 1360 x 768, 60 Hz / 1600 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 1920 x 1200, 60 Hz / 3840 x 2160, 30Hz / 3840 x 2160, 60 Hz / 640 x 480, 60, 67, 72, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 60, 72, 75 Hz |
|---|---|
| Video formats | 1080i, 25, 30 Hz / 1080p, 50, 60 Hz / 3840 x 2160, 30Hz / 3840 x 2160, 60 Hz / 480i, 30, 60 Hz / 480p, 60 Hz / 576i, 25, 50 Hz / 576p, 50 Hz / 720p, 50, 60 Hz |
