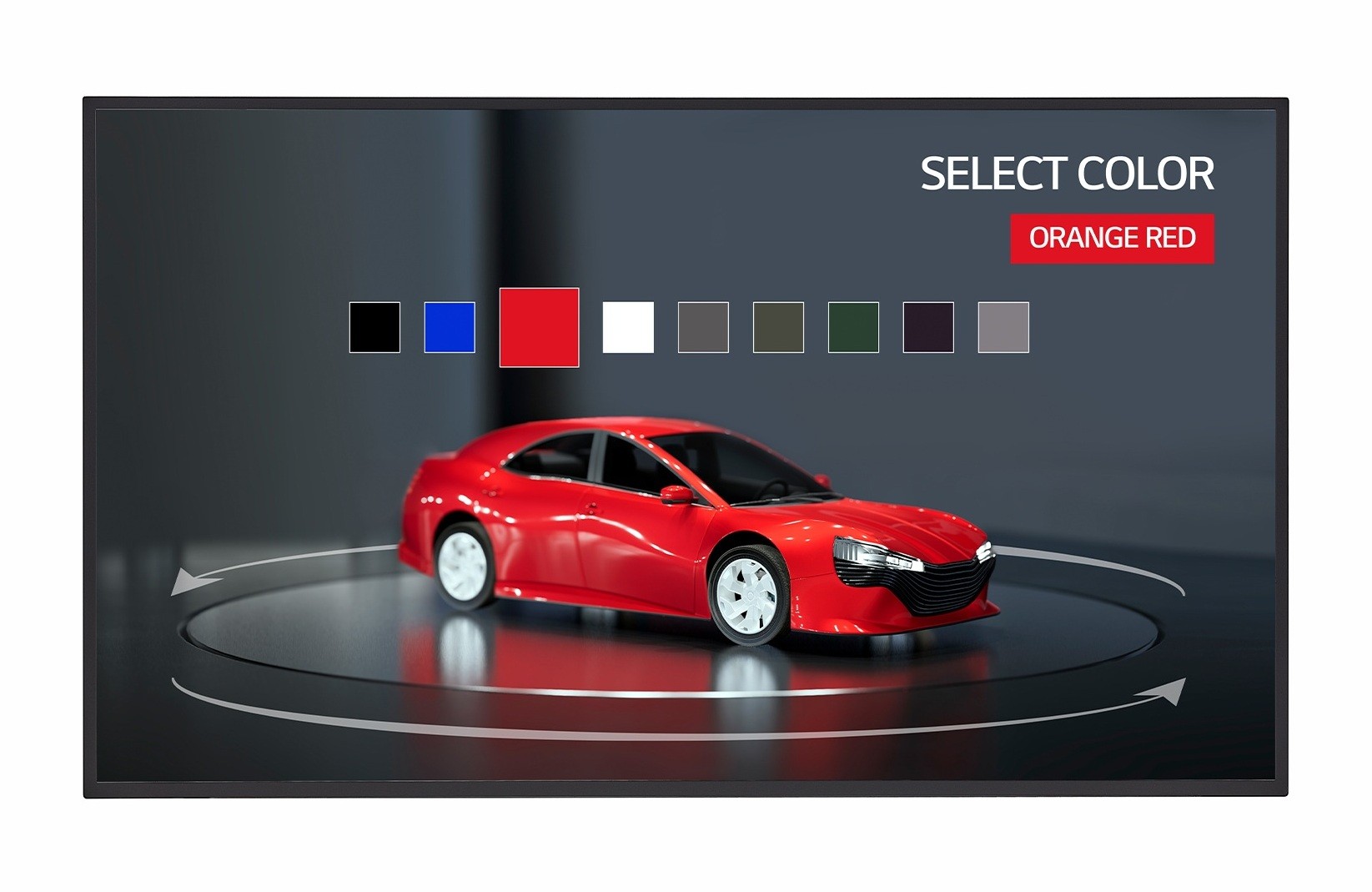

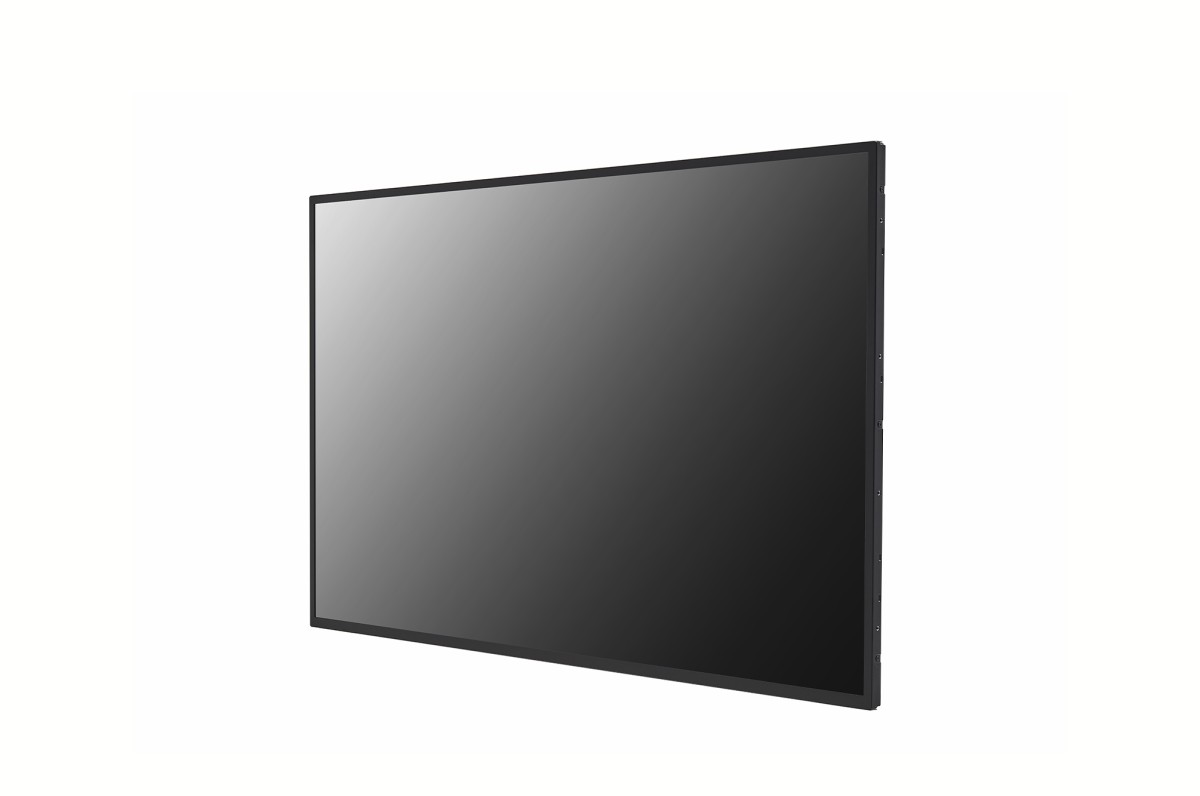

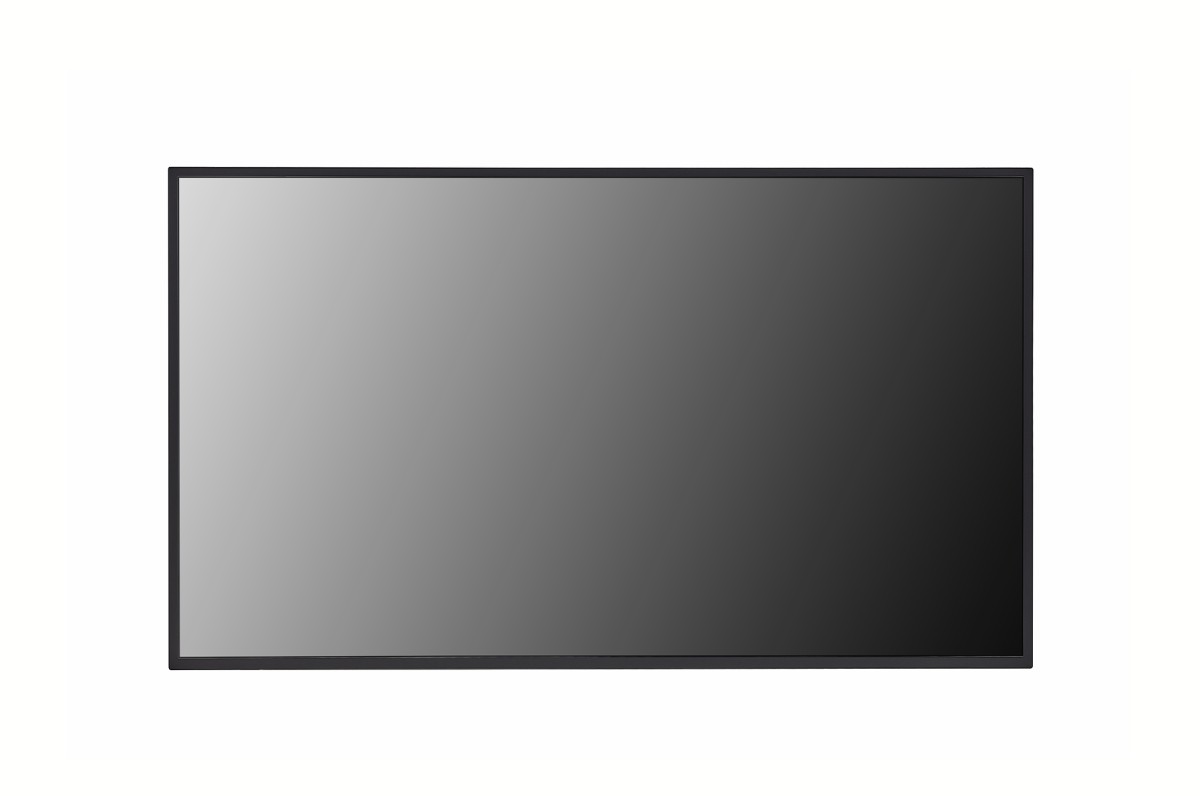

LG 43TNF5J Interactive Digital Board Touch Open Frame
Product code:The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Description
Panel
| Screen Size | 43" |
|---|---|
| Panel Technology | IPS |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 500 nit |
| Contrast Ratio | 1,000:1 |
| Color gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 10bit, 1.07Billion colors |
| Response Time | 9ms (G to G) |
| Surface Treatment (Haze) | Low Haze (3%) |
| Operation Hours (Hours / Days) | 24 / 7 |
| Portrait / Landscape | Yes / Yes |
| OS | webOS 6.0 |
Additional information

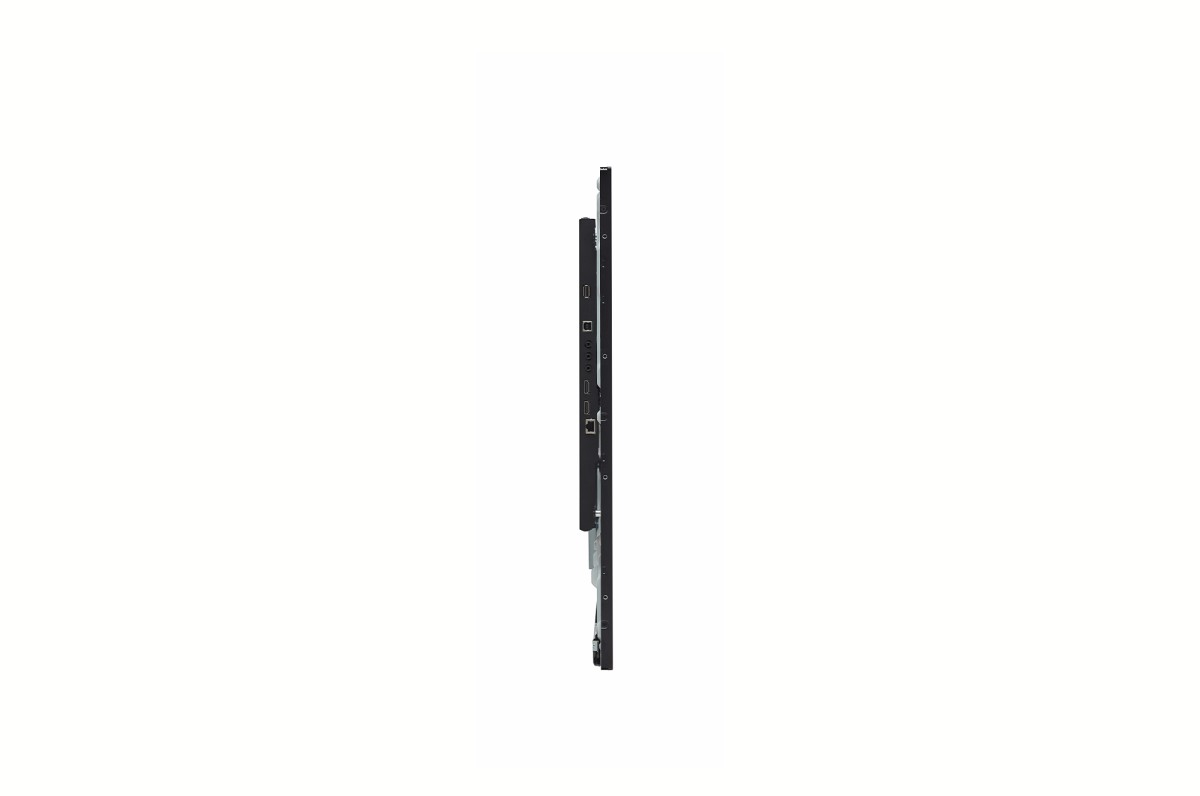

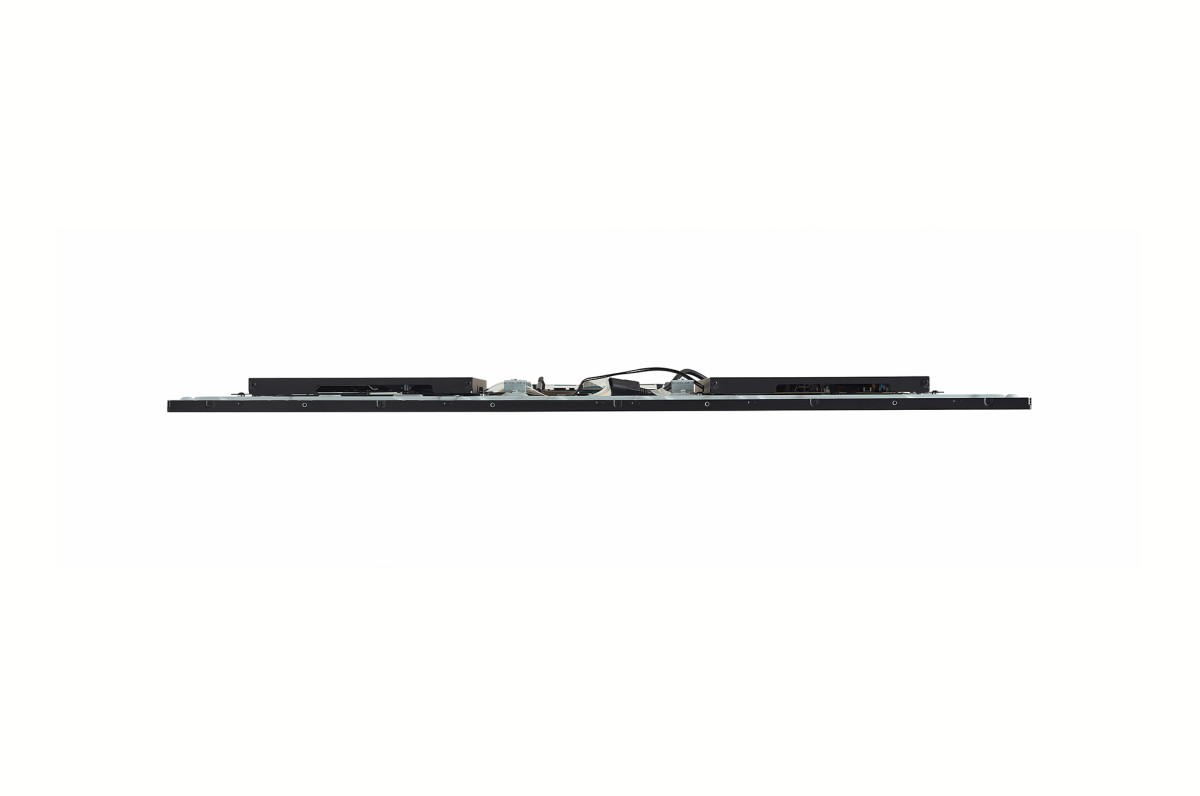

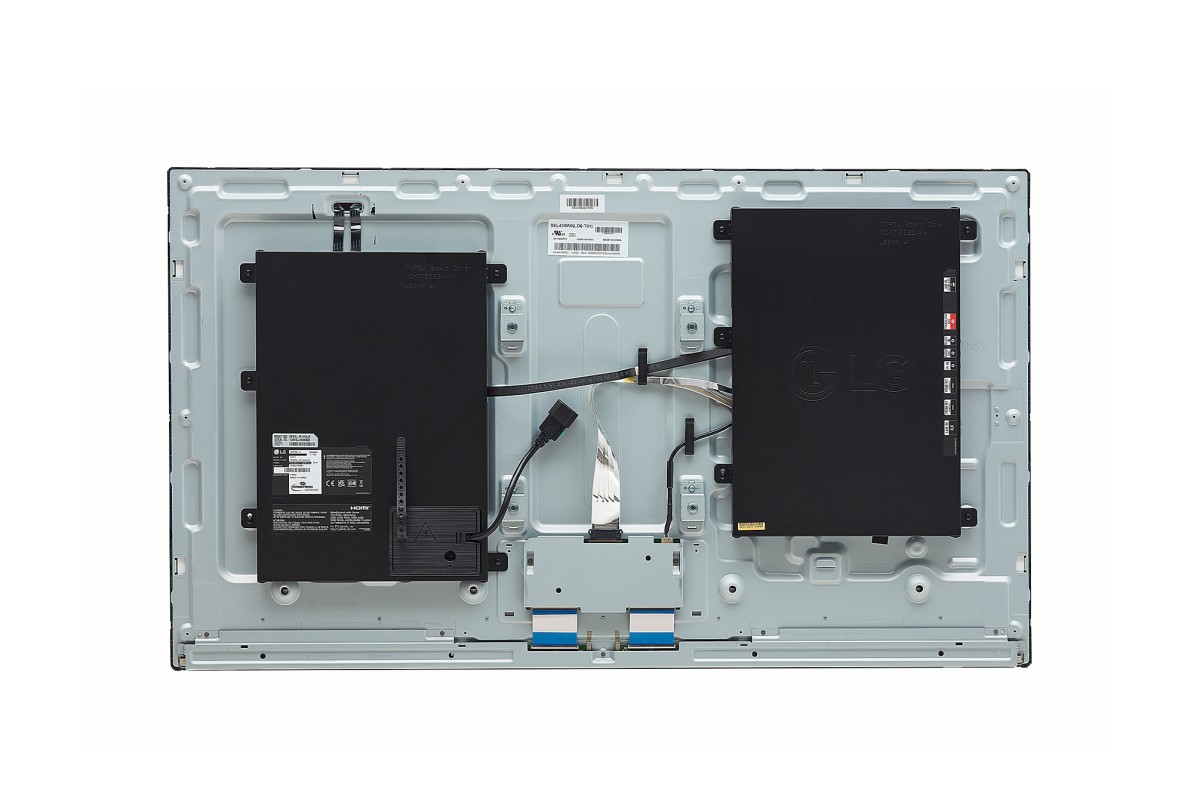

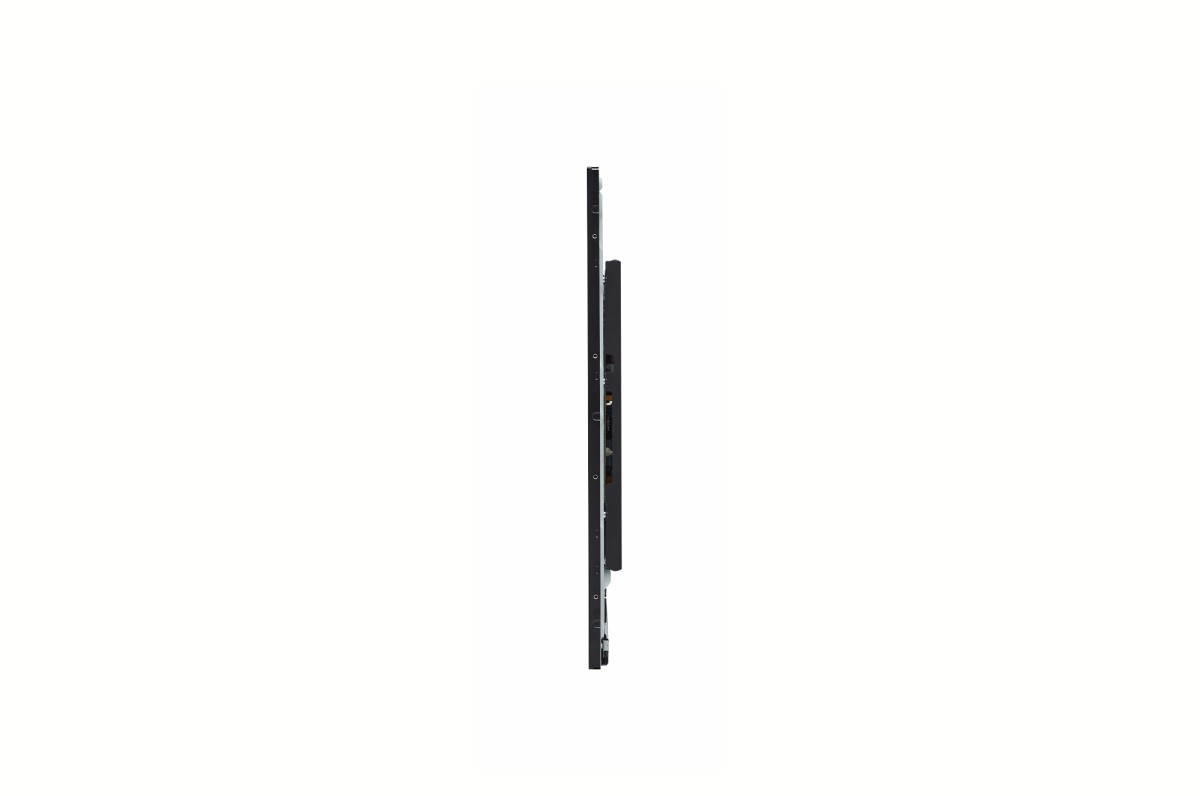

Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | 10.9 / 10.9 / 10.9 / 13.5 mm |
| Weight (Head) | 10.4 kg |
| Monitor Dimensions (W × H × D) | 967.2 x 559 x 38.0 mm |
| VESA™ Standard Mount Interface | 200 x 200 |
Key Feature (Hardware)
| Internal Memory | 8GB (System 5GB + Available 2.48GB) |
|---|---|
| Temperature Sensor | Yes |
Key Feature (Software)
| webOS ver. | webOS 6.0 |
|---|---|
| Embedded CMS | Local Contents Scheduling, Group Manager |
| USB Plug & Play, Fail over | Yes |
| Background Image | Booting Logo Image, No Signal Image |
| Video Tag, Play via URL, Screen Rotation, Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager | Yes |
| 3rd Party Compatibility | Crestron Inside |
| Power | Smart Energy Saving, PM mode, Wake on LAN, Network Ready |
| HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom | Yes |

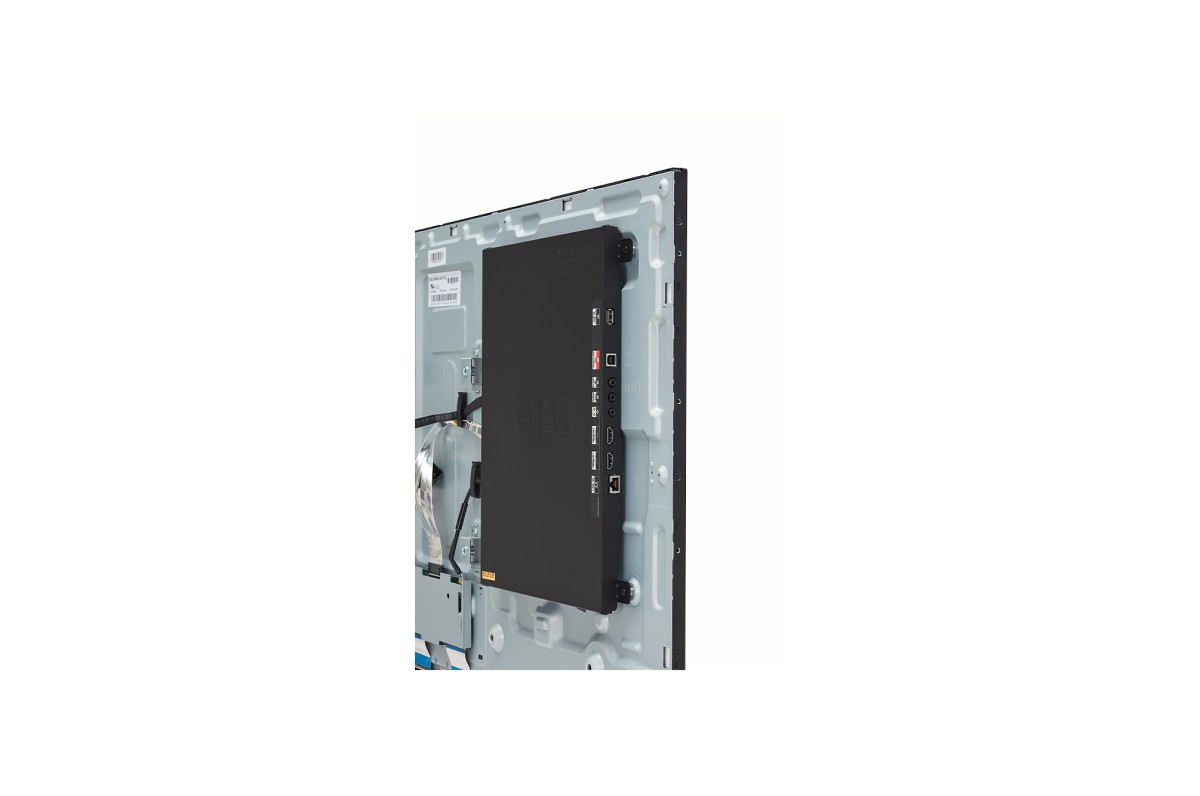

Connectivity
| Input | Digital (HDMI(2), HDCP 2.2/1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1) |
|---|---|
| Output | Audio Out, USB2.0 Type B(1) |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10% to 80% |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ. | 95 W |
|---|---|
| Max. | 110 W |
| BTU (British Thermal Unit) | 324 BTU/Hr (Typ.), 375 BTU/Hr (Max.) |
Standard (Certification)
| Safety | CB / NTRL |
|---|---|
| EMC | FCC Class "A"/ CE / KC |
| ErP | Yes |
Software Compatibility
| SuperSign CMS, SuperSign Control / Control+, LG ConnectedCare | Yes |
|---|
Accessory
| Basic | Power Cord 1.55m, USB Cable (Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver |
|---|
Touch
| Available Object Size for Touch | Ø6mm ↑ |
|---|---|
| Reponse Time (Based on 'Paint' app on Windows 10 PC) | 90ms ↓ |
| Accuracy | 3.5mm±0.5mm |
| Interface | USB 2.0 |
| Operating System Support | Windows 10 |
| Multi Touch Point | Max. 10 Points |
