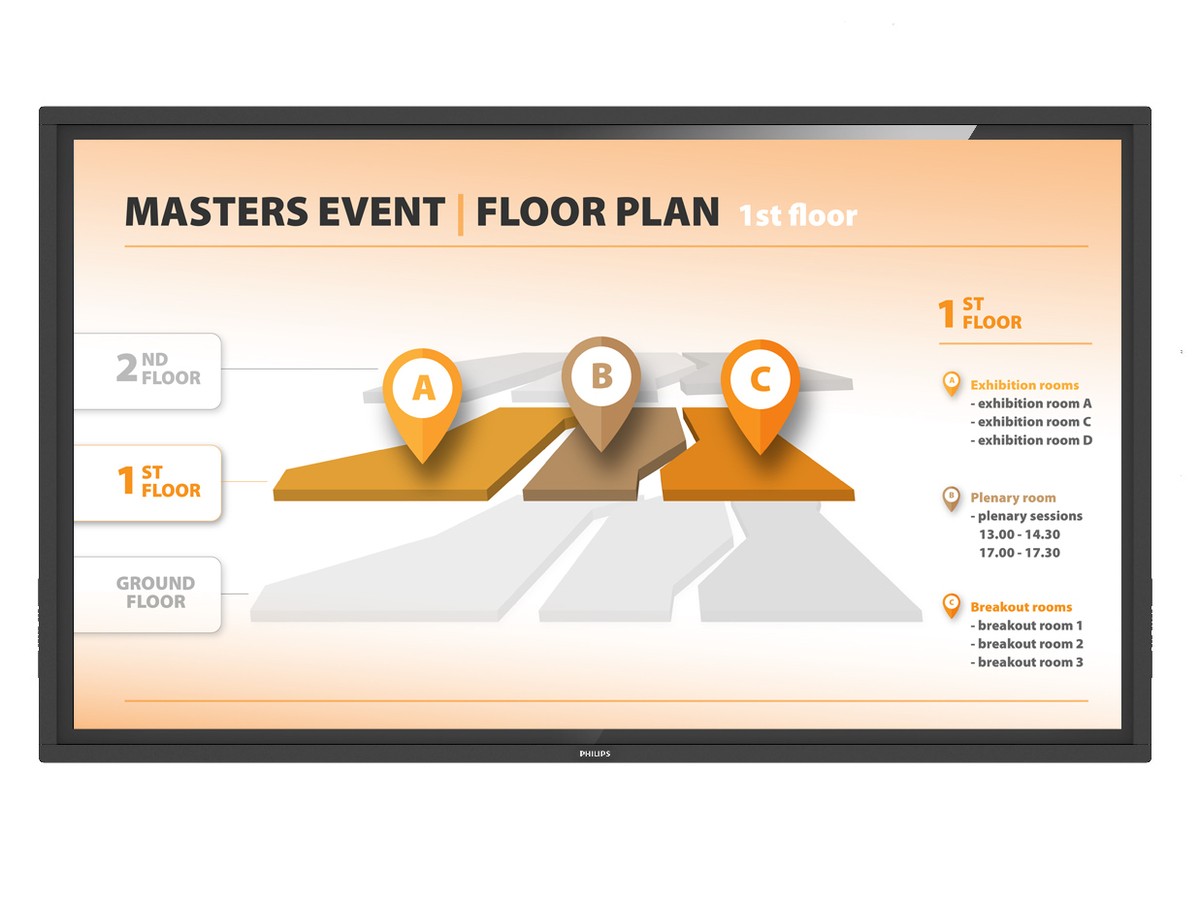

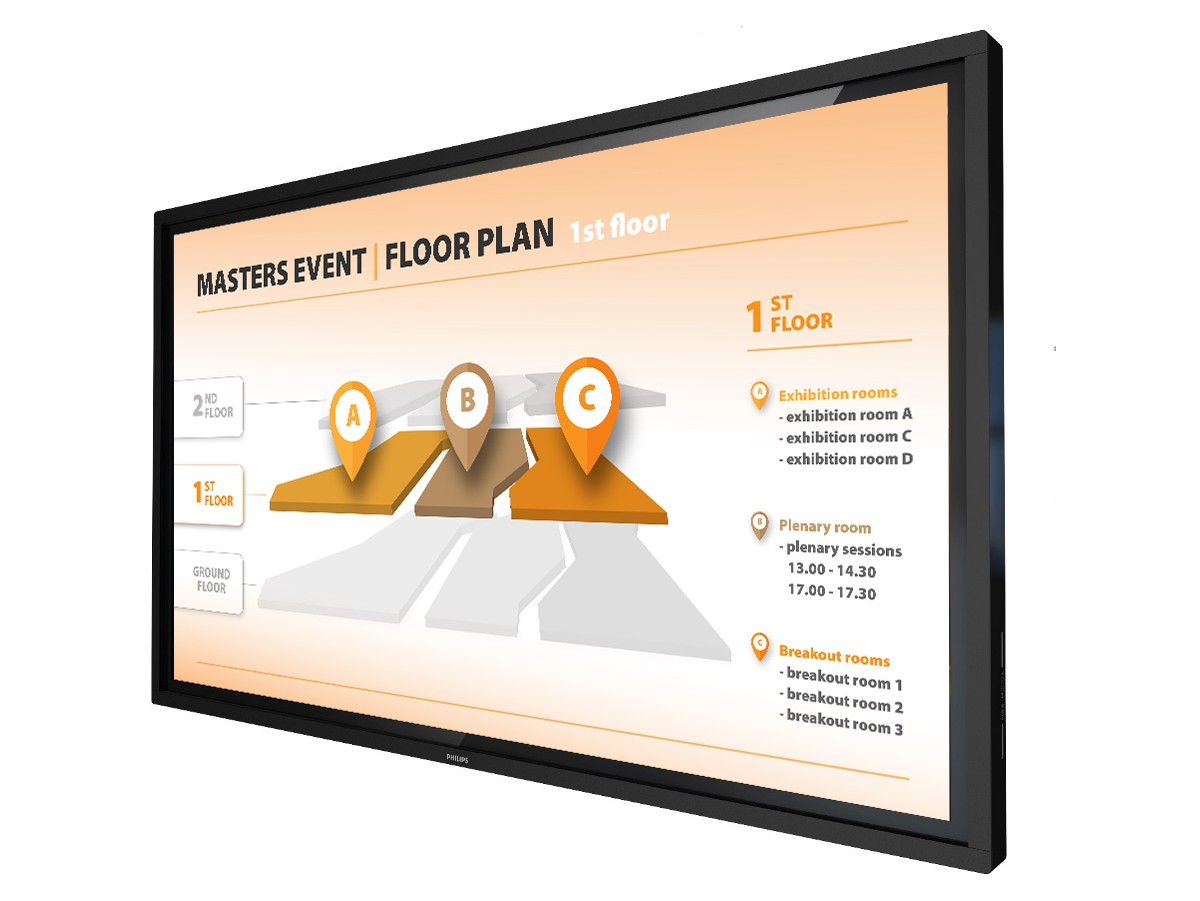

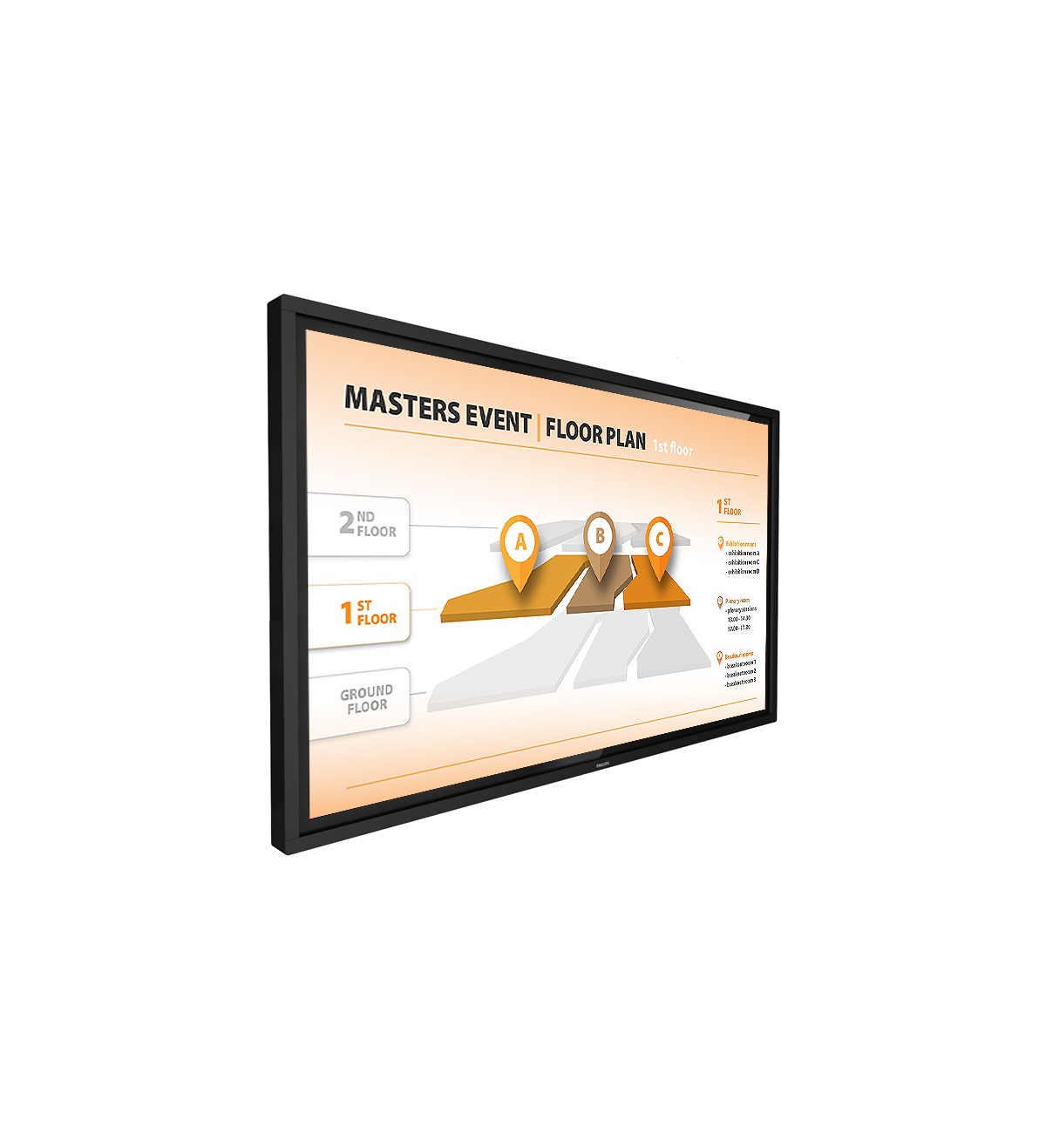

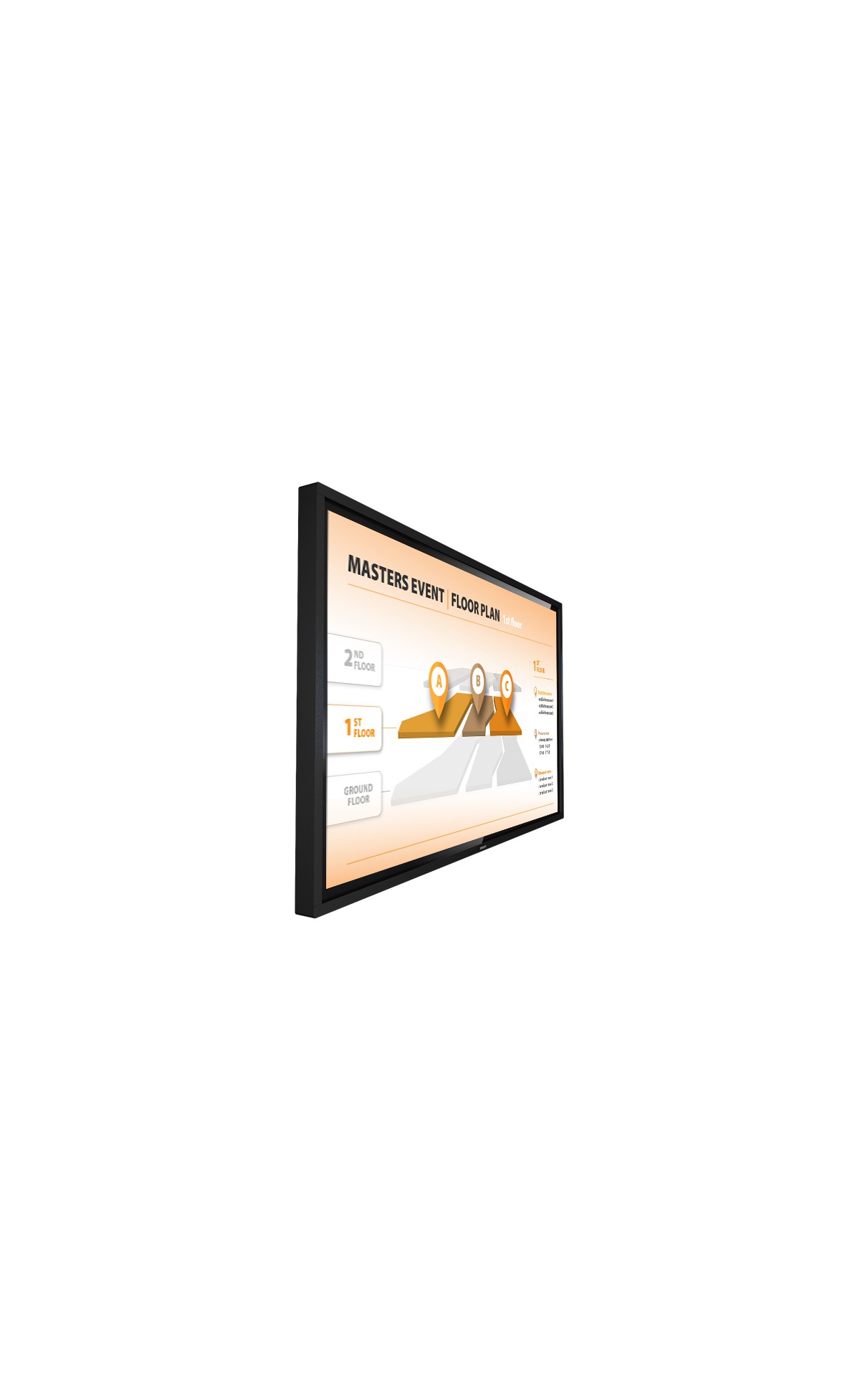

Philips T-Line 43BDL3452T/00 Interactive Corporate

Product code: 43BDL3452T/00

Inspire collaboration. Deliver information. This responsive Philips Multi-Touch Professional UHD Display is ideal for multi-finger, multi-user applications—from wayfinding to presentations. Up to 20 touch points can be active at once.

Brand: Philips SEND AN ENQUIRY

Description

Picture/Display

Diagonal screen size (metric)108.0
Diagonal screen size (inch)43
Panel resolution3840 x 2160
Optimum resolution3840 x 2160 @ 60 Hz
Brightness400
Contrast ratio (typical)1200:1
Surface treatmentAnti-Glare coating
Aspect ratio16:9
Response time (typical)8
Pixel pitch0.2451 (H) x 0.2451 (V) mm
Display colours1.07 B
Viewing angle (horizontal)178
Viewing angle (vertical)178
Picture enhancement3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
Panel technologyIPS
Operating systemAndroid 8.0

Additional information

Interactivity

Multi-touch technology IRHE
Touch points 20 simultaneous touch points
Plug and play HID compliant
Protection glass 3 mm tempered safety glass


Connectivity

Video input DVI-D (x 1), HDMI 2.0 (x 2), USB 2.0 Type A (x 2), USB 2.0 Type B (x 1), VGA (Analogue D-Sub) (x 1)
Audio input 3.5 mm jack
Audio output 3.5 mm jack
External control RJ45, IR (in/out) 3.5 mm jack, RS232C (in/out) 2.5 mm jack
Other connections micro SD, OPS


Supported Display Resolution

Computer formats 640 x 480, 60, 67, 72, 75 Hz / 800 x 600, 56, 60, 72, 75 Hz / 1024 x 768, 60 Hz / 1280 x 768, 60 Hz / 1280 x 800, 60 Hz / 1280 x 1024, 60 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1440 x 900, 60 Hz / 1600 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 1920 x 1200, 60 Hz / 3840 x 2160, 60 Hz, 50 Hz / 720 x 400, 70 Hz / 800 x 600, 60, 72, 75 Hz
Video formats 480i, 60 Hz / 480p, 60 Hz / 576p, 50 Hz / 576i, 50 Hz / 720p, 50, 60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 1080i, 25, 30 Hz / 3840 x 2160, 24, 25 Hz / 3840 x 2160, 30Hz / 480i, 30, 60 Hz / 576i, 25, 50 Hz


Convenience

Placement Landscape (18/7), Portrait (18/7)
Signal loop through RS232, IR Loop through
Network controllable RS232/RJ45
Screen-saving functions Pixel Shift, Low Brightness
Keyboard control Hidden, Lockable
Remote control signal Lockable
Energy-saving functions Smart Power


Dimensions

Set Width 1004.4
Set Height 592.6
Set Depth 75.3(D@Wall mount)/109.2(D@External OPS box)
Set Width (inch) 39.54
Set Height (inch) 23.33
Set Depth (inch) 2.96 (D@Wall mount)/4.30 (D@External OPS box)
Product weight 18.54
Product weight (lb) 40.87
Bezel width 16.3 mm (T/R/L/B)

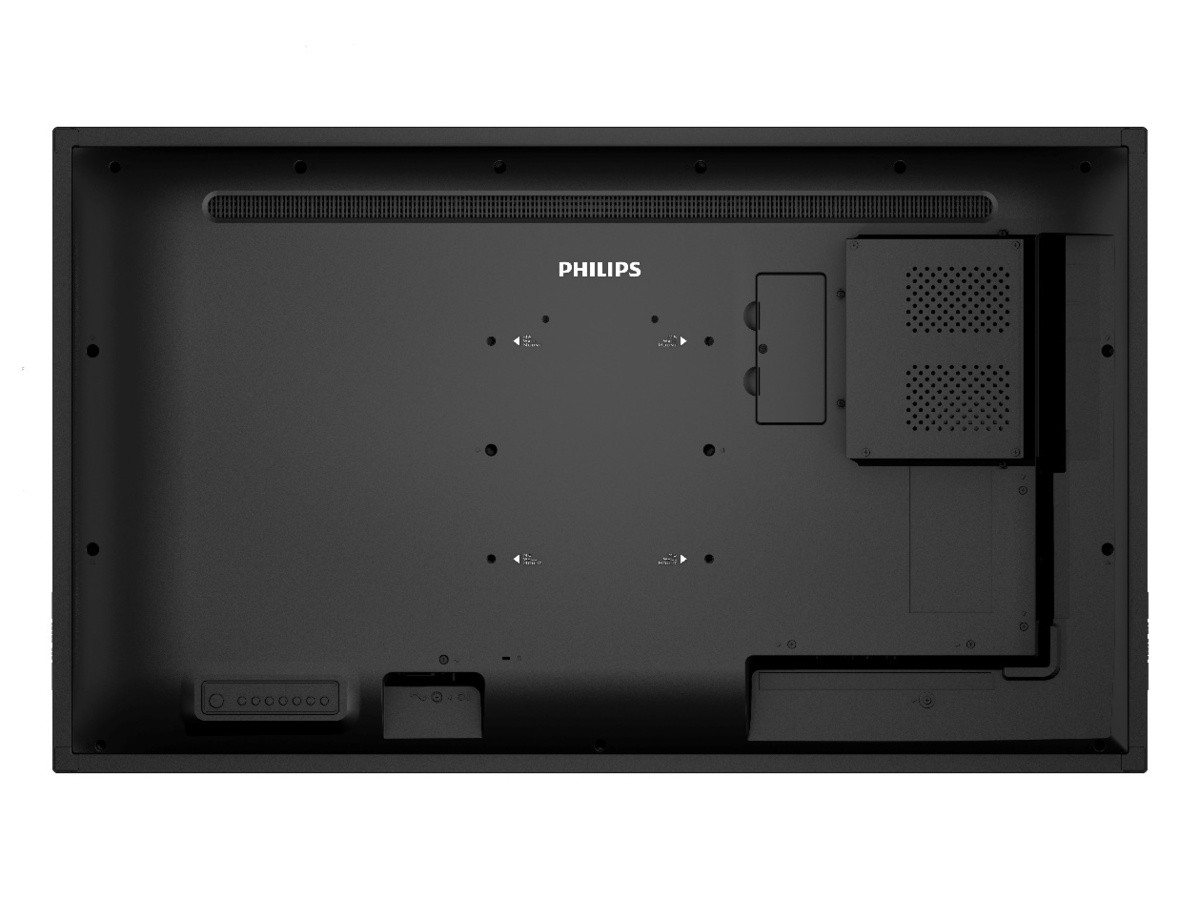

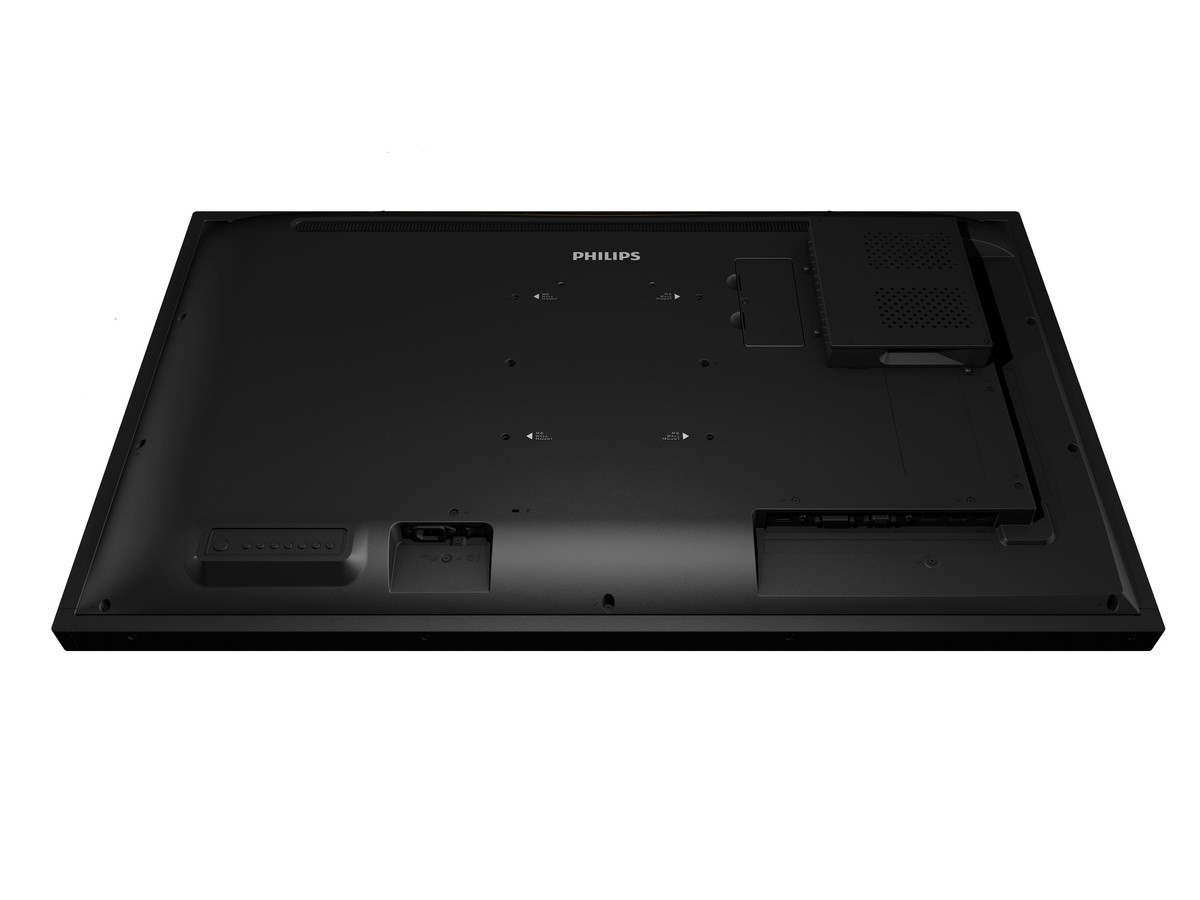

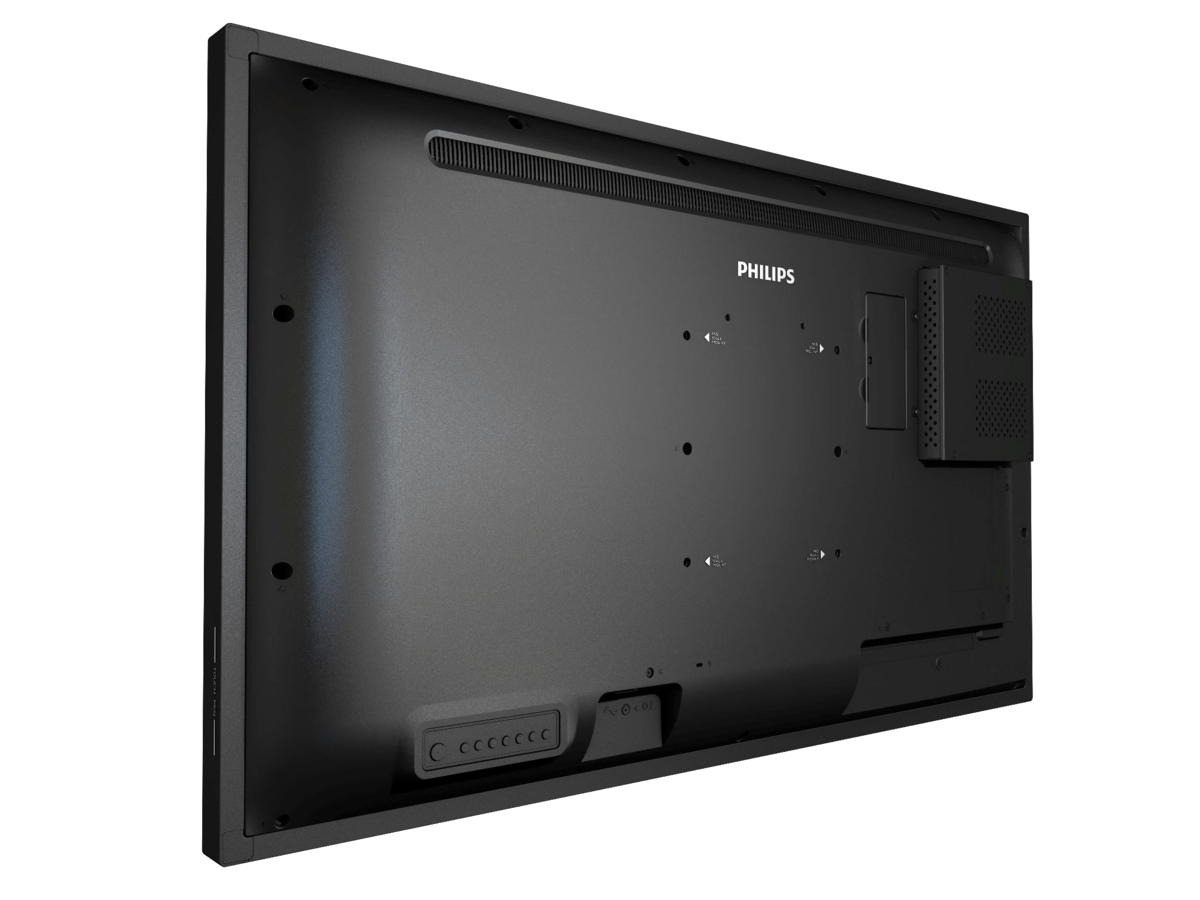

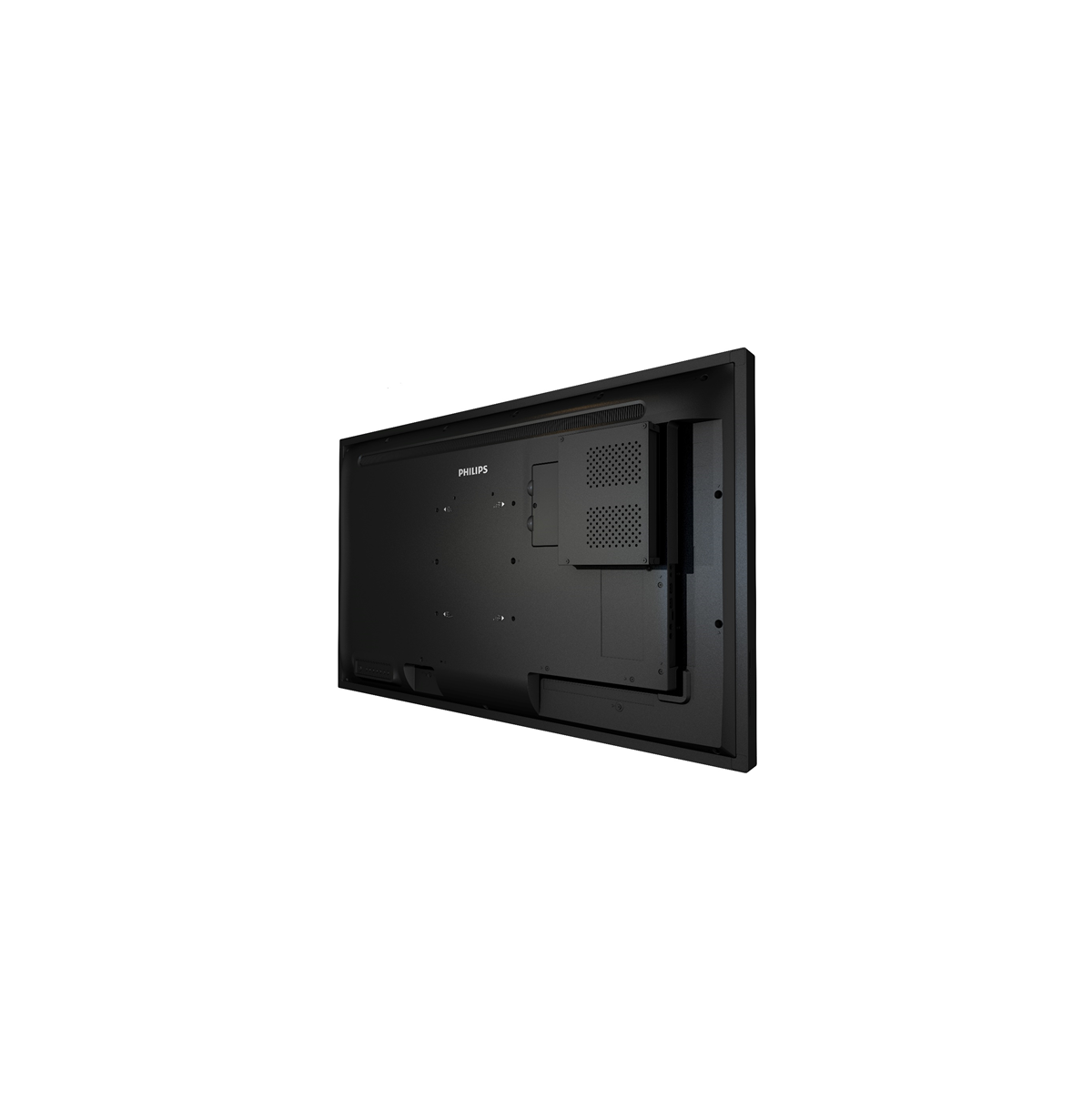

Wall Mount 200 x 200 mm, M6


Sound

Built-in speakers 2 x 10 W


Operating conditions

Temperature range (operation) 0 ~ 40
MTBF 50,000
Altitude 0 ~ 3000 m
Temperature range (storage) -20 ~ 60
Humidity range (operation)[RH] 20–80% (without condensation)
Humidity range (storage) [RH] 5–95% (without condensation)


Power

Mains power 100 ~ 240 VAC, 50/60 Hz
Standby power consumption <0.5 W
Consumption (Typical) 100
Power Saving Features Smart Power
Consumption (Max) 220 W
Energy Label ClassG


Accessories

Stand BM05922 (Optional)
Included Accessories Cleaning cloth (x 1), IR sensor cable (1.8 m) (x 1), Philips logo (x 1), Power supply cable (3 m), Quick start guide (x 1), Remote control and AAA batteries, RS232 cable (3 m) (x 1), RS232 daisy chain cable (x 1), USB Cover and screw x 1


Miscellaneous

On-Screen Display Languages Arabic, English, French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish
Regulatory approvals CE, RoHS, CB, BSMI, FCC Class A, CU, ETL, IMDA, PSB
Warranty 3 year warranty


Multimedia Applications

USB Playback Audio AAC/AIF/AIFF/ASF/LPCM/M3U/M4A/MP3/MP4/WAV/WMA
USB Playback Picture BMP/GIF/JPEG/JPG/PDF
USB Playback Video M2TS/M4V/MK3D/MKV/MP4/MPEG/MPG/MTS/TS/TTS/VOB/WMV


Internal Player

CPU 2 x A53 + 2 x A73
GPU ARM Mali G51
Memory 2 GB DDR3, 8 GB
Wi-Fi 2.4 G, 5 G
