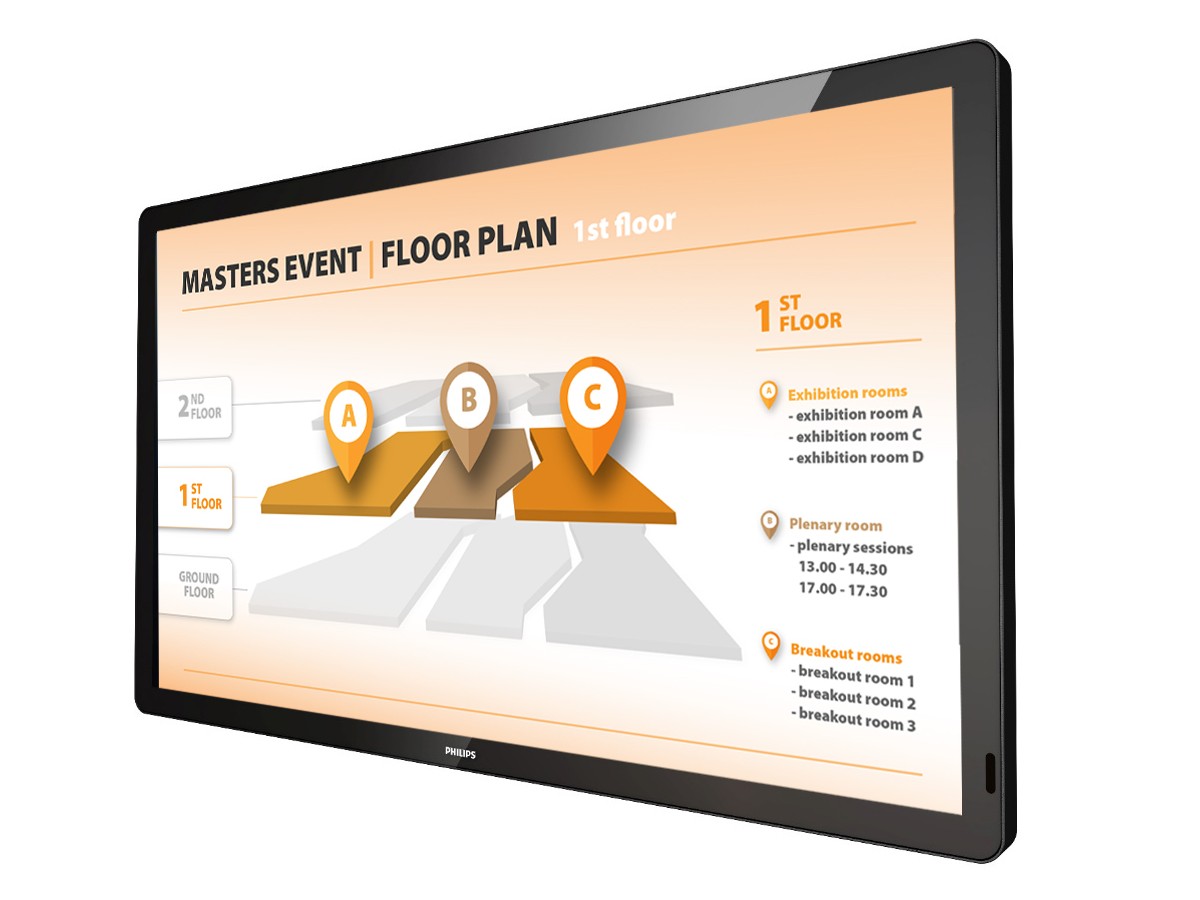

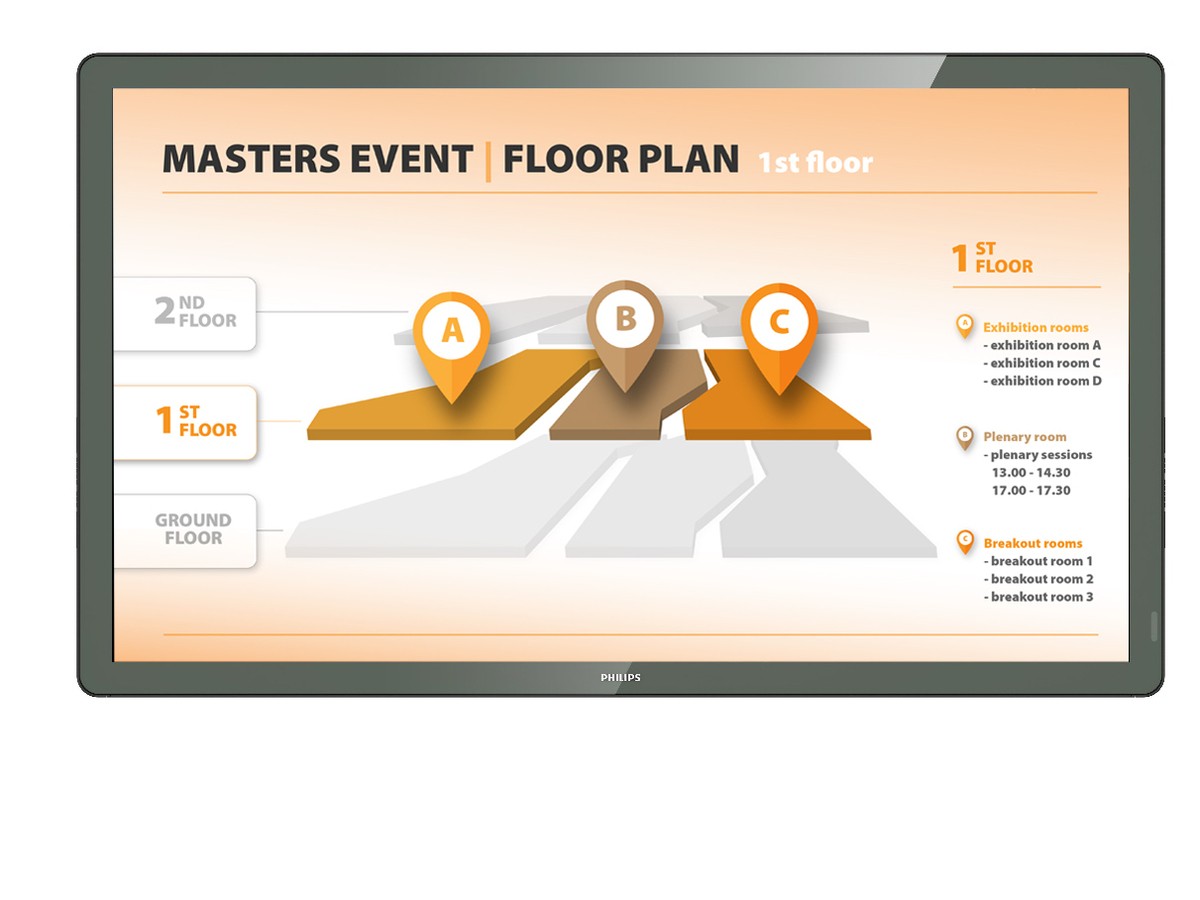

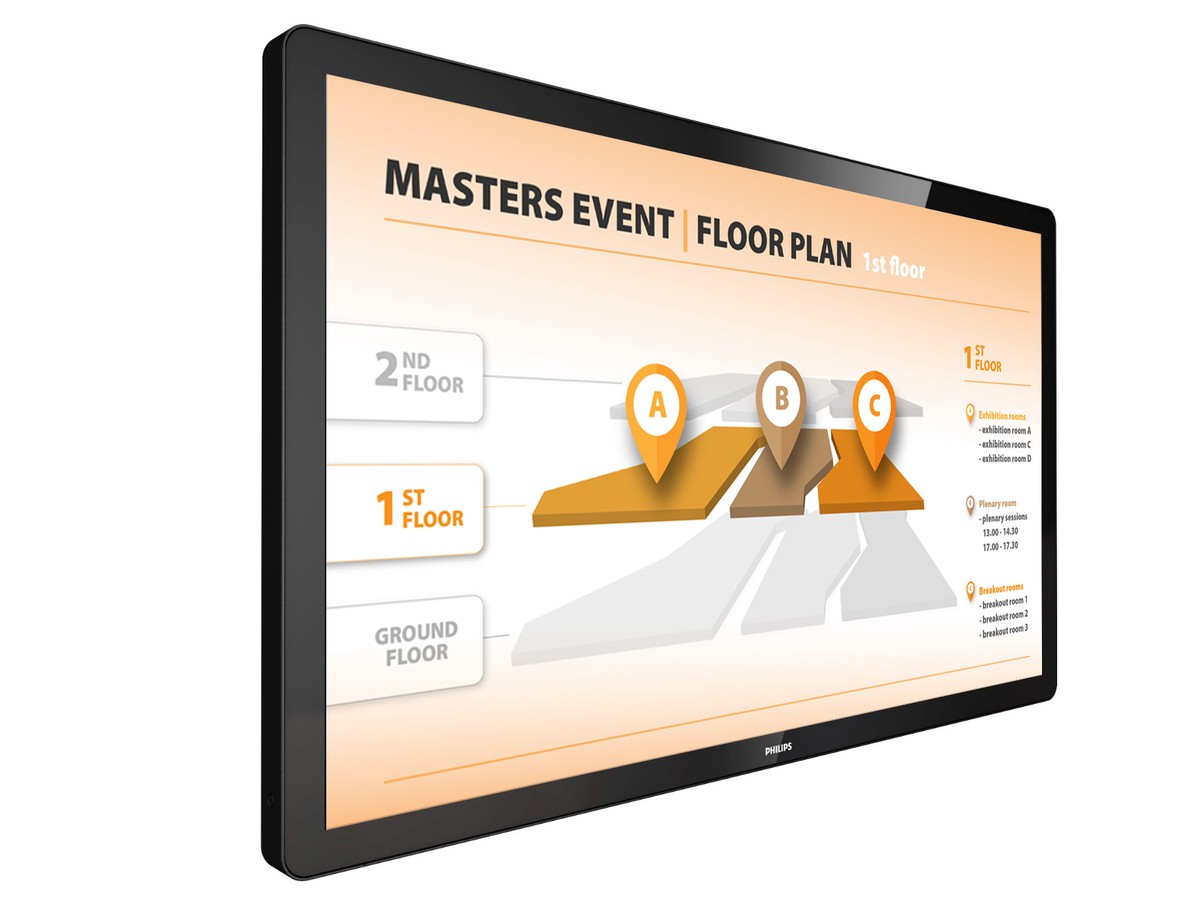

Philips T-Line 32BDL3651T/00 Touch Display

Product code: 32BDL3651T/00

Inspire collaboration. Deliver information. This responsive Philips Multi-Touch Professional Full HD Display is ideal for multi-finger, multi-user applications, from wayfinding to presentations. Up to 10 touch points can be active at once.

SEND AN ENQUIRY

Description

Picture/Display

Diagonal screen size (metric)80
Diagonal screen size (inch)32
Panel resolution1920 x 1080p
Optimum resolution1920 x 1080 @ 60 Hz
Brightness350
Contrast ratio (typical)4000:1
Surface treatmentAnti-Glare coating
Aspect ratio16:9
Response time (typical)6.5
Pixel pitch0.36375 (H) X 0.36375 (V) mm
Display colours16.7 M
Viewing angle (horizontal)178
Viewing angle (vertical)178
Panel technologyVA
Operating systemAndroid 8.0
Picture enhancement3/2 - 2/2 motion pull down, 3D Combfilter, 3D MA deinterlacing, Dynamic contrast enhancement, Motion compens. deinterlacing,Progressive scan

Additional information

Interactivity

Multi-touch technology Projected capacitive
Touch points 10 simultaneous touch points
Plug and play HID compliant
Protection glass 2 mm tempered safety glass


Connectivity

Video input DVI-I (x 1), HDMI 2.0 (x 2), USB 2.0 Type A (x 2), USB 2.0 Type B (x 1), VGA (via DVI-I) x 1
Audio input 3.5 mm jack
Audio output 3.5 mm jack
External control RJ45, IR (in/out) 3.5 mm jack, RS232C (in/out) 2.5 mm jack
Other connections micro SD


Supported Display Resolution

Computer formats 640 x 480, 60, 67, 72, 75 Hz / 800 x 600, 56, 60, 72, 75 Hz / 1024 x 768, 60 Hz / 1280 x 768, 60 Hz / 1280 x 800, 60 Hz / 1280 x 1024, 60 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1440 x 900, 60 Hz / 1600 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 1920 x 1200, 60 Hz / 720 x 400, 70 Hz / 800 x 600, 60, 72, 75 Hz / 3840 x 2160, 60 Hz, 50 Hz
Video formats 480i, 60 Hz / 480p, 60 Hz / 576p, 50 Hz / 576i, 50 Hz / 720p, 50, 60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 1080i, 25, 30 Hz / 480i, 30, 60 Hz / 576i, 25, 50 Hz / 3840 x 2160, 24, 25 Hz / 3840 x 2160, 30Hz


Convenience

Placement Landscape (18/7), Portrait (18/7)
Signal loop through IR Loop through, RS232
Network controllable RS232/RJ45
Screen-saving functions Pixel Shift, Low Brightness
Keyboard control Hidden, Lockable
Remote control signal Lockable
Energy-saving functions Smart Power


Dimensions

Set Width 749.1
Set Height 443.6
Set Depth 70.4 (D@Wall mount)/74.4 (D@AC)
Set Width (inch) 29.49
Set Height (inch) 17.46
Set Depth (inch) 2.77 D@Wall mount)/2.93 (D@AC)
Product weight 8.0
Product weight (lb) 17.64
Wall Mount 100 mm x 100 mm, 200 mm x 200 mm, M4
Bezel width 2.0 mm (T/R/L/B)


Sound

Built-in speakers 2 x 10 W


Operating conditions

Temperature range (operation) 0 ~ 40
MTBF 50,000
Altitude 0 ~ 3000 m
Temperature range (storage) -20~60
Humidity range (operation)[RH] 20–80% (without condensation)
Humidity range (storage) [RH] 5–95% (without condensation)


Power

Mains power 100 ~ 240 VAC, 50/60 Hz
Standby power consumption <0.5 W
Consumption (Typical) 50
Power Saving Features Smart Power
Consumption (Max) 80 W
Energy Label Class G


Accessories

Stand BM05922 (Optional)
Included Accessories Cleaning cloth (x 1), IR sensor cable (1.8 m) (x 1), Philips logo (x 1), Power supply cable (3 m), Quick start guide (x 1), Remote control and AAA batteries, RS232 cable (3 m) (x 1), RS232 daisy chain cable (x 1), USB Cover and screw x 1


Miscellaneous

On-Screen Display Languages Arabic, English, French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish
Regulatory approvals CB, CE, FCC Class A, RoHS, BSMI, CU, ETL, IMDA, PSB
Warranty 3 year warranty


Multimedia Applications

USB Playback Picture BMP/GIF/JPEG/JPG/PDF
USB Playback Audio AAC/AIF/AIFF/ASF/LPCM/M3U/M4A/MP3/MP4/WAV/WMA
USB Playback Video M2TS/M4V/MK3D/MKV/MP4/MPEG/MPG/MTS/TS/TTS/VOB/WMV


Internal Player

CPU 2 x A53 + 2 x A73
Memory 2 GB DDR3, 8 GB
GPU ARM Mali G51
Wi-Fi 2.4 G, 5 G
