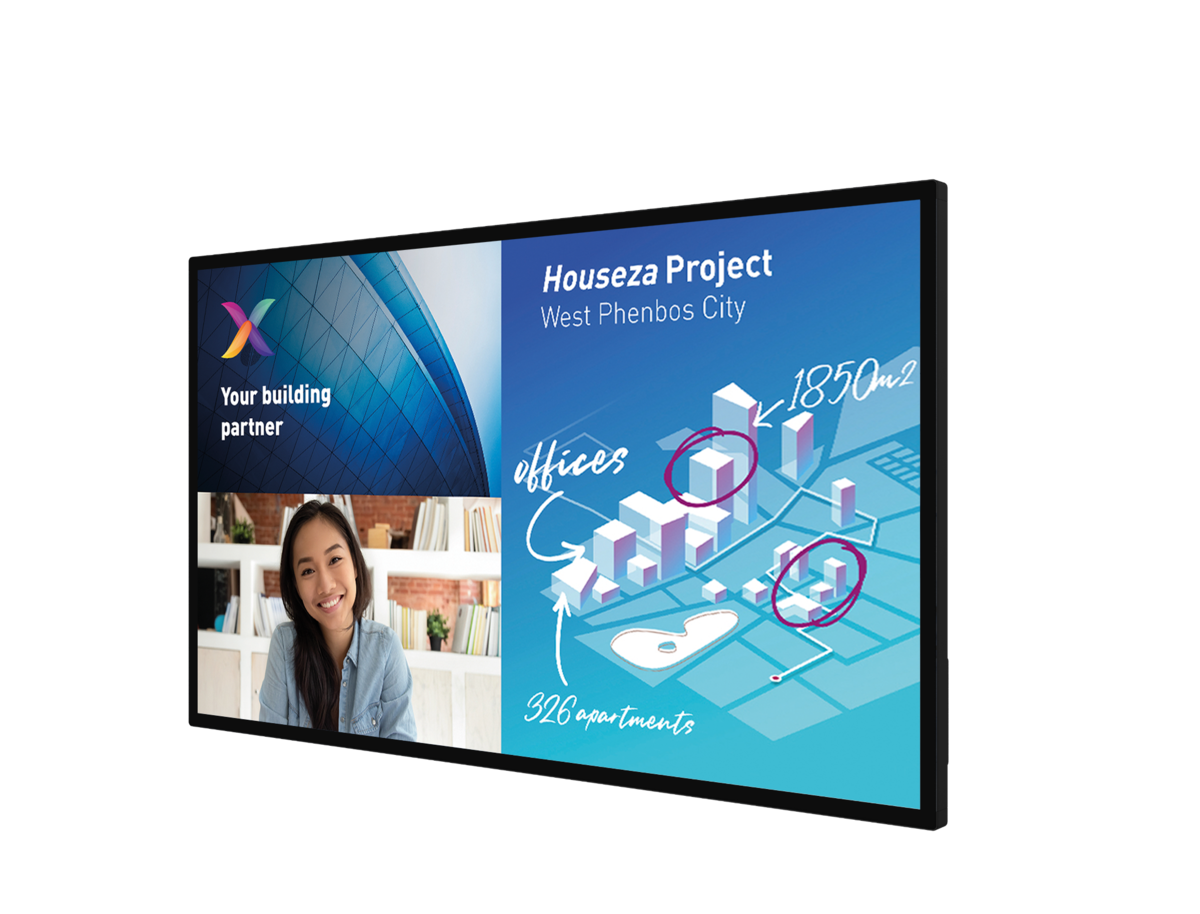

Philips C-Line 65BDL6051C/00 Interactive Corporate

Product code: 65BDL6051C/00

Maximise engagement and inspire collaboration with an interactive Philips C-Line display. These Android-powered displays are made to withstand heavy daily usage and feature up to 10 touchpoints, edge-to-edge glass and a flush design.

Brand: Philips SEND AN ENQUIRY

Description

Picture/Display

Diagonal screen size (inch)64.5
Diagonal screen size (metric)163.83
Panel resolution3840 x 2160
Optimum resolution3840 x 2160 @ 60 Hz
Brightness350
Contrast ratio (typical)1300:1
Dynamic contrast ratio500,000:1
Aspect ratio16:9
Response time (typical)9
Pixel pitch0.372 (H) x 0.372 (V) mm
Display colours1.07 billion
Viewing angle (horizontal)178
Viewing angle (vertical)178
Picture enhancement3/2 - 2/2 motion pull down, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan
Operating systemAndroid 9

Additional information

Connectivity

Video input HDMI 2.0 (x 4), Display Port1.2 (x 1), DVI-I (x 1), USB 2.0 (x 2), USB 3.0 (x 2), USB-C
Video output DisplayPort 1.2 (x 1), DVI - D (x 1), HDMI 2.0 (x 2)
Audio input 3.5 mm jack
Audio output 3.5 mm Jack (x 2)
Other connections OPS, micro SD
External control RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack


Supported Display Resolution

Computer formats 1024 x 768, 60, 70 Hz / 1152 x 864, 60, 70, 75 Hz / 1152 x 900, 66 Hz / 1280 x 720, 60, 70 Hz / 1280 x 768, 60 Hz, 75 Hz / 1280 x 800, 60, 75 Hz / 1280 x 960, 60 Hz / 1280 x 1024, 60, 67, 75 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1400 x 1050, 60, 75 Hz / 1440 x 1050, 60 Hz / 1440 x 900, 60, 75 Hz / 1600 x 1200, 60 Hz / 1600 x 900, 60 Hz / 1680 x 1050, 60 Hz / 1920 x 1080, 60 Hz / 1920 x 1200, 60 Hz / 640 x 350, 70 Hz / 640 x 480, 60, 67, 72, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 56, 60, 72, 75 Hz / 832 x 624, 75 Hz / 848 x 480, 60 Hz / 960 x 720, 75 Hz
UHD Formats 3840 x 2160, 24, 25, 30, 60 Hz / 3840 x 2160, 50 Hz
Video formats 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 480p, 60 Hz / 4K x 2K, 50, 60 Hz / 576p, 50 Hz / 720p, 50, 60 Hz


Dimensions

Set Width 1485.1
Set Height 860.10
Set Depth 86.2 mm (D@wall mount)/97.4 mm (D@speaker Cover)
Set Width (inch) 58.47
Set Height (inch) 33.86
Set Depth (inch) 3.39 (D@wall mount)/3.83 (D@speaker Cover)
Bezel width 1.50 mm(even)
Product weight (lb) 100.97
Product weight 45.8
Wall Mount 400 (H) x 400 (V) mm, M8
Smart Insert mount 6*M4*L6, 100 mm pitch, Max. Size 150 mm x 300 mm


Convenience

Placement Landscape, Landscape (18/7), Portrait (12/7)
Keyboard control Hidden, Lockable
Signal loop through RS232, IR Loop through
Network controllable RJ45/RS232
Energy-saving functions Smart Power
Screen-saving functions Pixel Shift, Low Bright
Ease of installation Smart Insert
DPMS power saving system Yes


Power

Standby power consumption <0.5 W
Mains power 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical) 190
Consumption (Max) 320 W


Operating conditions

Temperature range (operation) 0 ~ 40
Temperature range (storage) -20 ~ 60
Relative humidity 20~80% (operating), 5~95% (storage)
Altitude 0 ~ 3000 m
MTBF 50,000


Sound

Built-in speakers 2 x 20 W RMS


Accessories

Included Accessories Philips logo (x 1), Cleaning cloth (x 1), DVI-I Cable (1.8 m) (x 1), HDMI Cable (3 m) (x 1), IR sensor cable (1.8 m) (x 1), Power cable (x 3), RS232 Daisy chain cable (x 1), Touch Pen (x 2), USB A to B cable (3 m) (x 1), USB Cover (x 1), AAA batteries (x 1), Quick start guide (x 1), Remote control (x 1), RS232 cable (3 m) (x 1)


Multimedia Applications

USB Playback Audio AAC/M4A/MP3/WMA
USB Playback Picture BMP/JPEG/JPG/PNG
USB Playback Video ASF/AVI/DAT/FLV/MKV/MP4/MPEG/MPG/TS/VOB/WEBM/WMV


Miscellaneous

On-Screen Display Languages English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish
Regulatory approvals CE, RoHS, VCCI, CB, CU, EMF, EPA, ETL, FCC Class A
Warranty 3 year warranty


Internal Player

CPU MTK5680
Storage 32 GB eMMc
Wi-Fi AP(WC0SR2511-88112BU), STA(WCT5GM2511MT7668AU)
Micro SD Card Support to 1TB
RAM DDR4 4 GB


Multi-touch Interactivity

Touch points 10 simultaneous touch points
