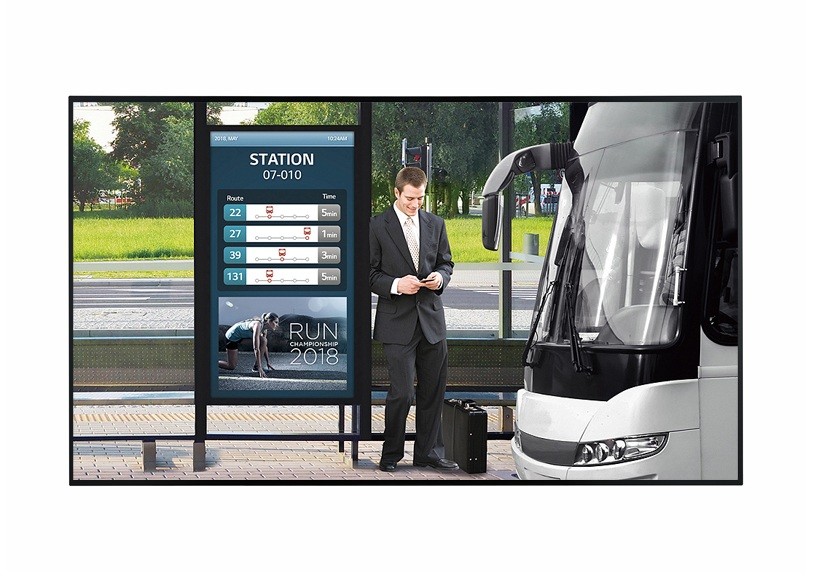

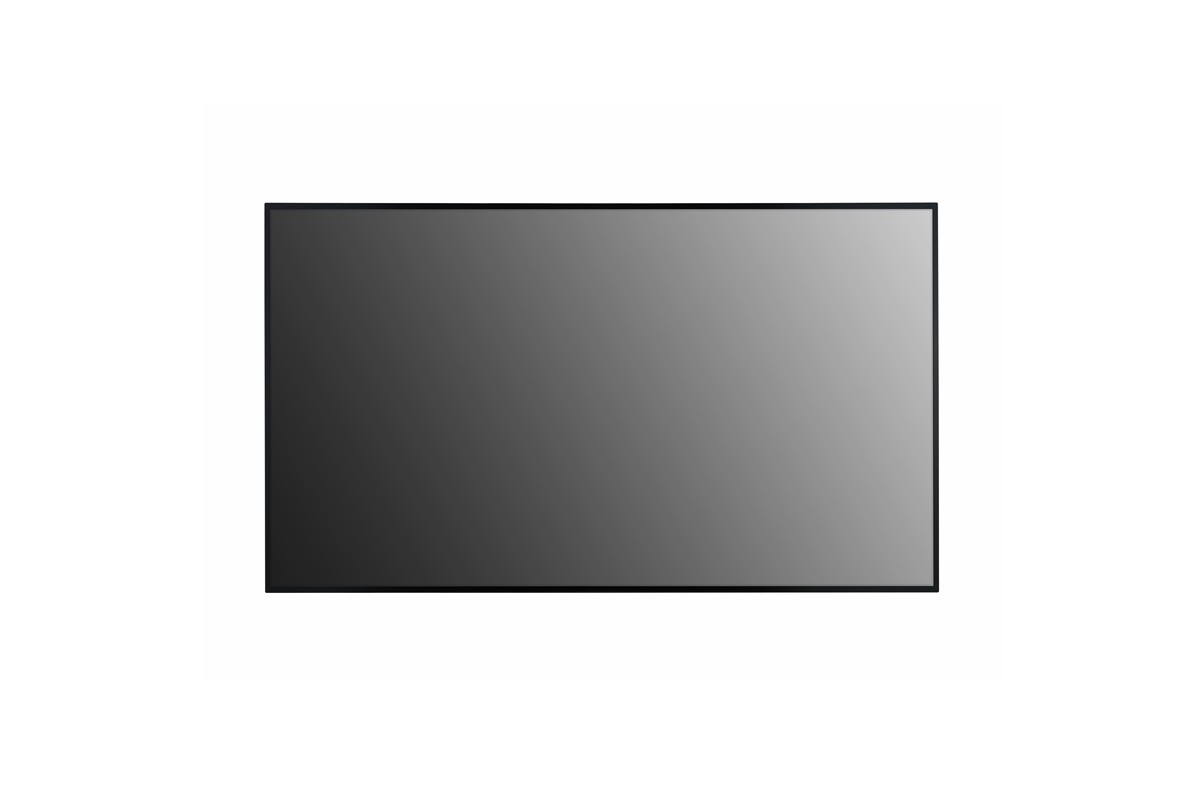

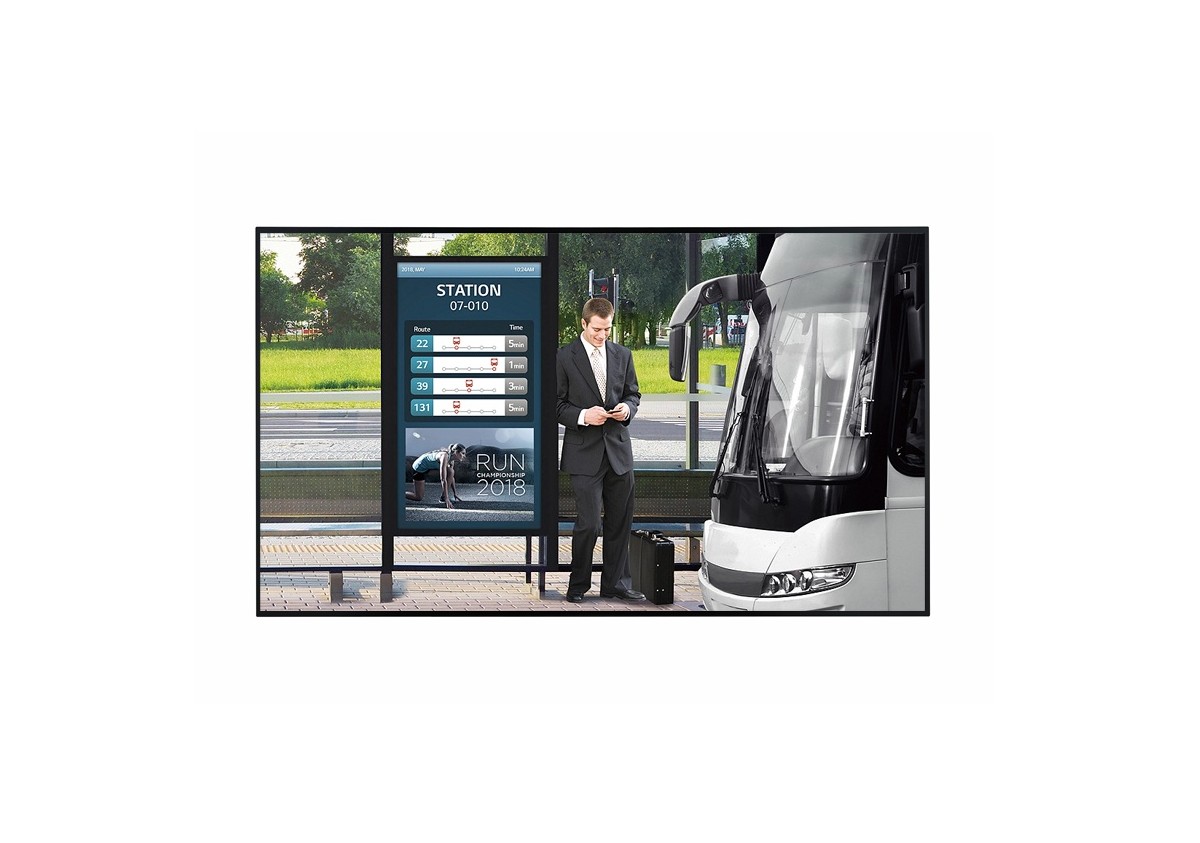

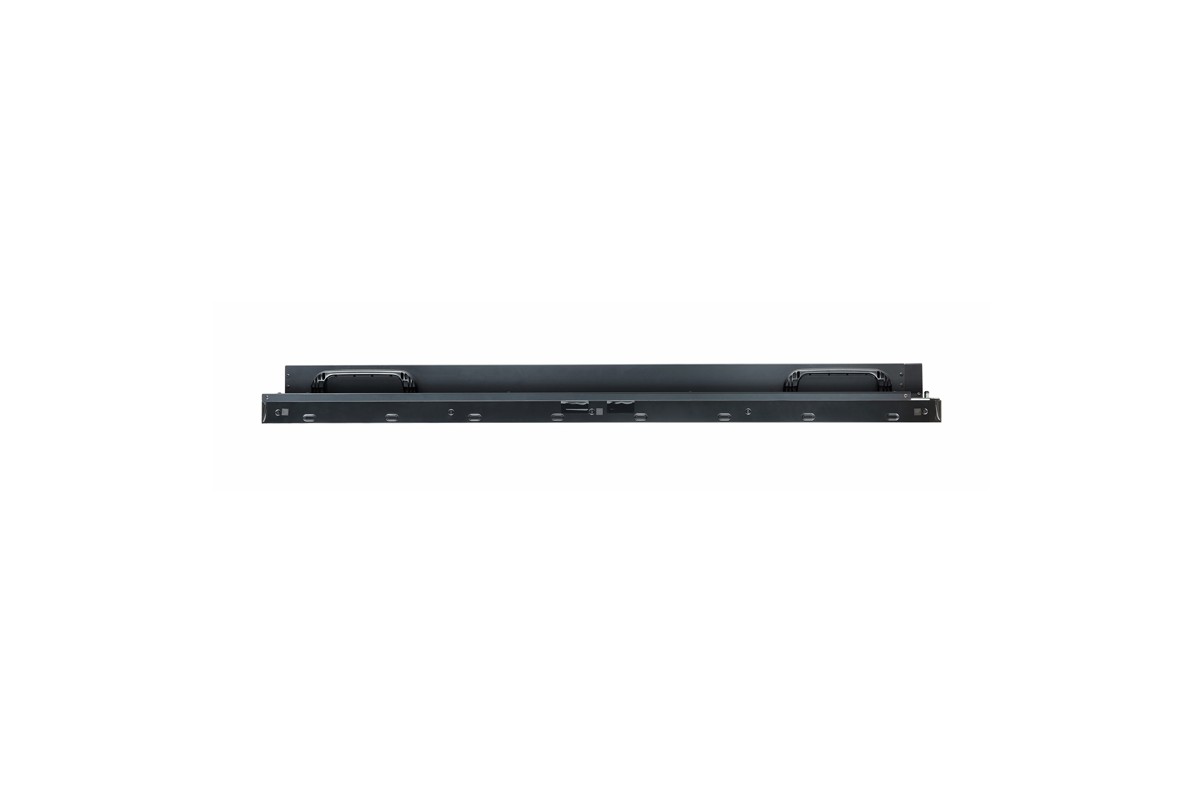

LG 49XF3E-B High Brightness Open-frame Display
Product code:With a great brightness of 3,000 cd/m², XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
Description
Panel
| Screen Size | 49" |
|---|---|
| Panel Technology | IPS, M+ (WRGB) |
| Aspect Ratio | 16 : 9 |
| Resolution | 1,920 x 1,080 (FHD) |
| Brightness (Typ., cd/m²) | 3000 |
| Contrast Ratio (Typ.) | 1,300 : 1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | AGLR (Haze 3%), QWP |
| Lifetime | 50,000 Hrs |
| Orientation | Landscape & Portrait |
| Hours of Operation | 24/7 |
| OS | Web OS |
Additional information
Physical Specification
| Bezel Width | 9 mm (T/B), 6.5 mm (L/R) |
|---|---|
| Monitor Dimension (W x H x D) | 1,092.7 x 626.4 x 105 mm |
| Weight (Head) | 21.5 kg |
| Carton Dimensions (W x H x D) | 1,195 x 196 x 760 mm |
| Packed Weight | 26.2 kg |
| VESA™ Standard Mount Interface | 600 x 400 mm |
Connectivity
| Input | HDMI (2), DP, DVI-D, Audio, USB |
|---|---|
| Output | DP, External Speaker |
| External Control | RS232C In/Out, RJ45 In, IR Receiver In |
Environment Conditions
| Operation Temperature | 0℃ to 50℃ |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 250 W / 290 W |
|---|---|
| Smart Energy Saving | 95 W |
Standard (Certification)
| Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
|---|---|
| EMC | FCC Class |
| ErP | Yes (EU Only) |
Software Compatibility
| Content Management Software | SuperSign CMS |
|---|---|
| Control and Monitoring Software | SuperSign Control+ / Control |
Accessory
| Basic | Remote Controller, Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG) |
|---|---|
| Optional | Wi-Fi Dongle (AN-WF500) |
