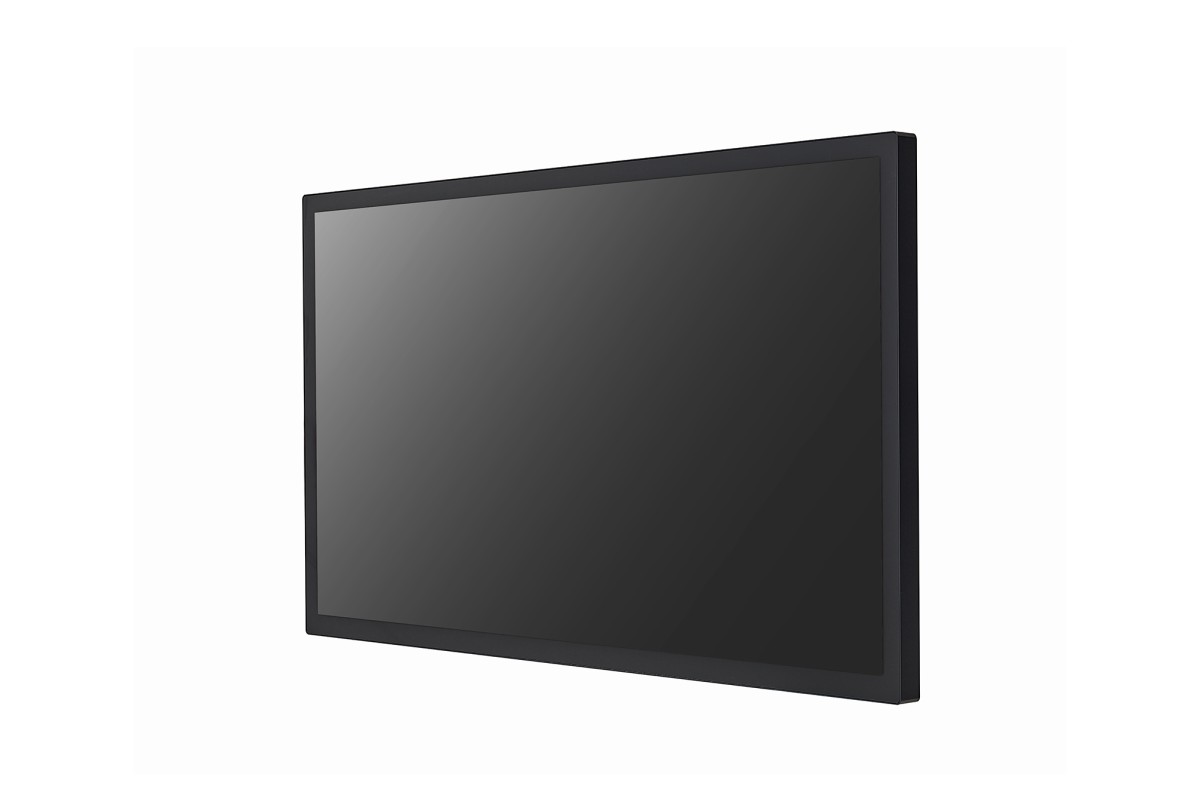

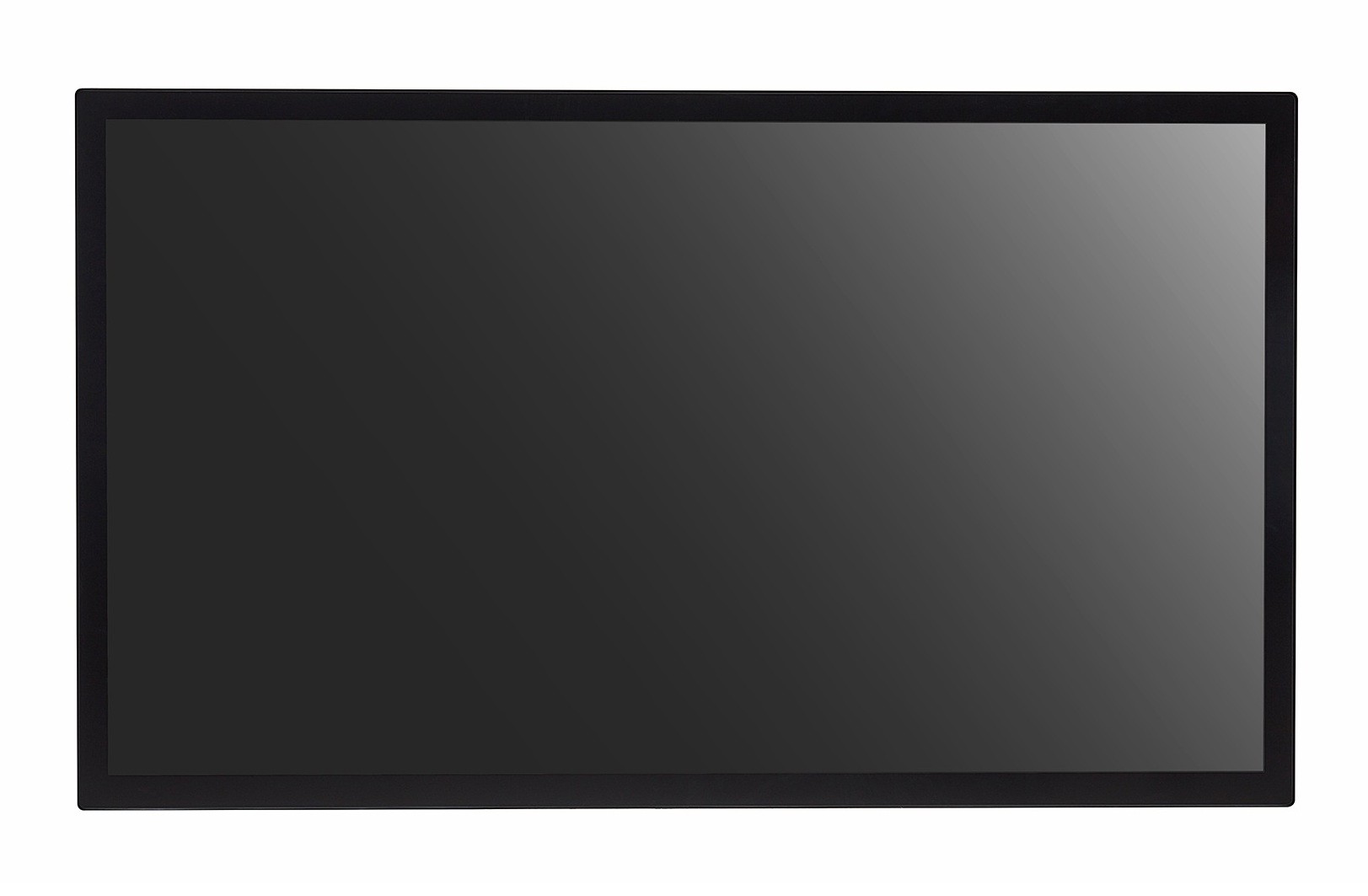

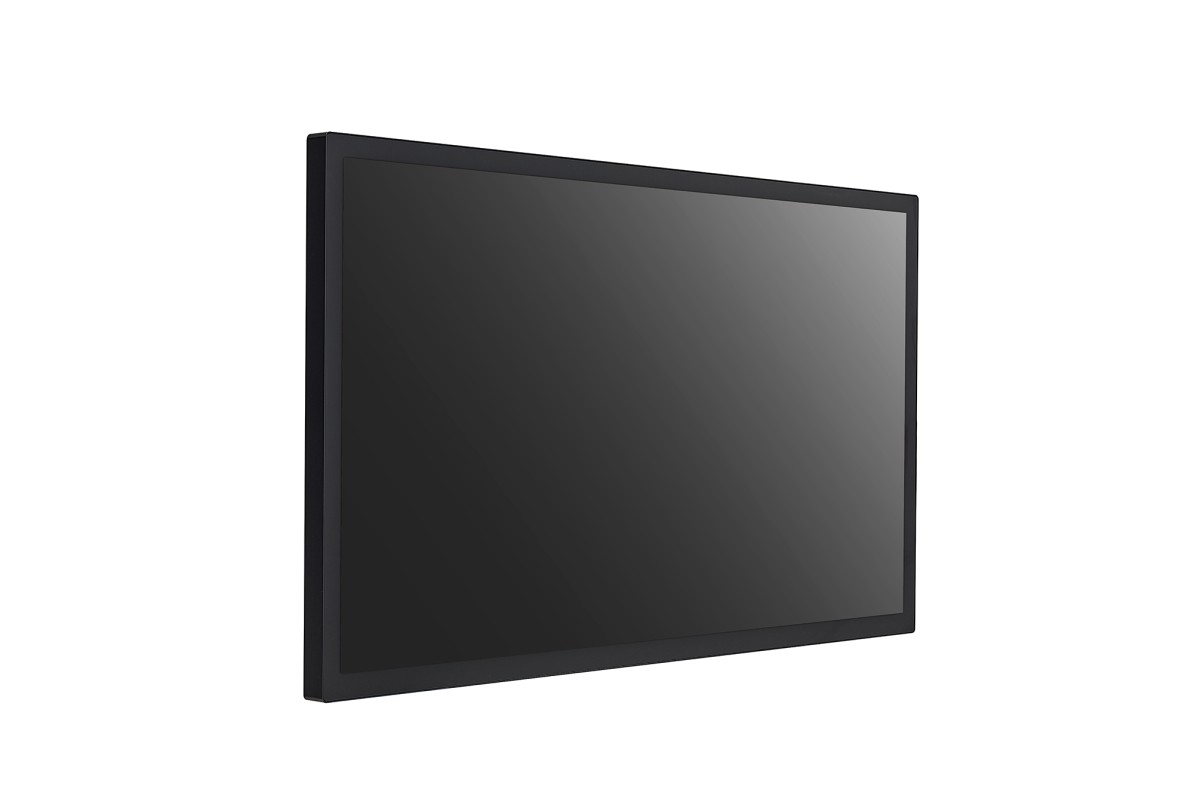

LG 55TC3CG-H Interactive Digital Board Built-in Touch Signage
Product code:The screen accurately recognizes extremely small touch points and instantly shows a response. This means that SIs can compose GUI icons in a variety of sizes on the 55TC3CG-H and users can fully enjoy their touch experience with no lagging.
Description
Panel
| Screen Size | 55" |
|---|---|
| Panel Technology | IPS |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 350nit (w Glass, typ), 280nit (w Glass min) |
| Contrast Ratio | 1,100:1 |
| Dynamic CR | 500,000:1 |
| Color gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 10bit, 1.07Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | Haze (28%) |
| Operation Hours (Hours / Days) | 24 / 7 |
| Portrait / Landscape | Yes / Yes |
| OS | webOS 4.1 |
Additional information
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | 33.5 / 33.4 / 33.4 / 38 mm |
| Weight (Head) | 34.5 Kg |
| Packed Weight | 39.8 Kg |
| Monitor Dimensions (W × H × D) | 1,276.4 x 751.9 x 44.9 mm |
| Carton Dimensions (W × H × D) | 1,410 x 880 x 207 mm (Box outer size) |
| VESA™ Standard Mount Interface | 300 x 300 |
Key Feature (Hardware)
| Internal Memory | 8GB (System 4GB + Available 3.6GB) |
|---|---|
| Sensor | Temperature Sensor, Auto Brightness sensor |
| Local Key Operation | Yes |
Key Feature (Software)
| webOS ver. | webOS 4.1 |
|---|---|
| Embedded CMS | Local Contents Scheduling, Group Manager |
| USB Plug & Play, Fail over | Yes |
| Multi-screen | PIP, PBP |
| Background Image | Booting Logo Image, No Signal Image |
| Sync Mode | RS-232C Sync, Local Network Sync |
| Video Tag, Play via URL | Yes |
| Rotation | Screen Rotation, External Input Rotation |
| Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager | Yes |
| 3rd Party Compatibility | Crestron Inside |
| Power | Smart Energy Saving, PM mode, Wake on LAN |
| HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom | Yes |

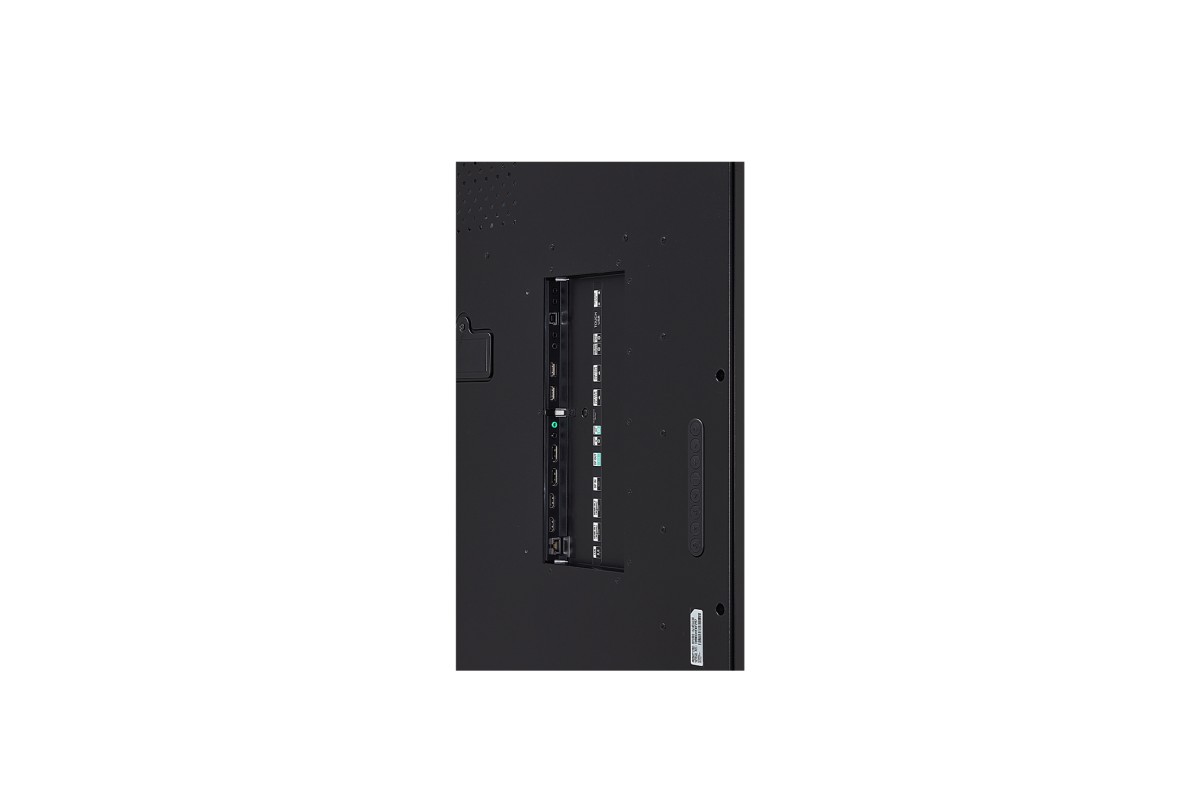

Connectivity
| Input | HDMI (2, HDCP 2.2/1.4), DP (1, HDCP2.2/1.3), RS-232C In, RJ45 (LAN), IR In, USB2.0 Type A (2) |
|---|---|
| Output | DP Out (1, Input HDMI1/2/DP/OPS), Audio Out, Externel Speaker Out (6 ohm), Touch USB (USB 2.0 Type B), RS-232C Out |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10% to 80% |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ. | 105 W |
|---|---|
| Max. | 145 W |
| Smart Energy Saving | 74 W |
| DPM | 0.5 W↓ |
| Power off | 0.5 W↓ |
| BTU (British Thermal Unit) | 358 BTU/Hr (Typ.), 495 BTU/Hr (Max.) |
Standard (Certification)
| Safety | NRTL |
|---|---|
| EMC | FCC Class "A" |
| ErP | EPA 8.0 |
OPS Compatibility
| OPS Type Compatible | Yes (Piggyback) |
|---|
Software Compatibility
| SuperSign CMS | Yes |
|---|---|
| SuperSign Control / Control+ | Yes |
| LG ConnectedCare | Yes |
Accessory
| Basic | Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, HDMI Cable 3 M*1, User Manual, QSG, Remote Controller (include battery 2ea), RS232C cable (Phone jack), IR Receiver , Magnet Sheet (3ea) |
|---|---|
| Optional | Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF), SP-5200 |
Touch
| Available Object Size for Touch | Ø6mm ↑ |
|---|---|
| Reponse Time (Based on 'Paint' app on Windows 10 PC) | Scan time :10 ms |
| Accuracy | 2 mm±0.2 mm |
| Interface | USB 2.0 |
| Protection Glass Thickness | 3.2 T (Anti-Glare) |
| Protection Glass Transmission | 83% |
| Operating System Support | Win 8.1 / 10, Linux (Kernel v3.0 above) |
| Multi Touch Point | Max. 40 Points |
