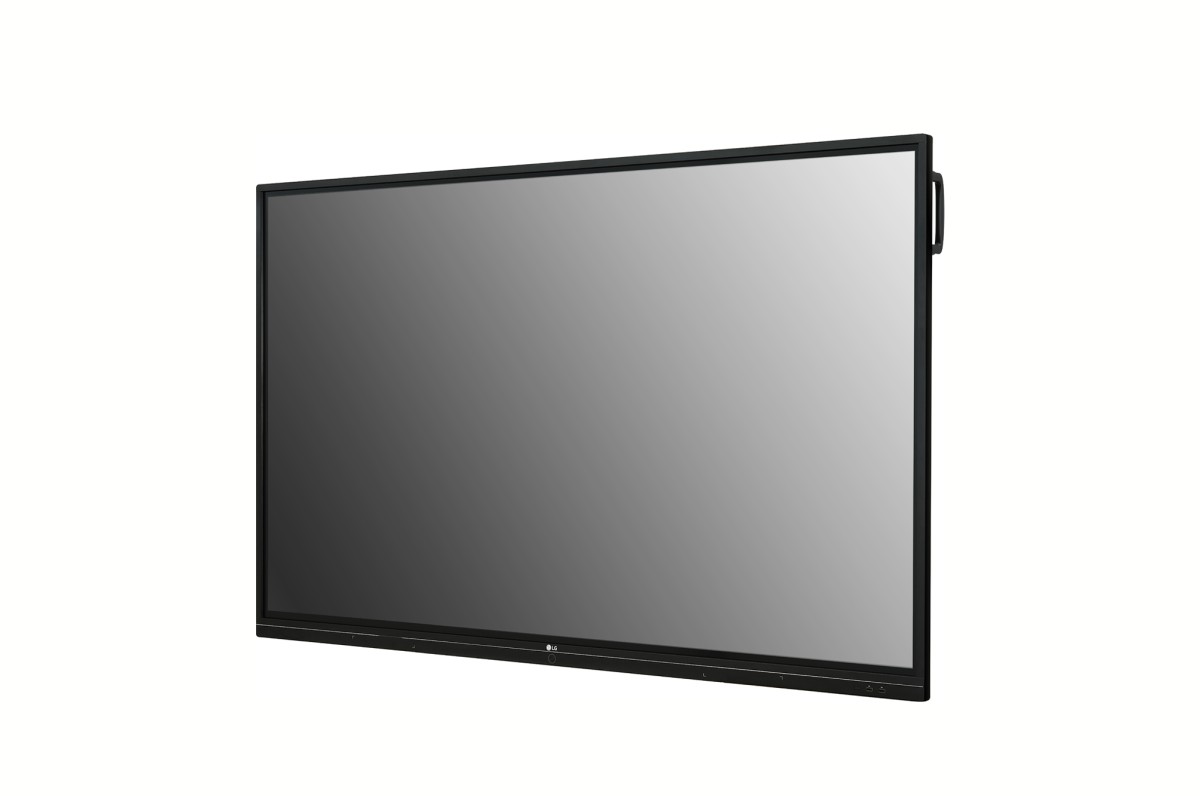

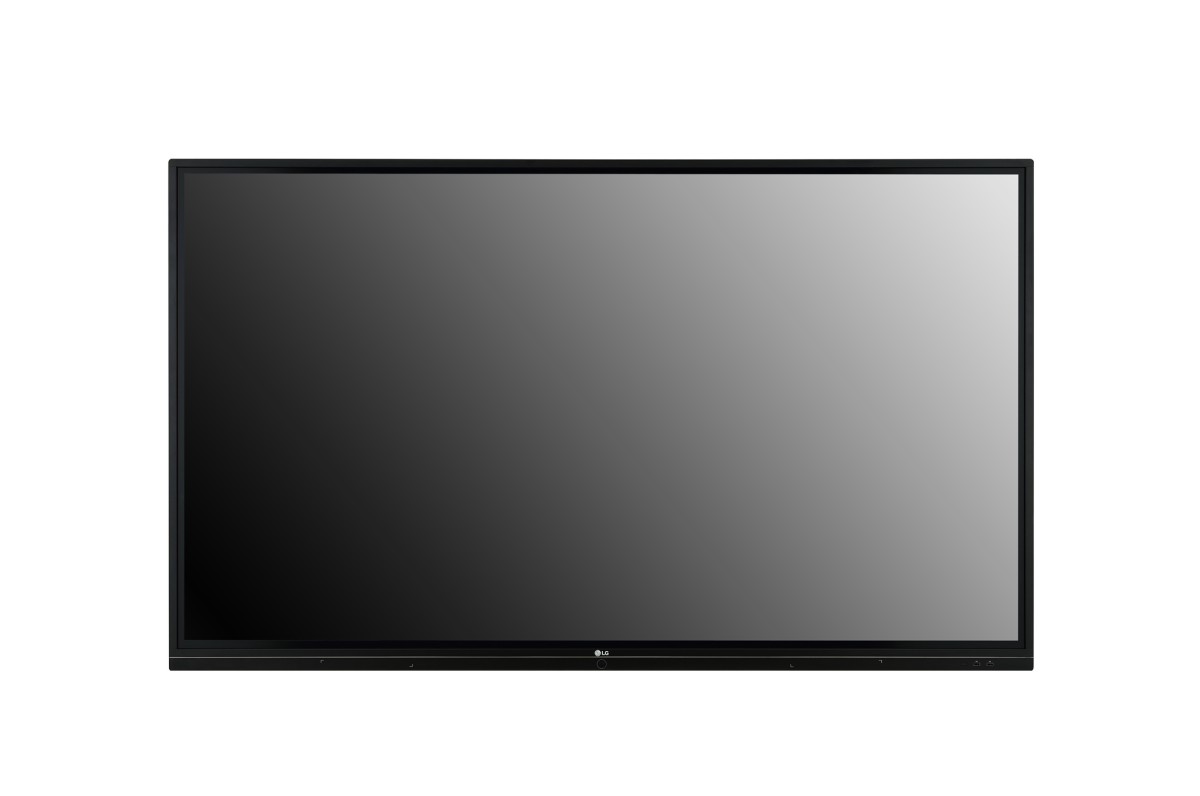

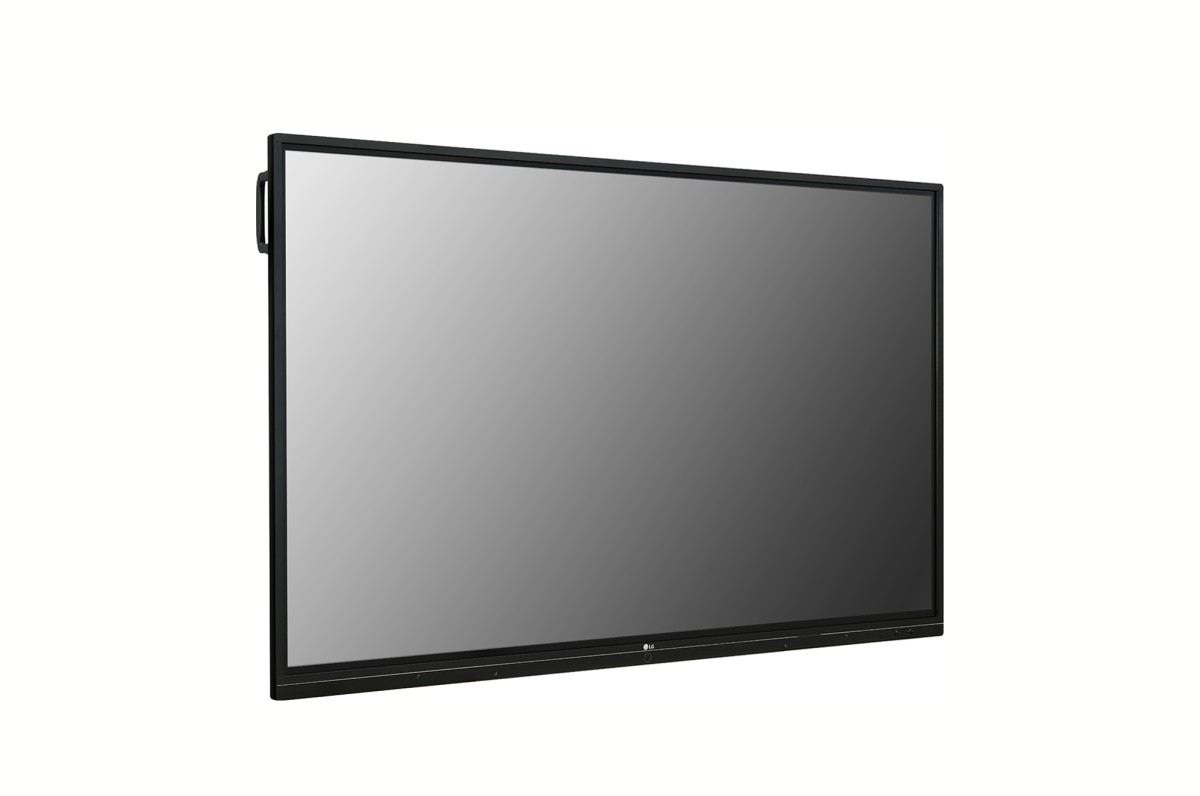

LG 55TR3BG-BX Interactive Digital Board Createboard

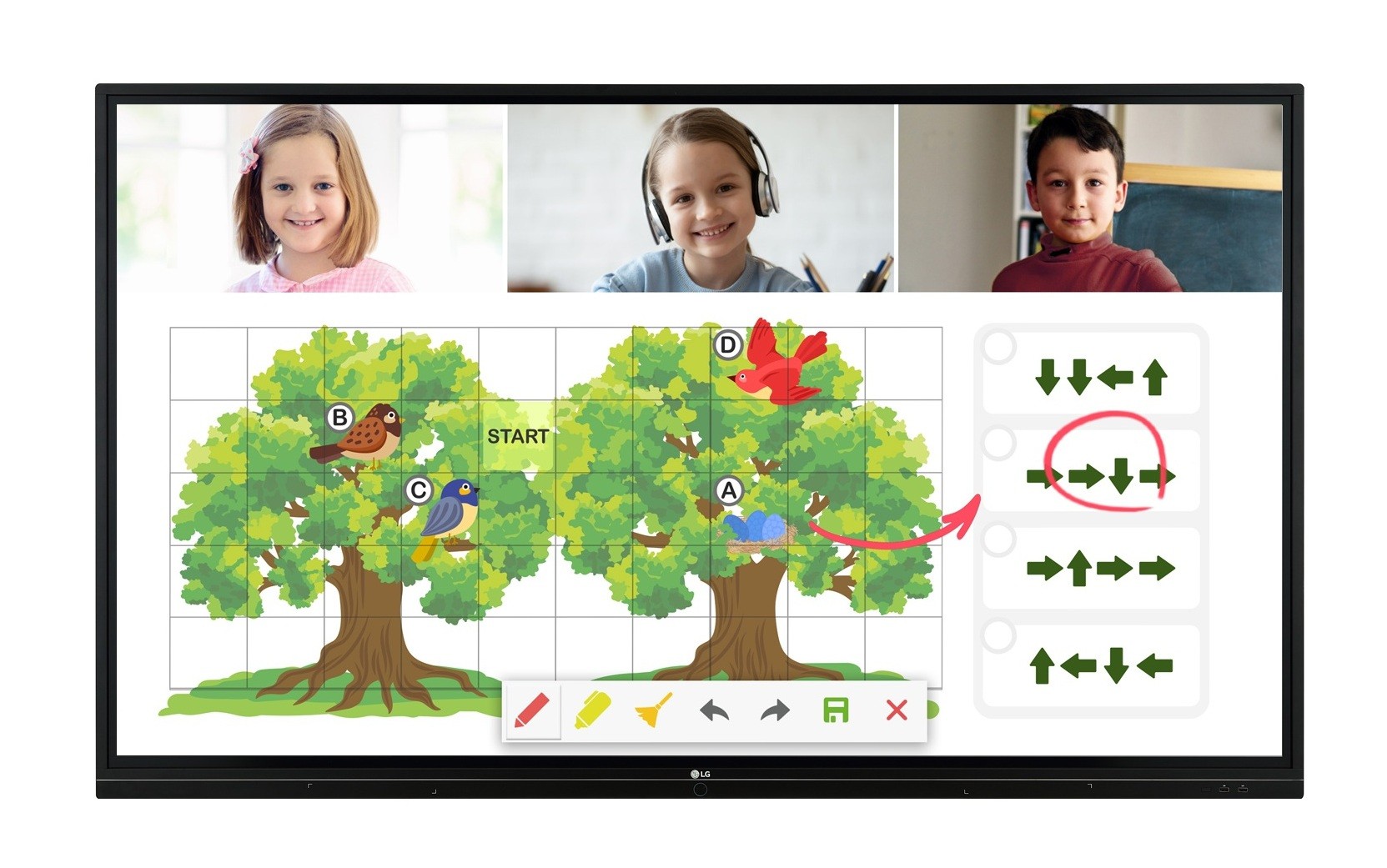

Product code:The TR3BG series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board writing experience and makes collaboration much easier.
Description
Panel
| Screen Size | 55" |
|---|---|
| Panel Technology | IPS |
| Back Light Type | Direct |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Refresh Rate | 60Hz |
| Brightness | w/o Glass : 411 nit (Max.), 311 nit (Typ.) w/ Glass : 380 nit (Max.), 280 nit (Typ.) |
| Contrast Ratio | 1,200:1 |
| Color gamut | NTSC 68% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 10bit, 1.07Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | Anti Glare, 7H (Mohs) |
| Life Time (Min.) | 30,000 Hrs |
| Operation Hours (Hours / Days) | 16 / 7 |
| Portrait / Landscape | No / Yes |
| OS | Android 8.0 |
Additional information
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width(Off Bezel) | 18.9 / 18.9 / 18.9 / 45.7 mm |
| Weight (Head) | 27 Kg |
| Packed Weight | 45.7 Kg |
| Monitor Dimensions (W × H × D) | 1,271 x 774 x 84 mm |
| Carton Dimensions (W × H × D) | 1,450 x 1,015 x 225 mm (Box outer size) |

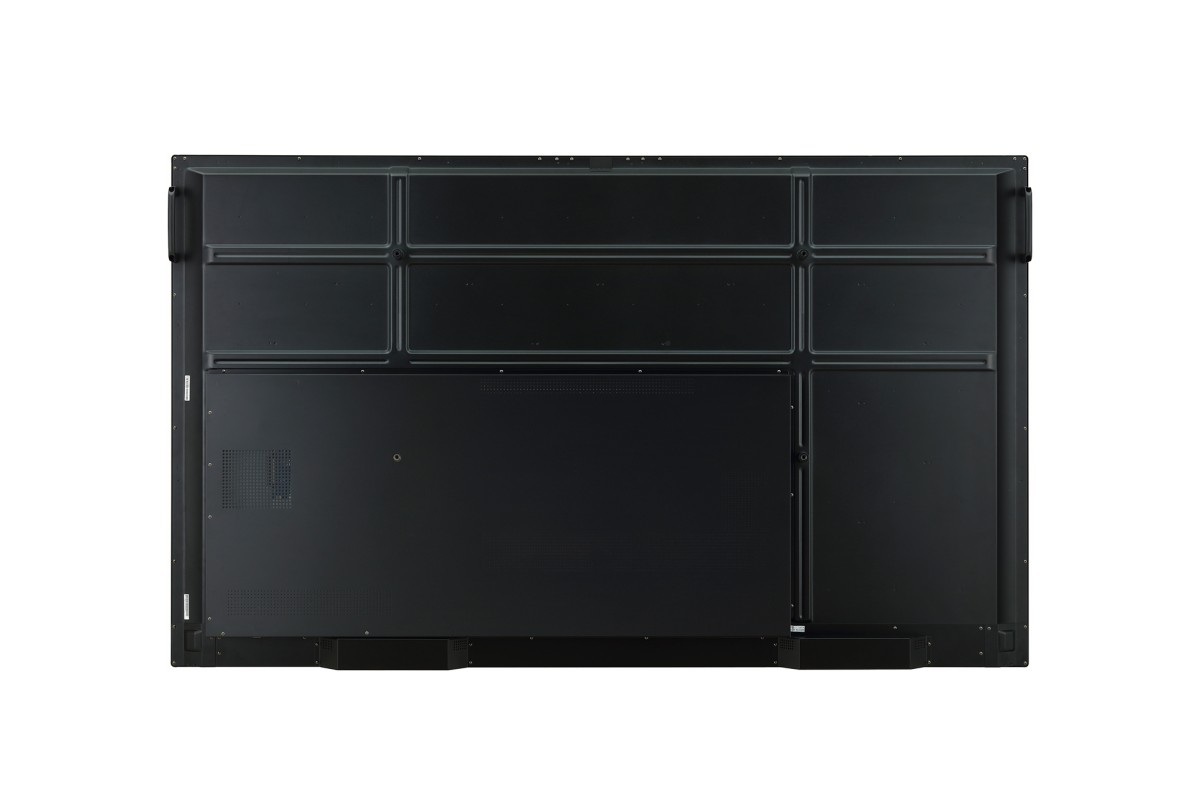

| VESA™ Standard Mount Interface | 400 x 200 |
Key Feature (Hardware)
| Internal Memory | 16GB |
|---|---|
| Wi-Fi | Built-in (Slot type) |
| Local Key Operation, Power Indicator | Yes |
Key Feature (Software)
| webOS ver. | Android 8.0 |
|---|---|
| Screen Share | Yes (Screenshare pro) |

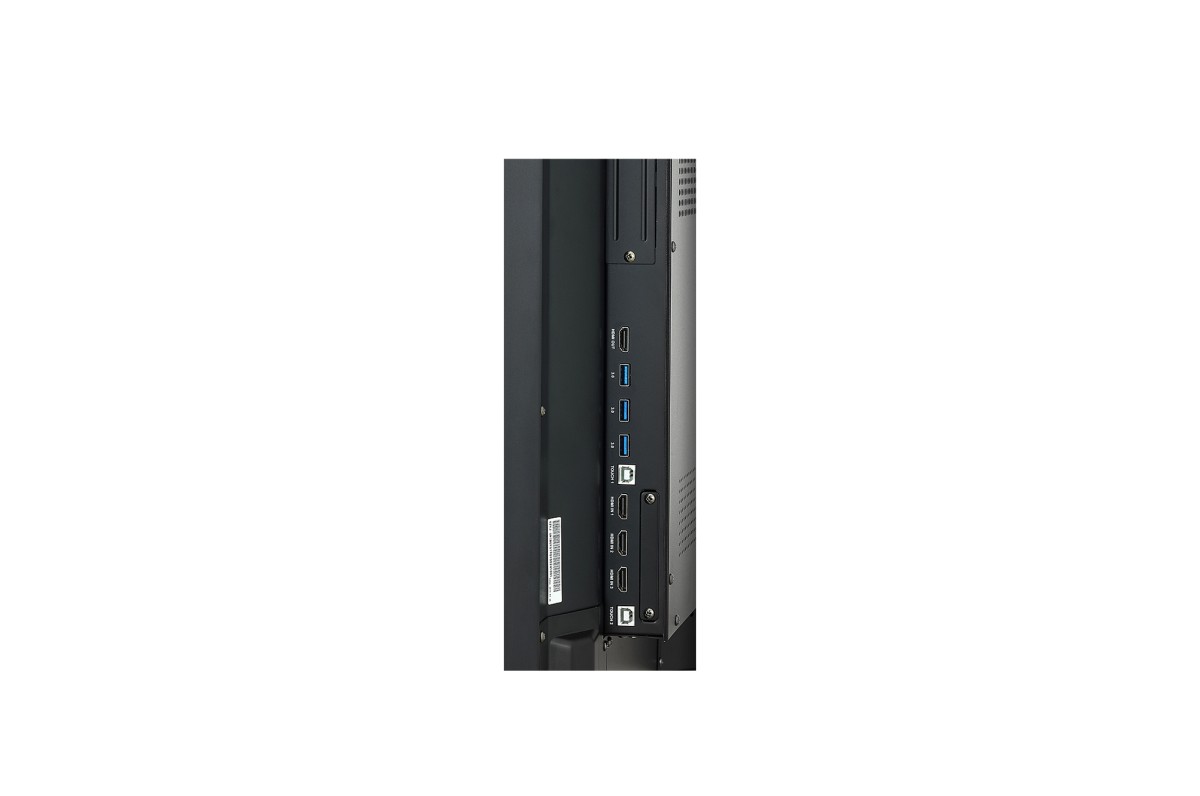

Connectivity
| Input | HDMI (3), HDCP2.2/1.4, RGB, Audio In, RS232C In, RJ45(LAN), USB3.0 Type A (3), USB2.0 Type A (3) |
|---|---|
| Output | HDMI Out (1), Audio Out / Optical Output, Touch USB (2) |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ. | 125 W |
|---|---|
| Max. | 259 W |
| DPM | 0.5 W ↓ |
| Power off | 0.5 W ↓ |
| BTU (British Thermal Unit) | 427 BTU/Hr (Typ.), 884 BTU/Hr (Max.) |
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE |
| ErP | Yes |
OPS Compatibility
| OPS Type Compatible | Yes (Slot) |
|---|---|
| OPS Power Built In | Yes |
Sound
| Speaker | Yes |
|---|
Language
| OSD | English, Simplified Chineses, Catalan, Czech, Denmark, Arabic (Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands (Dutch), Norwegian, Polski, Portugues (Europe), Portugues (Brazil) Romanian, Russian, Spanish, Swedish, Turkish, Ukrainian, Traditional Chinese, Hungarian |
|---|
Accessory

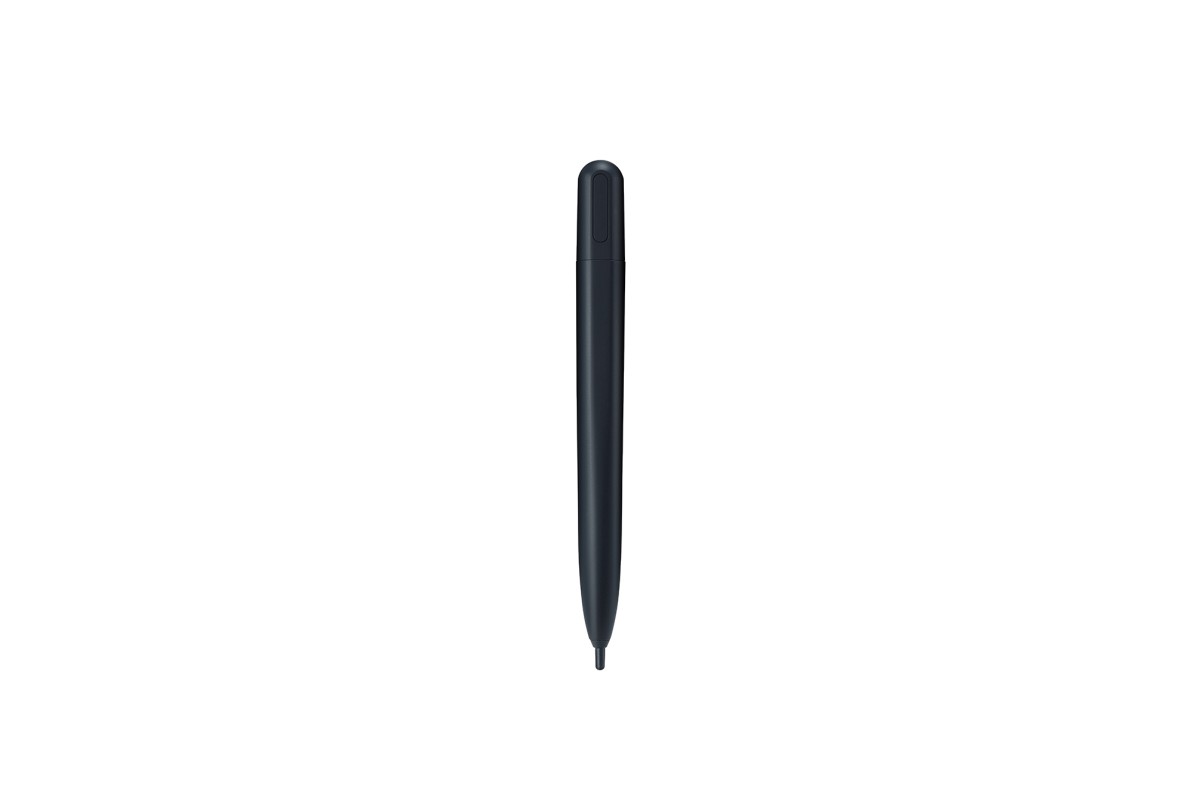

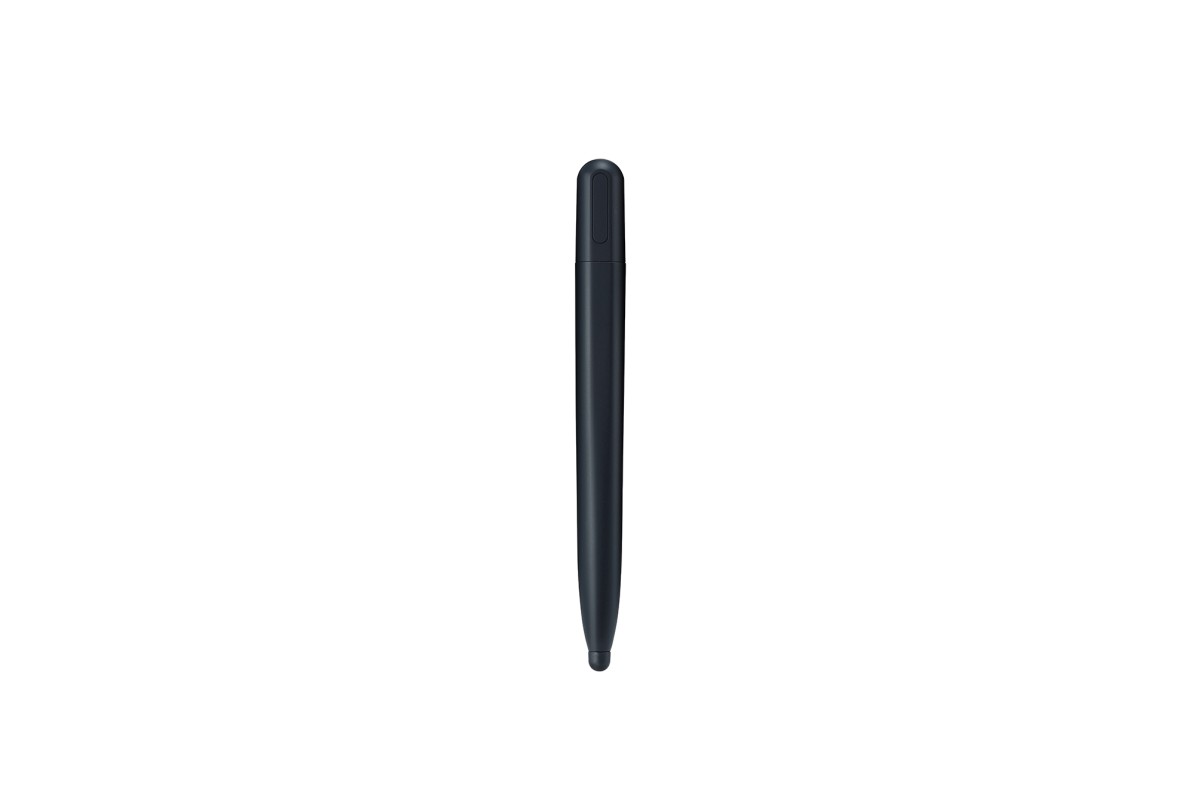

| Basic | Power Cord 3m x 1, USB Cable (Type A-Type B) 5m x 1, HDMI Cable 3m x 1, Writing Pen (2pcs), User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module |
|---|
Touch
| Available Object Size for Touch | Ø3 mm ↑ |
|---|---|
| Reponse Time (Based on 'Paint' app on Windows 10 PC) | 60ms ↓ (Android) / 100ms ↓ (Windows) |
| Accuracy | ±1.5 mm |
| Interface | USB 2.0 |
| Protection Glass Thickness | 3T (Anti-Glare) |
| Protection Glass Transmission | 87 % |
| Operating System Support | Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch) |
| Multi Touch Point | Max. 20 Points |
Android System
| SoC | Dual core A73 + Dual core A53 |
|---|---|
| GPU | Dual Core Mail G51 |
| Internal Memory | Storage : 16GB RAM : 3GB |
| Wi-Fi | 802.11a/b/g/n/ac |
| LAN | Gigabit LAN |
| Bluetooth | Bluetooth 4.0 |
