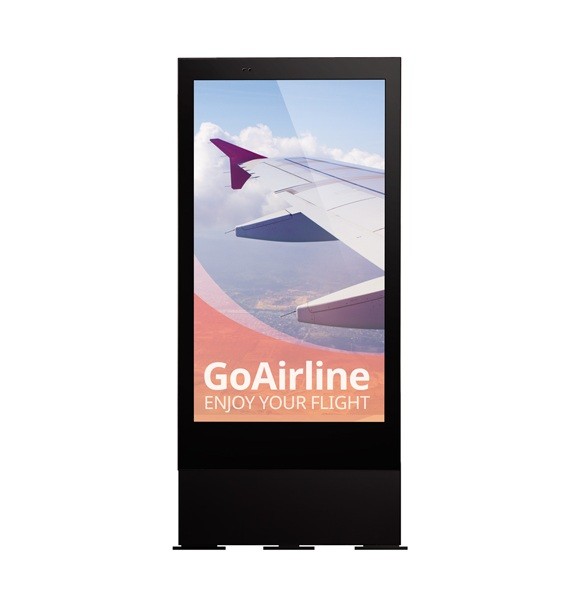

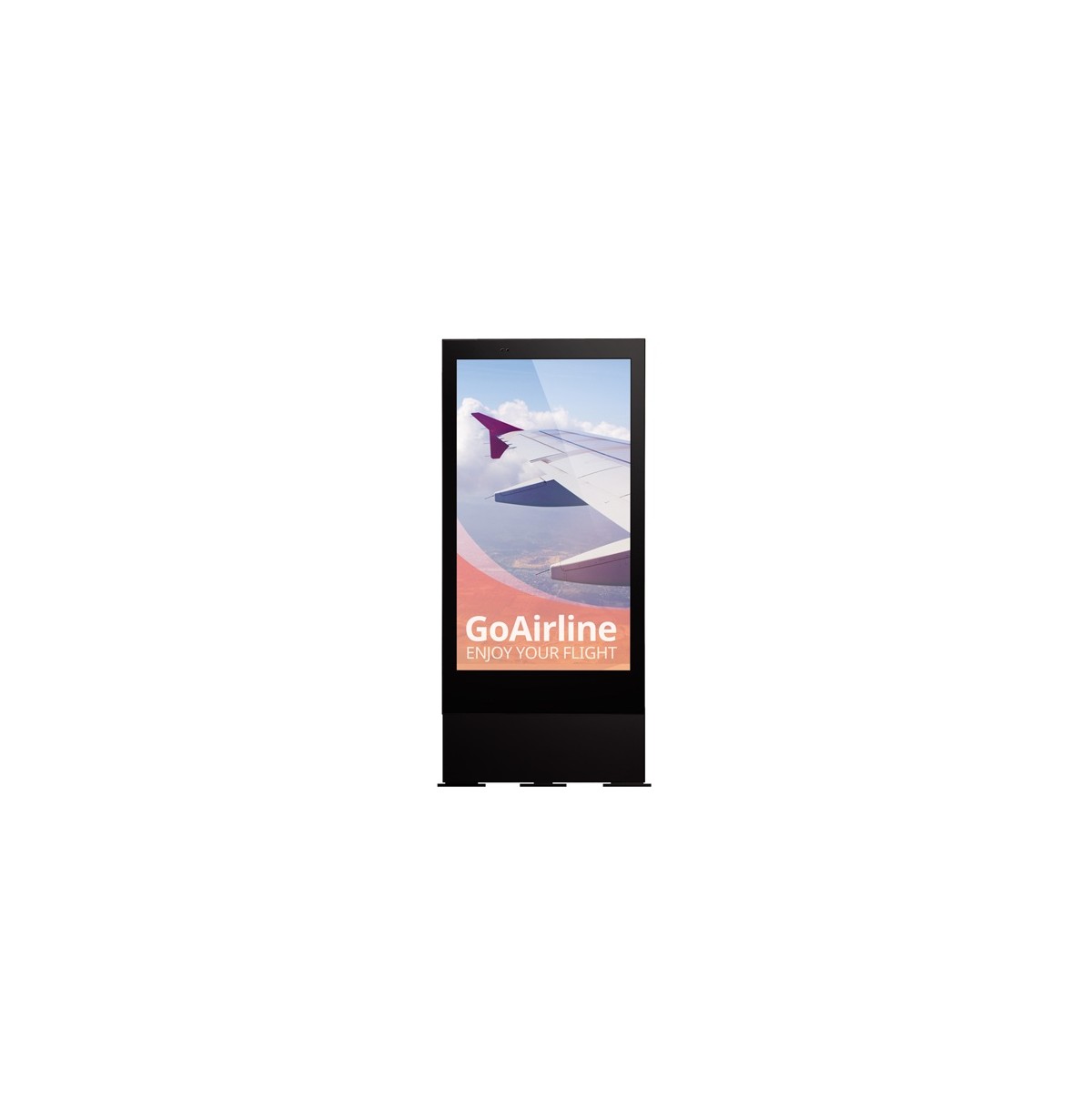

LG 75XE3C High Brightness Outdoor Display

Product code: 75XE3C

Screen brightness is automatically adjusted according to the surrounding illumination level. The brightness is increased in light for better visibility, while it is lowered in darkness to reduce power consumption.




Screen Size  75" Class
Panel Technology
Aspect Ratio16 : 9
Resolution3,840 x 2,160 (UHD), M+ (WRGB)
Brightness (Typ., with Protective Glass, cd/m²)  3000
Viewing Angle (H x V)178 x 178
Response Time8 ms (G to G BW, Typ.)
Surface TreatmentAGLR(Haze 3%), QWP
QWP PolarizerYes
Life time50,000 Hrs
OrientationPortrait only
Hours of Operation24/7

Additional information

Physical Specification

Front glass9.5 mm (AR, Tempered & Laminated Glass)
Bezel ColourBlack
Bezel Width  110mm(T), 230mm(B), 73.3mm(L/R)
Monitor Dimension (W x H x D)  1,075.6 x 1,991.6 x 218.9 mm
Weight (Head)  180 kg


Input  HDMI, DP, DVI-D, Audio In, USB 3.0, SD Card
Output  DP, External Speaker (*waterproof speakers are mandatory for outdoor installation)
External Control  RS232C In/out, RJ45 In

Environment Conditions

Operation Temperature  -30 °C to 50 °C
Operation Humidity  5 % to 100 %


Power Supply  100-240V~, 50/60Hz
Power Type  Built-In Power

Power Consumption

Typ./Max.  700 W / 1000 W
Smart Energy Saving  350 W

Standard (Certification)

Safety  UL / cUL / CB
EMC  FCC Class "A" / CE / KC
ErP  Yes (EU Only)

Media Player Compatibility

OPS type compatible  No
External Media player Attachable  Yes (Available space for media player installation inside the product)

Software Compatibility

Content Management Software  SuperSign CMS
Control and Monitoring Software  SuperSign C


Basic  Remote Controller, Manual, QSG, Regulation Book, Phone to RS232C Gender, USB cable, HDMI cable
Optional  Enclosure Stand (ST-750X)
