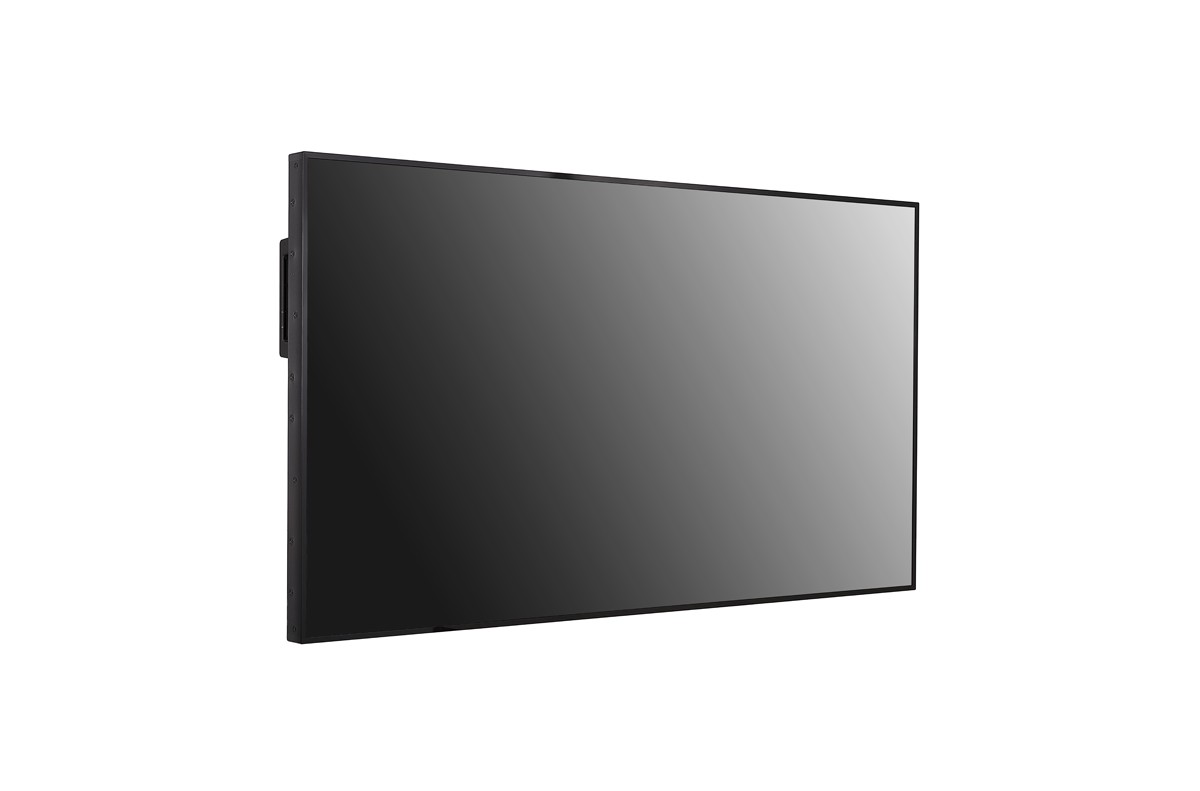

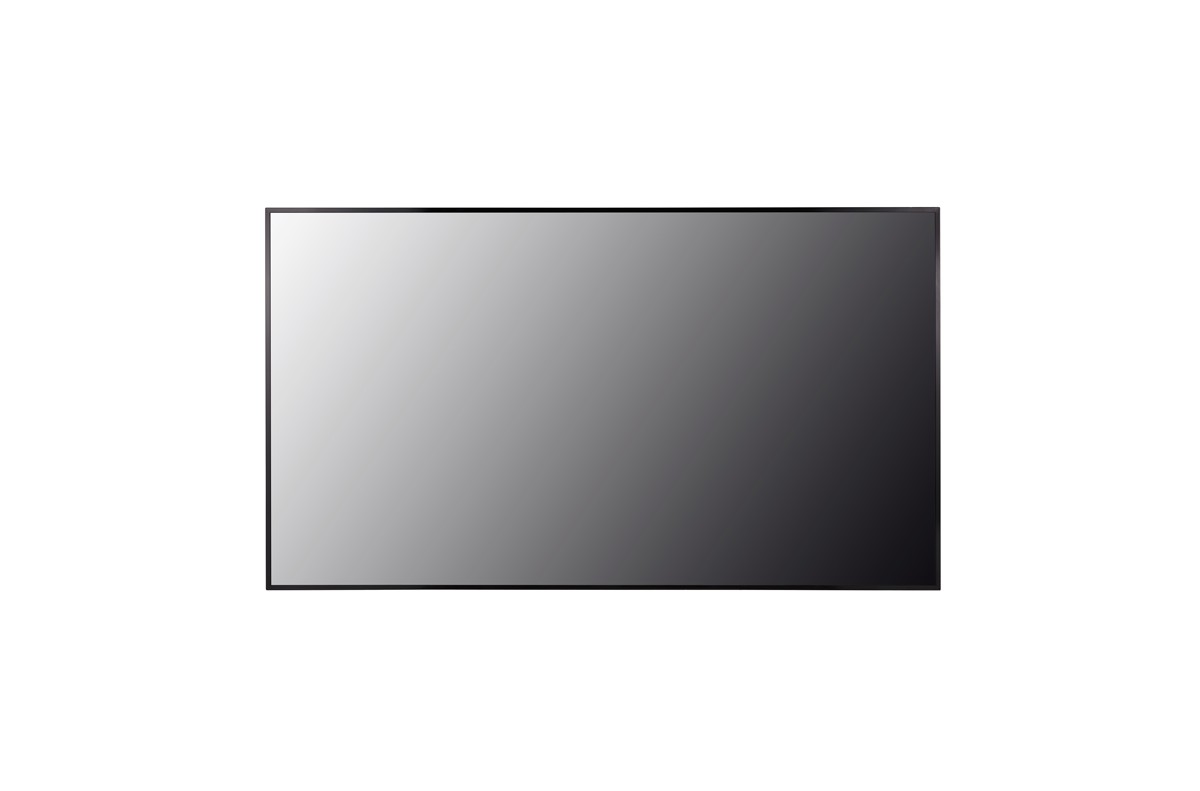

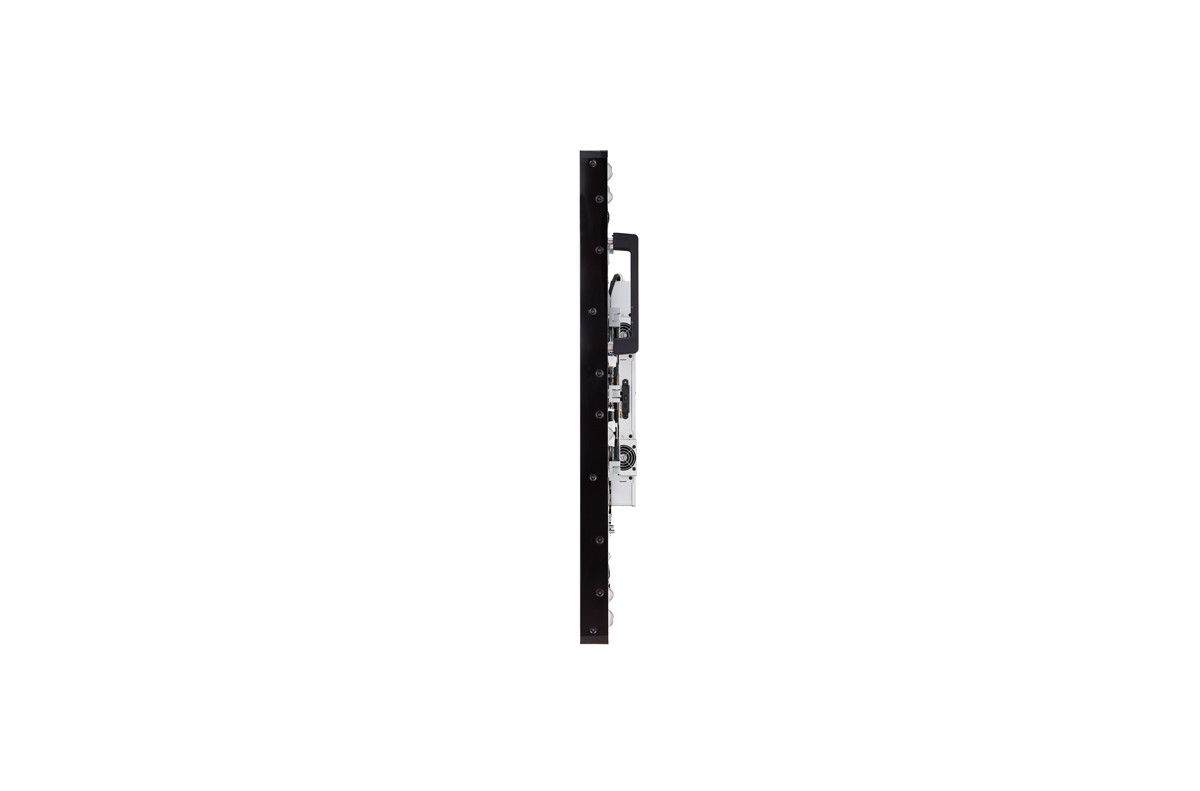

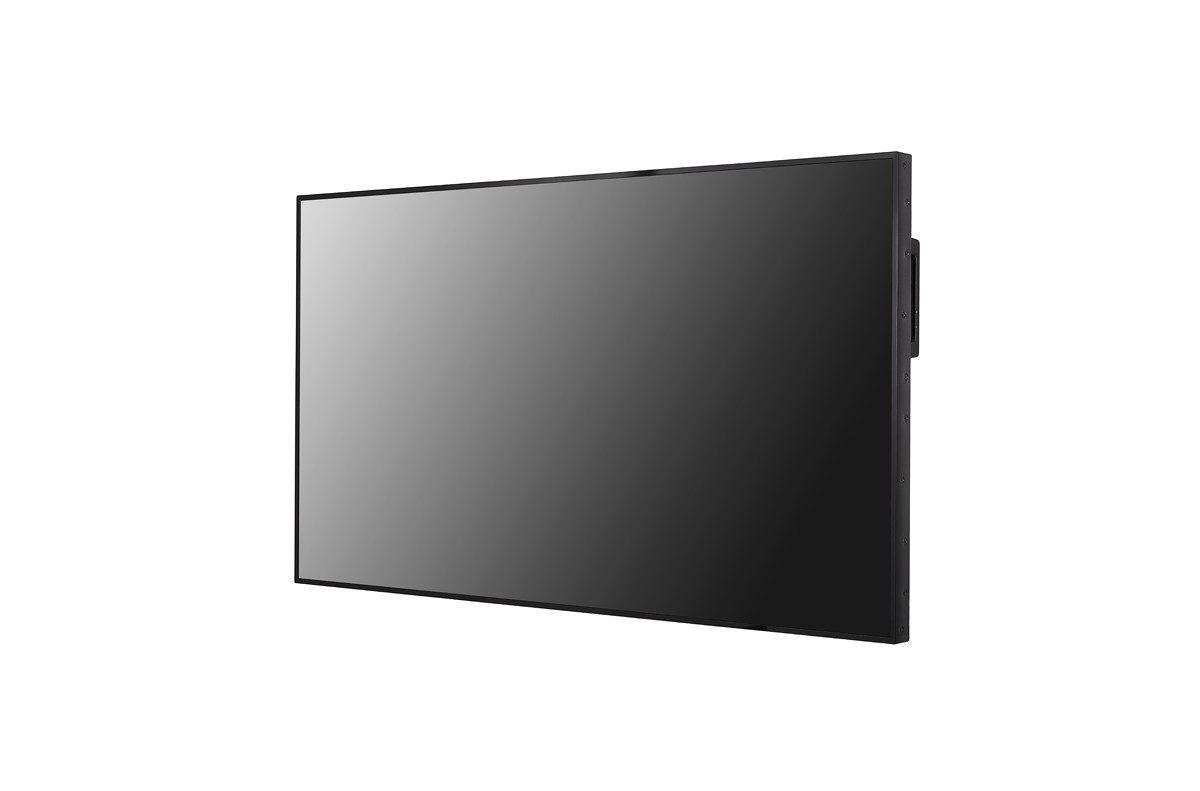

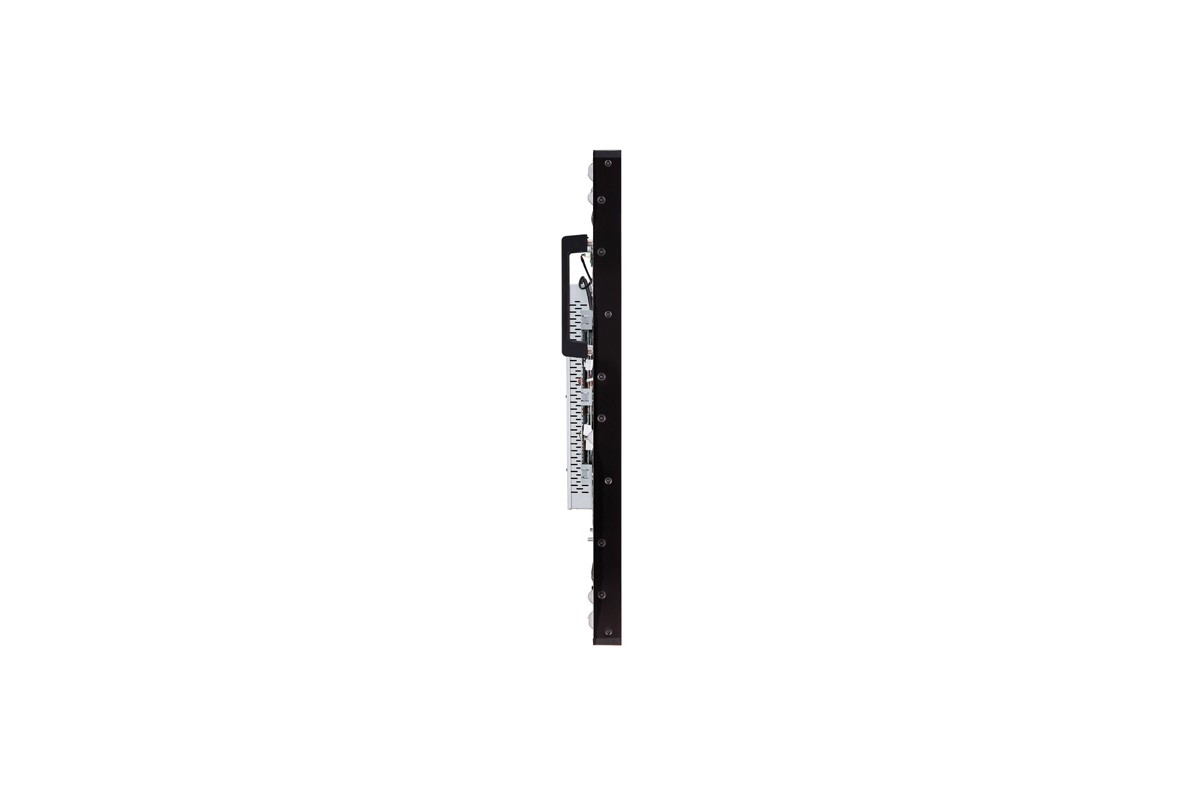

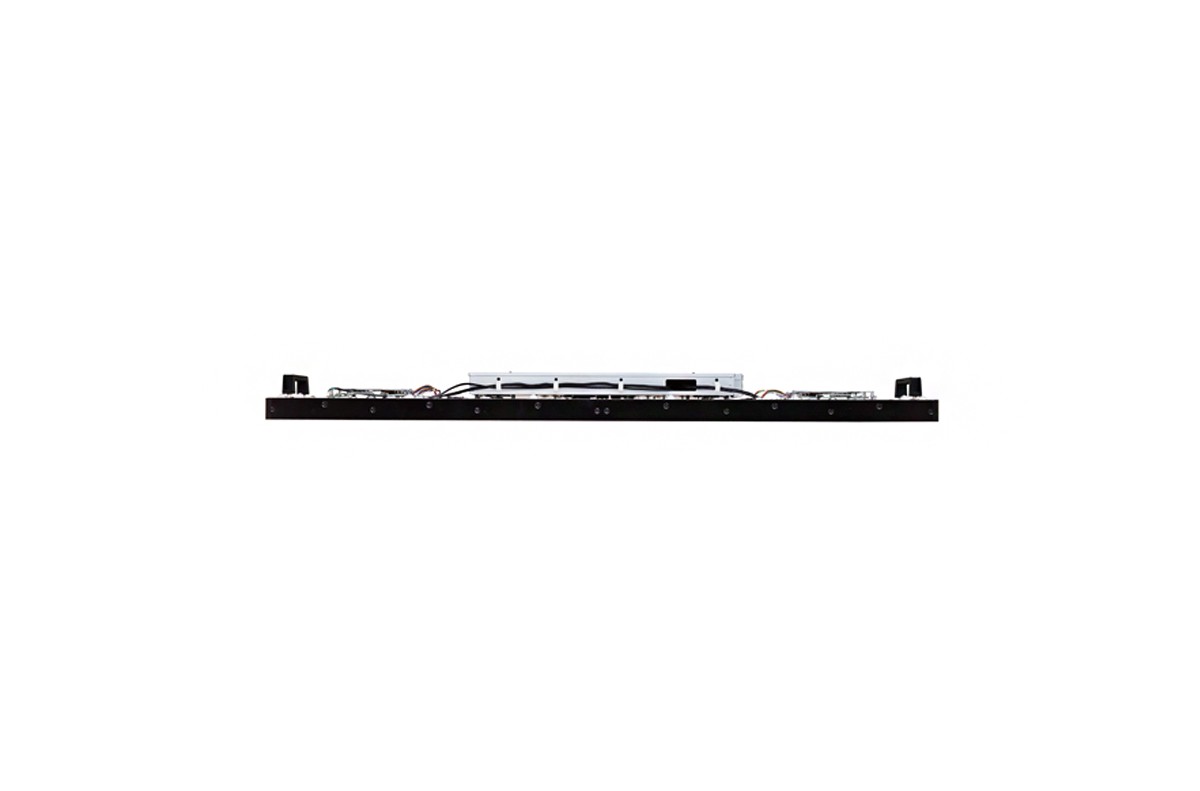

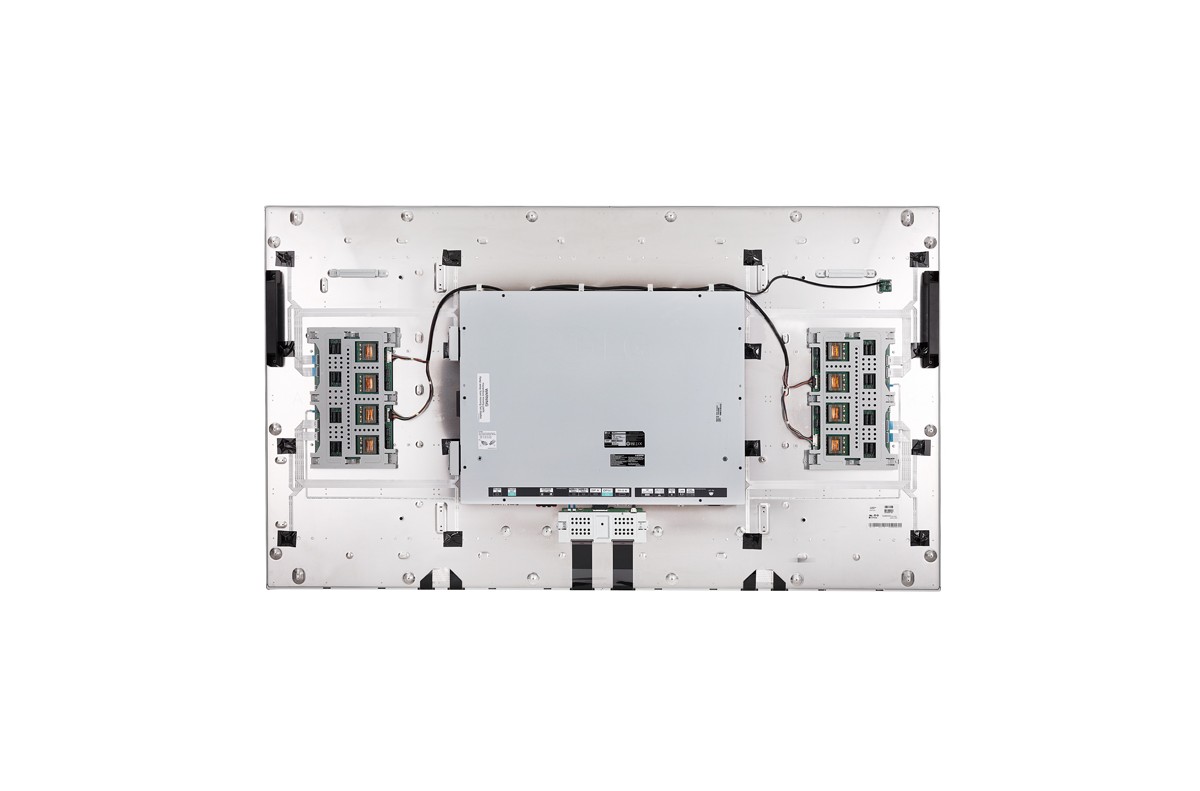

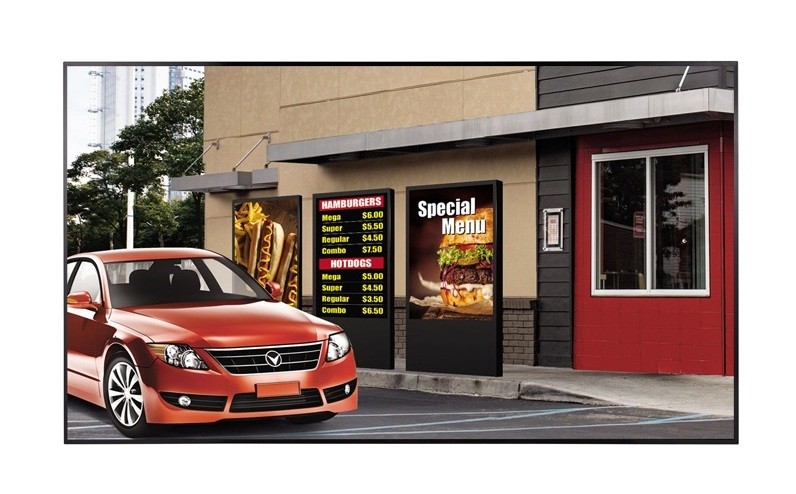

LG 75XF3C-B High Brightness Open-frame Display

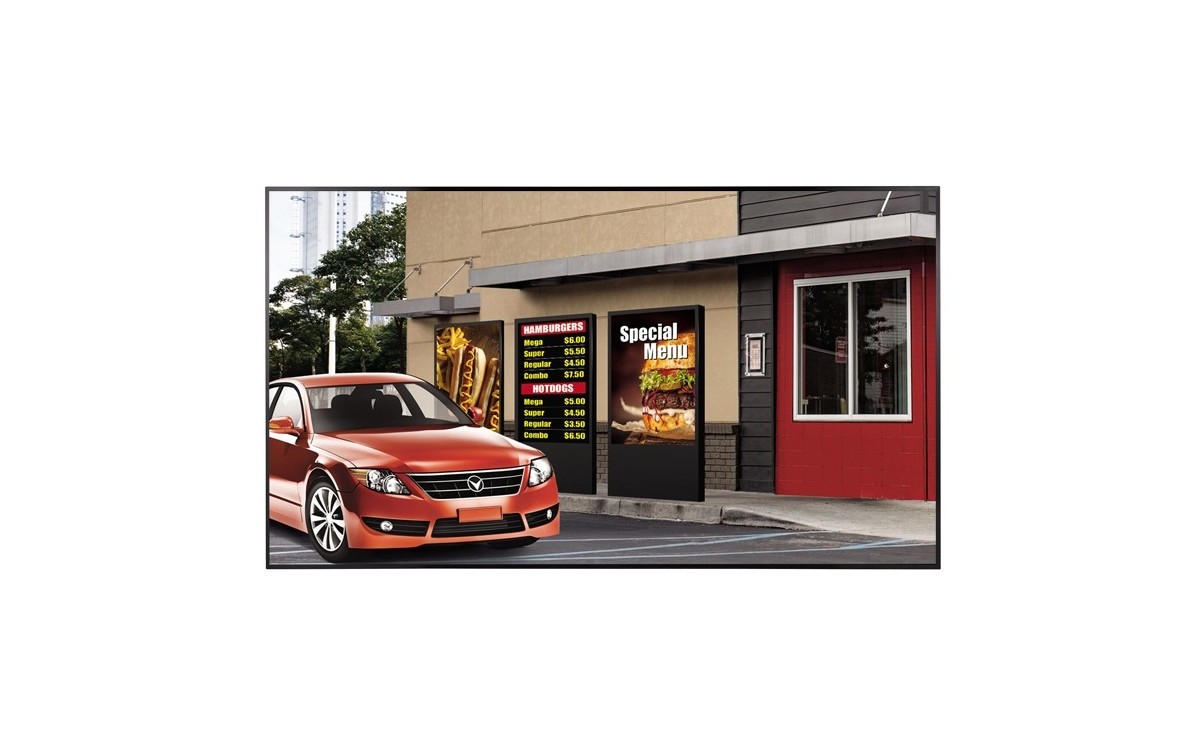

Product code:With a great brightness of 3,000 cd/m², XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
Description
Panel
| Screen Size | 75" |
|---|---|
| Resolution | 3,840 x 2,160 (UHD) |
| Brightness (Typ., cd/m²) | 3000 |
| Orientation | Landscape & Portrait |
| Hours of Operation | 24/7 |
| OS | Web OS |
Additional information
Physical Specification
| Bezel Width | 12.8 mm(Even bezel) |
|---|---|
| Monitor Dimension (W x H x D) | 1,675.2 x 953.6 x 123.9 mm |
| Weight (Head) | 36.7 kg |
| VESA | 600 x 400 mm |
Connectivity
| Input | HDMI(2), DP, DVI-D, Audio, USB, SD Card |
|---|---|
| Output | DP, External Speaker Out (L/R) |
| External Control | RS232C In/Out, RJ45 In, IR Receiver In |
Environment Conditions
| Operation Temperature | 0°C to 50°C (w/o Direct Sunlight or with Cooling Systems in Direct Sunlight) |
|---|---|
| Operation Humidity | 10% to 85% |
Power
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 660W / 695W |
|---|---|
| Smart Energy Saving | 320W |
Standard (Certification)
| Safety | UL recognized / CB |
|---|---|
| EMC | FCC Class |
| ErP | Yes (EU Only) |
Software Compatibility
| Content Management Software | SuperSign CMS |
|---|---|
| Control and Monitoring Software | SuperSign Control+ / Control |
Accessory
| Basic | Remote Controller, Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG) |
|---|---|
| Optional | Wi-Fi Dongle (AN-WF500) |
