LG 75XS2E High Brightness Window Facing Display
Product code:With a great brightness of 2,500 cd/m², XS series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.
Description
Panel
| Screen Size | 75" (74.52" Measured Diagonal) |
|---|---|
| Resolution | 3,840 x 2,160 (UHD) |
| Brightness (Typ., cd/m²) | 2500 |
| Panel Technology | IPS, M+ (WRGB) |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H × V) | 178 × 178 |
| Surface Treatment | AGLR (Haze 3%), QWP |
| Lifetime (Typ.) | 50,000 Hrs |
| Orientation | Landscape & Portrait |
| Hours of Operation | 24/7 |
| OS | Web OS |
Additional information
Physical Specification
| Bezel Width | 11.8 mm (Even) |
|---|---|
| Monitor Dimension (W x H x D) | 1,675.2 x 953.6 x 116 mm |
| Weight (Head) | 43 kg |
| Packed Weight | 52.2 kg |
| VESA™ Standard Mount Interface | 600 x 400 mm |
Connectivity

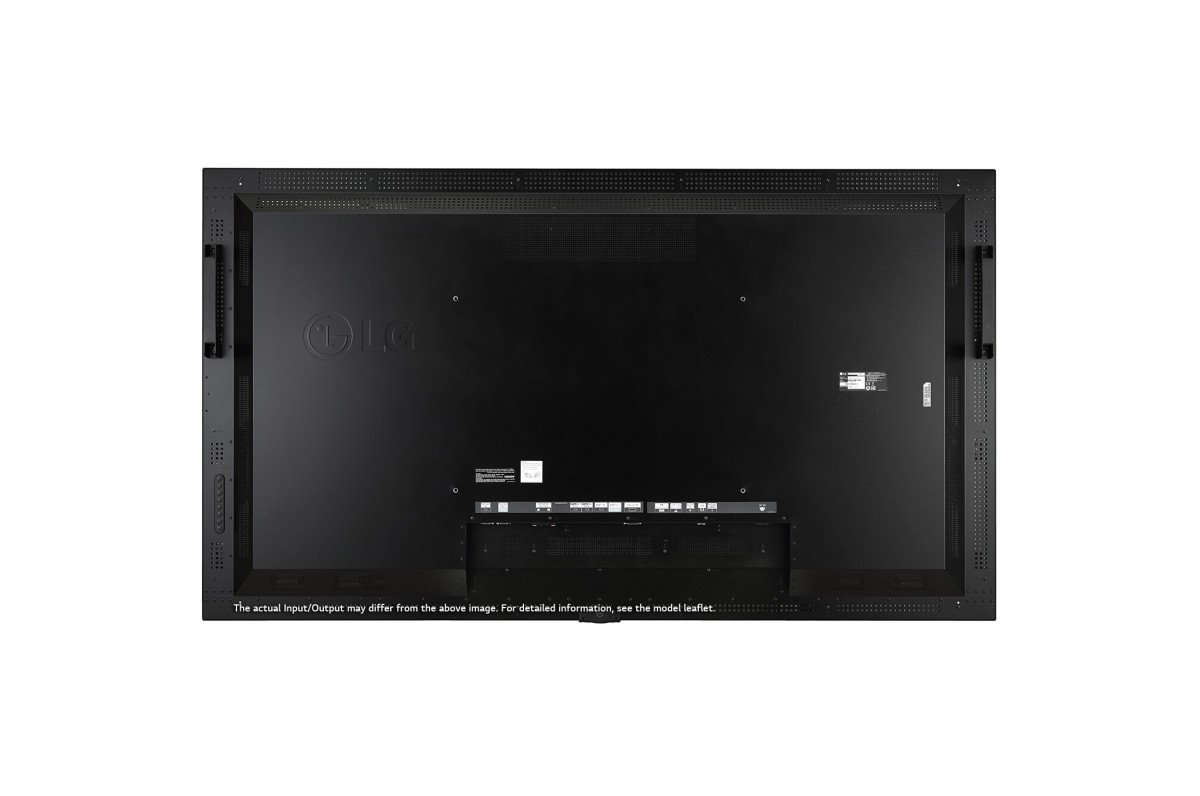

| Input | HDMI(2), DP, DVI-D, Audio, USB, SD Card |
|---|---|
| Output | DP, External Speaker (L/R) |
| External Control | RS232C In/Out, RJ45 In, IR Receiver In |
Environment Conditions
| Operation Temperature | 0°C to 40°C |
|---|---|
| Operation Humidity | 10% to 85% |
Power
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 585 W / 600 W |
|---|
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC / VCCI |
| ErP | Yes (EU Only) |
Software Compatibility
| Content Management Software | SuperSign CMS |
|---|---|
| Control and Monitoring Software | SuperSign Control / Control+ |
Accessory
| Basic | Remote Controller, Power Cord, HDMI Cable, Manual (ESG/EIG), IR Receiver (w/ Ambient Light Sensor) |
|---|---|
| Optional | Wall Mount (LSW630), Wi-Fi Dongle (AN-WF500) |
